4 sub-categoriesStandard 0–10V & 1-10V Dimming Architecture
0-10V or 1-10V lighting control system is one of the most reliable analog dimming solutions for commercial and residential lighting. It typically consists of:
In most systems, the control signal (0–10V) is sent from a wall-mounted controller—commonly seen in products from brands like Skydance, BinColor, and LeyNew—using touch panels or rotary dimmers to adjust brightness. The driver or controller then converts this signal into output for the lighting load, allowing smooth and continuous dimming of the entire lighting circuit.
Smart Upgrade: Ltech 0–10V & 1-10V Lighting Control Solutions
Beyond traditional wired controls, Ltech introduces wireless flexibility and intelligent automation to the classic 0-10V system.
Multi-Way Smart Control
- RF Remote: Wireless dimming from a distance.
- Bluetooth 5.0: Advanced SIG Mesh networking.
- App Control: L-Home & NFC Lighting App.
- Hybrid Mode: Connects with touch panels or physical switches.
Advanced Automation
Integrate with professional sensors for hands-free energy saving:
Perfect for high-end residential and modern commercial projects.
0/1-10V Dimmer
LTECH 0/1-10V Dimmers & Professional Lighting Control Interfaces
LTECH 0/1-10V dimmers are designed for architectural, commercial, hospitality, and high-end residential lighting systems that use the widely adopted 0-10V or 1-10V analog dimming standard.
Rather than focusing only on basic wall dimmers, LTECH develops a broader range of control interfaces, wireless dimming devices, signal converters, and smart control modules that allow traditional 0-10V lighting systems to work with modern RF, Bluetooth 5.0 SIG Mesh, DALI, DMX, and intelligent lighting-control technologies.
Depending on the model, LTECH products support 0/1-10V output, 10V PWM, Push DIM, RF wireless control, Bluetooth Mesh, and protocol conversion, providing a practical way to build new 0-10V lighting systems or upgrade existing installations without replacing the complete lighting infrastructure.
A typical installation can be as simple as:
- LTECH 0/1-10V Dimmer → 0/1-10V Dimmable AC-DC CV Driver → LED Strip Lighting
- LTECH 0/1-10V Dimmer → 0/1-10V Dimmable CC Driver → CC Lighting Fixtures
- LTECH 0/1-10V Dimmer → 0/1-10V DC Controller → LED Strip Lighting
- LTECH RF Wall Panel / Remote → RF-to-0/1-10V Signal Converter → 0/1-10V Dimmable Driver(s) → LED Lighting
- LTECH Bluetooth Mesh / Smart Control → Multi-Protocol Module with 0/1-10V Output → 0/1-10V Dimmable Driver(s) → LED Lighting
The control signal adjusts the driver output while the lighting power remains handled by the compatible LED driver.
CV 0/1-10V Low Voltage Driver

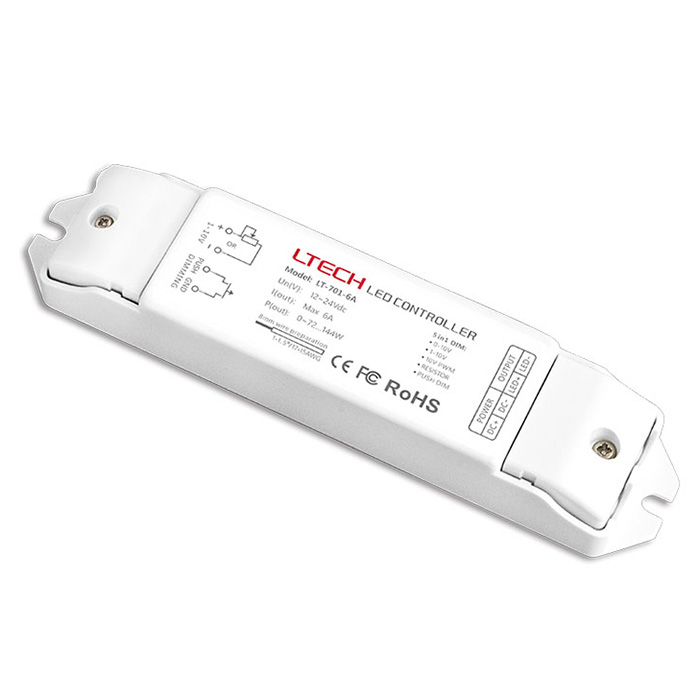

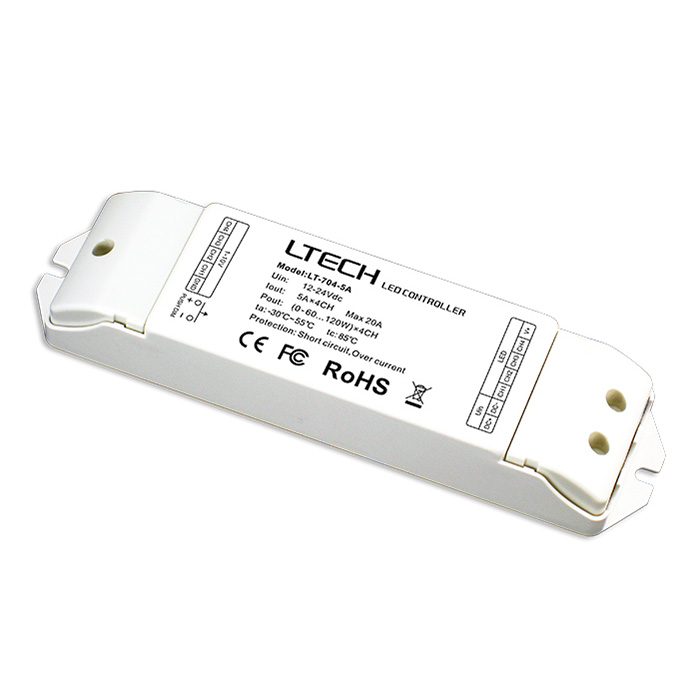

LTECH Constant Voltage 0/1-10V Low Voltage Dimming Controllers
LTECH CV 0/1-10V Low Voltage Drivers are DC-input 0/1-10V-to-PWM controllers designed to connect conventional constant-voltage LED tape lighting and fixtures to professional 0-10V and 1-10V dimming systems.
These controllers operate after a separate constant-voltage power supply. They receive a 0-10V, 1-10V, or other supported control signal and convert it into PWM output for compatible LED strips and low-voltage fixtures.
A typical installation is: AC Power → DC Constant Voltage Power Supply → LTECH 0/1-10V DC Controller → LED Strip, with the 0/1-10V dimmer or building-control system connected to the controller's dimming input.
CV 0/1-10V Dimmable Driver
LTECH CV 0/1-10V AC-DC Dimmable LED Drivers
LTECH CV 0/1-10V Dimmable Drivers combine AC-to-DC power conversion and professional 0/1-10V dimming control in one device. They connect directly to mains power, convert the input to a regulated 12V or 24V constant-voltage output, and control compatible LED strips or low-voltage fixtures according to the incoming 0-10V, 1-10V, or other supported dimming signal.
A typical installation is: AC Power → LTECH 0/1-10V Dimmable Driver → 12V / 24V LED Strip Lighting, with a compatible 0/1-10V dimmer or other control interface connected to the driver's dimming input.
Because the power supply and 0-10V dimming functions are integrated into one unit, these constant-voltage drivers are particularly suitable for permanent architectural and commercial LED strip installations where clean wiring, professional dimming performance, and reliable power delivery are required.
CC 0/1-10V Dimmable Driver
LTECH Constant Current 0/1-10V Dimmable LED Drivers
LTECH Constant Current 0/1-10V Dimmable Drivers are designed for LED luminaires that require a regulated drive current rather than a fixed DC voltage. They accept mains AC power, supply the correct constant current to the LED load, and respond directly to 0-10V, 1-10V, and other supported dimming signals.
They are commonly used with LED downlights, spotlights, recessed luminaires, high-power LED modules, track lighting, decorative fixtures, tunable-white luminaires, and custom constant-current LED products.
A typical installation is: AC Power → LTECH CC 0/1-10V Driver → Constant Current LED Fixture, while a compatible 0/1-10V dimmer or smart module connects to the driver's dimming terminals. The driver therefore handles both LED power regulation and 0-10V or 1-10V brightness control within one professional lighting device.
Best-selling 0/1-10V Series
1–20 of 71 products
Bluetooth 5.0 Sig Mesh Wireless LED Control Module GC-DAM-PRO
LM-240-24-G1A2 240W 24V DALI NFC CV Dimmable LED Light Driver
LM-240-24-G2A2 CV NFC Tunable White Dimming LED Light Driver
Can 0–10V / 1-10V Control LED Strip Lights?
Yes, 0–10V / 1-10V systems can control LED strip lights when used with compatible 0–10V LED controllers or drivers.
0–10V / 1-10V controllers support multi-channel outputs, allowing control of Single color LED strips, Tunable white (CCT) LED strips, RGB or RGBW LED strip lights (up to 4 channels).
0-10V / 1-10V drivers typically output 2 channels for dimming and color temperature adjustment.
What is the Difference Between 0–10V Dimming and PWM Dimming?
Both 0–10V / 1-10V dimming and PWM dimming are used to adjust brightness, but they work in fundamentally different ways and can produce different lighting results.
• 0–10V / 1-10V dimming is an analog method that adjusts light output by varying voltage levels (from 0V / 1V to 10V). Since it does not rely on rapid on/off switching, 0-10V / 1-10V generally produces smooth, flicker-free lighting to the human eye. However, the actual performance still depends on the quality of the LED driver and the LED controller, and some systems may exhibit instability at very low dimming levels.
• PWM (Pulse Width Modulation) dimming controls brightness by rapidly switching the LED on and off at high frequency. The perceived brightness changes based on the duty cycle. At low PWM frequencies, this can result in visible flicker or light banding (strobing effect) on camera, especially with rolling shutter cameras.
For a deeper comparison of dimming methods and real-world applications, explore our 0–10V dimming guide.
0/1-10V LED Dimming FAQ
Yes. A 0–10V dimming system requires compatible components.
You need a 0–10V controller or dimmer to generate the control signal. Standard non-dimmable drivers or non-0-10V dimmable drivers will not work with 0–10V control.
Yes. The lighting fixture must be equipped with a 0–10V dimmable driver or be connected to a compatible 0–10V controller.
0–10V dimming is a low-voltage DC control signal, separate from the main power supply.
The AC power (120V / 220V) is used to power the lighting fixture. The 0–10V DC signal is used only for dimming control. This separation allows safe and stable brightness adjustment without affecting the main power line.
0–10V and 1–10V are similar analog dimming systems, but there is a key difference:
0–10V can dim down to 0V, allowing lights to turn off completely;
1–10V typically dims down to 10% brightness, and requires a separate switch to turn lights off.
1. Simple and reliable technology;
2. Widely supported across lighting products;
3. Easy to install and maintain.
1. No individual addressing;
2. No feedback or bidirectional communication.
