Plaster In Drywall Channels

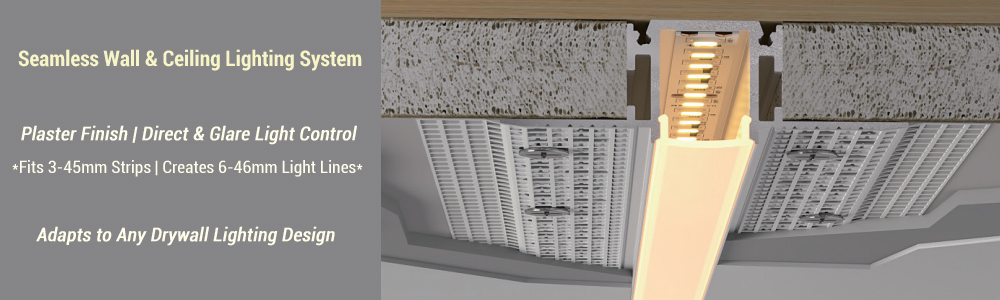

Plaster in drywall led strip channels for commercial architectural and home building linear lighting designs, blend seamlessly with lime mud/wall structure to create various light-in-wall effects.

LED drywall channel is made of durable aluminum material with holes on both wings, secured and embedded inside the wall by screws, and then plastered to achieve a smooth finish.

Drywall LED channel is part of LED strip light installations, and it's also a heat sink for LEDs, this whole system is a modern architectural lighting solution.

What LED Strip Widths Are Available?


Background Tile Wall Light LED Profile For 10mm Strip
Review stars(0)
Model:QSG-3612C

Background Tile Wall Light LED Profile For 10mm Strip

  • Material: 6063-T5 Aluminum
  • Channel Size: W12.7mm*H35.7mm
  • Inner Width: 10.3mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$10.98
Check our 3612C background wall light led profile, which can be used as waistline lighting and bed headboard lighting. By truncating the tile or wood paneling trim on the drywall surface, this linear wall led profile leaves an even lumen effect on the wall. The 3612C led background wall light led profile is available in silver and black finishes for light strips up to 10mm. It comes with three...
Plaster In Aluminium Drywall Waistline LED Channel For 8mm Strip Light
Review stars(0)
Model:QSG-9214

Plaster In Aluminium Drywall Waistline LED Channel For 8mm Strip Light

  • Material: 6063-T5 Aluminum
  • Channel Size: W13.6mm*H92.2mm
  • Inner Width: 9.1mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$24.98
Check our 9214 drywall waistline led channel. This led strip light aluminum channel creates a seamless transition to the wall with its plastered installation. The arched light reflector design further enhances the light effect at the wall waistline. Creating light lines at the wall waist line accentuates architectural features and creates a visually appealing focal point. LED strip lighting along...
Recessed LED Channel Wall Aluminum Profile For 5mm Ultra Thin LED Strip
Review stars(0)
Model:QSG-0827

Recessed LED Channel Wall Aluminum Profile For 5mm Ultra Thin LED Strip

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W27.8mm*H9mm
  • Inner Width: 5.2mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-0827
Various Options In Stock
$9.99
With 5.2mm/0.2in inner width, this recessed aluminum led profile  can be recessed in walls  without protruding surface,  suitable for ultra narow led strip lights . M ade of 6063-T5 high-quality aluminum alloy, this floor led profile provides additional heatsinking and mechanical protection for the led strip. 3 kinds of  PC led light diffuser covers make the led lighting more...
Slim Plaster In LED Channel For 5mm Rope Light
Review stars(0)
Model:QSG-4812

Slim Plaster In LED Channel For 5mm Rope Light

  • Material: 6063-T5 Aluminum
  • Channel Size: W48.3mm*H11.9mm
  • Inner Width: 5.3mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$8.98
Experience the beauty of ultra-thin trimless recessed lighting with the slim plaster in LED profile designed for 5mm strip lights . This mud in led channel provides a seamless integration as it is plastered into the drywall surface, leaving behind a sleek and narrow 8mm beam of light. The plaster-in led aluminum channel offers a clean and minimalist aesthetic for interior recessed lighting,...
Slim Plaster-In Anti Glare LED Channel For 5mm Strip Lights
Review stars(0)
Model:QSG-4812B

Slim Plaster-In Anti Glare LED Channel For 5mm Strip Lights

  • Material: 6063-T5 Aluminum
  • Channel Size: W48.8mm*H12.3mm
  • Inner Width: 5.3mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$7.98
Check our mud-in anti-glare LED channel for your fashion home, used with  narrow 5mm strip lights , leaving a 6.4mm wide light line. This ultra-thin aluminum profile features an innovative anti-glare design, where light is reflected off the inner walls of the channel, significantly reducing glare and ensuring a comfortable lighting experience. The plaster-in installation seamlessly blends...
Mud In LED Channel For 8mm Narrow LED Strip
Review stars(0)
Model:QSG-5312

Mud In LED Channel For 8mm Narrow LED Strip

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W53mm*H11.8mm
  • Inner Width: 8.1mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-5312
Various Options In Stock
$19.99
With 8.1mm/0.32in inner width, this plaster in aluminum led profile  can be recessed into walls or  8.8mm thick plasterboard  without protruding surface,  suitable for ultra narrow led strip lights  whose PCB width does not exceed 8.1mm. M ade of 6063-T5 high-quality aluminum alloy, this drywall led channel provides additional heatsinking and mechanical protection for the...
Plaster-in Linear LED ALU Channel, Narrow Light Beam, For 10mm Strip Lights
Review stars(0)
Model:QSG-5412

Plaster-in Linear LED ALU Channel, Narrow Light Beam, For 10mm Strip Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W53mm*H12mm
  • Inner Width: 10.3mm
  • Channel Color: Silver
  • LED Diffuser: PC
  • Length: 1m/2m
  • Installation: Recessed
Various Options In Stock
$10.99 $8.9818% off
The 5412 aluminum extrusion for building and architectural lighting is a lightweight recessed LED channel and is designed to be plastered-in for a seamless finish. This plaster-in led channel creates a light-line only 10.2mm/0.4" wide in plasterboard walls and ceilings. With 10.3mm/0.4" inner width, the profile is used with 10mm led tape lights . A range of compatible covers and end...
Plasterboard LED Channel For 10mm Strip Lights
Review stars(0)
Model:QSG-5414

Plasterboard LED Channel For 10mm Strip Lights

  • Material: 6063-T5 Aluminum
  • Channel Size: W52.7mm*H13.2mm
  • Inner Width: 10.3mm
  • Channel Color: Silver
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$9.98
Check this recessed led strip lighting for plasterboard, tile, or wood panel, the led plasterboard profile is specifically designed to accommodate 10mm strip lights in a recessed manner. This channel is suitable for plasterboard installations, allowing for seamless integration of LED lighting within the wall or ceiling. The plasterboard led profile is crafted to provide a professional and clean...
Plaster In LED Profiles For 10mm 2216 LED Light Strip
Review stars(0)
Model:QSG-5315

Plaster In LED Profiles For 10mm 2216 LED Light Strip

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W53mm*H14.5mm
  • Inner Width: 10.3mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-5315
Various Options In Stock
$10.99
With 10.3mm/0.41in inner width, this aluminum led profile  can be recessed in walls  without protruding surface,  suitable for 2216 single row white led strip lights . M ade of 6063-T5 high-quality aluminum alloy, this drywall led channel profile provides additional heatsinking and mechanical protection for the led light strip. 3 kinds of  PC led light diffuser covers make the...
Plaster-In LED Strip Channel For Linear Lighting
Review stars(0)
Model:HL-A055

Plaster-In LED Strip Channel For Linear Lighting

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W57.1mm*H18.5mm
  • Inner Width: 14.1mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft/2m6.56ft
  • Model: QSG-5319
Various Options In Stock
$13.98
Plaster-in led strip channel for 12mm/10mm/8mm led strip lights, 3 kinds of PC led diffusers can be selected to soft and uniform led light, apply for ceiling and background wall. The led channel perfectly intergrates the led strip lighting into the wall, can transition two different materials.    Note: As the 2m led aluminum profiles are too light and long, the package size will...
Anti Glare Plaster In LED Aluminum Channel For 5mm Strip Lights
Review stars(0)
Model:QSG-5422

Anti Glare Plaster In LED Aluminum Channel For 5mm Strip Lights

  • Material: 6063-T5 Aluminum
  • Channel Size: W53.5mm*H21.7mm
  • Inner Width: 5.2mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$16.98
Achieve a seamless wall and ceiling lighting design with our anti-glare plaster-in led aluminum channel, ideal for 5mm narrow strip lights . This plaster-in LED channel allows you to create a clean and sophisticated lighting installation, with no visible trim or bezels, leaving only a smooth and flawless finish on your walls. This drywall plaster-in led profile has a special anti-glare design,...
Min:  450
Non Glare Plaster In LED Channel For 12mm Strip Lighting
Review stars(0)
Model:QSG-5525

Non Glare Plaster In LED Channel For 12mm Strip Lighting

  • Material: 6063-T5 Aluminum
  • Channel Size: W54.5mm*H24.6mm
  • Inner Width: 12.5mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$14.69
Check our 5525 non-glare plaster-in led channel. This led aluminium channel is recessed into plasterboard walls or ceilings and plastered after installation to create a flat state to the surrounding surface. The anti-glare design allows the LED light emitting surface to be hidden inside the channel without direct glare to the eye. Use this 5525 non glare plaster in led channel to create a cozy,...
Drywall LED Channel Aluminum Profile For 12mm Single Color LED Strip Light
Review stars(0)
Model:QSG-5614K

Drywall LED Channel Aluminum Profile For 12mm Single Color LED Strip Light

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W56mm*H15mm
  • Inner Width: 13.2mm
  • Channel Color: Silver
  • LED Diffuser: PC Semi-Clear
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-5614K
Various Options In Stock
$13.99
With 13.2mm/0.52in inner width, this aluminum led profile  can be recessed in walls  without protruding surface,  suitable for 2216 single row white led strip lights . M ade of 6063-T5 high-quality aluminum alloy, this led drywall channel profile provides additional heatsinking and mechanical protection for the led light strip. The  PC semi-clear led light diffuser cover makes...
Plaster In LED Lights Black Recessed LED Channel For 12mm Addressable LED Strips
Review stars(0)
Model:QSG-5615

Plaster In LED Lights Black Recessed LED Channel For 12mm Addressable LED Strips

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W56mm*H15mm
  • Inner Width: 14.1mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-5615
Various Options In Stock
$17.99
With 14.1mm/0.56in inner width, this plaster in led channel  can be recessed into walls or  plasterboard  without protruding surface,  suitable for addressable led strip lights  whose PCB width does not exceed 14.1mm. M ade of 6063-T5 high-quality aluminum alloy, this drywall led strip channel provides additional heatsinking and mechanical protection for the led light...
Plaster In LED Drywall Channel Aluminum Profile For 15mm Double Row LED Rope Lights
Review stars(0)
Model:QSG-5712

Plaster In LED Drywall Channel Aluminum Profile For 15mm Double Row LED Rope Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W57.1mm*H12.5mm
  • Inner Width: 15.1mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-5712
Various Options In Stock
$13.99
With 15.1mm/0.59in inner width, this plaster in led channel  can be recessed into walls or 10mm thick  plasterboard  without protruding surface,  suitable for 15mm double row led strip lights  or 12mm/10mm single row led light strips . M ade of 6063-T5 high-quality aluminum alloy, this drywall led strip light channel provides additional heatsinking and mechanical...
Plaster In LED Drywall Channel For 20mm Double Row LED Strip Lights
Review stars(0)
Model:QSG-5831

Plaster In LED Drywall Channel For 20mm Double Row LED Strip Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W58.5mm*H14.1mm
  • Inner Width: 20.6mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-5831
Various Options In Stock
$12.99
With 20.6mm/0.81in inner width, this mud-in aluminum led profile  can be recessed in walls  without protruding surface,  suitable for DC24V 5050 double row led strip lights . M ade of 6063-T5 high-quality aluminum alloy, this plaeter-in drywall led channel provides additional heatsinking and mechanical protection for the led light strip. The  PC led light diffuser cover...
Plaster-In Trimless LED Channel For 10mm Rope Lights
Review stars(0)
Model:QSG-6012

Plaster-In Trimless LED Channel For 10mm Rope Lights

  • Material: 6063-T5 Aluminum
  • Channel Size: W59.7mm*H12.2mm
  • Inner Width: 10.3mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$10.98
If you're looking for a trimless and sleek lighting solution, the trimless mud in aluminum channel is an ideal choice. This trimless led channel accommodating 10mm rope lights offers a seamless integration with the surrounding surfaces, creating a modern and minimalistic lighting effect. By using a plaster-in trimless led aluminum channel, you can achieve a clean and flush installation with...
Anti-Glare Plaster-In Drywall LED Strip Channel For 10mm Tape
Review stars(0)
Model:QSG-6020

Anti-Glare Plaster-In Drywall LED Strip Channel For 10mm Tape

  • Material: 6063-T5 Aluminum
  • Channel Size: W60.5mm*H20mm
  • Inner Width: 10.3mm
  • Channel Color: Silver/Black
  • LED Diffuser: PC
  • Length: 1m/2m
Various Options In Stock
$14.98
Experience a glare-free and visually pleasing lighting display with our anti-glare trimless drywall LED channel crafted for 10mm tape lights. This drywall led profile features a recessed and inwardly illuminated surface, effectively preventing glare and providing a soft and comfortable lighting experience for your interior space. Ideal for drywall installations, this plaster-in LED channel offers...
Plaster In Aluminum Channels For 20mm 5050 Double Row LED Strip Lights
Review stars(0)
Model:QSG-6510

Plaster In Aluminum Channels For 20mm 5050 Double Row LED Strip Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W65.4mm*H22.6mm
  • Inner Width: 24mm
  • Channel Color: Silver/White/Black
  • LED Diffuser: PC
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-6510
Various Options In Stock
$13.99
With 24mm/0.94in inner width, this recessed aluminum led profile  can be recessed in walls  without protruding surface,  suitable for DC24V 5050 double row led strip lights . M ade of 6063-T5 high-quality aluminum alloy, this drywall led channel provides additional heatsinking and mechanical protection for the led light strip. 3 kinds of  PC led light diffuser covers make...
Recessed LED Strip Channel Plaster In Lighing For 20mm Double Row LED Tape Lights
Review stars(0)
Model:QSG-6522

Recessed LED Strip Channel Plaster In Lighing For 20mm Double Row LED Tape Lights

  • Material: 6063-T5 Aluminum Alloy
  • Surface: Anodic Silver Oxidation
  • Channel Size: W65.4mm*H22.6mm
  • Inner Width: 24mm
  • Channel Color: Silver
  • LED Diffuser: PC semi-clear
  • Length: 1m3.28ft /2m6.56ft
  • Model: QSG-6522
Various Options In Stock
$15.99
The Recessed Plaster In LED Strip Channel 6522 is an aesthetic architectural lighting solution designed to integrate seamlessly into your interior design. This profile channel is specifically designed to accommodate LED strip lights with a width of less than 24mm, such as our addressable double-row led strips or single-color/CCT dual-row strips.  This 6522 drywall plaster-in led channel...
