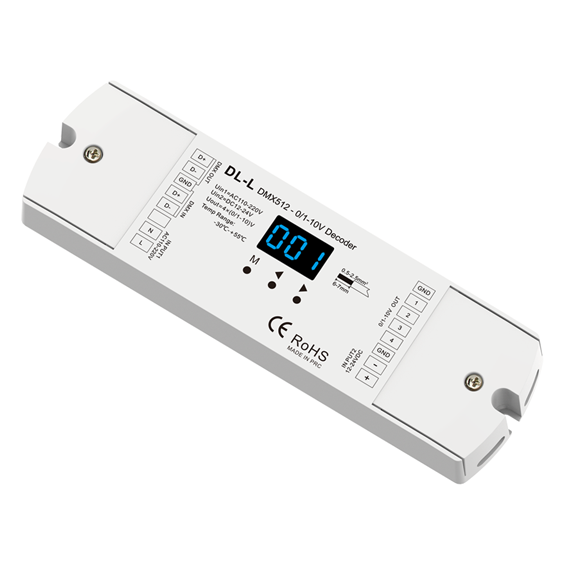

SkyDance DMX 0/1-10V Decoder Series is designed to bridge professional DMX512 lighting control systems with conventional 0-10V or 1-10V dimmable LED drivers. It converts DMX512 digital control signals into 4 independent channels of selectable 0-10V or 1-10V analog dimming signals, allowing a DMX lighting console to centrally control the brightness of multiple groups of compatible LED drivers and lighting fixtures.

Ideal for integrating analog dimmable lighting into professional DMX-controlled environments, these decoders provide a convenient solution for new lighting installations as well as upgrading existing 0-10V / 1-10V lighting systems. They are particularly suitable for commercial buildings, hotels, restaurants, retail spaces, offices, galleries, architectural lighting projects, and other applications requiring centralized multi-zone lighting control.

With CE, RoHS, and FCC certifications and a 5-year manufacturer's warranty, they provide a reliable interface between modern DMX control systems and conventional 0-10V / 1-10V dimmable LED lighting.

DMX 0/1-10V Decoder Wiring: Four-Channel Connections & Signal Limitations

SkyDance DMX 0/1-10V decoders convert DMX512 digital signals into four independent 0-10V or 1-10V analog dimming outputs, with a maximum output current of 20mA per channel.

Connect the decoder's CH1, CH2, CH3, and CH4 signal outputs to the corresponding 0/1-10V dimming input terminals of the connected LED drivers or compatible control devices.

DMX to 0-10V Decoder Wiring Diagram

Multiple compatible 0/1-10V LED drivers can be connected in parallel to the same output channel. All devices connected to that channel will respond to the same dimming signal and brightness level. Use separate output channels when independent control of different 0/1-10V lighting groups is required.

Each 0/1-10V LED driver receives its own AC or DC operating power according to its specifications and supplies power to its connected LED fixtures. Only the analog dimming control wires are connected to the decoder's signal outputs.

For reliable 0/1-10V analog signal transmission, observe the following manufacturer-recommended limits:

- Maximum 20 LED Drivers per Channel: Do not connect more than 20 LED drivers to each 0/1-10V output channel.

- Maximum 30m Signal Cable Length: Keep the wiring distance between the decoder and each connected LED driver within 30 meters.

- 20mA Maximum Output Current per Channel: Ensure the combined control input current of all connected devices does not exceed the channel's rated output current.

- Correct Signal Selection: Select 0-10V or 1-10V output mode to match the connected equipment's dimming interface.

FAQ About DMX 0/1-10V Decoders

Direct answers to field wiring, 0-10V driver compatibility, and DMX addressing questions from our technical desk.

On a DMX 0/1-10V decoder, 0-10V mode scales signal output from 0V to 10V so compatible dim-to-off drivers shut down completely at zero, while 1-10V mode bottoms out at 1V. At 1V, an LED strip stays lit at roughly 5% to 10% minimum output. If your LED driver follows the older 1-10V standard without internal cut-off relays, you will need an external AC relay module to cut mains power for complete blackout. We cover these protocol thresholds in our 0-10V dimming guide.

You supply power to a DMX 0/1-10V decoder through dedicated DC input terminals that take 5V to 24V DC from an auxiliary power supply. Because the decoder generates low-energy analog signals rather than driving LED strip loads, internal consumption stays under 1W (drawing around 40 mA at 24V DC). You do not need a high-wattage power supply for the decoder itself. You can tap the 24V auxiliary output on your main driver or add an independent 10W DIN-rail power unit inside your control cabinet.

You set the DMX start address on a DMX to 0-10V decoder using the onboard three-digit digital display and numeric tactile push buttons. Press and hold the key until the numeric display flashes, then tap the buttons to set your desired start address, such as 001 for channels 1 through 4 or 005 for the second unit. Once selected, leave the unit untouched for 5 seconds until the display turns solid. The decoder saves the address in non-volatile flash memory, retaining your settings through site power cuts.

Standard 0-10V analog dimming on a DMX to 0-10V decoder is inherently limited to 8-bit equivalent resolution (256 discrete steps), which produces visible stepping when an LED strip dims slowly below 5%. When an architectural project demands seamless micro-stepping with zero pop-on, switch from analog translation to our CV DMX decoders, which deliver 16-bit PWM dimming across 65,536 grey levels. Controlling the LED strip directly with high-frequency DC PWM eliminates analog conversion compression and enables completely smooth architectural fades down to 0.1% light output.
