DMX512 LED Strips Series

SuperLightingLED, as a dmx led strip manufacturer, specializes in Direct DMX LED Strips, which are integrated with a variety of UCS512 IC chips like UCS512C4 (256 grayscale), UCS512H4, UCS512H5, UCS512H6 (65536 grayscale), etc., can be directly connected to DMX master control.
What does DMX stand for on LED Lights?
DMX stands for Digital Multiplex, a communication protocol commonly used in lighting industry to control lighting equipment, including LED strips, LED rope lights, LED string lights, etc. DMX can send digital signals through a DMX controller or a DMX console to provide precise control of various parameters (such as brightness, color, and effects) of LED lights, commonly used to create dynamic and customizable lighting displays in a variety of settings such as stage, event, and architectural lighting.
DMX control is more precise than addressable SPI/TTL control. DMX LED Tape Light has four wires (V+, GND, D, P) or five wires (V+, GND, A, B, P), where D, A, B are the data line and P is the address line, and DMX512 can control single white light, color temperature white lights, color tuning RGB/RGBW/RGBCCT lights.

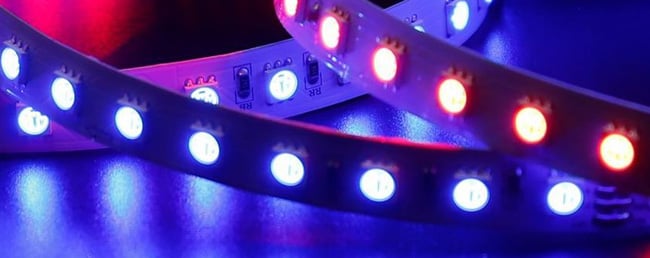

RGB DMX Led Tape
DMX RGB led strip lights is a kind of programmable LED strip which directly support DMX512 control protocol, it adopts intelligent chips such as UCS512H6L, UCS512C4, UCS512H4LB, SM18512SK, UCS512D, UCS512CNB, HI5DS and matches with high brightness three-in-one SMD5050 or SMD2835 RGB package, can output 16 million colors mixed effect.
Although the results of DMX RGB led strip and SPI RGB led strip are very similar in terms of color control and dynamic light effect presentation, DMX512 RGB LED has more advantages in large-area lighting arrangement (professional stage lighting, building lighting, commercial lighting ), global synchronization of multiple devices, and compatibility with various DMX light fixtures.
Our RGB DMX led strip has diverse specifications, with densities ranging from 24, 36, 48, 60, 72, 80, 96, 120 to 240 lights per meter (low density is suitable for ambient lighting, while high density can present delicate dynamic effects), 8mm 10mm 12mm 15mm 20mm flexible FPC substrate, working voltage covers 5V, 12V, 24V, 36V 48V for safe use and reducing voltage drop over long distances, and IP20 (indoor) to IP68 (fully waterproof, universal for outdoor/underwater scenarios) outdoor IP ratings.
RGB DMX controlled led tape can be single or dual signal DMX 512 transmission, each smart DMX ic chip controls 3 DMX channels (corresponding to R, G, B respectively), the total number of DMX512 channels in a single strip roll ranges from 2×3 to 40×3. It is necessary to match the DMX controller that supports sufficient number of channels, otherwise the DMX RGB strip cannot be fully lit.

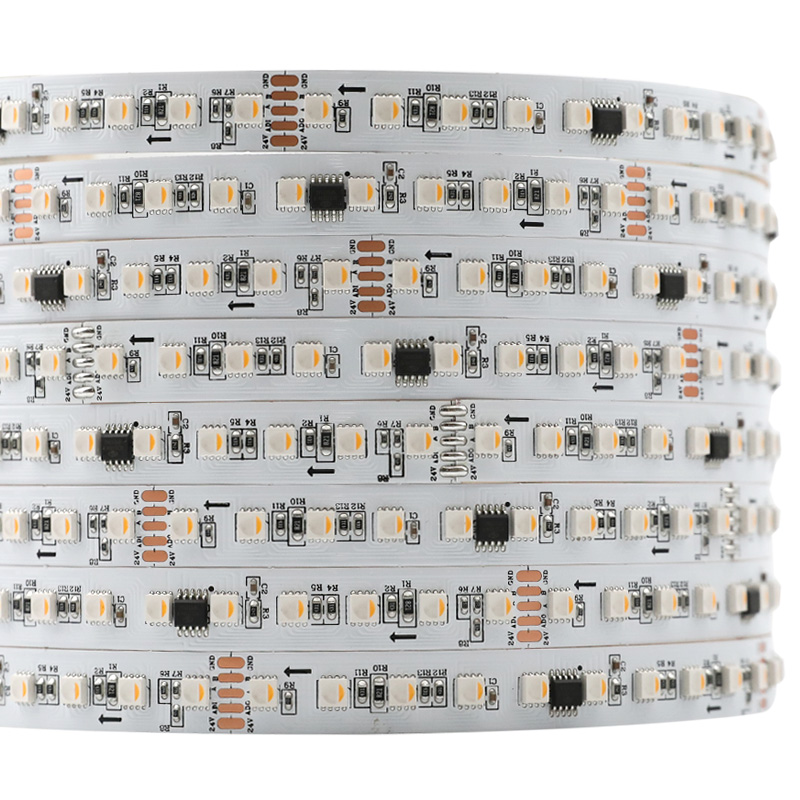

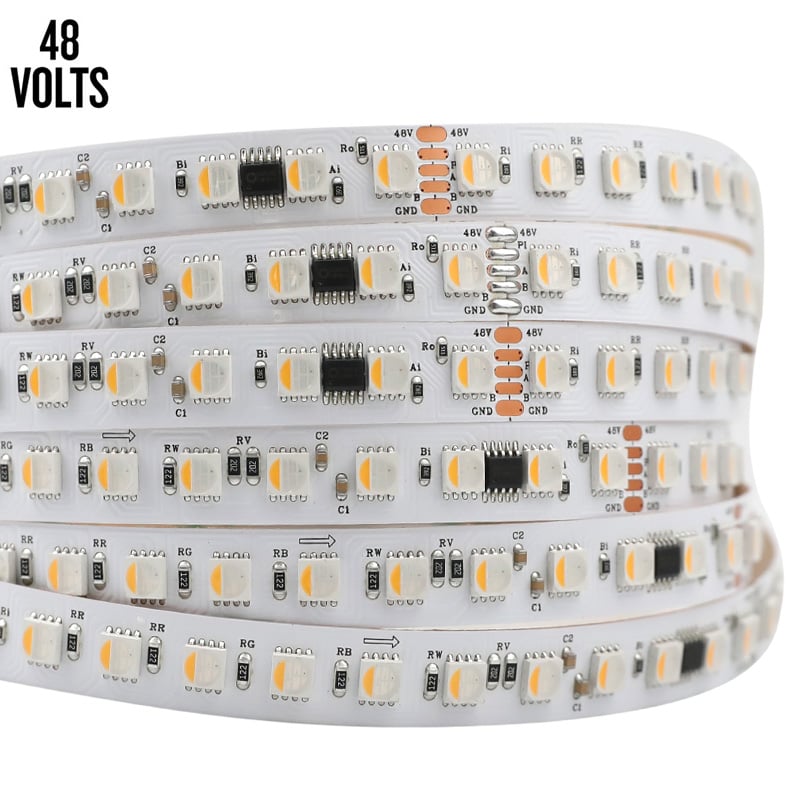

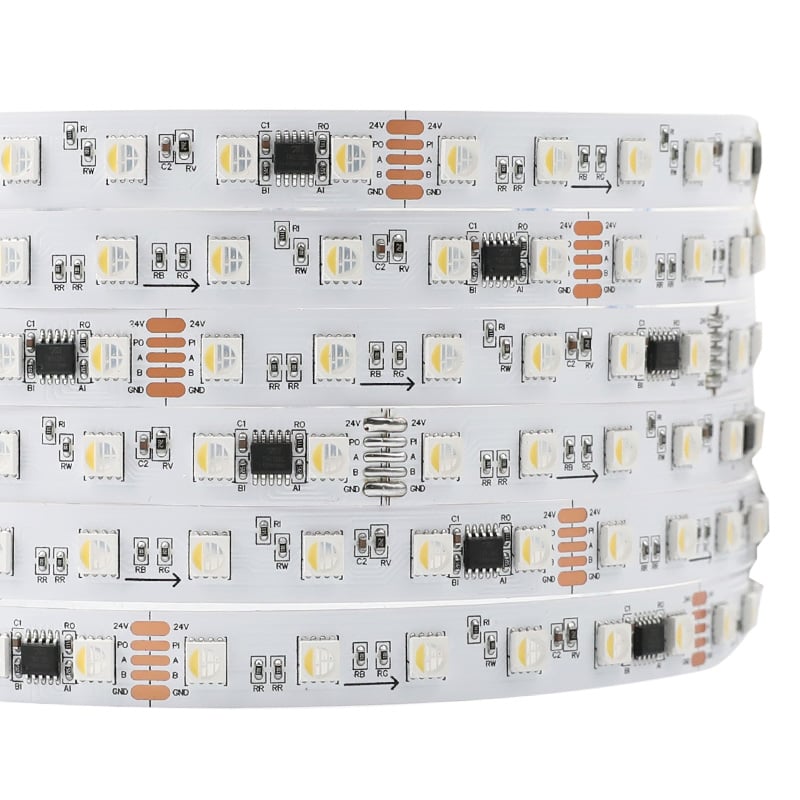

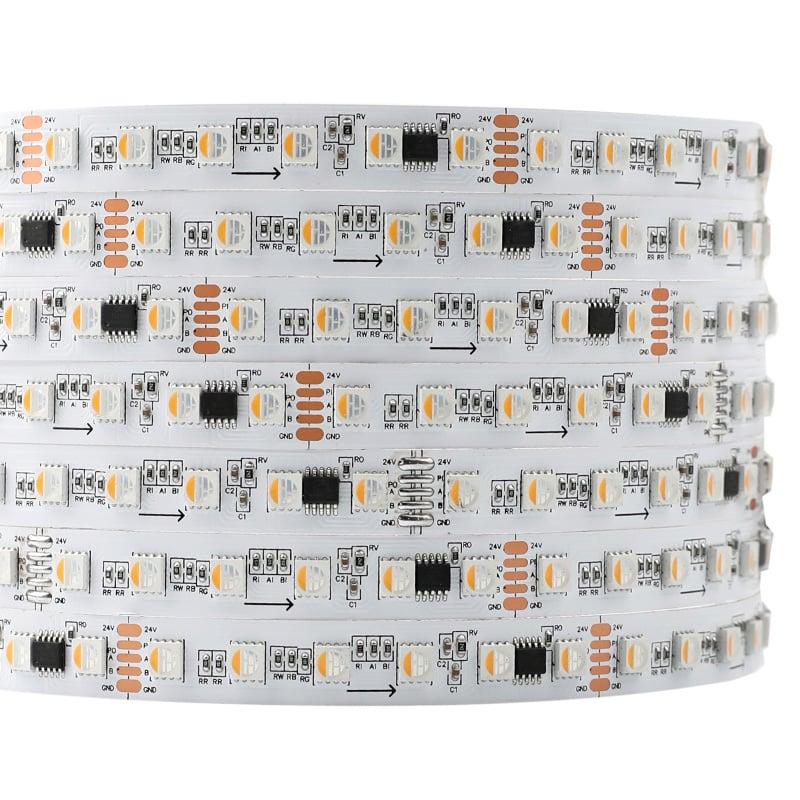

RGBW DMX Led Strip
DMX RGBW led strip is based on the DMX512 control protocol. Each DMX IC pixel of each RGB white led strip has four independent control channels for red, green, blue and white, providing precise and rich color control. Our DMX RGBW lights strips are available in RGBW 4-in-1 and RGB+W designs, providing seamless color temperature and color transitions and a more uniform white light output. SMD5050 standard package and smaller, higher density SMD4040 package offer good performance for most conventional lighting projects and high-end applications requiring finer light effects.
Compared with PWM RGBW and SPI RGBW led strips, DMX RGBW led tape uses DMX512 control signals, which can achieve lighting regulation and control in a wider range and with higher precision; eliminating stroboscopic or uneven color problems and ensuring smooth and stable lighting effects.
The wide voltage range of 5V, 12V, 36V to 48V allows DMX512 RGBW led strip to be used in a wide range of project sizes and installations, from small DIY projects to large scale installations or long distance power transmission projects.

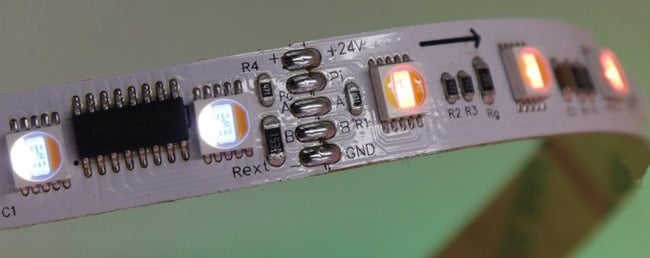

DMX Controlled 5-In-1 Led Strip
DMX 5-in-1 LED Strip combines the RGB color channels (red, green, blue) with the CCT (tunable white) channels to independently adjust the color temperature (warm to cool white) and color via the DMX512 protocol. Color and color temperature stacked or used individually make these 5-in-1 RGB tunable white DMX controlled led strips an all-in-one tool for addressable programmable lighting design. This flexible combination allows you to switch freely according to the needs of the scene, from soft warm light to cold technological white light, with RGB dazzling color gradient, to create an immersive visual experience.
Customize DMX Rope Light
With high waterproof grade and good weather resistance, DMX rope light is ideal for outdoor landscape lighting, building facades, shopping mall decorations, advertising displays, etc. Neon-like smooth visual lighting effect is its most significant feature. This spotless, visually striking neon dmx light expression can effectively attract the audience's attention and enhance the artistic and dynamic sense of space, whether in architectural silhouettes or nighttime landscapes.
Customized lengths and bending direction options give the DMX led rope a high degree of flexibility. The length of the dmx controlled rope light can be customized according to the unique needs of the project, avoiding many of the limitations of traditional lighting fixtures. And the flexible design allows DMX rope lighting to adapt to curves, angles, and other complex shapes even non-regular designs in landscape art. DMX led rope light is an attractive option for high-end projects that require customized lighting solutions.
We offer free DMX led neon flex service if you buy our DMX led strip and neon rope tube at the same time, please leave a note and we'll make led DMX controlled rope light for you.

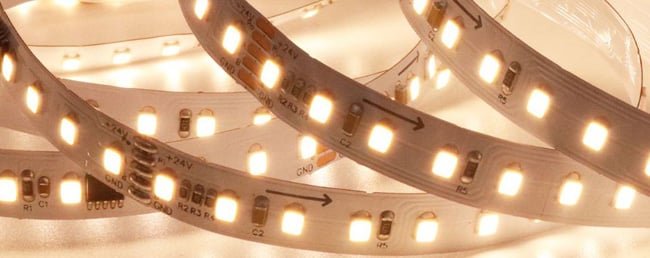

DMX Strip LED White
These DMX white LED strips are controlled by UCS512 ic chip, which can be directly connected to DMX lighting control system to realize precise dimming and dynamic light effects such as gradient, fade in/out, flashing, breathing, running water chase, etc. Each IC on the white dmx led light strip is one DMX pixel and one DMX channel, with 20 to 50 DMX512 pixels and channels per reel. One DMX 512 channel controls 100-250mm (3.94-9.84inch, 0.33-0.82ft) white LED lights.
Our 24V 36V 48V low voltage DMX white light displays 3000K warm white, 4000K natural white, 6000K cool white color, other temperatures can be customized. The light strips are made of cuttable FPC board and waterproof IP rating design, flexible to adapt to indoor outdoor straight or curved installation. DMX512 single signal (4-pin) and redundant signals (5-pin) are available.

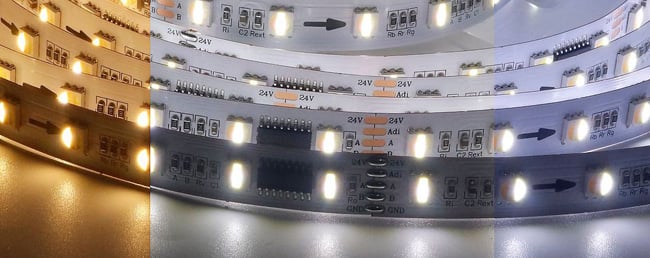

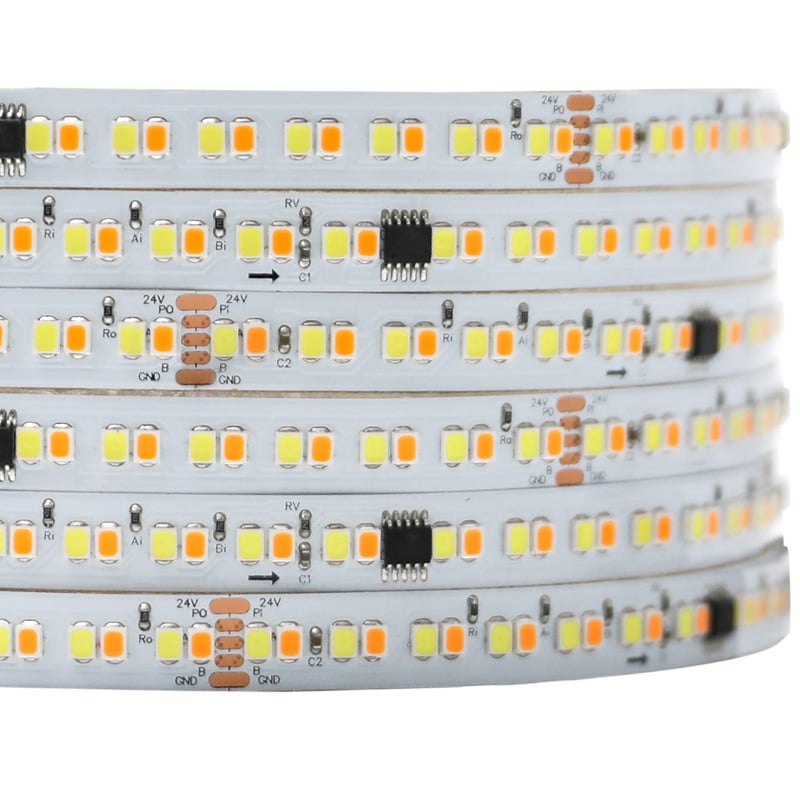

Variable White Led DMX Ribbon
Direct DMX plug and play variable white led light strips with 2-in-1 or 3-in-1 color temperature scheme, only one led ribbon strip can realize smooth transition from 2700K warm yellow light to 6500K cool white light, suitable for lighting occasions that need different kelvin led color temperature control or switching.
DMX tunable white ribbon led light strip is based on flexible PCB, can be freely bent according to the installation environment, and one cut mark for every 6/12/30 LED beads (100mm/250mm) on 24V makes the light length adjustment stress-free. The IP20 basic version fits interior all shapes, while the waterproof led ribbon light strip version is covered with a highly translucent silicone surface or housing that is resistant to moisture, water and outdoor weathering.
One UCS512 IC on the flexible ribbon led strip is one DMX512 pixel, one IC on the 2-in-1 CCT type has two DMX channels, and one IC on the 3-in-1 CCT type has three DMX channels. Available in 4-wire single-signal and 5-wire dual-signal led ribbon DMX adjustable white versions.

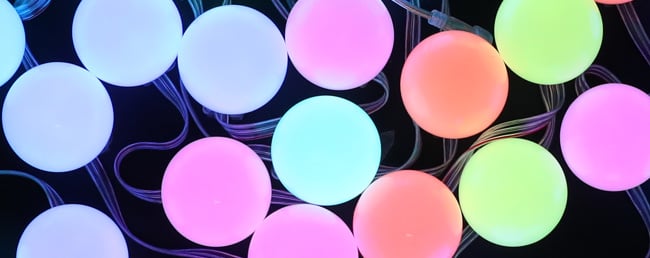

Pixel Led DMX String Lights
DMX String Lights provide an energy efficient and sustainable landscape lighting solution for outdoor and building lighting that requires large scale light placement. These DMX controlled string lights consisting of multiple DMX led pixel lights are individually addressable and have a high IP67 water and dust resistance rating.
You can adjust the length of the DMX light string and the number of DMX pixel points according to the actual needs of the installation location such as the outline of the building, so as to flexibly respond to the lighting needs of different scales. The center distance (light spacing) and number of each DMX addressable led string can be customized.
Using high brightness SMD5050 and low power consumption LEDs, the whole system also consumes less power when using DMX led string lights in large area arrangement and longer range, efficient wiring and power configuration. Visual creative expression through DMX512 signaling controller to precisely control the lighting changes of each LED DMX pixel.
What is the Addressable DMX LED Strip?
The characteristics of DMX led strip lights are the output driver adopts patented SPWM technology to support the polarity reversal; the single code-writing signal line can be written in series at one time with the address of the built-in EEPROM storage chip; the signal transmission of Sorber DMX lights adopts parallel scheme when one of the LED lights fails, it does not affect the normal work and control of other lights, and ensures the overall project. Support Art-net DMX controller. The integrity of the project results, eliminating the failure of a lamp signal in the serial scheme of conventional LED full-color point light source, and the phenomenon of no light or no procedure in the back of the lamp, reducing maintenance.
