12mm/0.47in Silicone Neon Diffuser

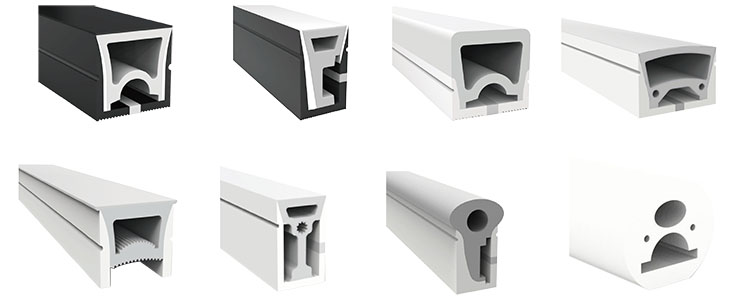

How to quickly find the silicone neon lighthousing you need?

First confirm the width of your LED strip; if the width of the LED strip is 12mm, please purchase an LED neon diffuser tube in the 13mm PCB Wide Neon Tube series;

After confirming the scope of the installation space, select the appropriate size of the LED neon lighting housing; Each model contains a dimensional drawing to describe its width; height and internal structure;

Then determine the light-emitting direction of the LED neon tube (top or side emitting determines the bending direction of the LED strip) and light-emitting angle (120°/180°/270°/360°);

Finally, determine the length of the silicone led strip channel, the type of end caps; and purchase LED mounting bracketsS shape mounting clips, or aluminum profile for long-distance installation.

If you are just a wholesaler and want to know more models, you can order our sample box separately, it contains hundreds of neon tube models. Purchase these neon accessories here.


Domed Milky Flexible Silicone Sleeve For LED Strip
Review stars(0)
Model:FLNLT-YT8/10/12

Domed Milky Flexible Silicone Sleeve For LED Strip

  • Material: Food-grade silicon
  • PCB Width: 8/10/12mm
  • External Width: 10.4/12.4/14.4mm
  • External Height: 6.5mm
  • Length: 1/2/5m
  • Installation: Silicon clips
Various Options In Stock
$2.98
Dome milky white silicone sleeves for 8mm, 10mm or 12mm LED strip lights, made of durable food-grade silicon material and are soft and bendable.  Silicone sleeve is a commonly used outer packaging material for the protection and optical optimization of led light strips. This allows led strip to be well protected in various environments, both indoors and outdoors, against external substances...
Anti-glare Silicone Sleeve Flexible LED Channel For 12mm LED Light Strips - 05*15mm 120° Top Emitting
Review stars(0)
Model:FLNLT-T0515

Anti-glare Silicone Sleeve Flexible LED Channel For 12mm LED Light Strips - 05*15mm 120° Top Emitting

  • Length:1m/2m/5m
  • External Width:15mm/0.59in
  • External Height:5mm/0.20in
  • PCB Width:12mm/0.47in
  • Beam Angle:120°
  • Waterproof Rating:IP67
  • Lighting Direction:Top Lighting
  • Cutting Mark:Yes
Various Options In Stock
$2.98
Flat silicone led diffuser for 12mm led strip lighting, no glare lighitng, 05*15mm size, you can choose the transparent diffuser surface or the milky white  diffuser surface to diffused lighting, and this silicone led profile can be installed with red adhesive back tape.    The light refracted from the led strip lighting through the conduction of silicone diffuser to produce the...
Flexible Silicone LED Channel For 12mm LED Strips - 12*20mm 120° Side Emitting
Review stars(0)
Model:FLNLT-TT1220

Flexible Silicone LED Channel For 12mm LED Strips - 12*20mm 120° Side Emitting

  • Length:1m/2m/5m
  • Color: White
  • External Width: 12mm/0.47"
  • External Height: 20mm/0.78"
  • PCB Width: 12mm
  • Beam Angle: 120°
  • Waterproof Rating: IP67
  • Lighting Direction: Side lighting
Various Options In Stock
$7.99
Flexible silicone led channel with side emitting light, wide 12mm, 20mm in height, used for 12mm led strip lights, made of  food grade silicone material, the silicone led diffuser channel is soft and bendable, it  has good light transmittance and a large light-emitting angle,  waterproof grade is IP67 and above,  does not change yellow or crack, suitable for indoor and...
Silicone LED Strip Diffuser Flex Neon Tube Light 120° Side Emitting 12*20mm
Review stars(0)
Model:FLNLT-T1220

Silicone LED Strip Diffuser Flex Neon Tube Light 120° Side Emitting 12*20mm

  • Length:1m/2m/5m
  • Width:12mm/0.47in
  • Height:20mm/0.39in
  • PCB Width:10mm/12mm
  • Beam Angle:120°
  • Waterproof Rating:IP67
  • Lighting Direction:Side Lighting
Various Options In Stock
$8.99
Silicone led strip diffuser for led strip lights with 10mm PCB width, made of food grade silicone material, this led strip diffuser is flexible and bendable and waterproof,  the combination of the soft silicoen led light strip diffuser and the led strip lighting makes the bendable led strip lights, you can bend the silicone strip with freedom.    Model:  ...

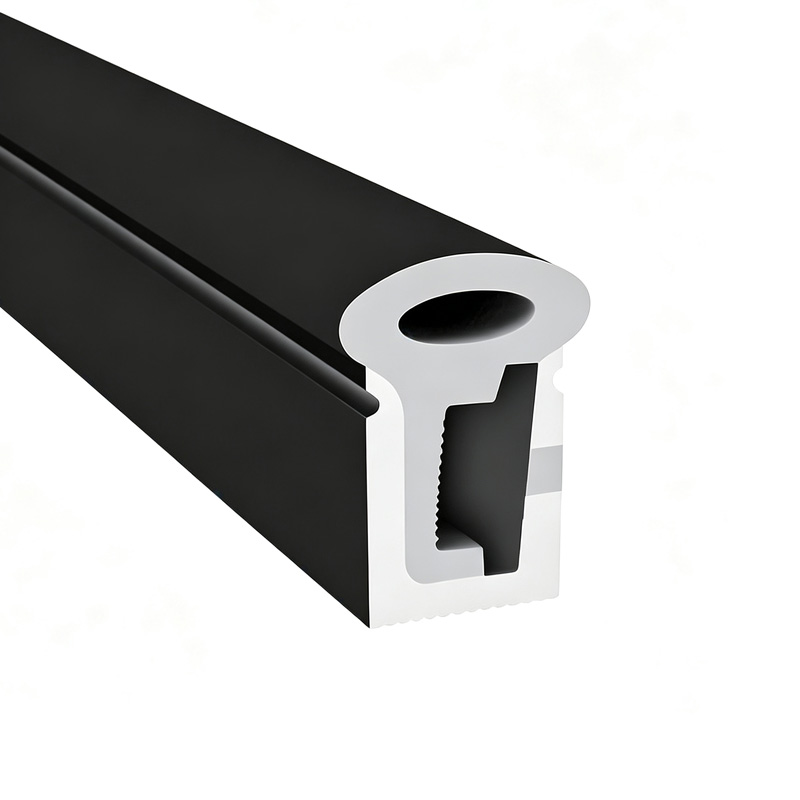

Flex Silicone LED Light Channel Dome Top 270° Side Emitting 12*25mm
Review stars(0)
Model:FLNLT-T1225

Flex Silicone LED Light Channel Dome Top 270° Side Emitting 12*25mm

  • Length: 1m/2m//5m
  • External Width:12mm/0.47in
  • Inner Width:13mm/0.51in
  • External Height:25mm/0.98in
  • PCB Width:12mm/0.47in
  • Beam Angle:270°
  • Waterproof Rating:IP67
  • Lighting Direction:Side Lighting
Various Options In Stock
$9.99
Dome top silicone led channel with side emitting light, used for 12mm led strip lights installed inside, made of  food grade silicone material, the silicone led diffuser channel is soft and flexible and bendable,  has good light transmittance and a large light-emitting angle,  waterproof grade is IP67 and above,  does not change yellow or crack, suitable for outdoor...
15*10mm Flex Silicone LED Light Strip Diffuser Large Illumination Cover For 12mm PCB
Review stars(0)
Model:FLNLT-WB1510

15*10mm Flex Silicone LED Light Strip Diffuser Large Illumination Cover For 12mm PCB

  • Length: 1/2/5m
  • PCB Width: 8-12mm
  • External Width: 20.6mm
  • External Height: 12mm
  • Lighting Direction: 120°
  • Color: White
Various Options In Stock
$3.99
Open-ended easy-wearing series LED strip diffuser cover, the whole top glows. Made of food grade silicone material, it is soft, flexible and easily be cut to any length.  This LED strip cover is suitable for PCB widths from 8mm to 12mm, it fits directly into an appropriately sized groove (15mm*10mm), allowing for mounting to complex shapes. Insert the strip into the recess and cover the LED...
Flexible Silicone LED Channel With Dome Top 180° Top Emitting 15*25mm
Review stars(0)
Model:FLNLT-YT1525

Flexible Silicone LED Channel With Dome Top 180° Top Emitting 15*25mm

  • External Width:15mm/0.59in
  • External Height:25mm/0.98in
  • Length:1m/2m/5m
  • Inner Width:12.8mm
  • PCB Width:10mm/12mm
  • Beam Angle:180°
Various Options In Stock
$9.99
Flexible silicone led channel for 10mm and 12mm led strips lights with any light color, dome top diffuser surface, 180 degree large light-emitting angle, open bottom, easy installation. Made of high quality food grade silicone material, this silicone led diffuser channel has good light transmittance, the light refracted from the light source through the conduction of silicone...
16*16mm Whole Top Glow Silicone Flexible LED Strip Cover Diffuser For 12mm Tape Light
Review stars(0)
Model:FLNLT-COVER1616L

16*16mm Whole Top Glow Silicone Flexible LED Strip Cover Diffuser For 12mm Tape Light

  • Length: 5m
  • PCB Width: 8-12mm
  • External Width: 20mm
  • External Height: 16mm
  • Lighting Direction: 120°
  • Color: White
Various Options In Stock
$4.99
Open-ended series silicone led strip diffuser, designed as a type with flange, the flange uses a transparent diffusion material, connected to the light-emitting surface together, with the whole top glow. This easy-wearing silicone led strip cover is for 8mm~12mm led strips, you can use it with aluminum channels together or directly to cover a suitable sized groove, to achieve a soft linear...
1616 Waterproof Silicone LED Strip Light Tube With Flange For 12mm PCB, Fully Top Glow
Review stars(0)
Model:FLNLT-TL1616

1616 Waterproof Silicone LED Strip Light Tube With Flange For 12mm PCB, Fully Top Glow

  • Length: 1/2/5m
  • PCB Width: 8-12mm
  • External Width: 16mm
  • External Height: 16mm
  • Lighting Direction: 120°
  • Color: White
Various Options In Stock
$5.99
Check this silicone led strip diffuser tube, designed with transparent flanges, large illumination, and bring your place with soft, even, and dotless lighting.  Apply this silicone light to your recessed LED strip lighting projects, he high-quality soft silicone tube has high durability and waterproof/weatherproof performance, suitable for use in interior and exterior environments. For...
Silicone Black LED Strip Diffuser Cover For 12mm PCB
Review stars(0)
Model:COVER-YT1616-B

Silicone Black LED Strip Diffuser Cover For 12mm PCB

  • Material: Food-grade Silicone
  • PCB Width: 15mm/20mm
  • External Width: 32mm/1.3"
  • External Height: 20mm/0.79"
  • Beam Angle: 120°
  • Length: 1m/2m/5m
Various Options In Stock
$5.98
Flexible black silicone light diffuser for 10mm and 12mm led strip lights, 21mm (0.83") wide by 16mm (0.63") high. The light emitting surface has a black appearance, LED light through the silicone diffuser cover will produce a soft even light, when the light is turned off, the black surface of the silicone led strip diffuser can also be used for decorative purposes.  Led strip...
Silicone LED Strip Diffuser With White Flange For 12mm LED Light Strip - 16*16mm 120 ° Top Emitting
Review stars(0)
Model:FLNLT-NB1616

Silicone LED Strip Diffuser With White Flange For 12mm LED Light Strip - 16*16mm 120 ° Top Emitting

  • Length:1m/2m/5m
  • External Width: 20mm/0.79"
  • External Height: 16mm/0.63"
  • Inner Width: 13mm/0.51"
  • PCB Width: 12mm
  • Beam Angle: 120°
  • Waterproof Rating: IP67
  • Lighting Direction: Top lighting
Various Options In Stock
$6.98
Silicone led strip diffuser with white flange to cover the gap when installed with the rigid bar  aluminum channel , and the white flange can play a role in decorative lines, this silicone led diffuser is to diffused light for 12mm led strip lights, suitable for led linear lighting projects.      Length 5m/2m/1m External Width 16mm/0.63in Inner...
White Silicone Tube LED Strip Light Channel 120° Side Emitting 16*17mm
Review stars(0)
Model:FLNLT-T1617

White Silicone Tube LED Strip Light Channel 120° Side Emitting 16*17mm

  • Length: 1m/2m//5m
  • External Width: 16mm/0.63in
  • Inner Width: 13mm/0.51in
  • External Height: 17mm/0.67in
  • PCB Width: 12mm/0.47in
  • Beam Angle: 120°
  • Waterproof Rating: IP67
  • Lighting Direction: Side Lighting
Various Options In Stock
$8.99 $7.9911% off
Side emitting silicone led strip light channel for 12mm led strip lighting, the light refracted from the LEDs through the conduction of silicone diffuser to produce  good lighting effect, no glare lighting,  has good light transmittance and a large light-emitting angle , the combination of high-density or medium-density LED light strips and the LED flexible silicone tube can...
18*17mm Three-Sided Top Glow Silicone LED Strip Light Diffuser Tube For 12mm Flexible Strip Lights
Review stars(0)
Model:FLNLT-LL1817

18*17mm Three-Sided Top Glow Silicone LED Strip Light Diffuser Tube For 12mm Flexible Strip Lights

  • Length: 1/2/5m
  • PCB Width: 12mm
  • External Width: 18mm
  • External Height: 17mm
  • Lighting Direction: 180°
  • Type: Top emitting
Various Options In Stock
$6.99
Silicone LED Diffuser Series, this flexible silicone tube is for 12mm wide IP20 led strip lights with any color. The three-sided lighting-emitting design makes it possible to have a larger light-emitting area.  LED stirp with silicone diffuser will have these features: Highly transmissive, spotless and linear light, waterproof, flexible and bendable.      Product...
1818 Top Glow Flex Silicone Profile For 12mm LED Strip Lights
Review stars(0)
Model:FLNLT-T1818

1818 Top Glow Flex Silicone Profile For 12mm LED Strip Lights

  • Length: 1/2/5m
  • PCB Width: 8-12mm
  • External Width: 18mm
  • External Height: 18mm
  • Lighting Direction: 120°
  • Waterproof: IP67
  • Color: White
  • Type: Top emitting
Various Options In Stock
$6.99
The 18*18mm (0.7*0.7in) size Top Glow Silicone Profile is a durable and flexible channel designed to house 8-12mm LED strip lights like 5050, WS2815, SK6812, RGBW, RGBCCT, etc. Its compact size makes it an ideal choice for applications where space is limited. Made from high-quality silicone material, this profile is able to withstand exposure to harsh environmental conditions.  The Top Glow...
Dome Top Silicone LED Diffuser Cover For 12mm LED Strip Lights - 25*20mm 180° Top Emitting
Review stars(0)
Model:FLNLT-DT1820

Dome Top Silicone LED Diffuser Cover For 12mm LED Strip Lights - 25*20mm 180° Top Emitting

  • Length:1m/2m/5m
  • Type: Silicone Diffuser Cover
  • External Width: 25mm/0.98"
  • External Height: 18mm/0.7"
  • PCB Width: 12mm
  • Beam Angle: 180°
  • Waterproof Rating: IP67
  • Lighting Direction: Top lighting
Various Options In Stock
$5.98
Dome top silicone led diffuser for 12mm led strip lights to get soft and linear lighting, large illumination area. You should put the silicone led diffuser cover into the  aluminum channel  or flexible profile  to complete the whole lighting , the strip wire is through the end cap hole to connect the led controller or led power supply. You can use this silicone led diffuser...
20*10mm Silicon Bendable LED Light Strip Diffuser Cover For 12mm PCB
Review stars(0)
Model:FLNLT-LL2010-NF

20*10mm Silicon Bendable LED Light Strip Diffuser Cover For 12mm PCB

  • Length: 1/2/5m
  • PCB Width: 8-12mm
  • External Width: 20mm
  • External Height: 10mm
  • Lighting Direction: 120°
  • Color: White
Various Options In Stock
$3.99
Open-ended series led light strip diffuser, made of soft siliocne food-grade material with high light transmission, designed to be used inline, is compatible with IP20 led strips and waterproof led strips, to create a soft light line with a variety of shapes. It is flexible to bend.  This led light strip cover is for 8mm~12mm PCB, easy-wearing. Use it with aluminum channels together or...
20x10mm Silicone Milky LED Strip Diffuser Cover For 12mm Strip Light
Review stars(0)
Model:FLNLT-T2010-L

20x10mm Silicone Milky LED Strip Diffuser Cover For 12mm Strip Light

  • Length: 5m
  • PCB Width: 12mm
  • External Width: 26mm
  • External Height: 10mm
  • Lighting Direction: 120°
  • Type: Top emitting
  • Color: White
  • Waterproof: IP67
Various Options In Stock
$4.98
Want to use led strip lights to make recessed lighting? And want a little more flexibility? The silicone led diffuser cover is the great choice.  Put the led strip light in the slot, and cover it with this silicon led strip diffuser, then you can get a linear and dotless lighting effect.    Note:  This item does not include led strips. If you need, you have to purchase...
Bendable Silicone LED Light Diffuser Outdoor LED Channel 120° Top Emitting 20*10mm
Review stars(0)
Model:FLNLT-T2010-S

Bendable Silicone LED Light Diffuser Outdoor LED Channel 120° Top Emitting 20*10mm

  • Length: 1m/2m//5m
  • External Width: 20mm/0.79in
  • Inner Width: 13.5mm/0.53in
  • External Height: 10mm/0.39in
  • PCB Width: 12mm/0.47in
  • Beam Angle: 120°
  • Waterproof Rating: IP67
  • Lighting Direction: Top lighting
Various Options In Stock
$5.99
20*10mm silicone led light diffuser for 10mm led strip lighting, you can match this silicone led chanenl with single color led strip lights or color changing led strip lights for your home decor, wall decor, or outdoor decorations. Made of high quality food grade silicone material, the led silicone tube  has good light transmittance and a large light-emitting angle,  does not...
Silicone LED Light Channel Diffuser White Edge Without Bottom 120° Top Emitting 20*10mm
Review stars(0)
Model:FLNLT-WS2010

Silicone LED Light Channel Diffuser White Edge Without Bottom 120° Top Emitting 20*10mm

  • Length:1m/2m/5m
  • External Width:20mm/0.79in
  • Inner Width:13.5mm/0.53in
  • External Height:10mm/0.39in
  • PCB Width:10mm/0.39in; 12mm/0.47in
  • Beam Angle:120°
  • Lighting Direction:Top Lighting
  • Waterproof Rating:IP67
Various Options In Stock
$5.98 $4.9817% off
2010 Flexible silicone LED strip cover that can accommodate 12mm strips and under. Designed to cover recesses or installed with linear aluminum channels, can be bent into different shapes.  Silicone led strip cover is to protect led strips and optimize LED light output, made of flexible silicone material. The softness of the silicone material allows the LED strip cover to make different...
20x14mm LED Silicone Tube With Opening Bottom For 12mm LED Strip
Review stars(0)
Model:COVER-2014

20x14mm LED Silicone Tube With Opening Bottom For 12mm LED Strip

  • Length: 5m
  • PCB Width: 12mm
  • External Width: 26mm
  • External Height: 14mm
  • Lighting Direction: 120°
  • Color: White
Various Options In Stock
$5.98
Check the 2014 silicone led strip light cover, with a fully illuminated surface, and no white edges. Made of food-grade silicone material, the LED cover is bendable and flexible to make various light-line designs. We provide 1m/3.28ft, 2m/6.56ft, and 5m/16.4ft lengths, and we can customize other lengths for you.  Silicone LED light covers are designed for indoor and outdoor recessed...
