Human Body Sensor HS-WL-A

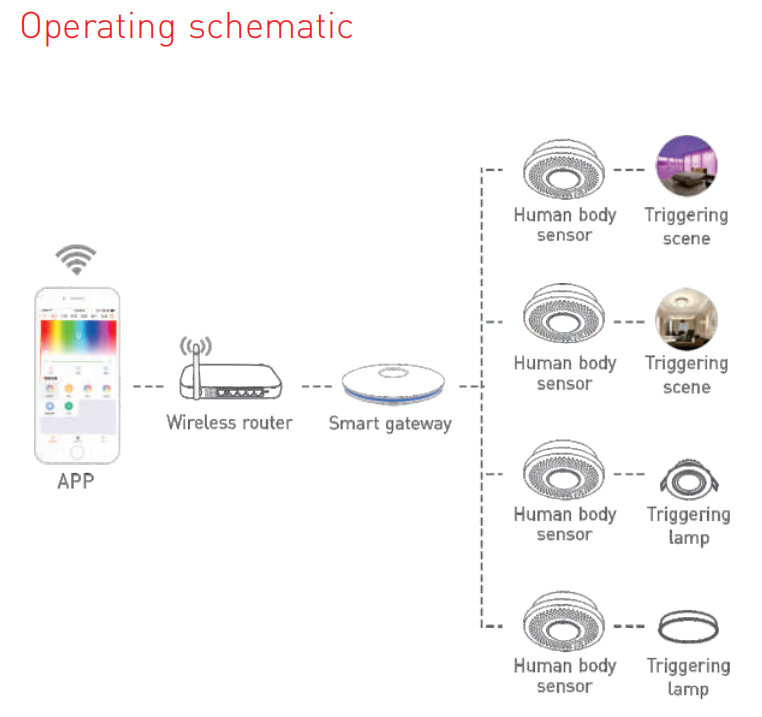

The human body sensor adopts a thermo-electric infrared sensor to detect someone’s passing via sensing heat. Detecting lights on during someone coming and lights off as someone left through linkage of the gateway with intelligent device and lamps, you can set trigger conditions, trigger period and shutdown delay via the APP, it makes
Operating voltage: 3.6Vdc (lithium battery CR17335)
Wireless type: RF 2.4GHz

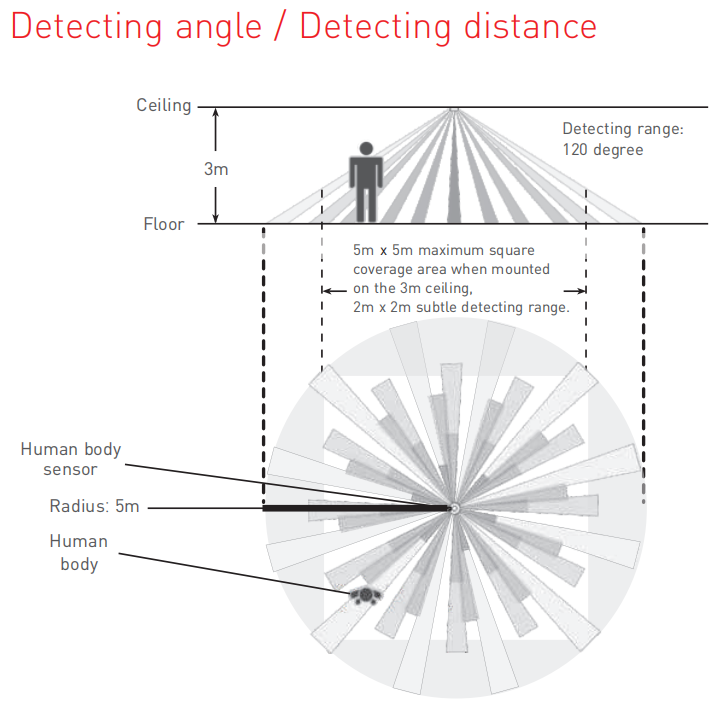

Detecting distance: 6m
Detecting angle: 120 degrees
Battery life: 5 years
Working temp.: 0°C~40°C

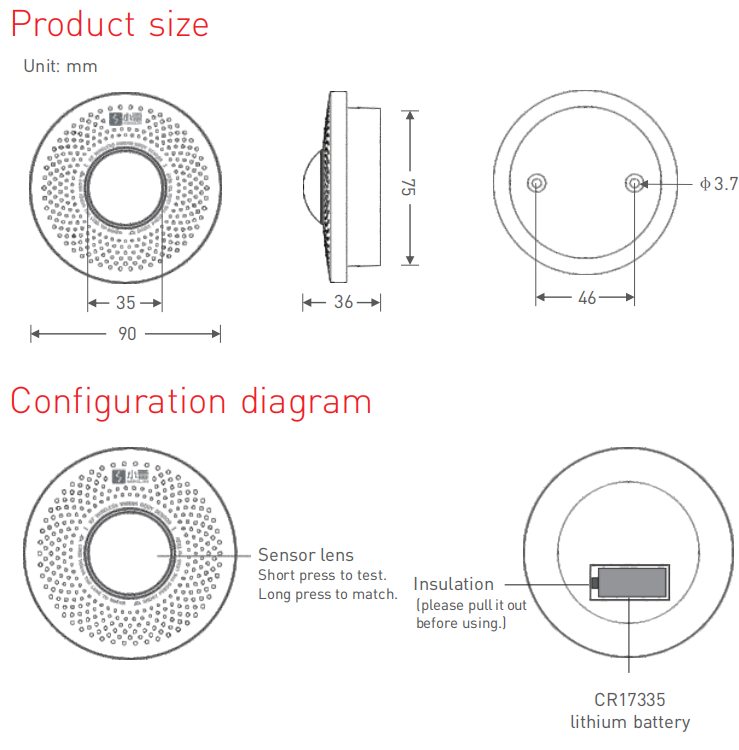

Packing size: L91×W91×H42(mm)
