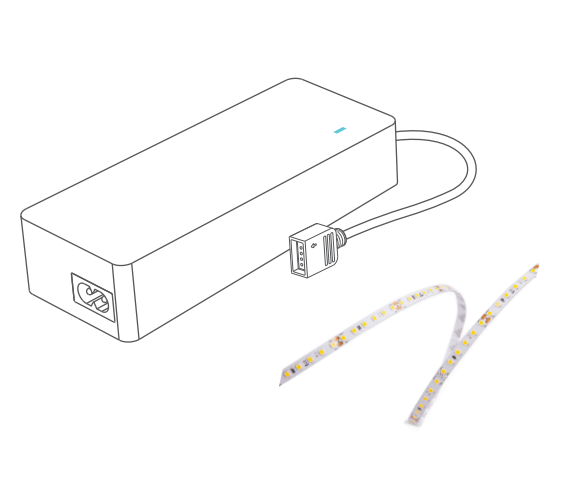

75W 24VDC CV RGB Bluetooth Smart LED Driver ST-75-24-W3B
Bluetooth Smart LED Driver adopts Bluetooth 5.0 Mesh technology with low power consumption. You can easily control the smart LED driver with App, and it enables you to connect your Bluetooth remotes and Bluetooth smart wireless switches for dimming, color temperature adjustment, and color changing. You'll able to remotely control your lighting by LTECH Super Panel and wireless module as well to meet different applications. Simple and flexible operations put you in easy control of your lighting and make life smarter.

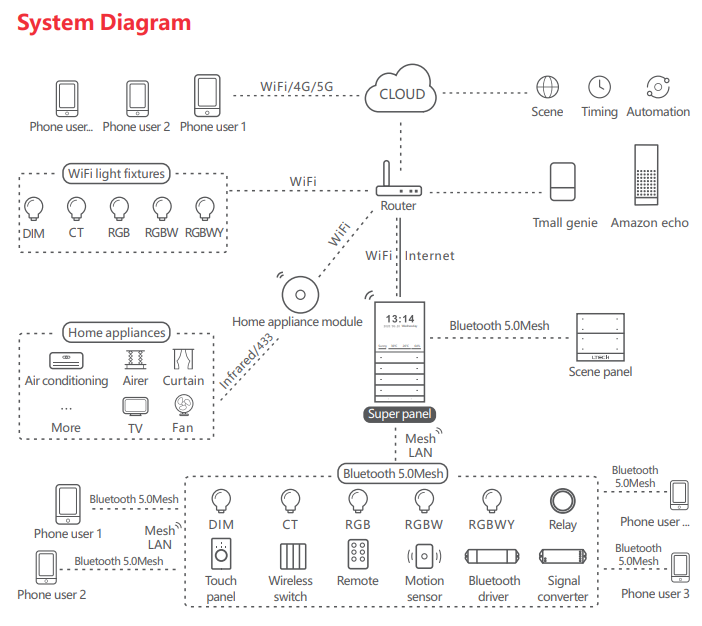

Bluetooth 5.0 Mesh Networking
Support Bluetooth panel, Bluetooth remote control, and mobile phone Bluetooth remote control Achieve sync control for multiple devices
0-100% dimming range, down to 0.1%
0-100% flicker-free dimming with high-frequency exemption level.
With active PFC function
100-240Vac wide voltage input
With overheat, overvoltage, overload and short circuit protection and automatic recovery
Class 2 driver with a fully-guarded plastic housing that aligns with
Safety Extra-low Voltage Standard
Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲ type
