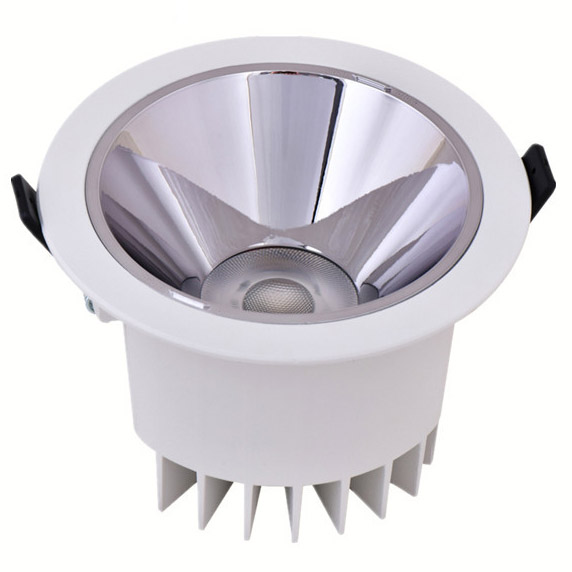

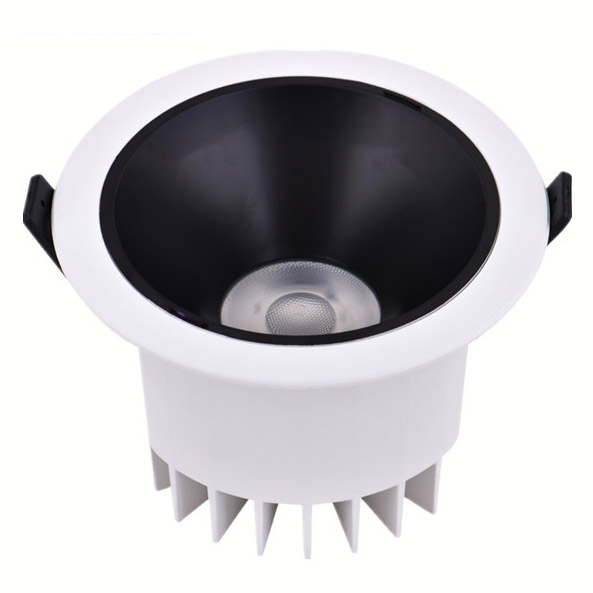

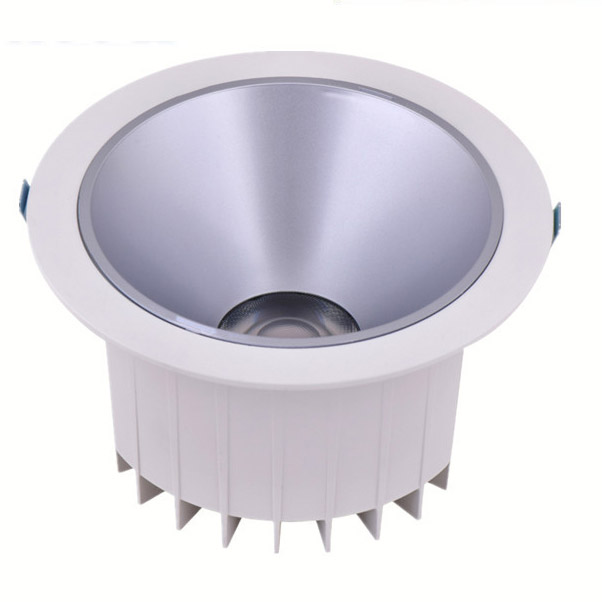

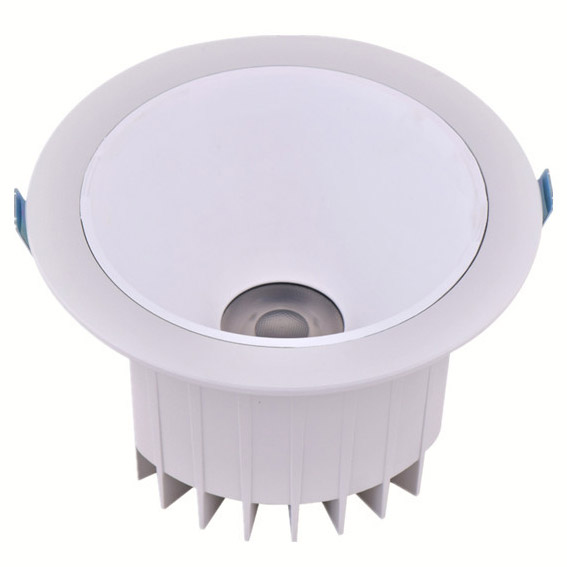

3.54in, 10W 5.12in, 20W 6.69in, 30W 7.87in, 40W LED COB Ceiling Light - Flush Mount LED Downlight - Waterproof - 75-85LM/W - 50°Light speed angle
Main material: die-cast aluminum
Lamp form: wiring type
Lamp installation method: embedded installation
Whether to adjust the angle: fixed angle
Related certification: EU ce certification, hazardous substances (RoHS)
Drive mode: external power supply
Protection level: IP65
Power: isolated, constant current power supply
Ambient temperature: -20 ° C ~ +45 ° C
Warranty period: 3 years
Product technical parameters:
Working voltage: AC85~265V 50/60Hz Suitable for most power environment
Power factor: >0.9
Light source: South Korea's Samsung lamp beads 5630 Taiwan crystal yuan 5630 optional
Luminous flux: full light flux 75-85LM/W
Color temperature: 3000K, 4000K, 5700K
Color rendering index: RA>80
Light speed angle: 50°
The product description:
Waterproof downlight, ceiling light, break through the routine, the first domestic waterproof downlight, efficient solution to bathroom, kitchen, spa, garden villa, high-end hotel, farm, TV cabinet wall, theater, museum Exhibition halls, etc. Whether it is wet or normal environment, whether it is indoor or outdoor, it can be used without any application, it is widely used, waterproof, optimized, cost-effective, unique structure, the same product can be IP44, IP54, IP65 three The degree of protection quickly replaces the conventional downlights, and at the same time, it effectively displays the power of the product (such as higher power than the conventional size, smaller than the conventional application, greatly reducing the transportation cost), and the radiator effect is excellent!
10W:Surface diameter: Φ100mm/3.94”*75mm/2.95“ opening Hole:Φ90mm/3.54”
20W:Surface diameter: Φ140mm/5.51"*90mm/3.54" opening Hole: Φ130mm/5.12"
30W:Surface diameter: Φ185mm/7.28"*112mm/4.41" opening Hole: Φ170mm/6.69"
40W:Surface diameter: Φ230mm/9.06”*128mm/5.04“ opening Hole: Φ200mm/7.87"
