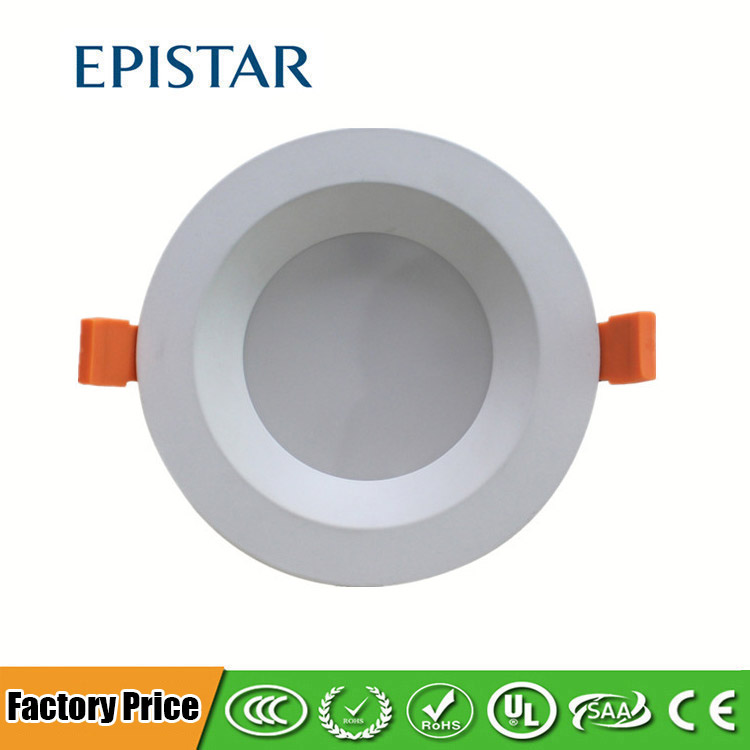

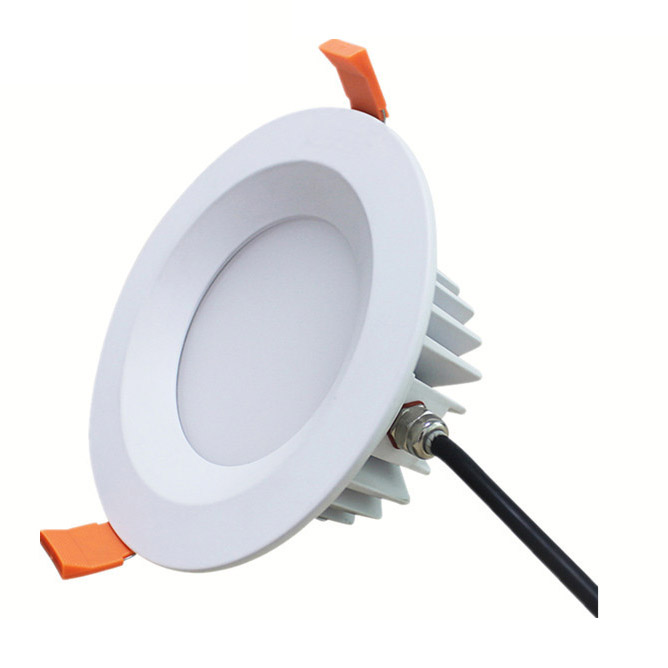

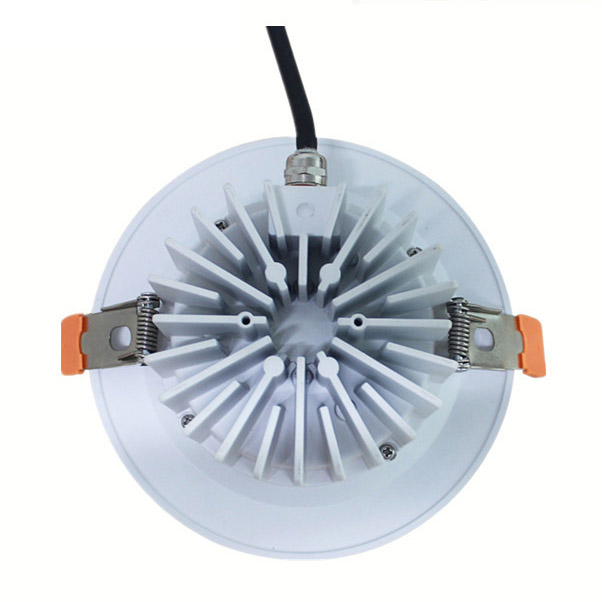

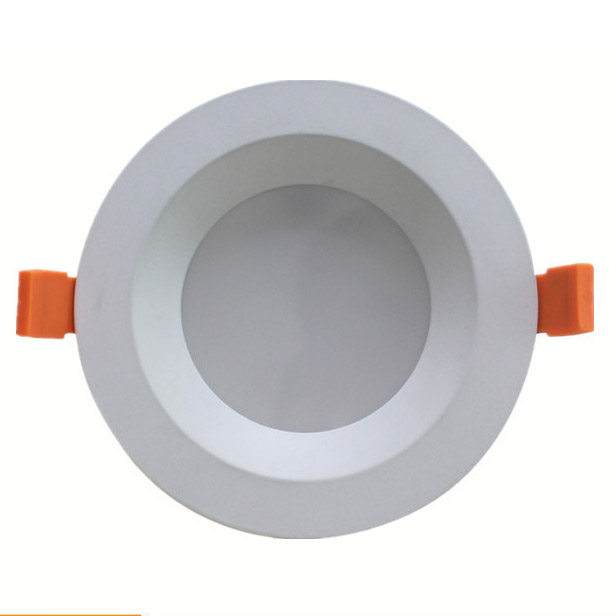

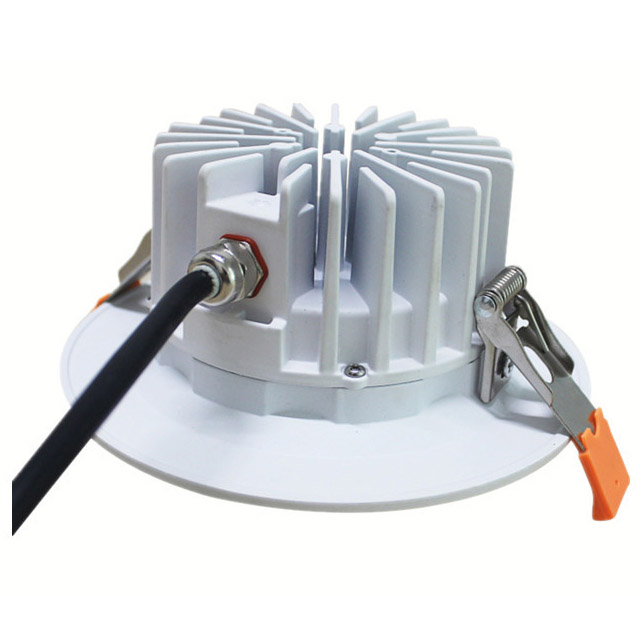

10~35Watt 120° White LED COB Ceiling Light LED Downlight Waterproof 75-85LM/W
This 10-35W 120-degree Ceiling Downlight is waterproof and safe to use in wet environments like showers. With a high brightness of 75-85 lumens/watt and optional color temperatures, it can effectively illuminate the space and create a bright and comfortable shower environment for you.
Standards and Certifications
Product Technical Parameters
Main material: Die-cast aluminum + reflective paper + PC
Appearance color: regular white + white, white + black, can also be done all black
Product power: 10W/12W/15W/20W/25W/30W
Working voltage: AC85~265V 50/60Hz Suitable for most power environment
Power factor: >0.9
Light source: South Korea's Samsung lamp beads 5630 Taiwan crystal yuan 5630 optional
Luminous flux: full light flux 75-85LM/W
Color temperature: 3000K, 4000K, 5700K
Color rendering index: RA>80
Light speed angle: 120°
Lamp form: wiring type
Lamp installation method: embedded installation
Whether to adjust the angle: fixed angle
Related certification: EU ce certification, hazardous substances (RoHS)
Drive mode: external power supply
Protection level: IP65
Power: isolated, constant current power supply
Ambient temperature: -20 ° C ~ +45 ° C
Warranty period: 3 years
10W Downlight: Surface: Φ95mm/3.74"*High51mm/2" Opening Hole: Φ80-85mm/3.15"-3.35"
15W Downlight: Surface: Φ115mm/4.53"*High55mm/2.17" Opening Hole: Φ90-95mm/3.54"-3.74"
20W Downlight: Surface: Φ155mm/6.1"*High67mm/2.64" Opening Hole: Φ115-140mm/4.53"-5.51"
25W/30W Downlight: Surface: Φ195mm/7.68"*High60mm/2.36" Opening Hole: Φ160-170mm/6.3"-6.69"
30W/35W Downlight: Surface: Φ235mm/9.25“*High65mm/2.6” Opening Hole: Φ200-210mm/7.87"-8.27"
