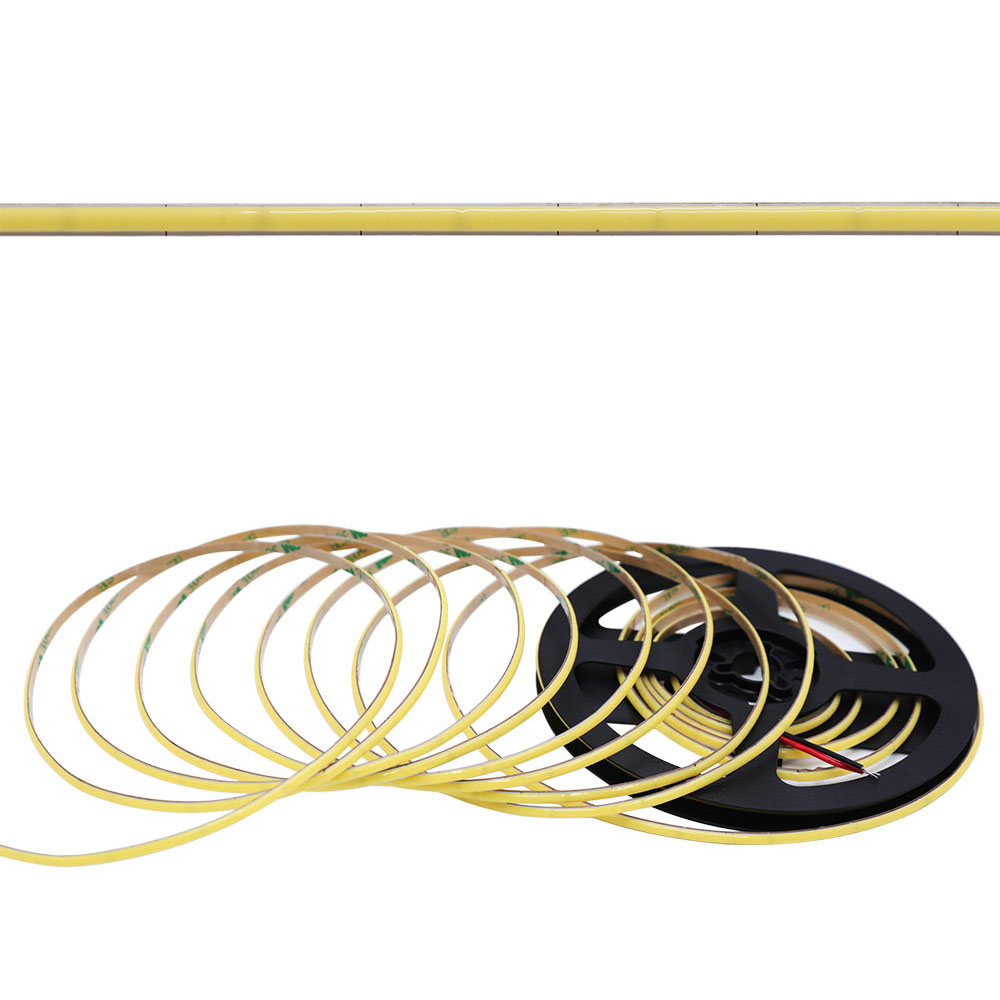

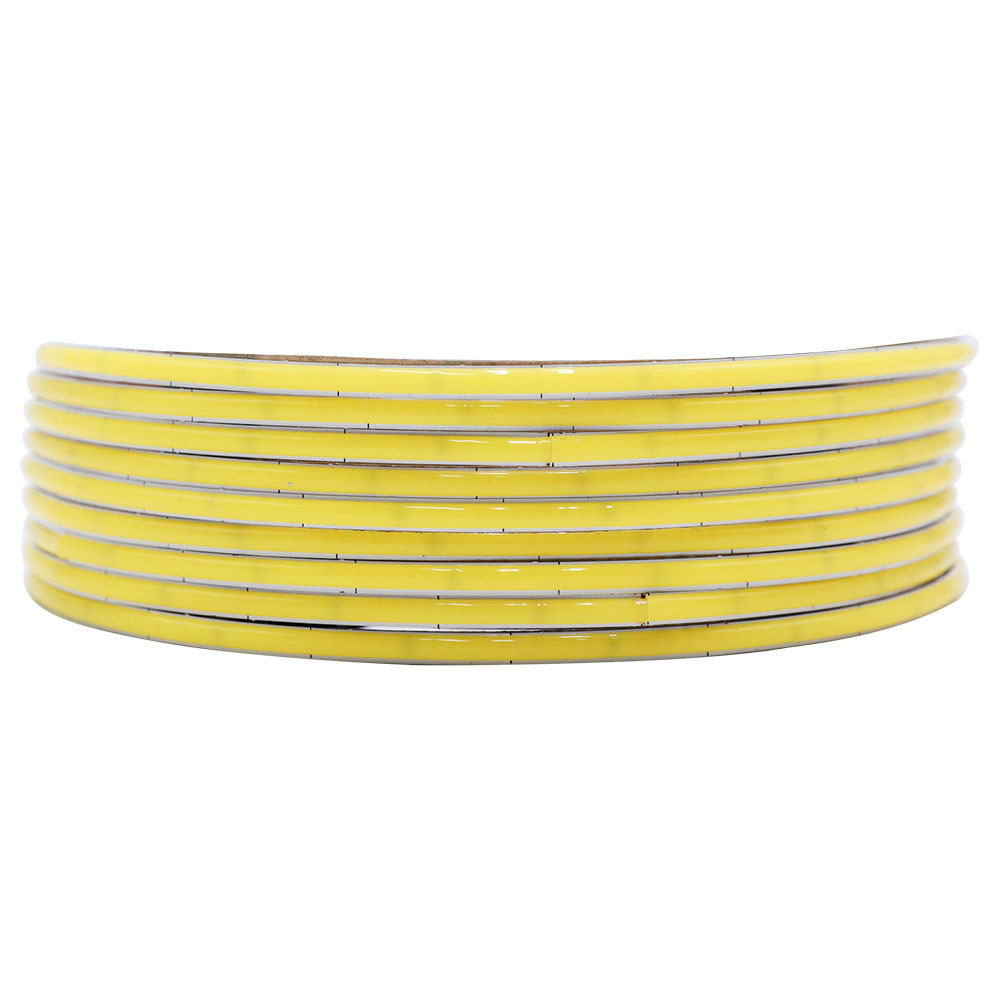

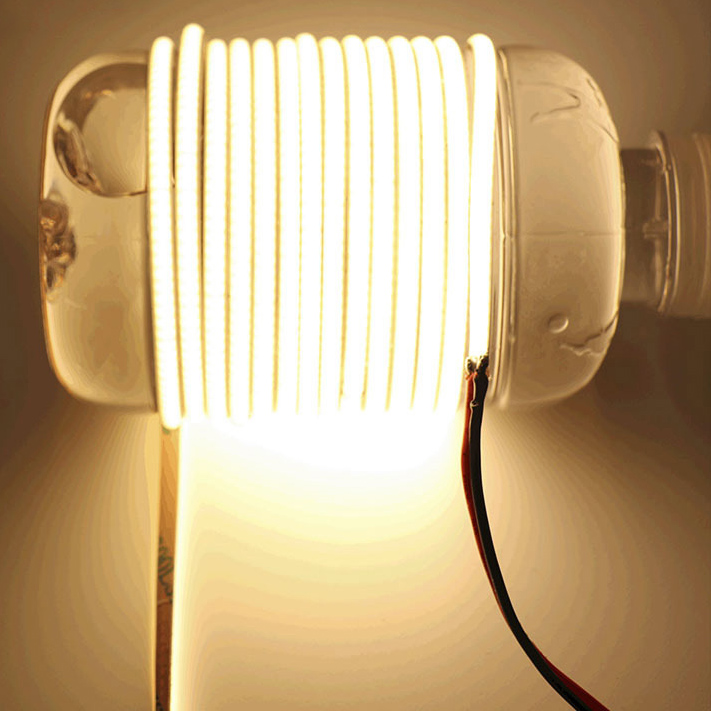

DC12/24V 4MM Super Narrow 480LEDs/M High Density Single Color 90 CRI LED Flexible COB Strip Light 16.4ft/5m per Roll

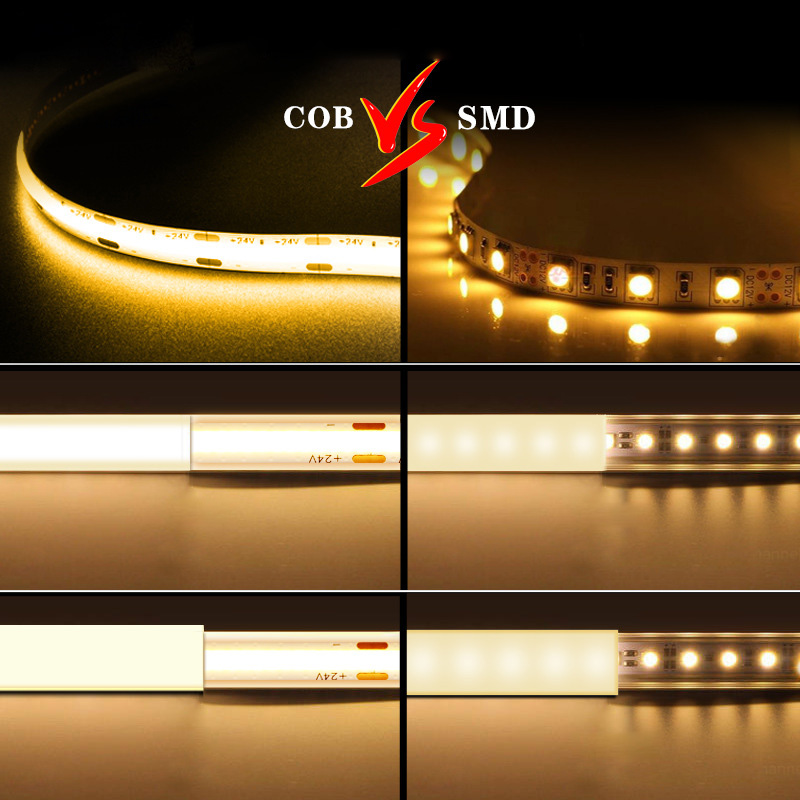

COB stands for chip-on-board, the LED chip is placed directly on the PCB board, sealed by a sealing layer, and showing different colors through different sealing layers, which is our super density series LED product, before you purchase it, you can read the article firstly: What is COB led strip lights?

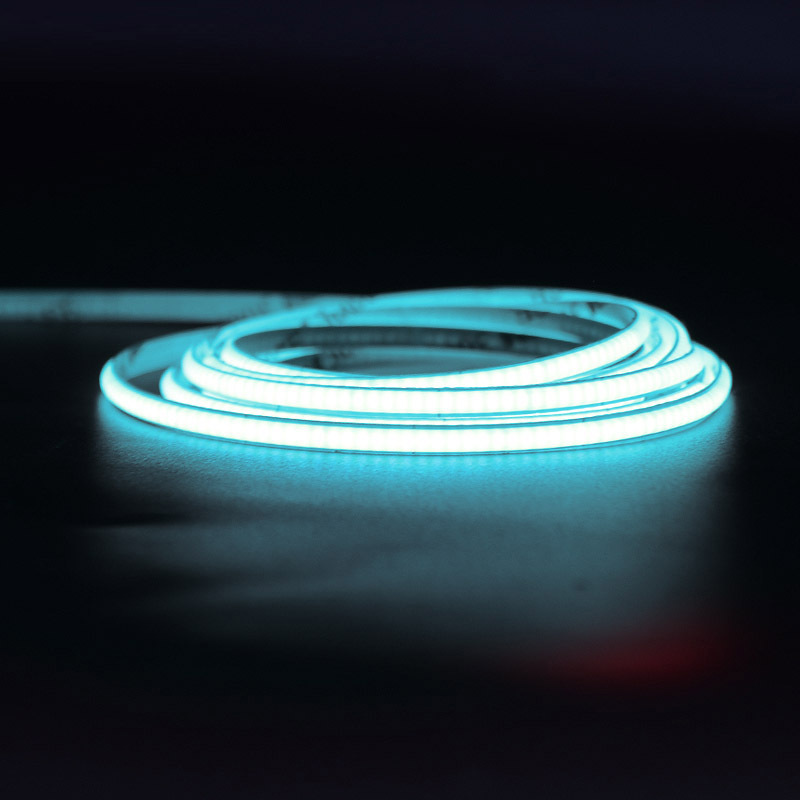

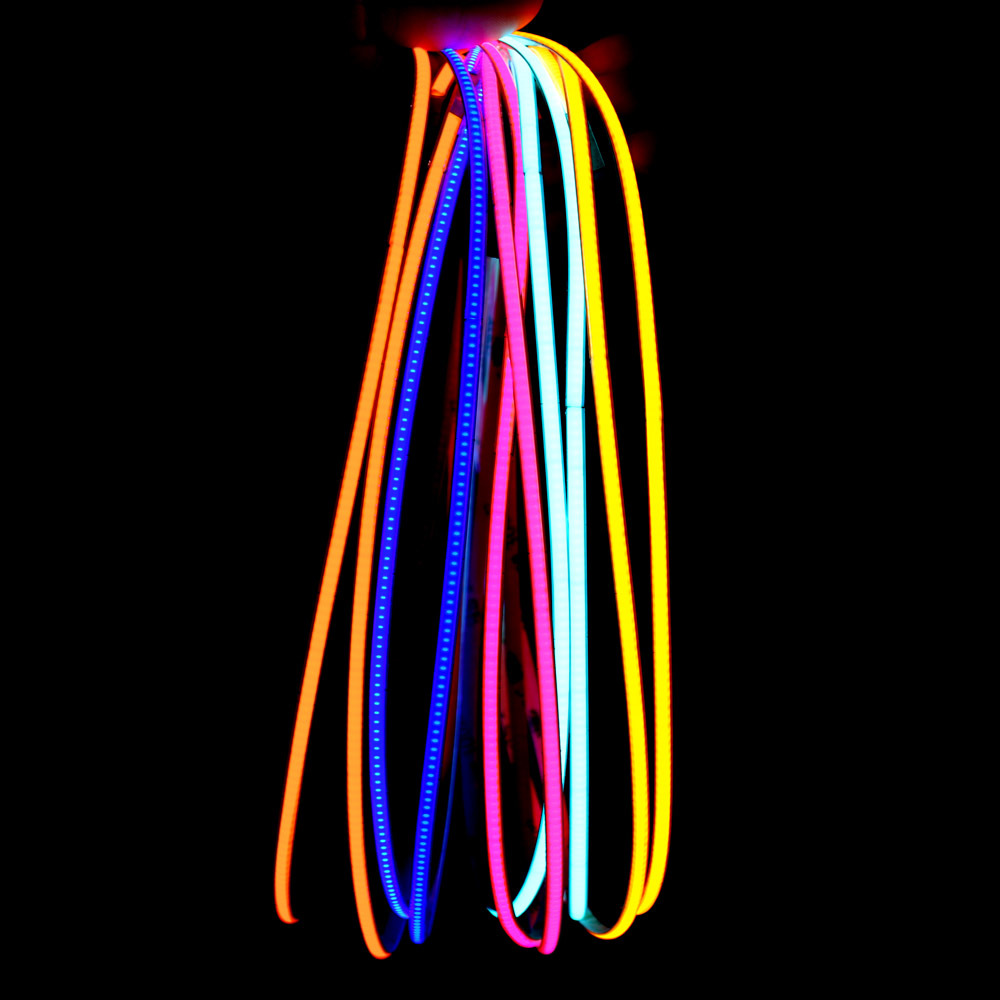

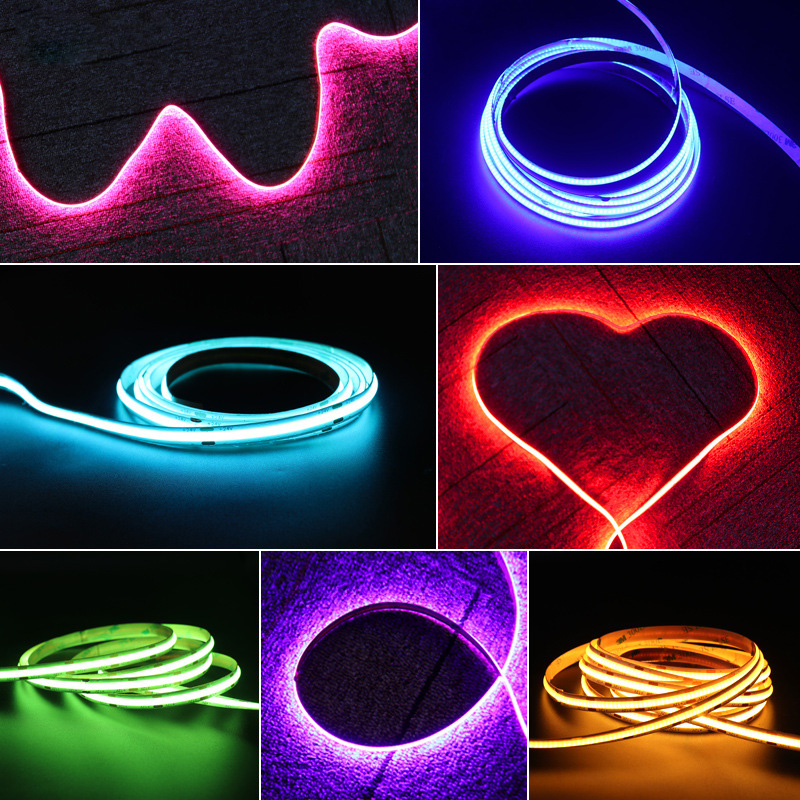

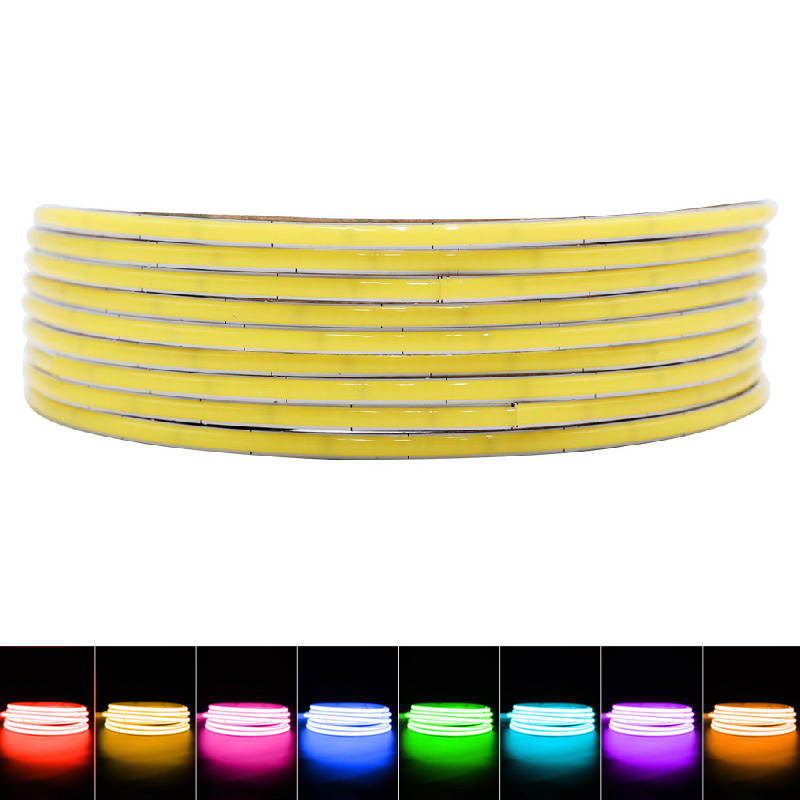

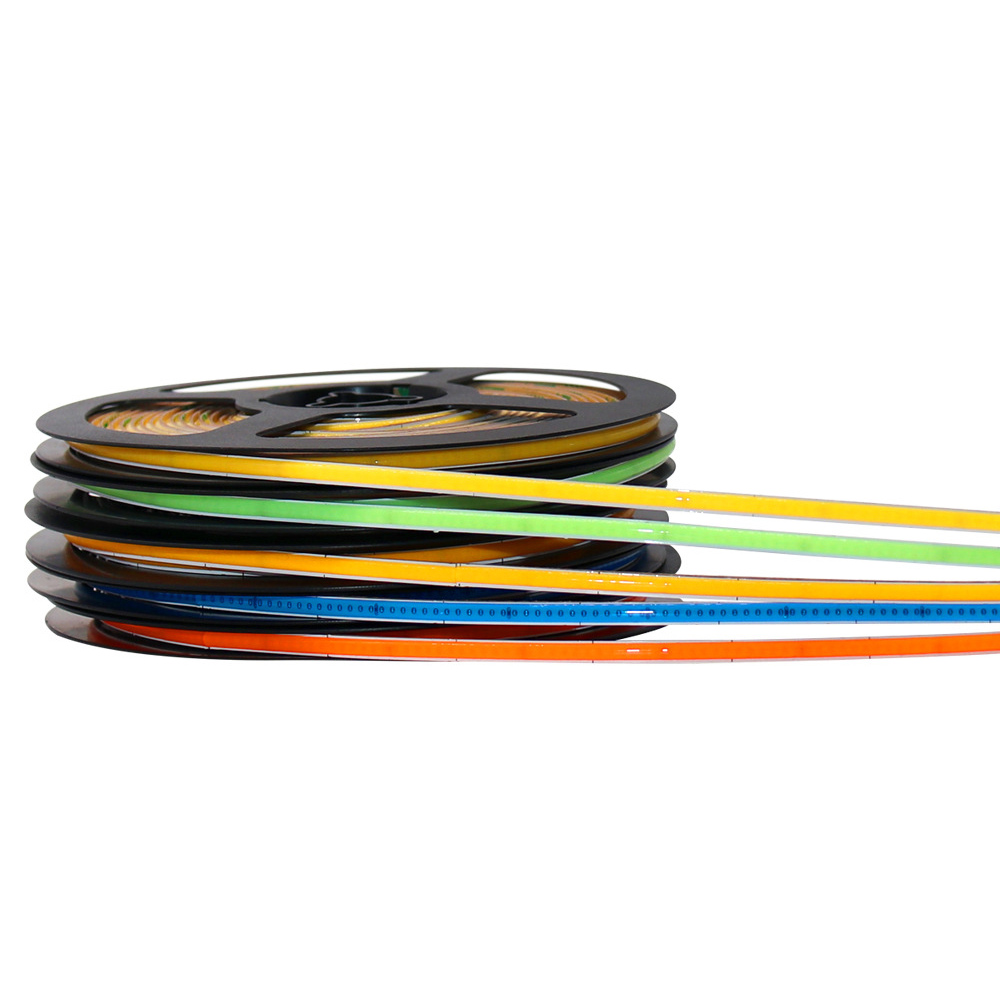

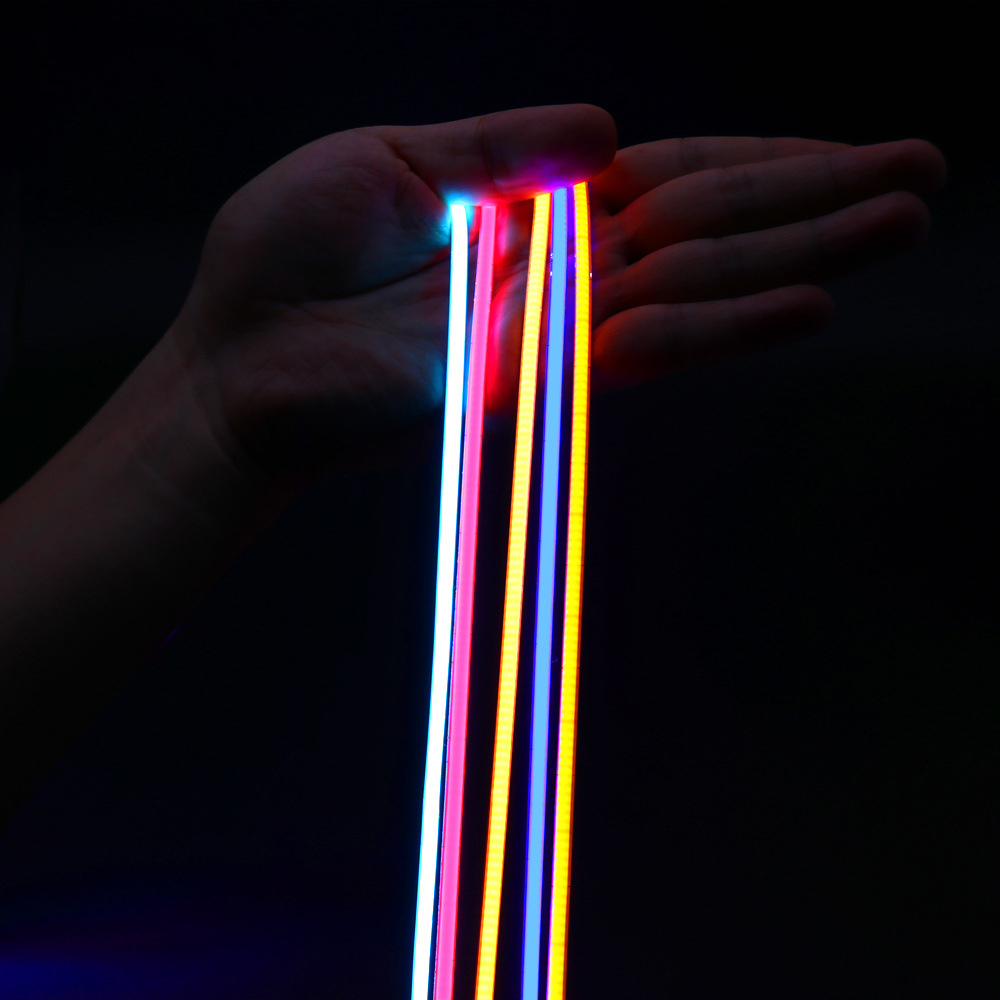

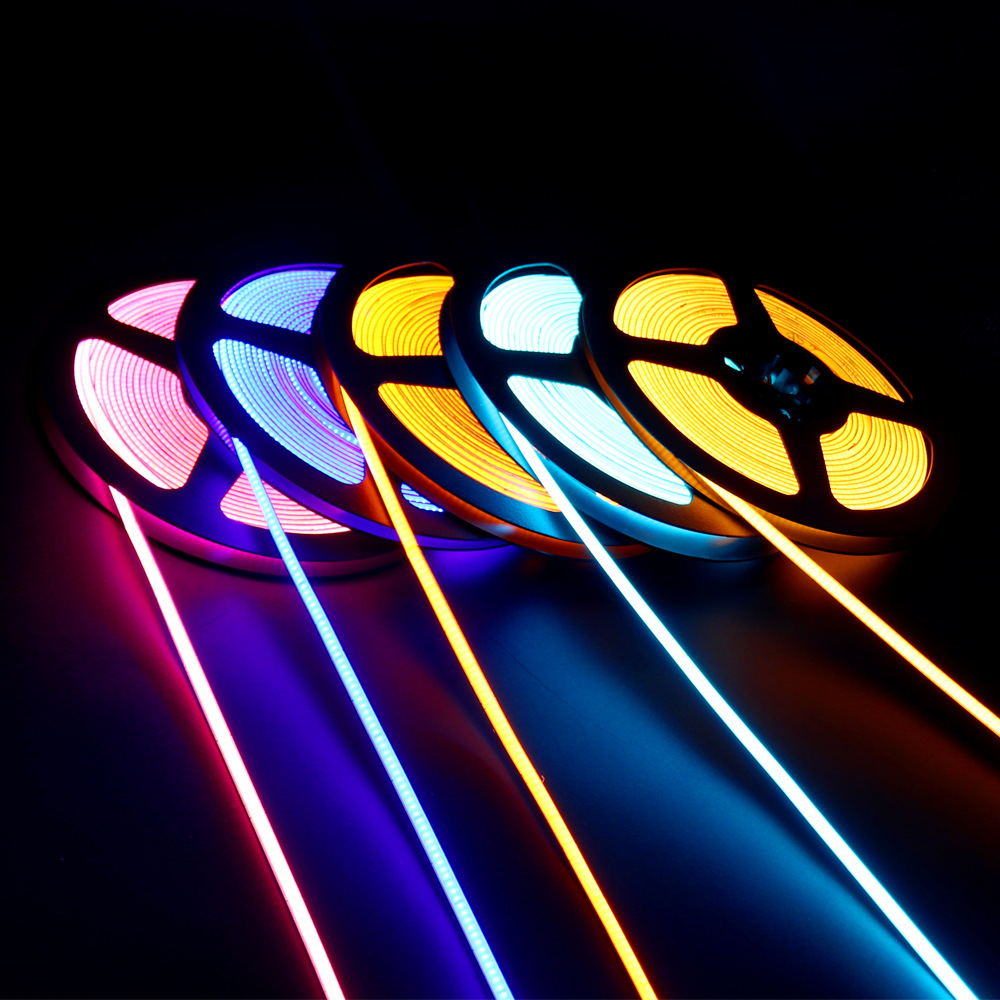

1. High CRI up to 90, multiple colors optional, red, green, blue, ice blue, pink, purple, yellow, highly restore the origianl color temperautre of the external environment, warm white 2700K/3000K; natural white 4000K; daylight white 6000K available. - 2700K soft white vs 3000K warm white vs 4000K natural white vs 6000K pure white.

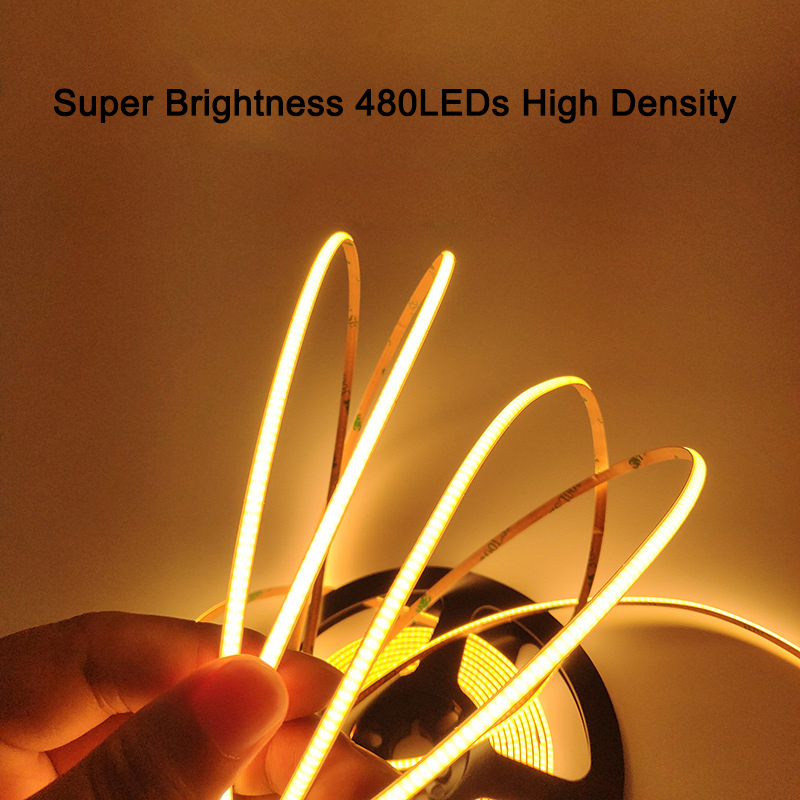

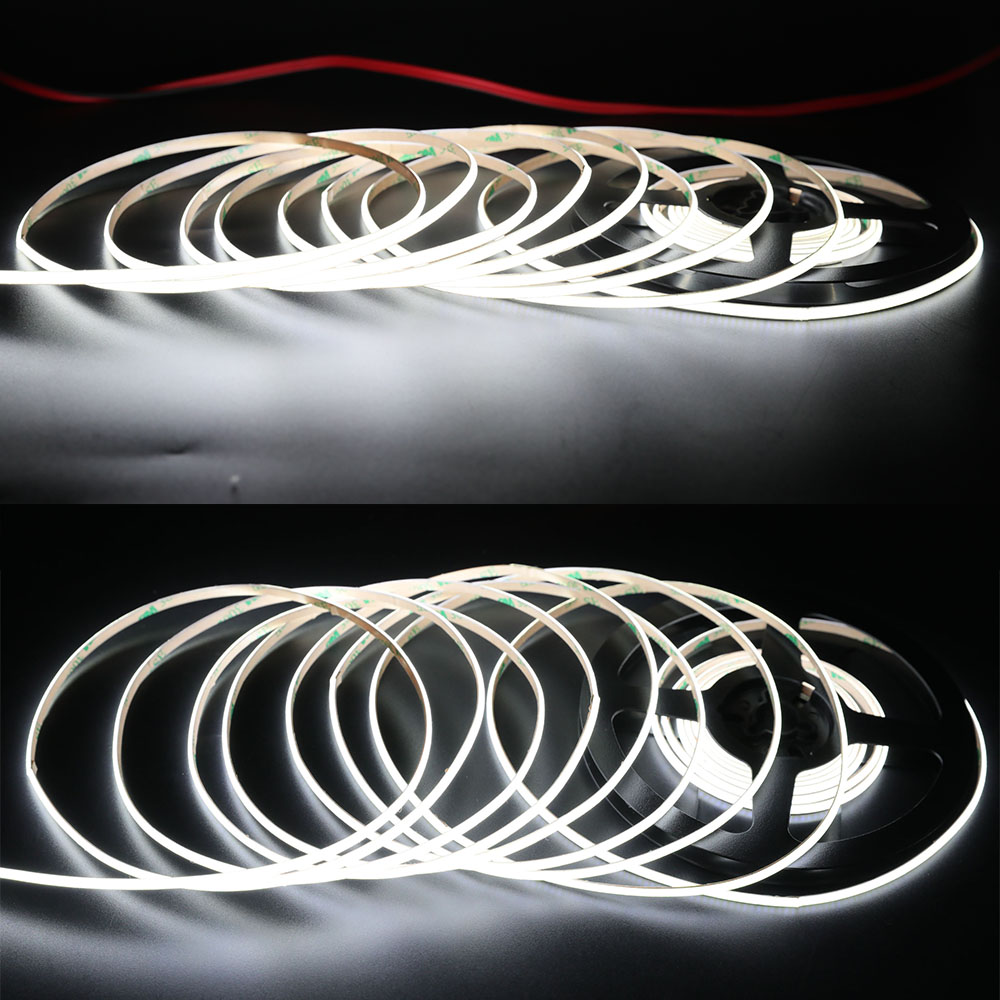

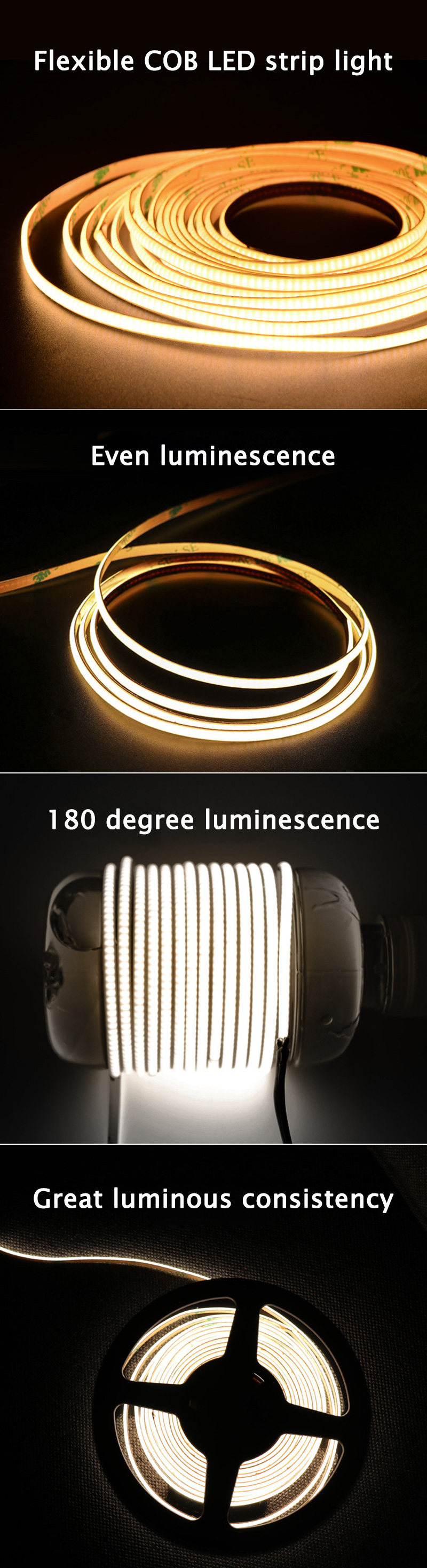

2. The whole COB narrow LED strip adopts the high-quality epistar chip, single LED chip size is 1.0*2.2mm, thin LED strip measure wide is 4mm/0.16in, LED density is 480chips per meter, work with the high brightness COB LED, achieve the whole roll without light spot.

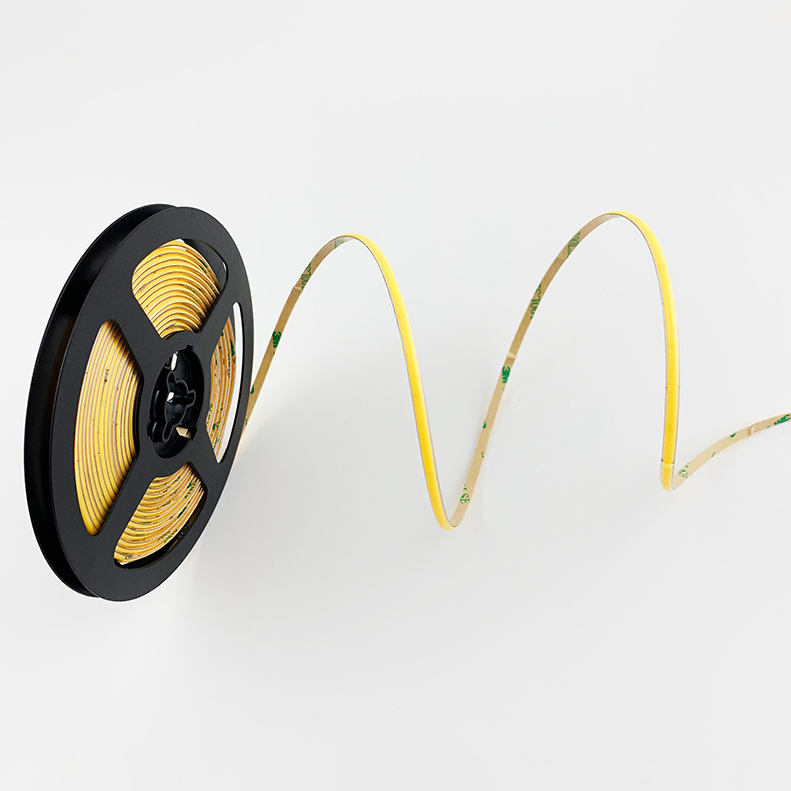

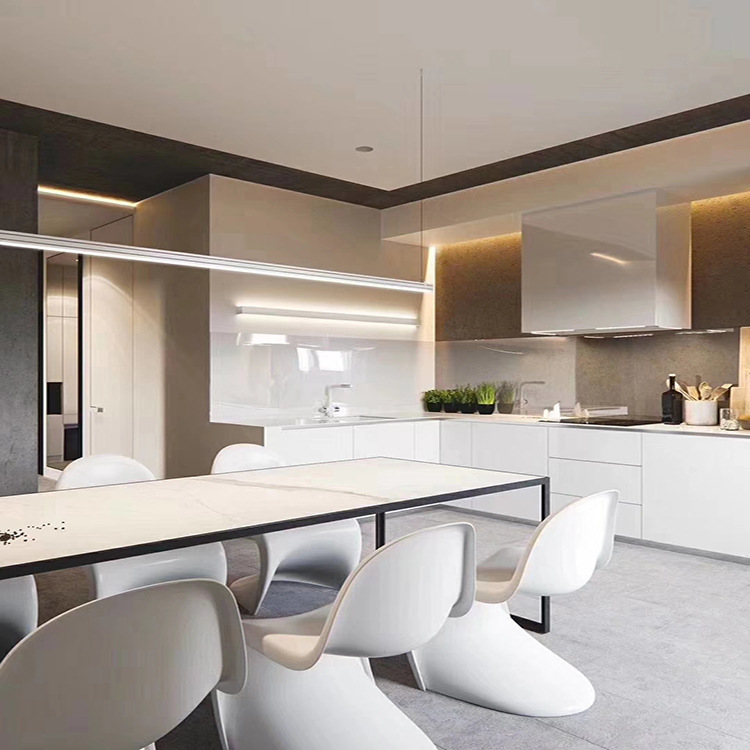

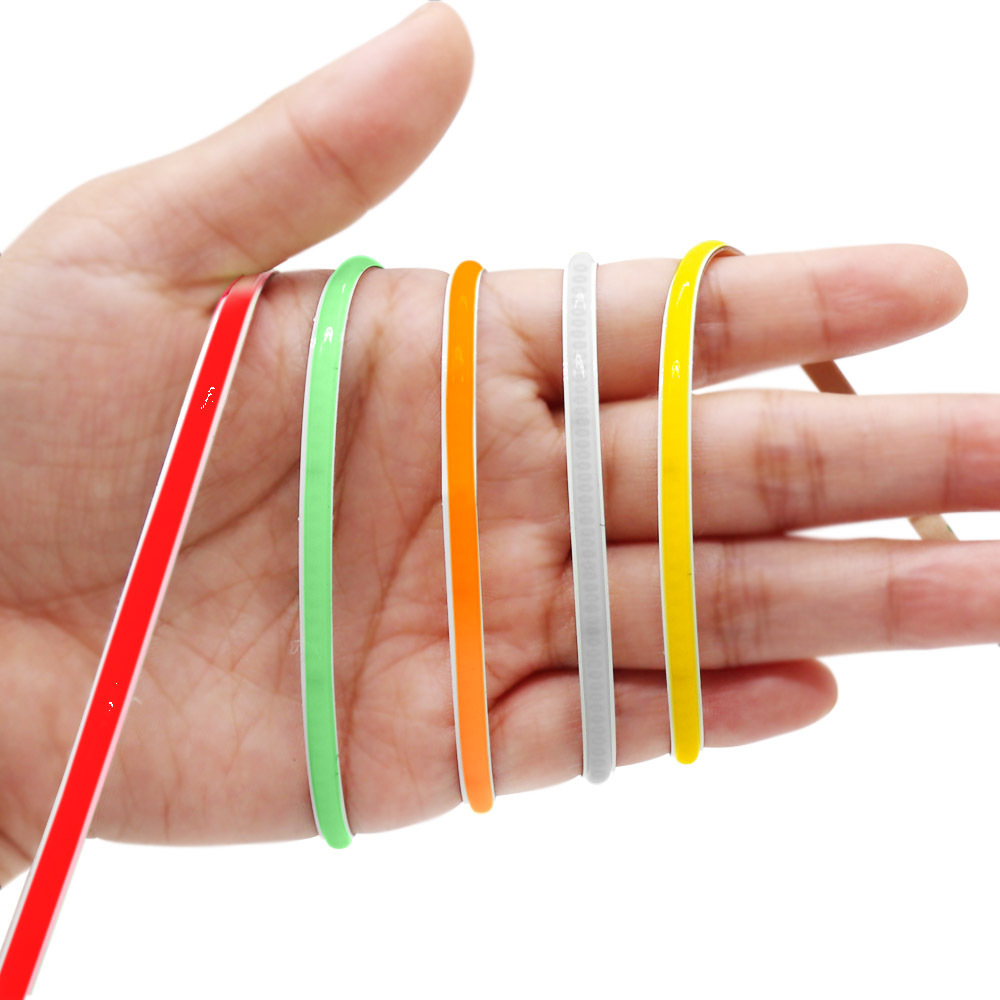

3. DC12/24V safety input voltage available - 12V vs 24V ultra thin COB led strip lights, suitable for different LED lighting projects, car lighting, undercabinet lighting, bookshelf lighting, every 10mm/0.39in cuttable, you can customize the strip length by yourself, the whole ultra narrow led strip roll with good flexibility, you can bend at any angles.
4. For indoor & outdoor lighting, we provide IP20 non-waterproof and IP67 waterproof optional, adopting the high quality 3M adhesive tape on the back, convenient to install in any complex environment. For the IP67 version, we will adopt waterpfoof heat shrink tube,you may need to order the mounting brackets. you can also use the LED aluminum channel Easy installation.
►Everything you need to know before buying led strip lights:
Standards and Certifications
|LED Strip Type||COB LED (COB Flexible led strip light specification )|
|LED Chip||Epistar Chip|
|Light Emitting Surface Size||L5000*W3mm|
|White Color||Warm white(3000k), Warm whtie(2700K), Nature whtie(4000K), Daylight White(6000K)|

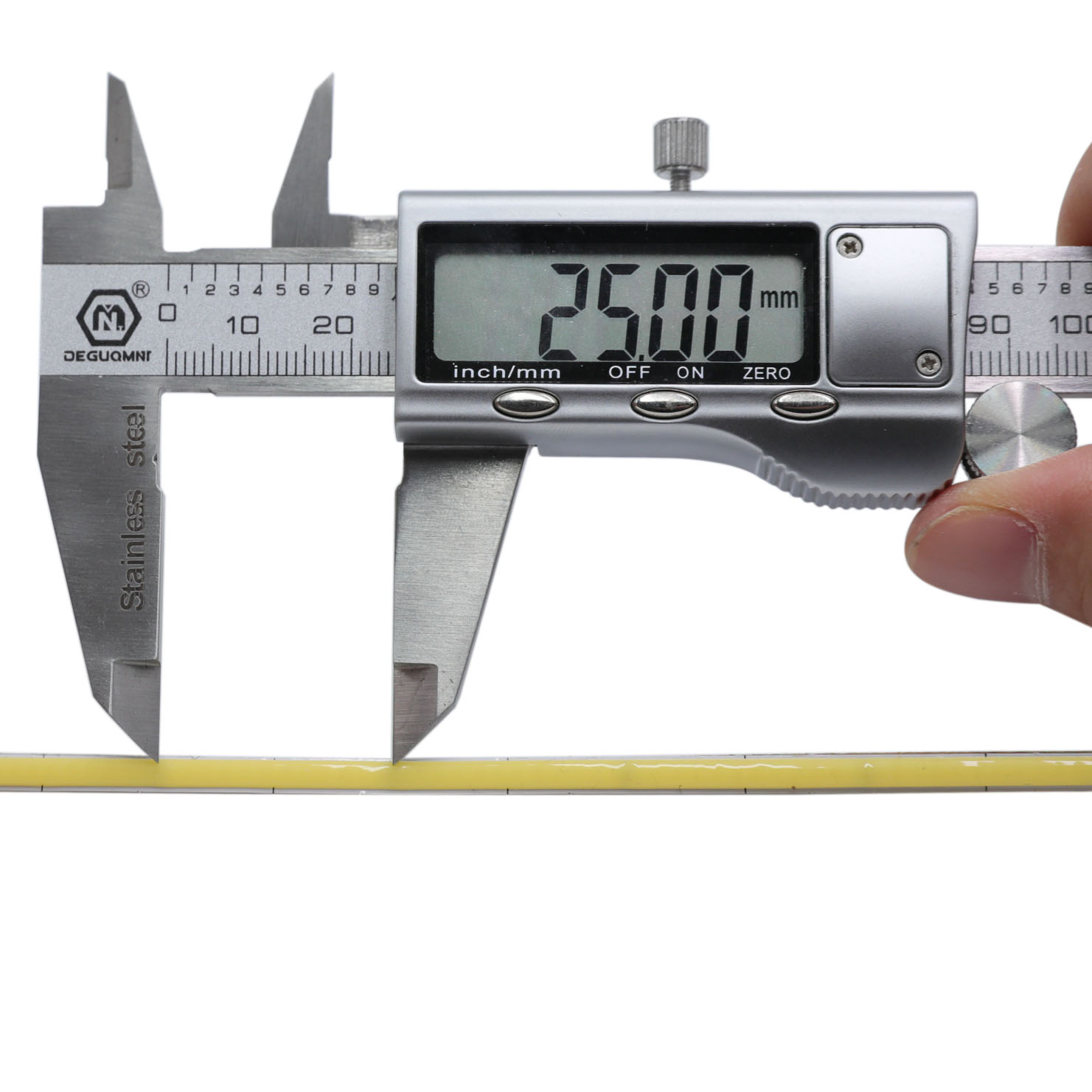

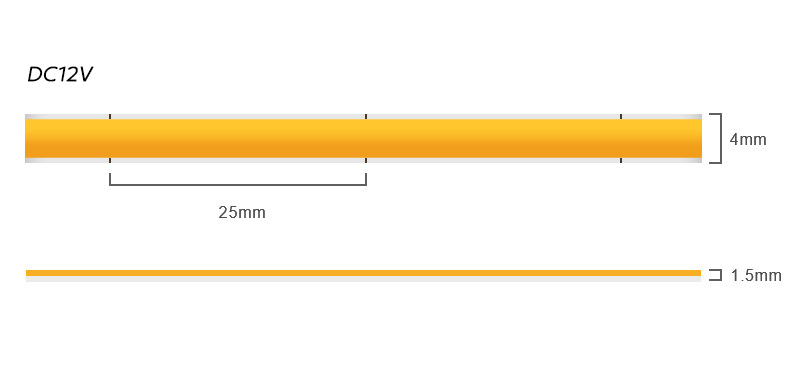

|Cut Length||25mm/0.98in for DC12V|
|Luminous Efficiency||100-110LM/W, Total 500-550LM/M|
|Wire Material||copper foil|
|Color Tolerance||3 SDCN|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|5m/16.4Ft COB Strip||35-40W / Roll||DC12V||
Controller: V1 + RT1
Controller: V1 + RT1
Power supply: 24V 48W power supply adapter
if you have any requirements for other types of the LED Controller, you can visit our Single Color Dimmer Series.
Don't know how to choose the correct LED power supply, please read the following article: How to calculate power for led strip lights?
When you purchase the LED power supply, please read the following article: How to choose led strip light power supply?
Color Temperature and CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.

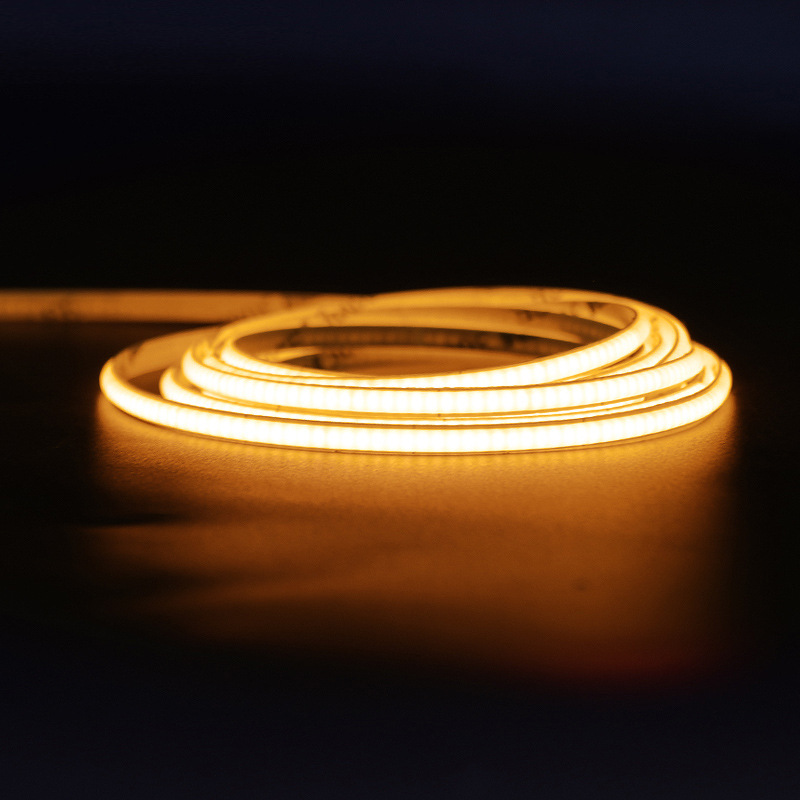

• Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.
• Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.
• Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Installation Instruction: How to Install LED Strip Lights?

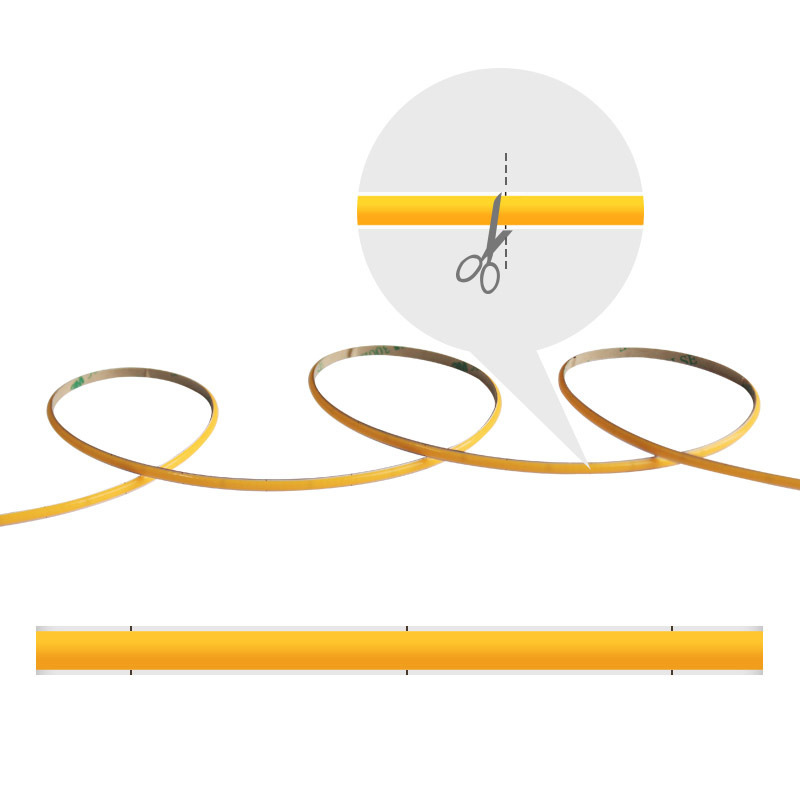

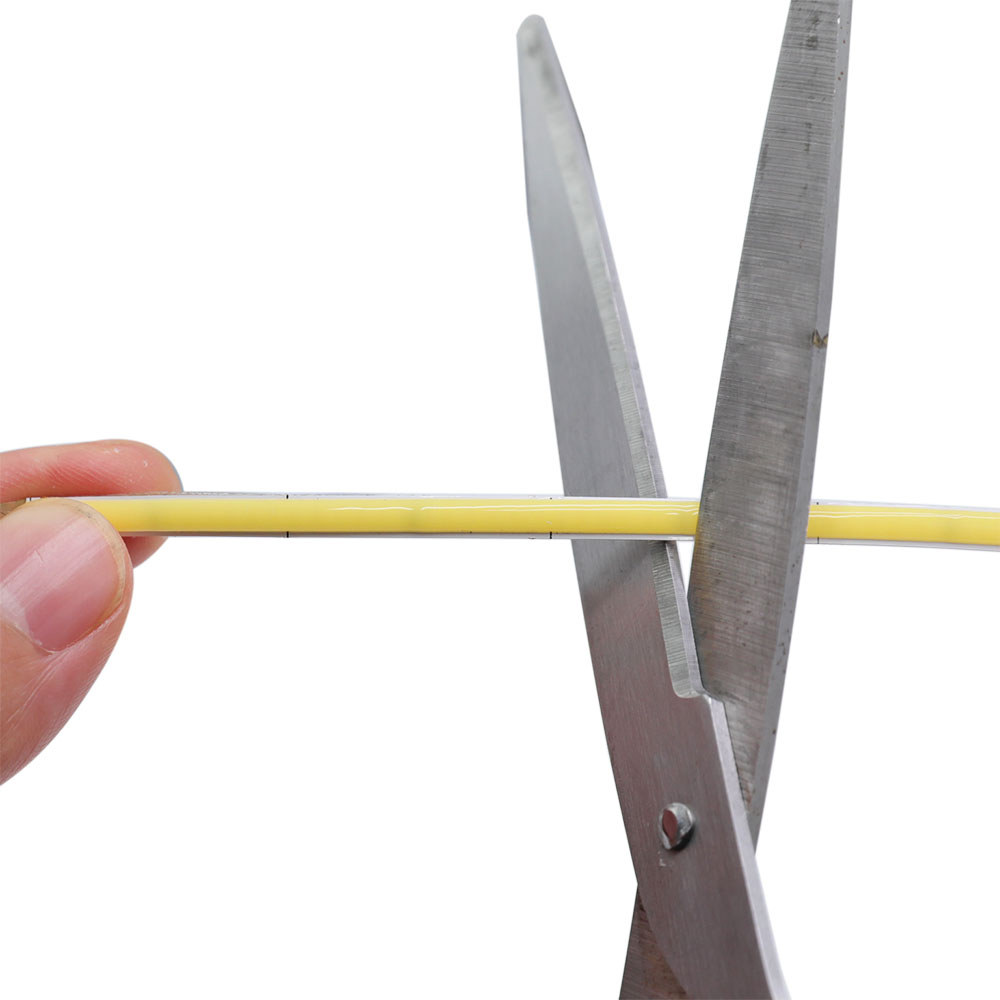

You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.

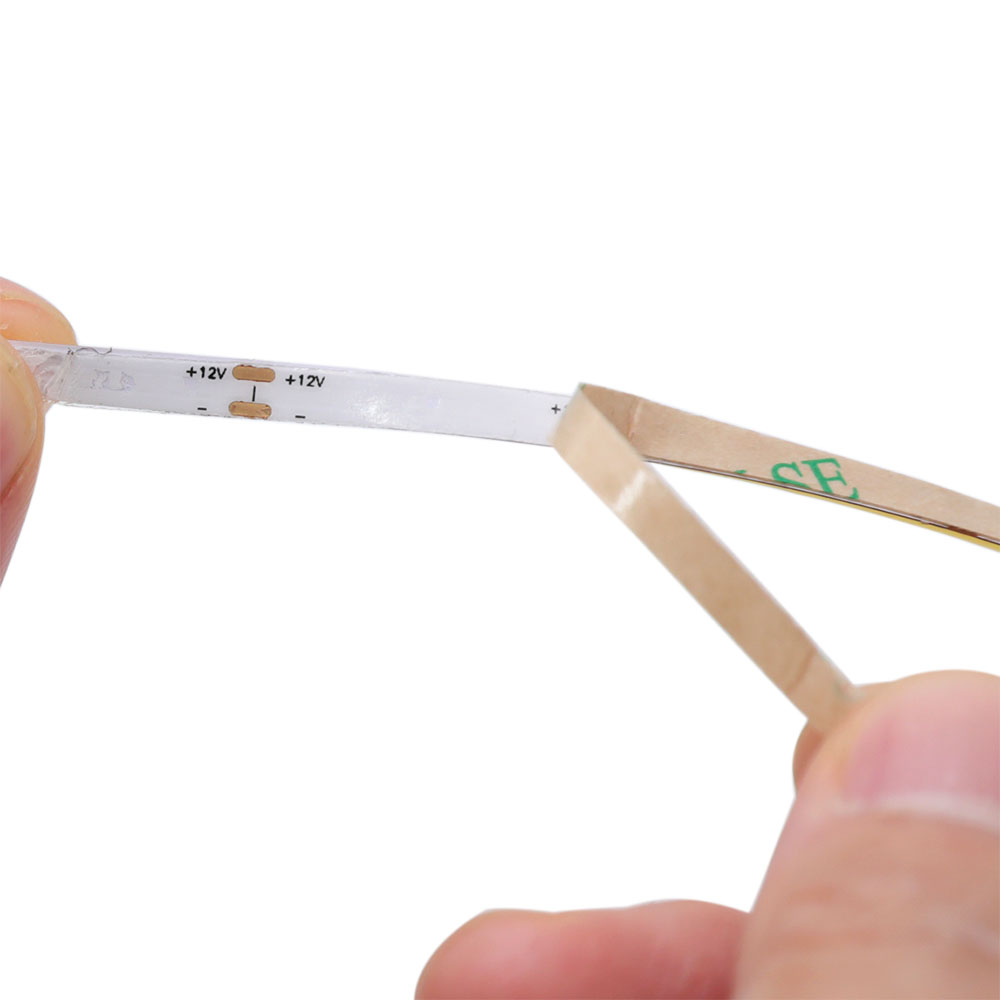

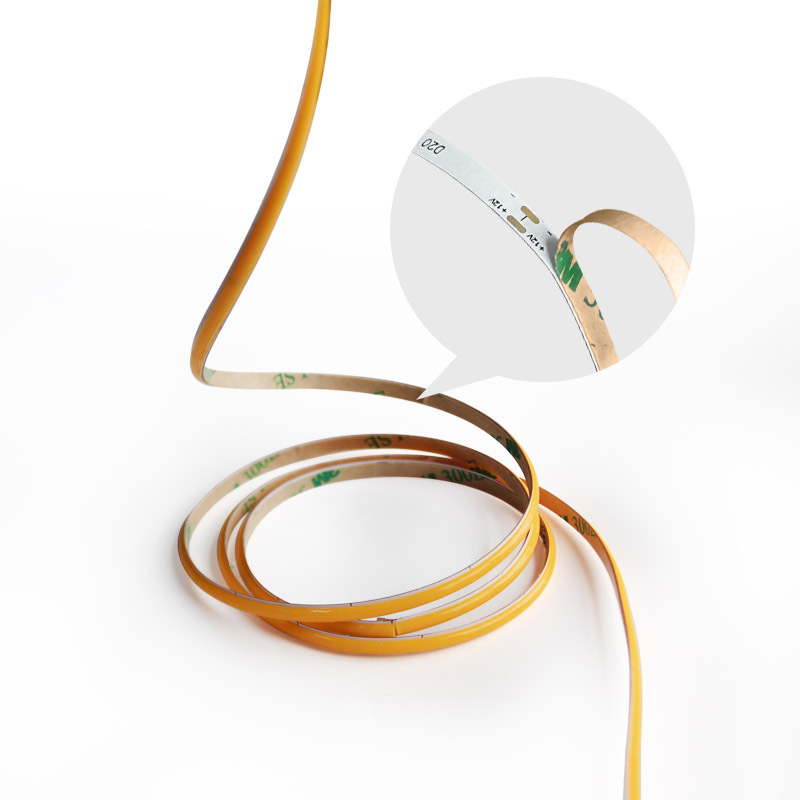

The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 waterproof type which will needs LED mounting brackets. LED aliuminum channel can be used as led light strip diffuser to get an uniform led lighting.

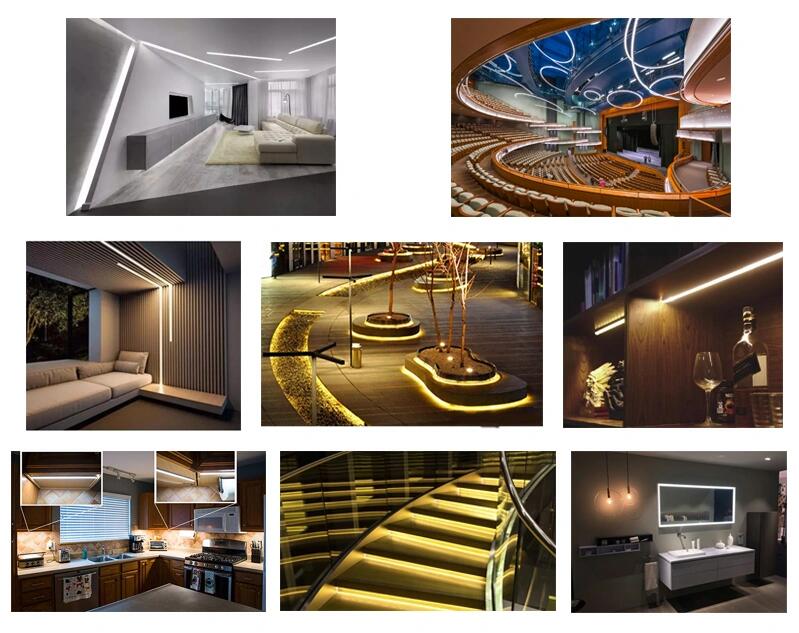

|Trademark lighting||Logo lighting|
