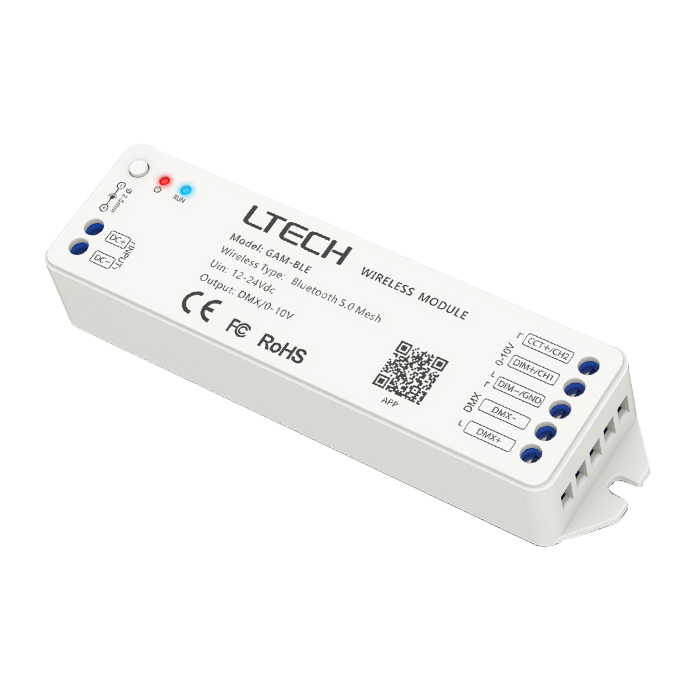

Bluetooth 5.0 SIG Mesh Wireless Module GAM-BLE
Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.
Bluetooth 5.0 SIG Mesh with high networking capability are reliable and stable.
Support control iOS or Android devices through Bluetooth connection.
Support remote, wireless panel switch and group control over LAN without connecting a gateway.

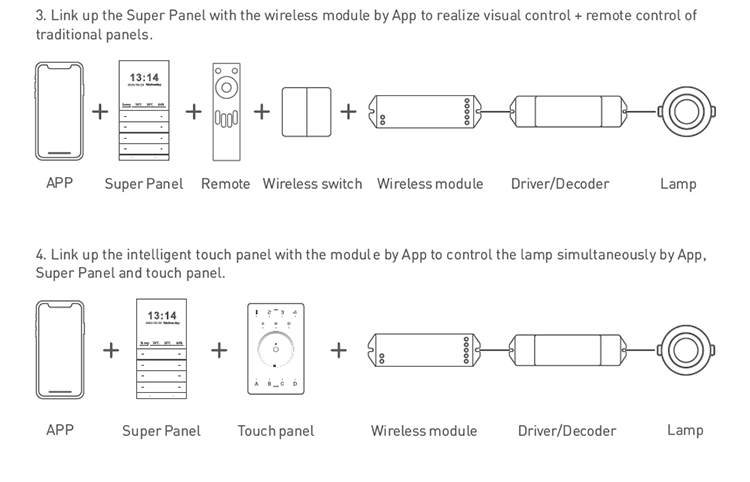

Work with the Super Panel to achieve remote control.
With soft-on and fade-in dimming function enhancing visual comfort.
0-100% dimming range, down to 0.1%.

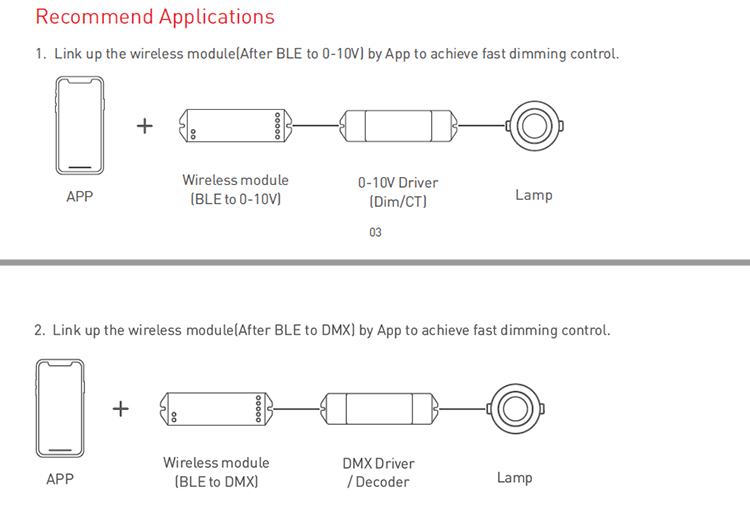

Covert Bluetooth signal to 0-10V signal, and connect to 0-10V dimmable drivers to control DIM/CT.

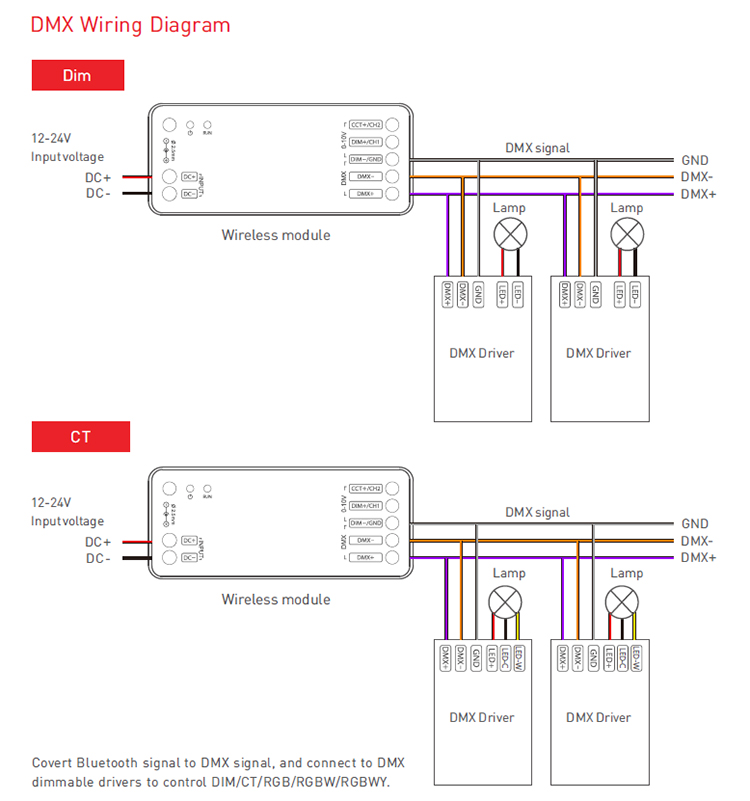

Covert Bluetooth signal to DMX signal, and connect to DMX dimmable drivers to control DIM/CT/RGB/RGBW/RGBWY.
Adding a super tool allows you to set up soft start gradient time, lighting status after being
power-on, and dimming curves.

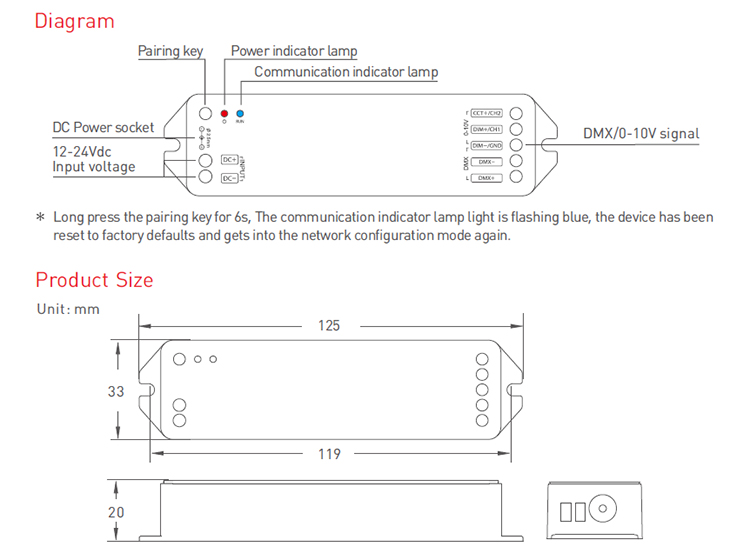

Package Size: 127×35×22mm(L×W×H)
Protection: Anti reverse connection
Working Humidity: 20 ~ 95%RH, non-condensing
Working Temperature: -20°C ~ 55°C
Wireless Spectrum: 2.4GHZ
Working Voltage: 12 ~ 24Vdc
Output Signal: 0-10Vx2CH / DMX
Wireless Protocol Type: Bluetooth 5.0 SIG Mesh
