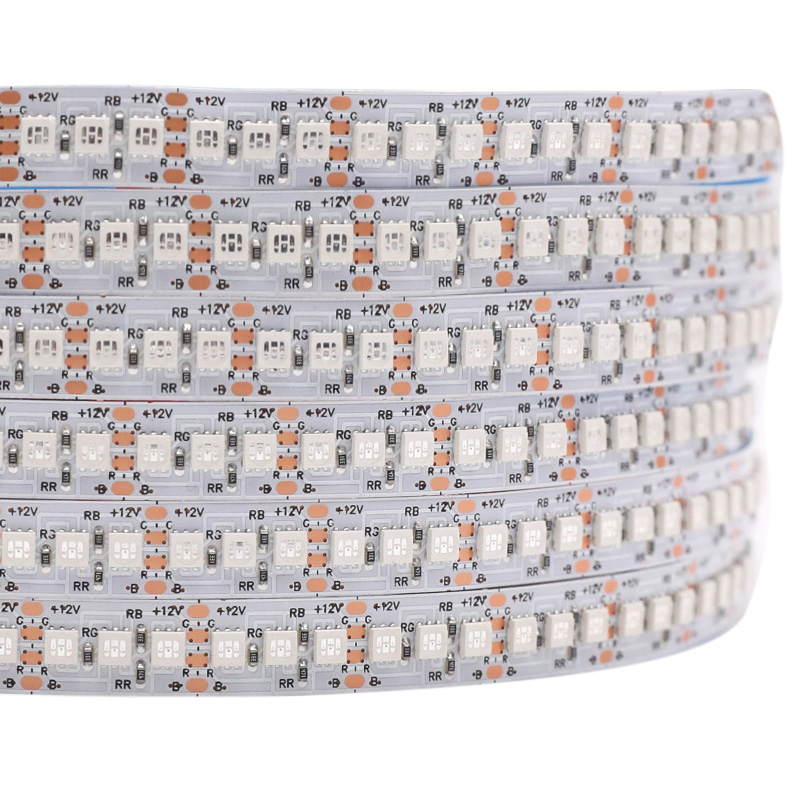

12V 10mm 3535 RGB LED Strip Densest 180 Per Meter
The densest led strip provides the most uniform illumination. And with light diffusers such as neon tubes and aluminum profiles, a dotless lighting effect can be achieved. This DC 12V RGB led strip with 180 3535 RGB lights per meter in a 16.4ft/5m long 10mm wide circuit tape. This design can provide even lighting because there are more LED lights distributed per meter, so it can reduce the problem of uneven lighting.

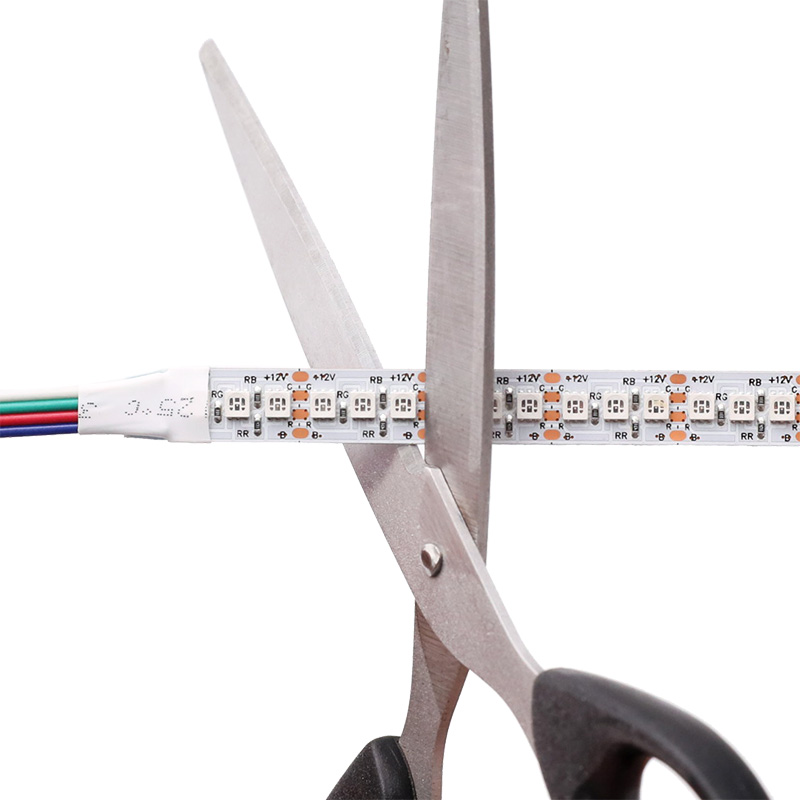

This 180LEDs/m 12V RGB 3535 led strip is 3 LEDs cuttable, every 16.66mm (0.65") is a cut segment. Comes with 4pin terminal plug connectors at both ends, it can easily connect to smart RGB controllers with 4pin plug interface. 18W/m, max 90W per roll.
Note: Due to the highest LED density 180/m, two LEDs are spaced too close to each other, so there is no available quick connectors.
Kit: RF controller set V3+R8-1, 120W 10A 12V power adapter, or 100W 8.33A Meanwell led power supply.
|Strip Type:||180/m 3535 RGB LED Strip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

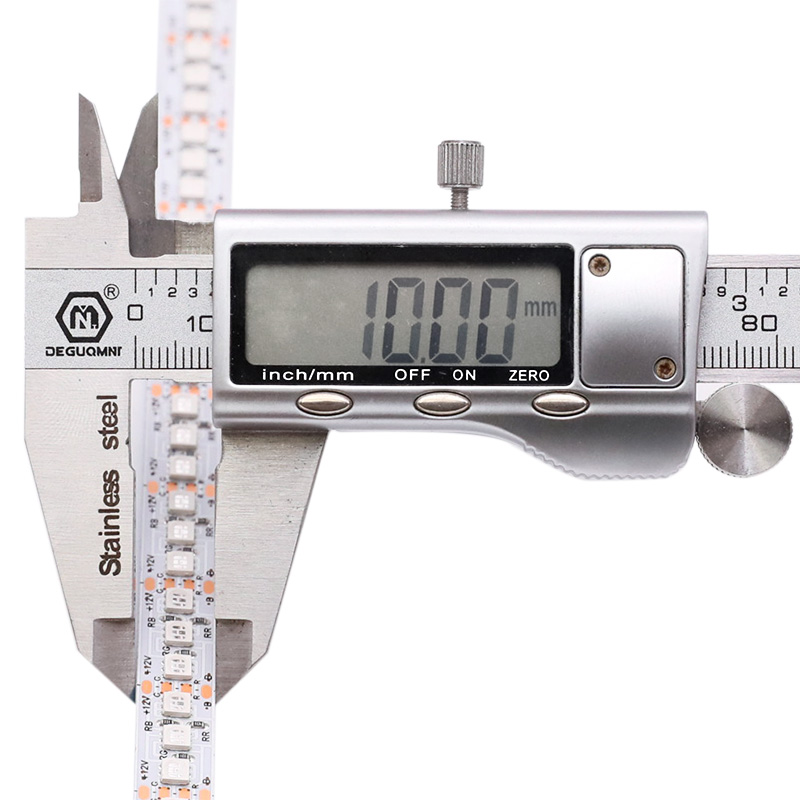

|Dimensions:||L5000mm(196.8 in ) x W10mm(0.4 in )|
|LED Quantity:||180 LEDs per meter, 54/ft|
16.66mm/0.65", 3 LEDs
|Working Power:||18W/m, 90W per roll Max.|
|Beam Angle:||120 degree|
|Waterproof Rating:||Non-Waterproof IP20 and Waterproof IP65/IP67/IP68|
12V LED RGB Strip Wiring Diagram:

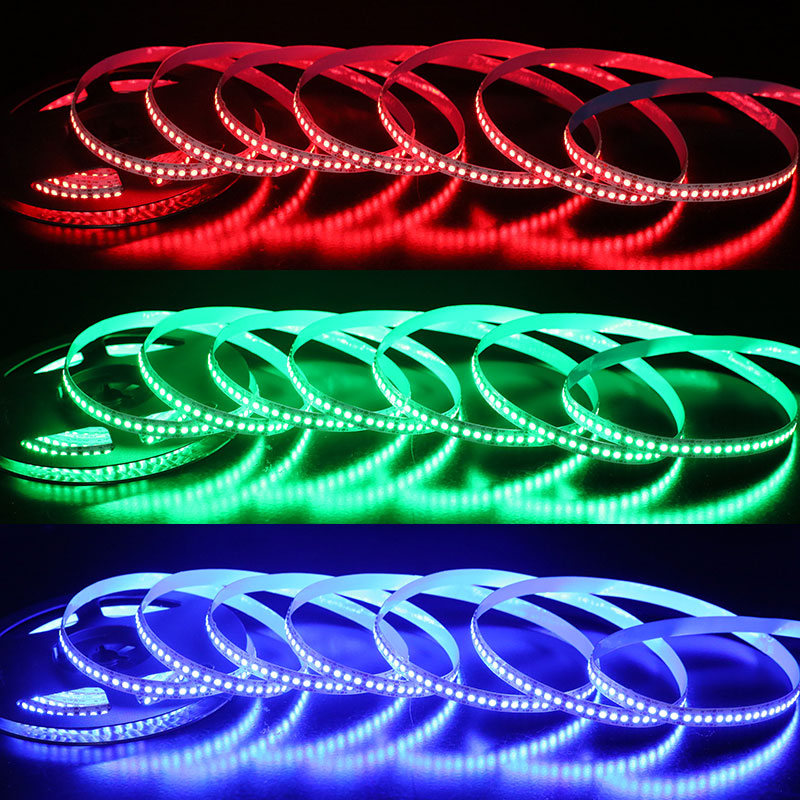

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
