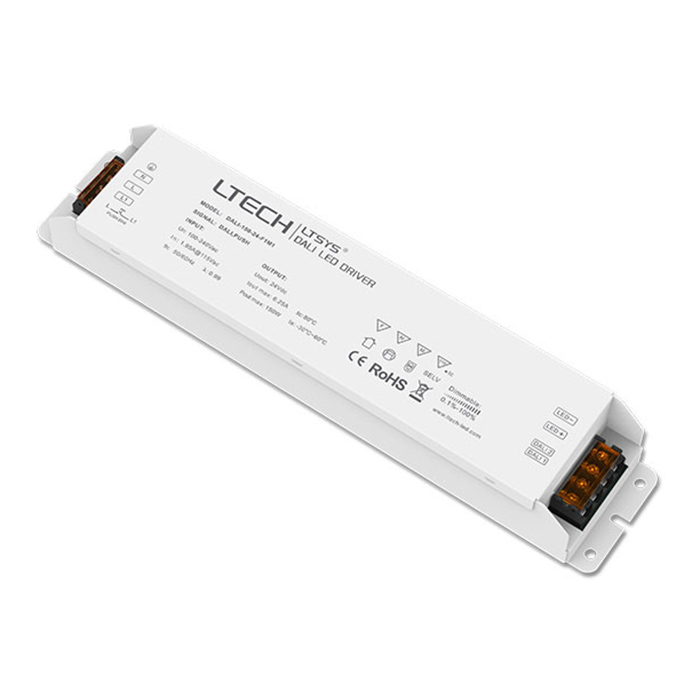

150W 24VDC CV DALI Driver DALI-150-24-F1M1
1、Dimming interface: DALI, Push Dim.
2、PWM digital dimming, no alter LED color rendering index.
3、Standard DALI logarithmic dimming curve.
4、Dimming range: 0~100%, LED start at 0.1% possible.
5、Power factor > 0.99, Efficiency >93%.
6、Short circuit / Over-heat / Overload / Over voltage protection.
7、DALI bus standard: IEC62386-101, 102, 207.
8、Compliant with Safety Extra Low Voltage standard.

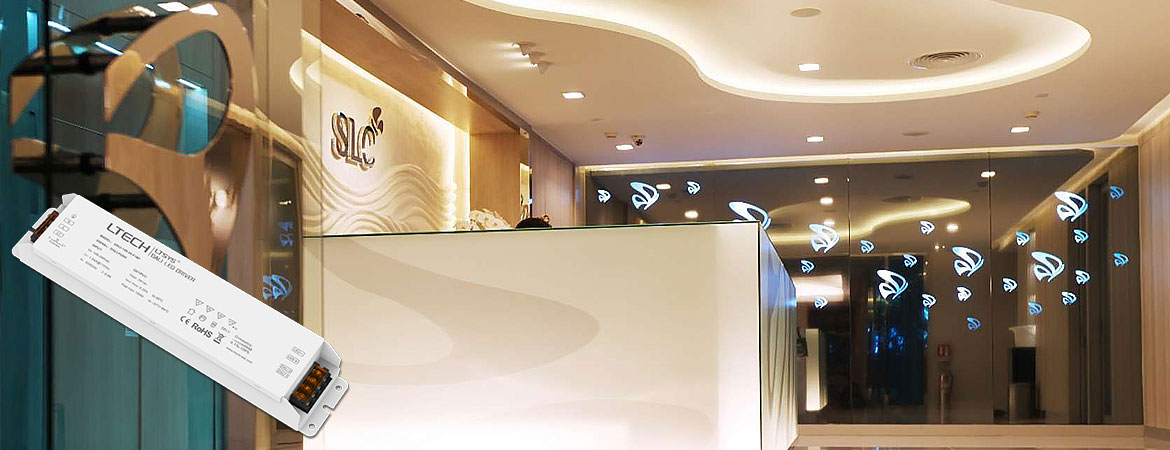

9、Suitable for indoor environments.

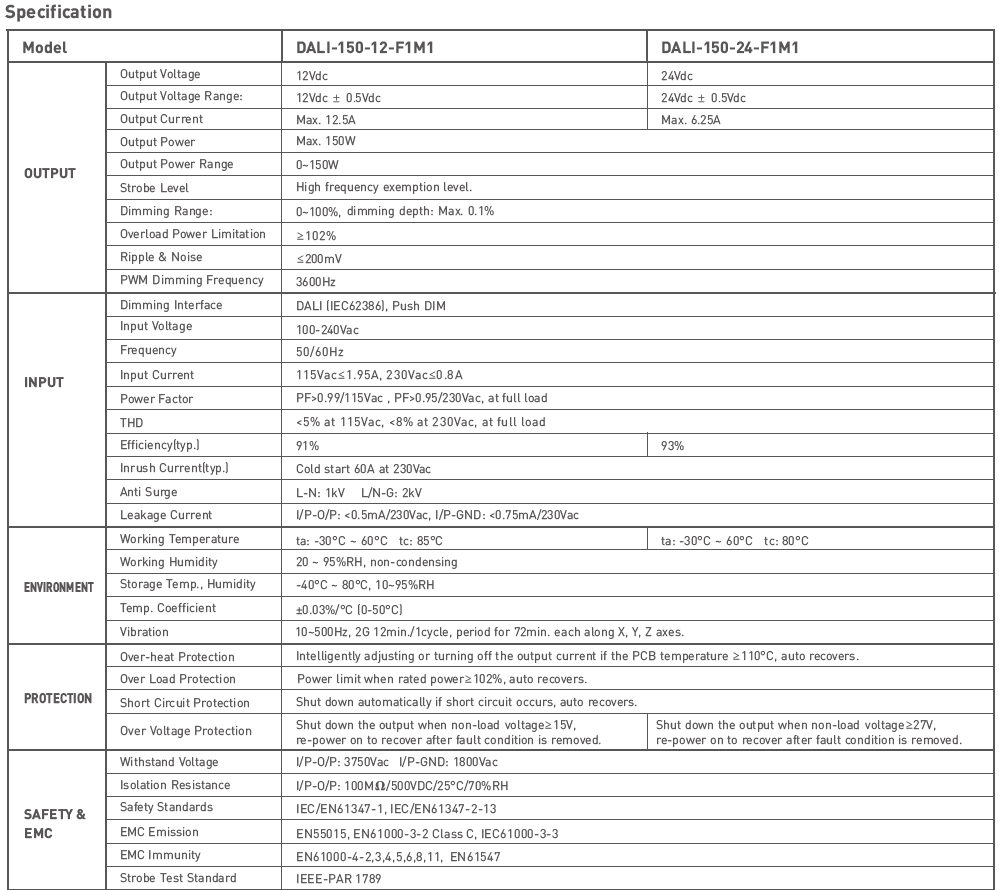

Dimming interface: DALI (IEC62386), Push DIM
Dimming range: 0~100%, LED start at 0.1% possible.
Input voltage: 100-240Vac ±10%
Power factor: PF>0.99/115Vac , PF>0.95/230Vac, at full load
Output voltage: 24Vdc
Output power: Max. 150W
Output current: Max. 6.25A
Working temperature: tc: 80°C ta: -30°C ~ 60°C

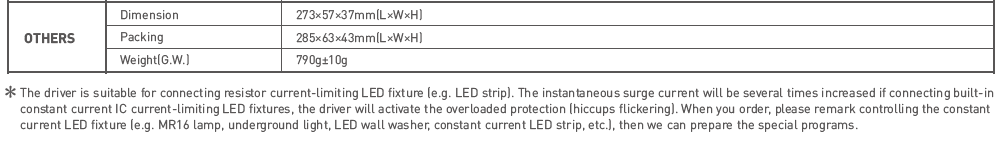

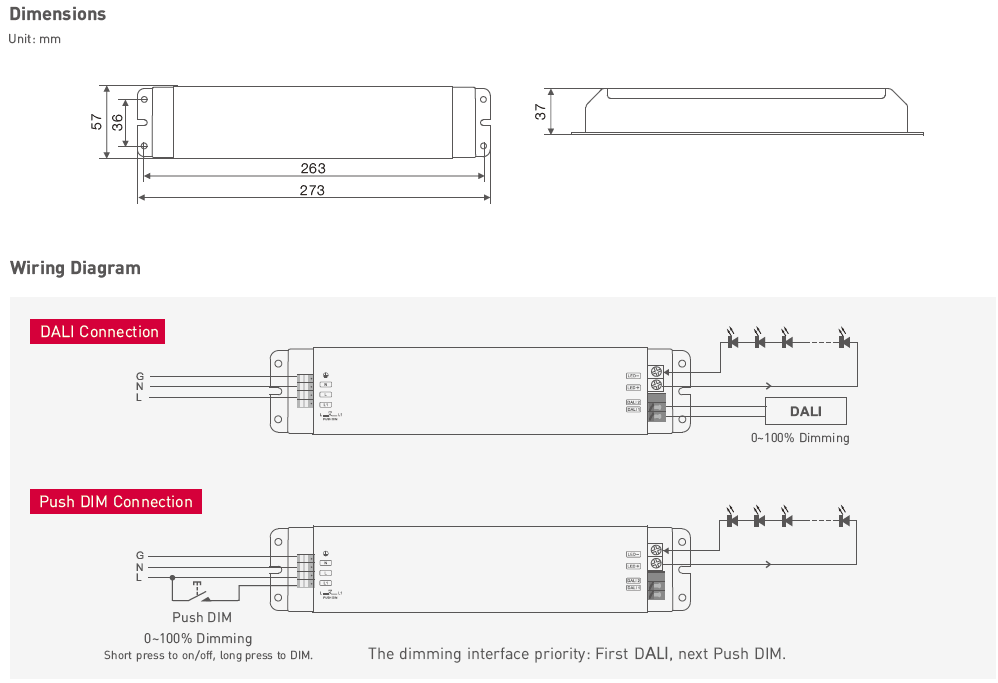

Package Size: 278×59×42mm(L×W×H)
Weight (G.W) 790g±10g
