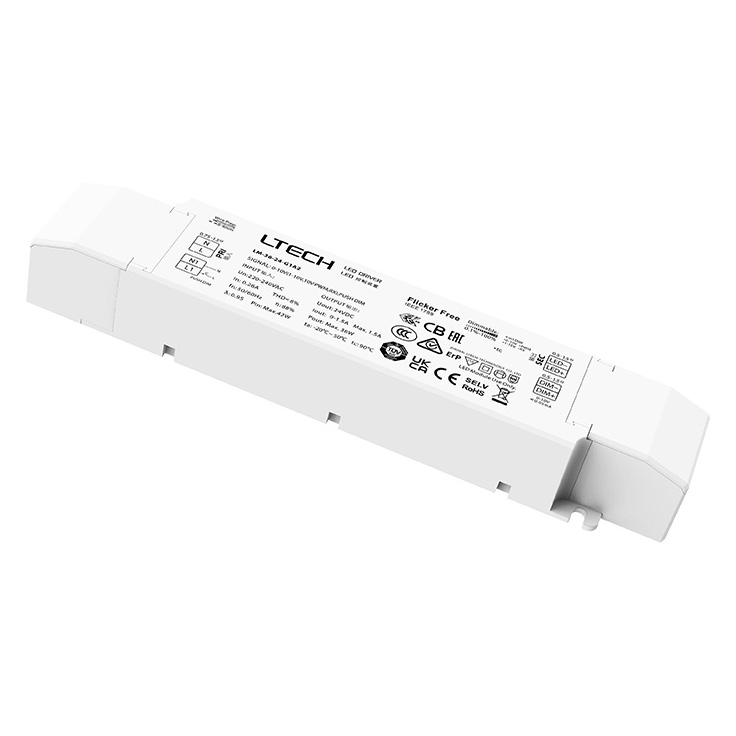

LM-36-24-G1A2 36W 24VDC 0/1-10V Dimming LED Driver
LED Intelligent Driver (Constant Voltage)
Small size and lightweight.
Adopt SAMSUNG/COVESTRO V0 flame-resistant polycarbonate protective housings.
The design of a dismountable end cap allows you to adjust the length of housing depending on your needs.
Dimming interfaces: 0-10V(1-10V/10V PWM/RX), Push DIM.
Automatically recognize 0-10V and 1-10V input signals.
Ultra-low consumption of 0-10V ports < 0.05mA.
Dimming range: 0~100%, dimming down to 0.1%.
Flicker-free with high-frequency exemption level in 0~100% dimming process.
With soft-on and fade-in functions, bringing more comfortable visual experiences.
High-performance drivers: Effeciency 88%, PF>0.95, THD<8%.
Dimming interfaces have photoelectric isolation that is compliant with the latest safety standards and is more secure and reliable.
Comply with the EU’s ErP Directive, standby power consumption＜0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the lifetime of the driver.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Suitable for lamp applications of indoor Ⅰ/Ⅱ/Ⅲ types.
Up to 50000-hour lifetime.
5-year warranty (Rubycon Capacitor).
