1CH*10A 12-24VDC CV DALI Dimmer DA1
● Constant voltage DALI LED Dimmer with 1 channel, 10A output.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
● DALI address will be automatically assigned by DALI master, 1 DALI address.
● PWM digital dimming, stand DALI logarithmic dimming curve.

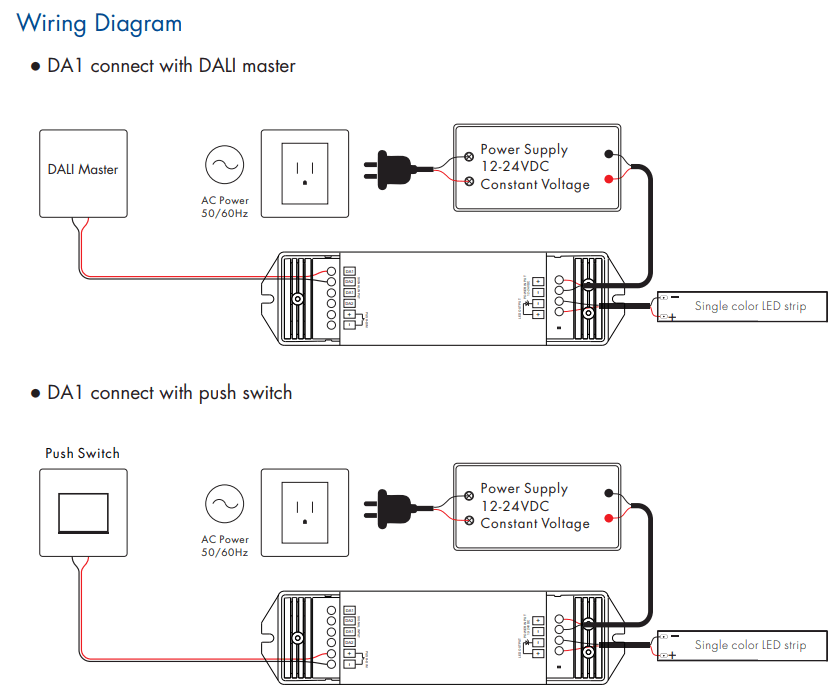

● Connect with external push switch to achieve on/off and dimming function.
Input and Output
Input voltage: 12-24VDC
Input current: 10.5A
Output voltage: 12-24VDC
Output current: 1CH,10A
Output power: 120W/240W (12V/24V)
Output type: Constant voltage
Input signal: DALI + Push Dim
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz
