The World Brightest Quad Row Flexible LED Tape Lights - DC24V 2835 White High CRI LED Strip Light For LED Industrial and Photographic Lighting (1m/3.28' Daylight White)
Dimmable - Connect LED Smart Dimmers.
Standards and Certifications
LED Strip Type: SMD 2835 480PCS/3.28ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White (optional)
Dimension: 3.28ft/roll, every 24 PCS LED can be cut
LED Quantity: 480 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L100cm(39.3 in ) x W2.8cm(1.1 in ) x H0.13cm(0.05 in )
Input Voltage(V): 24VDC
Working Power: 1.87A 45W /3.28ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 3531lm/m
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(4500-6500k), Cool White(7000-9000k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof , Waterproof IP67
CRI (Ra>): 95

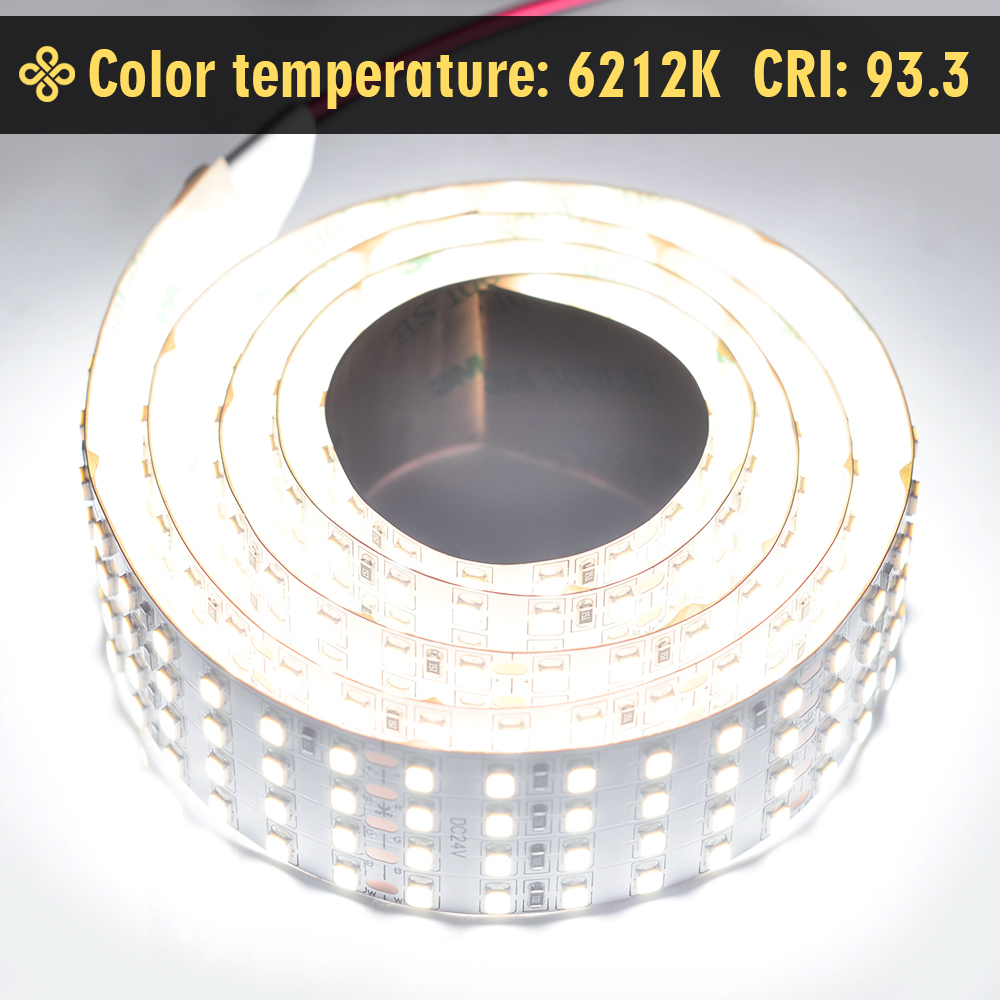

Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?

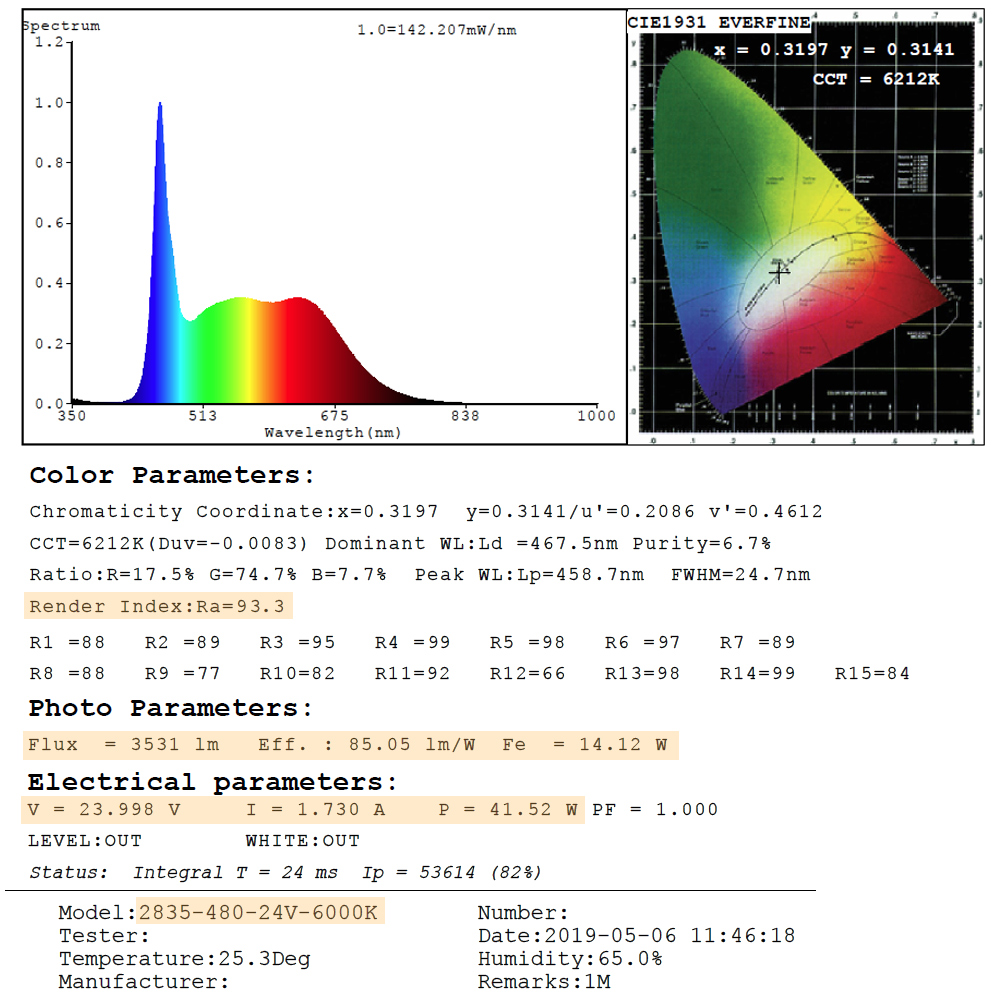

CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

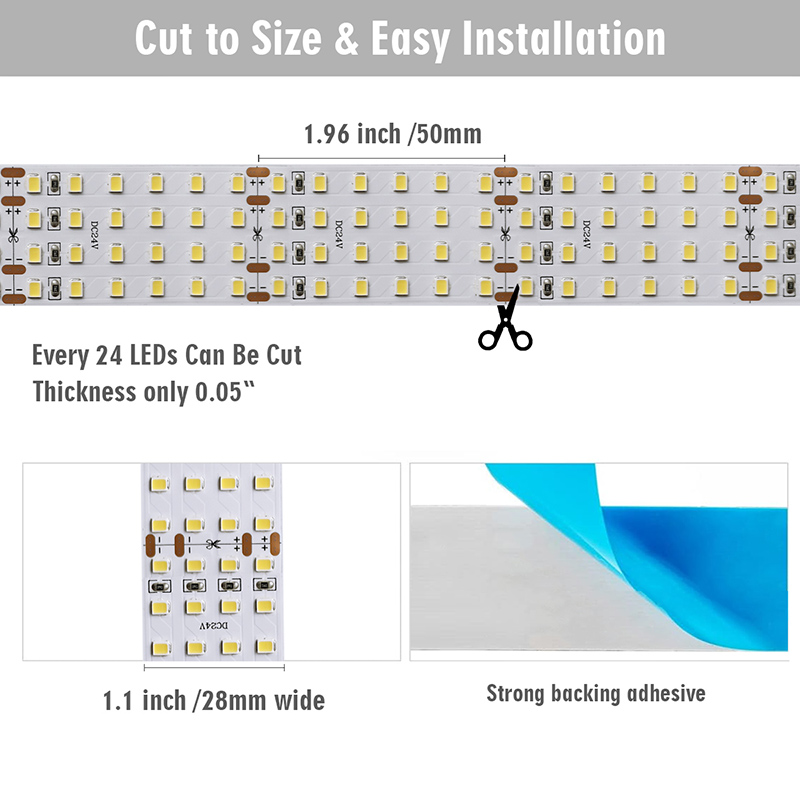

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will need
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
We sell led strips in spools of 32.8 Ft (10 meters). If you want to use with more than 32.8 Ft length, we recommend the following instruction:
1. LED Strips with a direct connecting diagram
2. Multiple Strips connecting diagram
3. Strips with a two-way connecting diagram
4. You can also use our wireless controller, Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring
5. How does it work
The basics are all the similar. You will need a led strip light, a power supply, and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: email@example.com

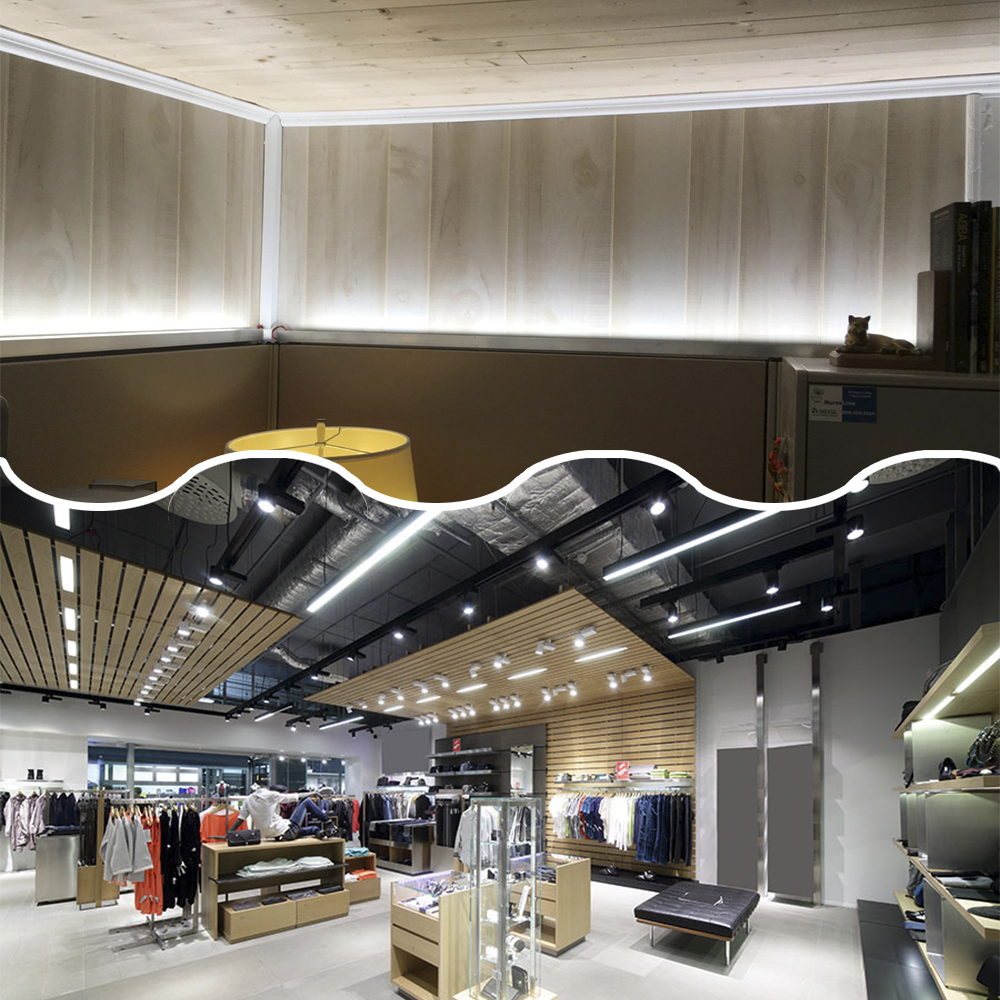

Display case lighting
