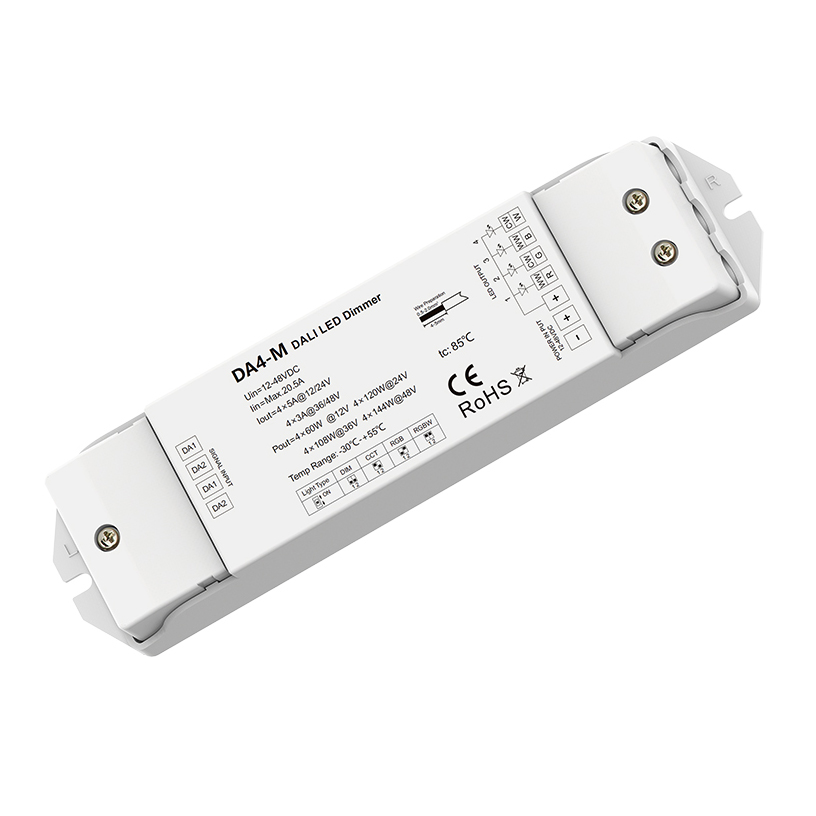

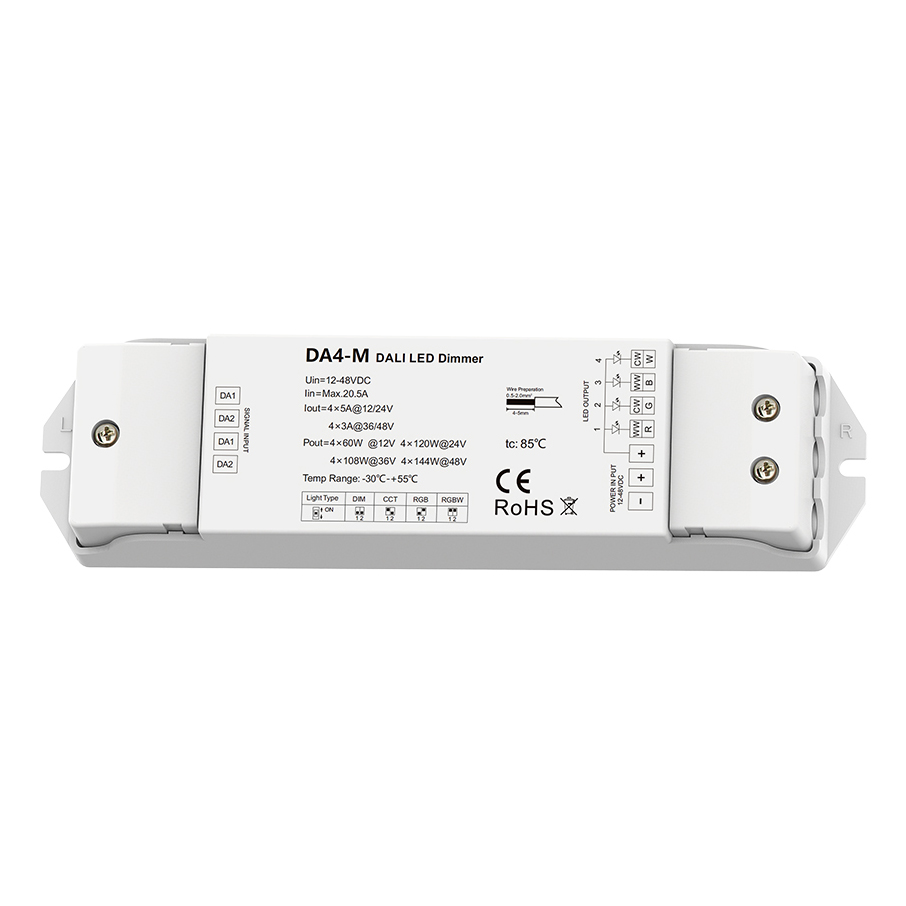

DA4-M 4CH*5A 12-24VDC Constant Voltage DALI LED Dimmer (DT6/DT8)
- $30.00 $12.9857% off
- $170.00 $109.9835% off
- $50.00 $28.9842% off
- $45.00 $17.9860% off
- $80.00 $64.9819% off
- $29.98 $12.9857% off
Special Price: $17.98

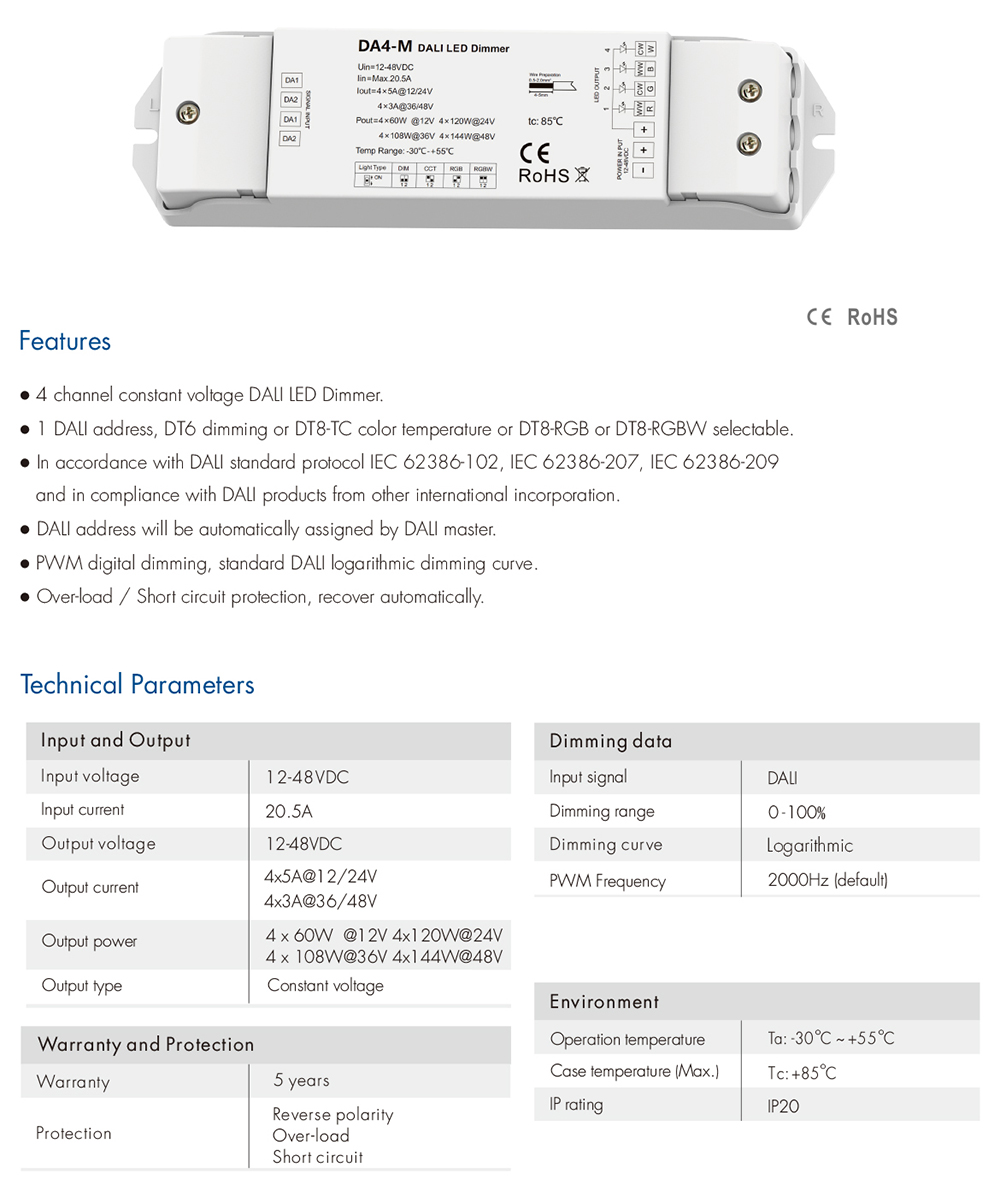

● 4 channel constant voltage DALI LED Dimmer.
● 1 DALI address, DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW selectable.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209, and in compliance with DALI products from other international incorporation.
● DALI address will be automatically assigned by the DALI master.
● PWM digital dimming, standard DALI logarithmic dimming curve.
● Over-load / Short circuit protection, recover automatically.
Input and Output
Input voltage: 12-48VDC
Input current: 20.5A
Output voltage: 12-48VDC
Output current: 4*5A@12/24V; 4*3A@36/48V
Output power: 4 x 60W @12V 4x120W@24V; 4 x 108W@36V 4x144W@48V
Output type: Constant voltage
Input signal: DALI
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 2000Hz
Warranty and Protection
Warranty: 5 years
Protection: Over-heat / Over-load / Short circuit protection
