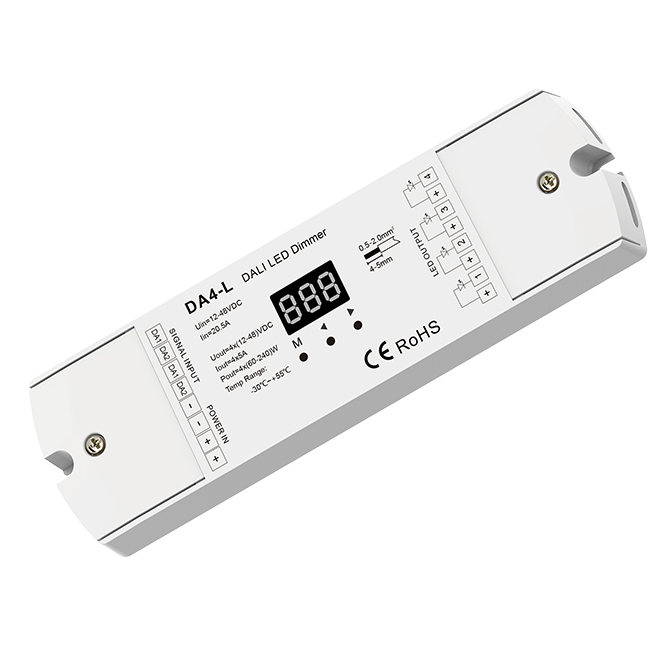

DA4-L 4CH*5A 12-48VDC Constant Voltage PWM DALI LED Dimmable LED Controller
- $39.98 $24.9838% off
- $30.00 $17.9840% off
- $29.98 $14.9850% off
- $42.98 $20.9851% off

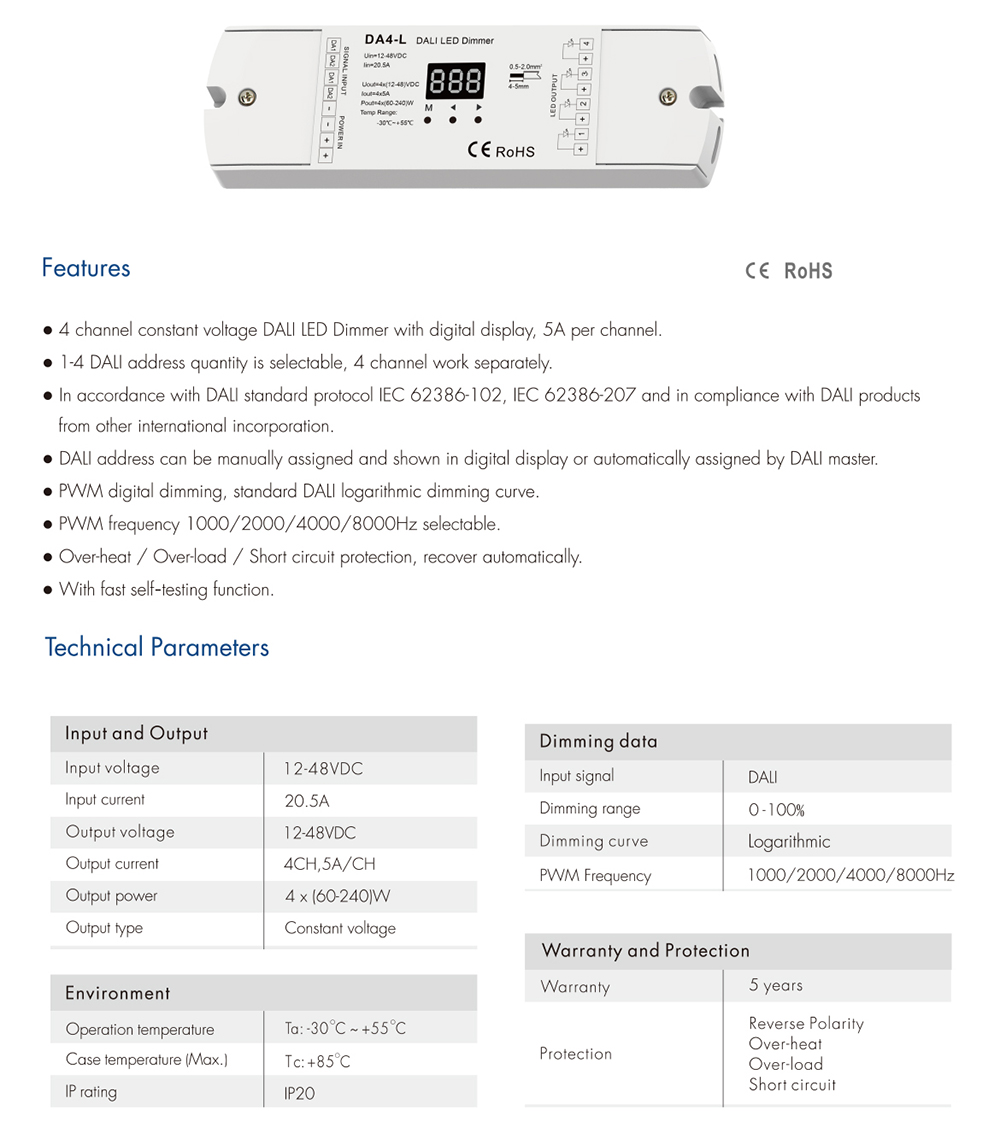

• 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel
• 1-4 DALI address quantity, selectable, 4 channel work separately
• In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from the international; incorporation.
• DALI address can be manually assigned and shown in digital display or automatically, assigned by DALI master
• PWM digital dimming, standard DALI logarithmic dimming curve
• PWM frequency 1000/2000/4000/8000Hz selectable,
• Over-heat / Over-load / Short circuit protection, recover automatically
• With fast self-testing function.
Input and Output
Input voltage: 12-48VDC
Input current: 20.5A
Output voltage: 12-48VDC<b>Input voltage</b>: 12-48VDC
Output current: 4CH,5A/CH
Output power: 4 x (60-240)W
Output type: Constant voltage
Input signal: DALI
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 1000/2000/4000/8000Hz
Warranty and Protection
Warranty: 5 years
Protection: Over-heat / Over-load / Short circuit protection
