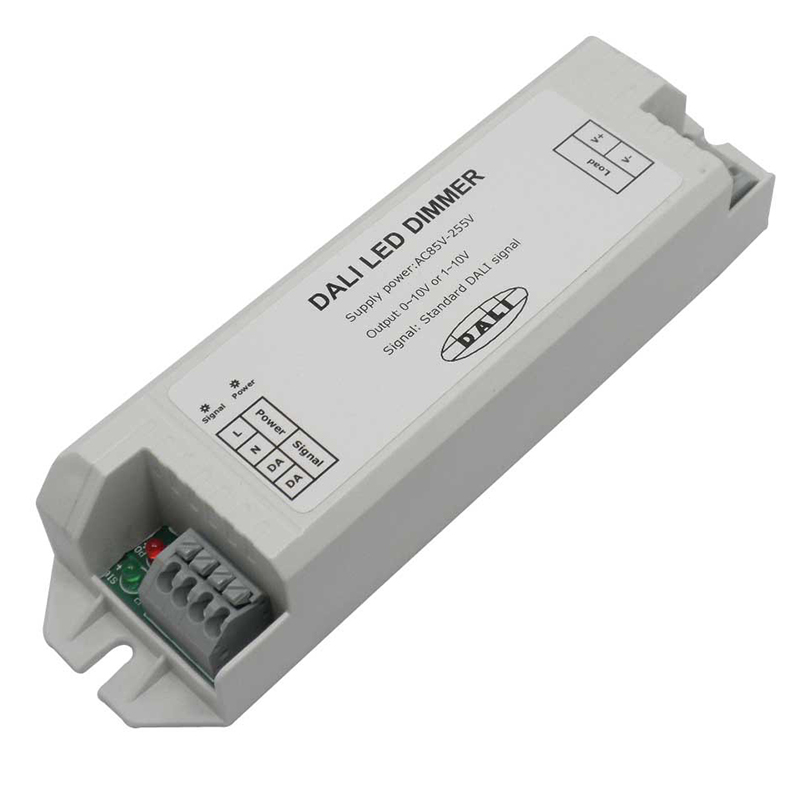

1 Channel DALI to 0-10V Converter, LED High Voltage Controller LN-DALICONVERTOR-0-10V
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol BUS, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic. This product adopts standard DALI dimming signal transform 0/1-10V dimming signal. The adopted protocol standard is IEC62386. Compared with traditional led dimming way, it has the characteristics of a wide range of dimming, various dimming mode, high precision dimming, can inquire the current status of lamps and lanterns (such as current brightness, power intensity, the minimum support brightness, address, etc.), digital control, etc.
Technical parameters
Supply voltage: AC85V-255V
Load output: 1 channel 0V-10V or 1V-10V signal output
Dimming signal: DALI (IEC62386)
Signal port current: <2mA
Signal segregate voltage: 4kV
Dimmer range: 0.1%-100%
Working temperature: -20-60℃
Gross weight: 99g
Net weight: 100g
External dimension: L149mm x W40mm x H28mm
Packing size: L150mm x W55mm x H50mm
Connect way: instead of screw connection mode, it is spring type, and the terminal blocks diameter is 2.6 mm.
Specifications Download
Function feature
Can with a whole and grouping dimming, addressing dimming.
Can through the default scene to dimming.
Can flexible configuration dimming parameters.
Can inquire dimming parameter of dimmer.
Parameter memory function.
Have international standard, can be compatible with DALI equipment from different factory manufacture.
Signal line regardless of pole, do not need routing alone, easy to install.

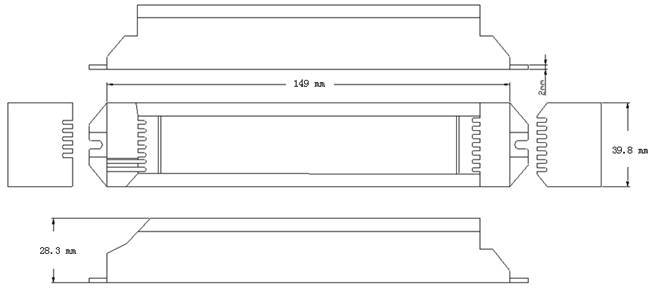

External dimension
Interface descriuption

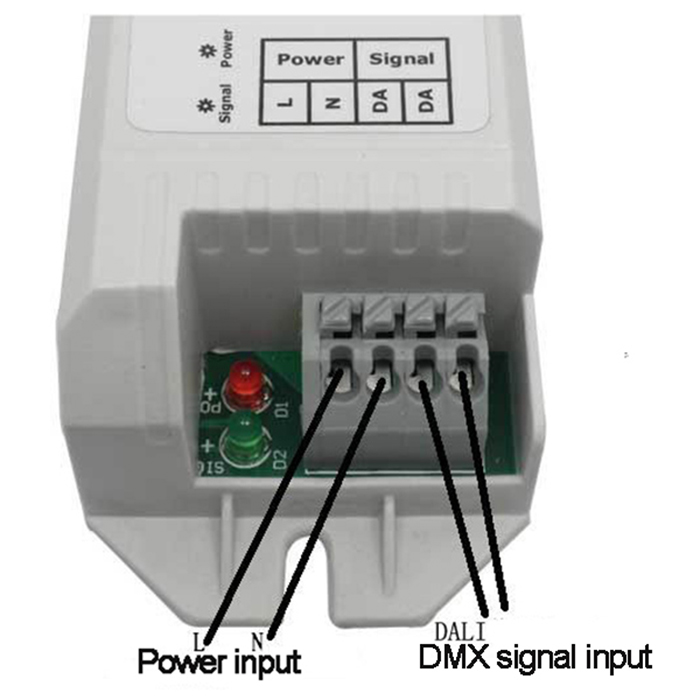

Power and DALI signal input interface:

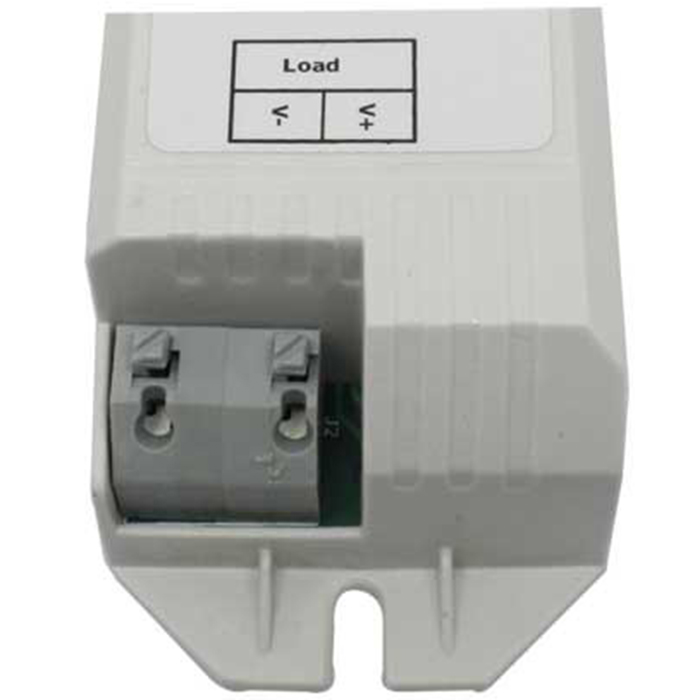

0/1V-10V signal output interface:
Direction for use:
1. Connect the load wire first, follow the power wire; Please ensure short circuit can not occur
between connecting wire before you turn on the power；
2. The using protocol standard of this product is IEC62386; By accepting the command from DALI host machine, it can realize the output signal voltage range and the dimming curve choice. The following is the order choosing way:
A. Choose 0V-10V output, dimming curved choose linear dimming.
Controller output voltage range is 0-10V. Voltage is successive from low to high or from high to low curved linear.
B. Choose 1V-10V output, dimming curved choose linear dimming.
Controller output voltage range is 1-10V. Voltage is successive from low to high or from high to
low curved linear.
C. Choose 0V-10V output, dimming curved choose logarithmic dimming.
Controller output voltage range is 0-10V, voltage successive from low to high or from high to
low curved logarithmic.
D. Choose 1V-10V output, dimming curved choose logarithmic dimming.
Controller output voltage range is 1-10V, voltage successive from low to high or from high to low curved logarithmic.
3. Output signal voltage range and dimming curved setting inquire order as follow:
|
Command Number |
Command Code |
Command Name |
|
224 |
YAAA AAA1 1110 0000 |
Set output range 1-10V |
|
225 |
YAAA AAA1 1110 0001 |
Set output range 0-10V |
|
229 |
YAAA AAA1 1110 0101 |
Choose dimming curved |
|
238 |
YAAA AAA1 1110 1110 |
Inquire dimming curved |
|
241 |
YAAA AAA1 1111 0010 |
Inquire output state |
Typical Application
