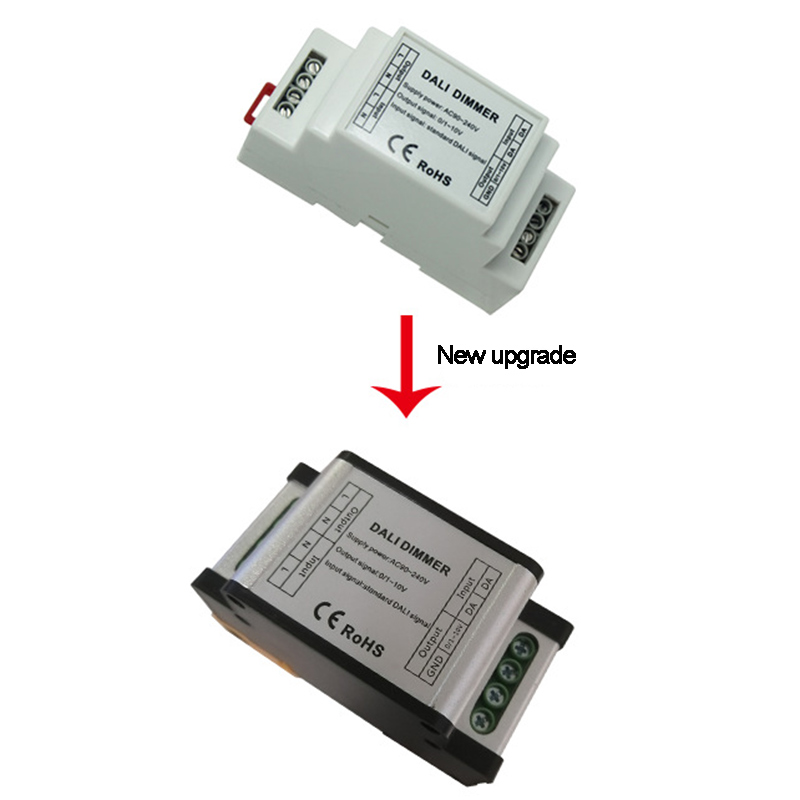

DL108 Rail Type DALI Turn to 0/1-10V Dimmer, Rail Controller

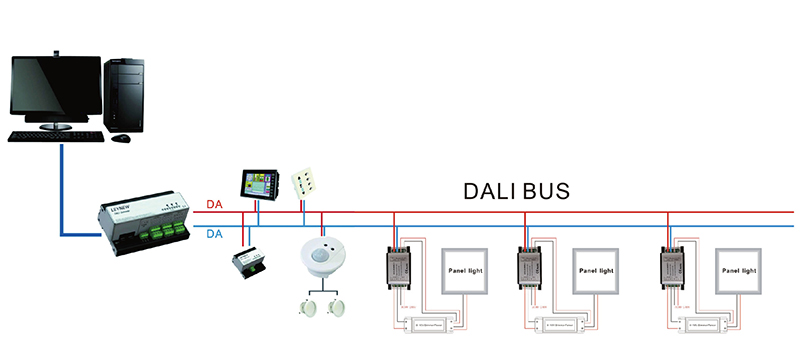

DALI (Digital Addressable Lighting Interface) is an international standard , popular lighting control protocol, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.
This product adopts a standard DALI dimming signal to 0-10V dimming signal, dimming using standard IEC62386. LED dimming with the traditional way of comparison , with adjustable light a wide range of diverse dimming, dimming of high precision, check the current status LED (for example current brightness, power intensity , the minimum support brightness, address, ect),easy distributed control and so on.
Power Supply Voltage: AC90V-240V
Load Output: one channel 0V-10V or 1V-10V signal output
Dimming Signal: DALI (IEC62386)
Signal Interface Current: <2mA
Dimming Range: 0.1%-100%
Working Temperature: -20-60 ℃
Gross Weight: 210g
Net Weight: 144g

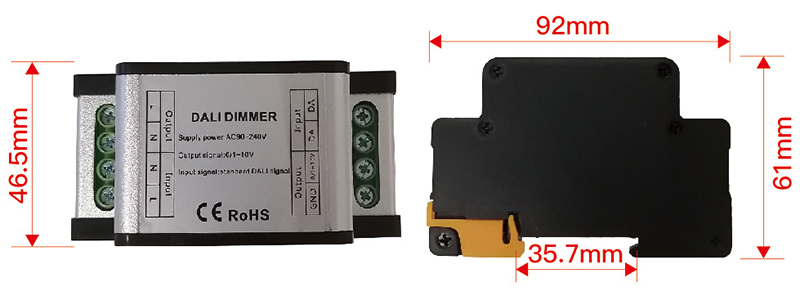

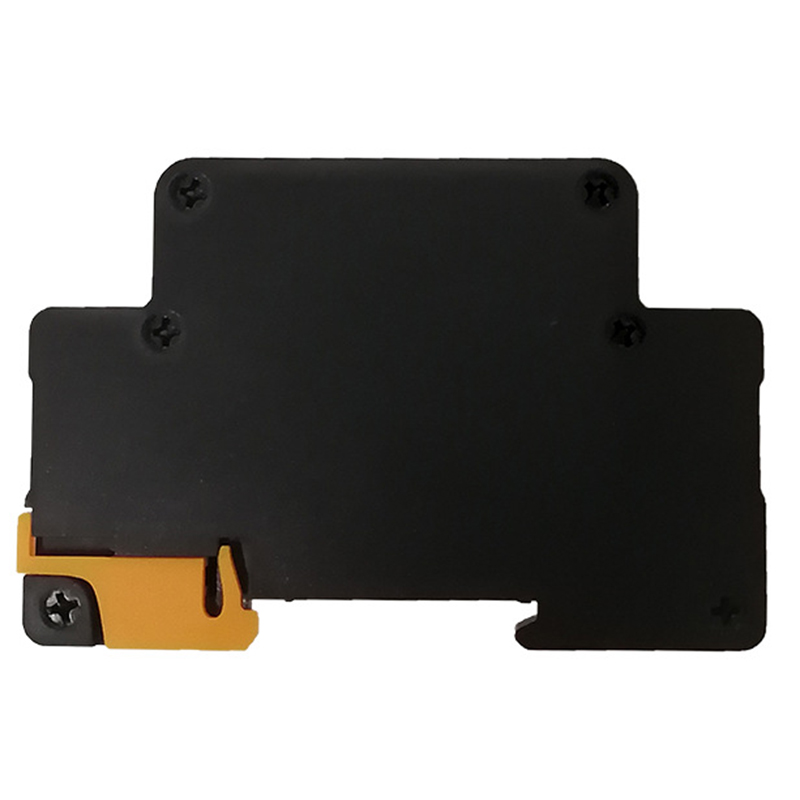

Dimensions: L92mm * W46.5mm * H61 mm
Packing Size: L100mm * W65mm * H70mm
Relay Output Maximum Current: 5A

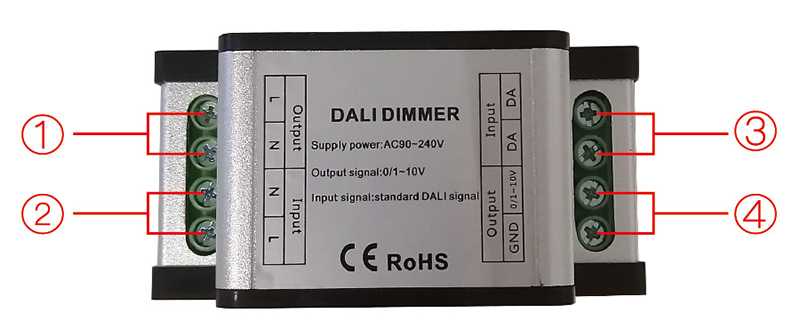

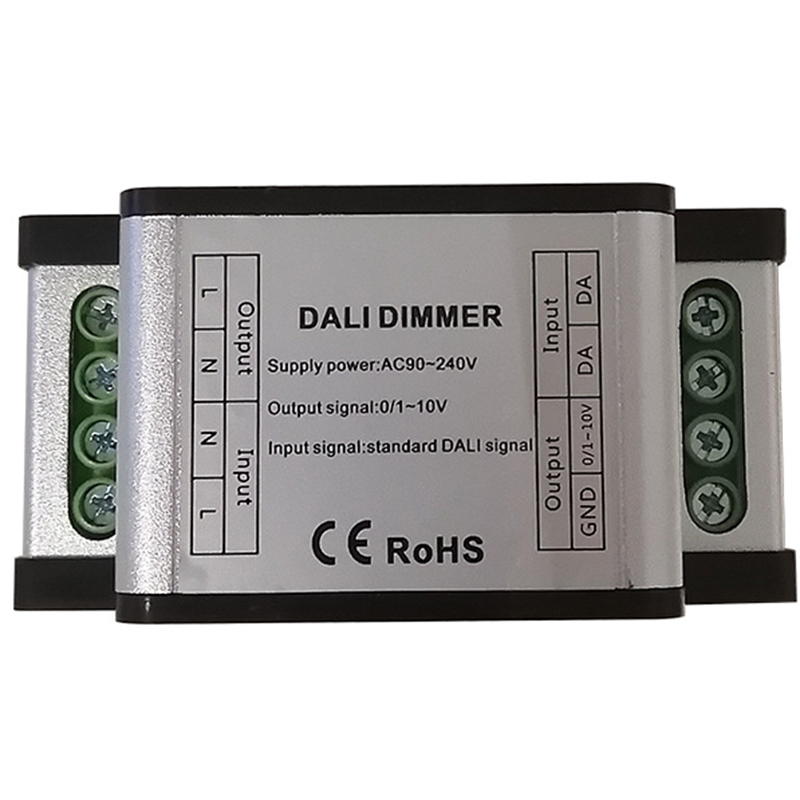

①、②Power input and relay output interface:
① It is a relay output interface, which can provide input power for 0/1-10V dimmer to solve the problem that it cannot be turned off;
② is the power input interface of the controller.
③、④DALI signal input and 0/1V-10V signal output interface:
③DALI signal interface; ④0/1-10V output interface
Connect the load line first, and then the power line; make sure there is no short circuit between the connection lines before powering on;
The protocol standard of this product is IEC62386, by accepting the commands sent by the DALI host. The voltage range of the output signal and the dimming curve can be selected. The following is the command selection method.
A. Choose 0V-10V output, dimming curve select linear dimming.
The voltage range of the controller output is 0-10V, and the voltage changes from low to high or from high to low linearly.
B. Choose 1V-10V output, dimming curve select linear dimming.
The voltage range of the controller output is 1-10V, and the voltage changes from low to high or high to low linearly.
C. Select 0V-10V output, logarithmic dimming for dimming curve.
The voltage range of the controller output is 0-10V, and the curve of the voltage from low to high or high to low is logarithmic.
D. Select 1V-10V output, logarithmic dimming for dimming curve.
The voltage range of the controller output is 1-10V, and the curve of the voltage from low to high or high to low is logarithmic
