DL111 DC12V-24V 3 Channel DALI RGB Controller
DALI (Digital Addressable Lighting Interface) is an international standard and popular lighting control protocol bus. It uses Manchester-coded digital transmission. It has powerful dimming functions such as overall, group dimming, addressable dimming, and querying the status of lamps. Features. Compared with the analogue 0-10V dimming bus, this bus has the characteristics of accurate dimming, addressability, stability, centralized control, and easy installation.
This product adopts the standard DALI dimming signal to digitally dim the LED, and the standard is IEC60929. Compared with the traditional LED dimming method, it has a wide dimming range, diverse dimming methods, high dimming accuracy, query the current status of the LED (such as current brightness, power-on brightness, minimum supported brightness, address, etc.), easy Features such as distributed control.
Standards and Certifications
● Working Temperature: -20-60 ℃
● Power Supply Voltage: DC12V-24V
● Dimming Signal: standard IEC60929 DALI signal
● DALI Address: occupies three channels
● Output: Three channels, the voltage is the same as the power supply voltage
● Dimming Range: 0.1%-100%
● Net Weight: 85g
● Gross Weight: 130g

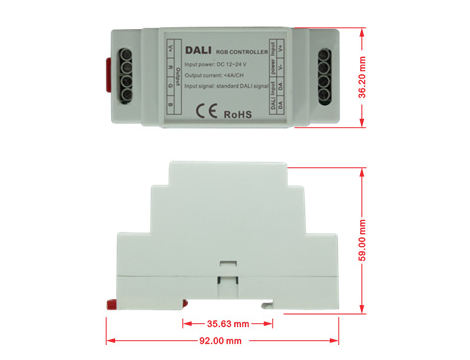

● Dimensions: L92mm * W36.2mm * H59 mm
● Packing Size: L100mm * W45mm * H67mm
● Output Current: <4A
● Output Power: 12V:<144W, 24V:<288W

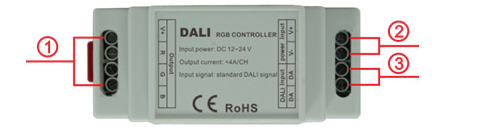

① Output: The output of the load is connected to the LED to be dimmed. V+ is the positive pole of the LED (the voltage is the same as the power supply voltage V+), and R, G, and B are the negative poles of red, green, and blue LEDs.
② Input (Input): a power input interface

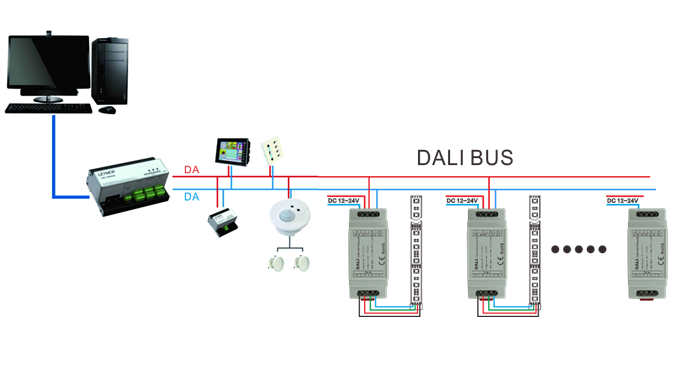

● Wires around 0.5mm2-1.5mm2 of DALI bus.
● The wiring length of the DALI bus should follow the following rules: the length should not be greater than 300 meters or the bus voltage drop should not be greater than 2V.
● This product adopts screwless spring type wiring, press the button of the terminal when connecting, and insert the wire to loosen.
1. The power supply voltage of this product is DC12V-24V, and the wrong voltage cannot be connected.
2. The warranty period of this product is one year, and it will be replaced and repaired during the warranty period, but it does not include the situation of human damage or overload work.
