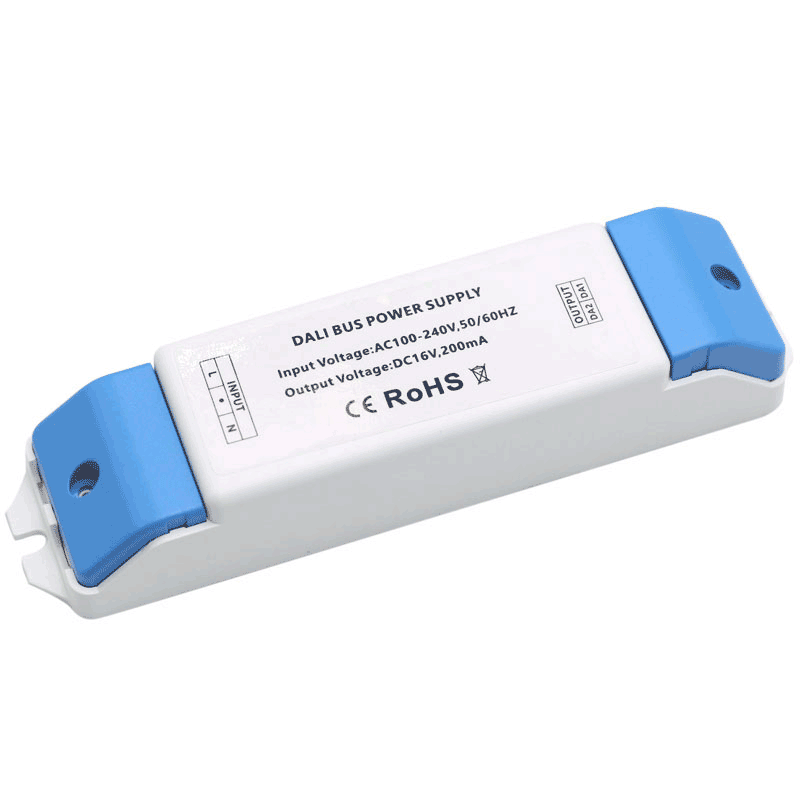

DL101 DC17V Rail Type DALI Power, DMX512 Controller - Replaced By DL810
Guide rail type DALI power supply is a kind of Guide rail type DALI bus power supply which self-developed by our company. The power supply has a standard 35mm rail snaps, it can be directly installed in the cabinet of 35mm rail, demolition replacement is very convenient. Power supply has a wide input voltage, compatible with universal voltage requirements, the output voltage is DC17V DALI communication voltage, current is 250mA, with over-current protection, short circuit protection.
Input Voltage: AC90~260V
Output Voltage: DC17V
Output Current: 0~250mA
Protective Feature:automate recovery
Voltage Ripple: <300mv
Overall Efficiency: >72%
Working Temperature: -20-60℃
Net Weight: 73g
Gross Weight: 146g

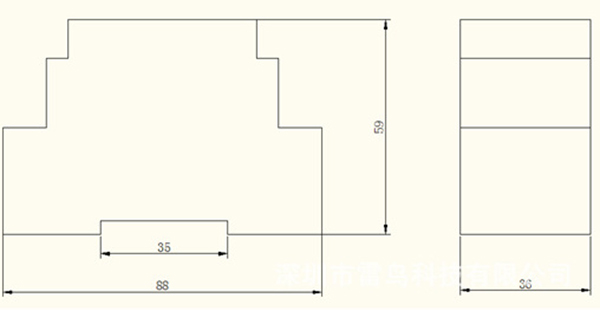

External Dimension: L88*W36*H59(mm)
Instructions for use
1. Connect the power supply to 90-260V 50/60HZ AC power grid.
2. Connect the output of the power supply to the DALI communication bus.
(Refer to the typical application diagram for details)
① AC-L:90-260V AC network firing line input
② AC-N:90-260V AC network zero line input
③ DA+:DALI power supply positive pole output
④ DA-:DALI power supply negative pole output
1. Please read user manual carefully before use.
2. Please check if parameter of application circuit conforms to output parameter of the dimmer.
3. Please check if the wire connection is correct before power on.
4. When there are some problems, please don’t open the shell of dimmer at will, avoid electric shock hazard.

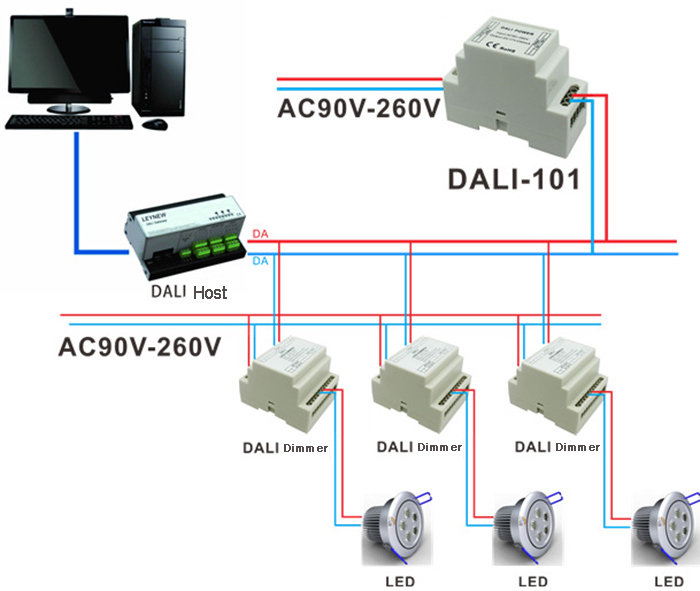

Typical application diagram
