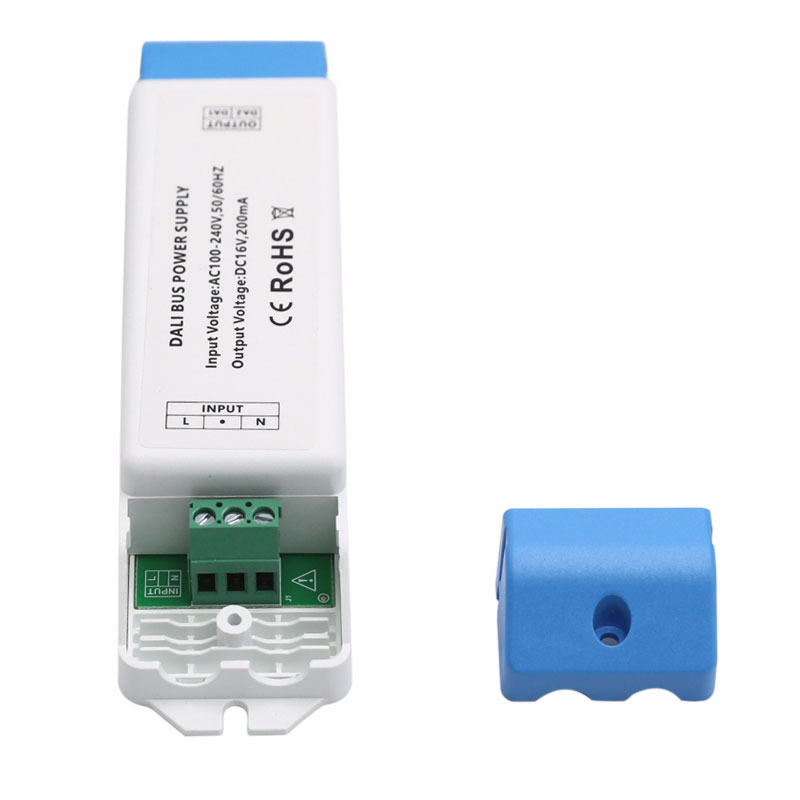

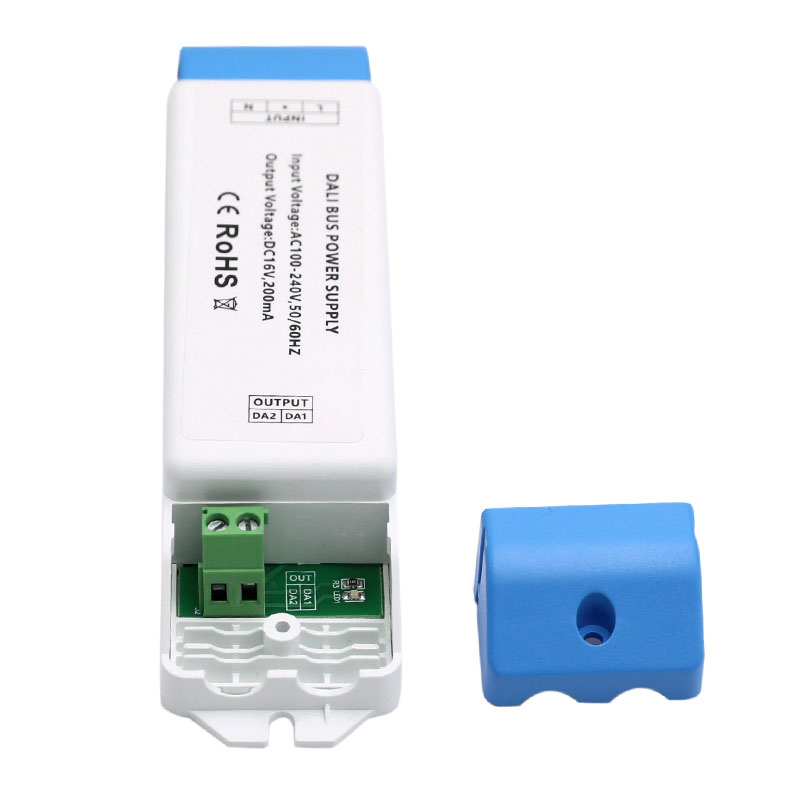

DL810 DC17V DALI Power Supply, DALI High Voltage Wireless Dimming System

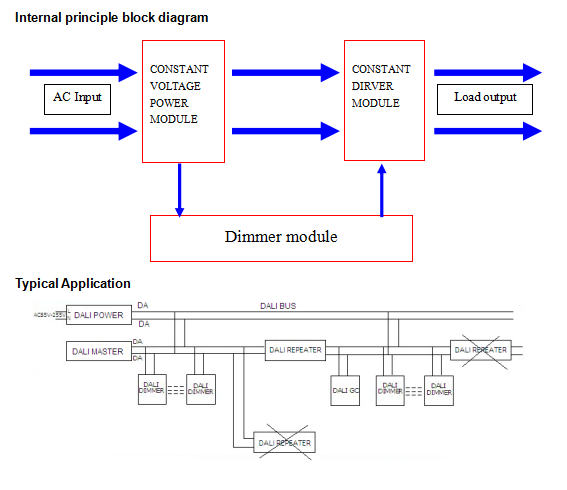

DALI power supply adopts an advanced computer control chip. This product can provide 17V voltage for the DALI bus and supply current within 250mA. And with Undervoltage, overload, short circuit protection.
Working Temperature: -20-60 ℃
Input Voltage: AC85V-255V
Input Frequency: 50-60HZ
Output Voltage: 17V
Output Current: <0.25A
Output Power: 5.4W
Gross Weight: 263g
Net Weight: 169g
Packing Size: L156 * W57 * H50 mm

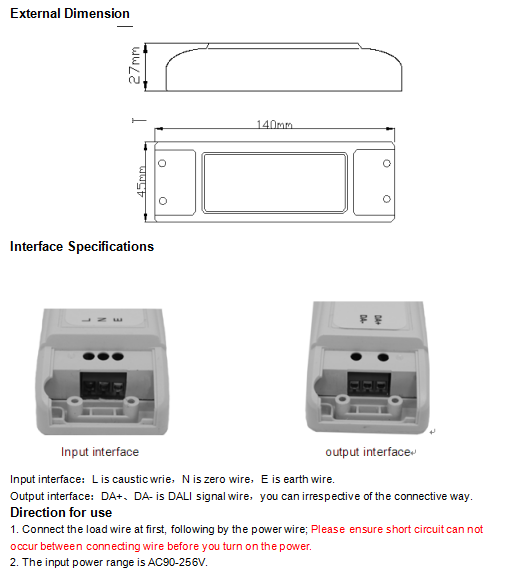

Dimensions: L140 * W45 * H27 mm
Connection Method: screw connection
Instructions for use
1. Connect the signal line first, and then connect the power line; before powering on, make sure there is no short circuit between the connection lines;
2. The input voltage range of this product is: AC 90V-256V
