LN-DALI-DIMMER-1CH-DCxV DC12-24V 1 Channel DALI Low Voltage Dimmer
DALI (Digital Addressable Lighting Interface) is an international standard and popular lighting control protocol bus. It uses Manchester-coded digital transmission. It has powerful dimming functions such as overall, group dimming, addressable dimming, and querying the status of lamps Features. Compared with the analog 0-10V dimming bus, this bus has the characteristics of accurate dimming, addressability, stability, centralized control, and easy installation.
This product adopts the standard DALI dimming signal to digitally dim the LED, and the standard is IEC60929. Compared with the traditional LED dimming method, it has a wide dimming range, diverse dimming methods, high dimming accuracy, query the current status of the LED (such as current brightness, power-on brightness, minimum supported brightness, address, etc.), easy Features such as distributed control.
Working Temperature: -20-60 ℃
Power Supply Voltage: DC12V-24V
Dimming Signal: standard IEC60929 DALI signal
Output: One channel NMOS drain output, the voltage is the same as the supply voltage
Dimming Range: 0.1%-100%
Gross Weight: 200g
Net Weight: 116g
Dimensions: L 120mm* W65mm * H30mm
Packing Size: L123mm * W88mm * H42mm
Connection Method: spring-type screw-free connection method, terminal diameter of 2.6mm
Output Current: <4A
Output Power: 12V: <48W, 24V: <96W
IP Protection Level: IP20

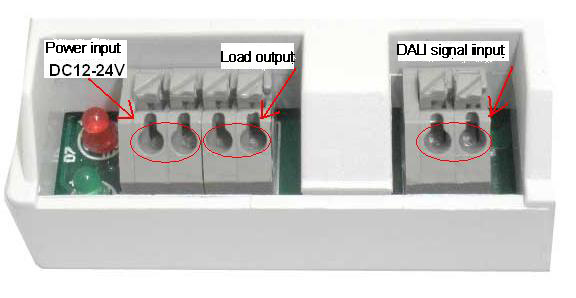

Power input and output interface
