DC12/24V Max 9A 3Ax3CH, Bluetooth 4.0 WIFI Control Via IOS Android Smart Phone Tablet PC, For Single Color, CCT and RGB LED Light Strips or Modules
  • DC12/24V Max 9A 3Ax3CH, Bluetooth 4.0 WIFI Control Via IOS Android Smart Phone Tablet PC, For Single Color, CCT and RGB LED Light Strips or Modules
  • DC12/24V Max 9A 3Ax3CH, Bluetooth 4.0 WIFI Control Via IOS Android Smart Phone Tablet PC, For Single Color, CCT and RGB LED Light Strips or Modules
  • DC12/24V Max 9A 3Ax3CH, Bluetooth 4.0 WIFI Control Via IOS Android Smart Phone Tablet PC, For Single Color, CCT and RGB LED Light Strips or Modules
  • DC12/24V Max 9A 3Ax3CH, Bluetooth 4.0 WIFI Control Via IOS Android Smart Phone Tablet PC, For Single Color, CCT and RGB LED Light Strips or Modules
  • DC12/24V Max 9A 3Ax3CH, Bluetooth 4.0 WIFI Control Via IOS Android Smart Phone Tablet PC, For Single Color, CCT and RGB LED Light Strips or Modules

DC12/24V Max 9A 3Ax3CH, Bluetooth 4.0 WIFI Control Via IOS Android Smart Phone Tablet PC, For Single Color, CCT and RGB LED Light Strips or Modules

Model: CONRGB-BT-03

$36.99

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :





Qty Discounts Off Price
1-4
$36.99
5-9
$36.25
10-14
$35.14
15+
$33.66
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    This controller is a bluetooth enabled,multicolored,energy efficient smart led light controller that you can control with your smart phone or tablet with Android and IOS APP.It support a color palette of over 16 million colors and also different tones of white light-from warm yellow light to vibrant blue light.

    Multi-functional controller for mobile phones;Can control the power switches of the lights and adjust the color,brightness and flash effects; With 15 kinds of preset light modes;Can communicate with devices by connecting bluetooth;Humanized design and more formidable function; Timing control; Interface type: shared anode interfaces; Output control: 3 routes; Rated Voltage: DC12~24V; Maximum current output: 9A; Rated current: 3A.

    Requires Bluetooth 4.0 compatible device,Android device must be at least android 4.3 and IOS system must be at least IOS 6.0


    Standards and Certifications





    Product Specification

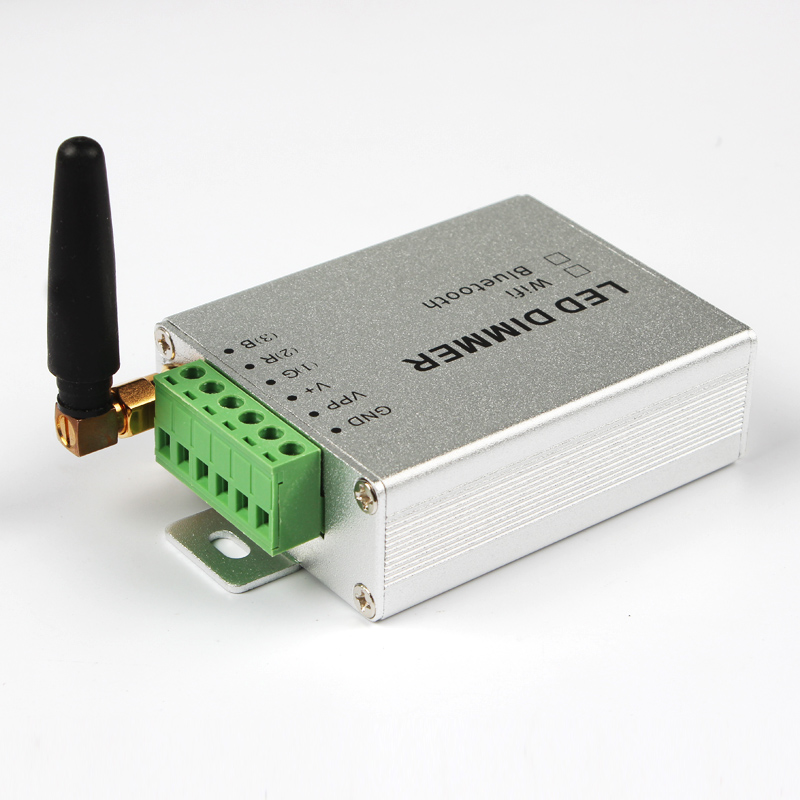

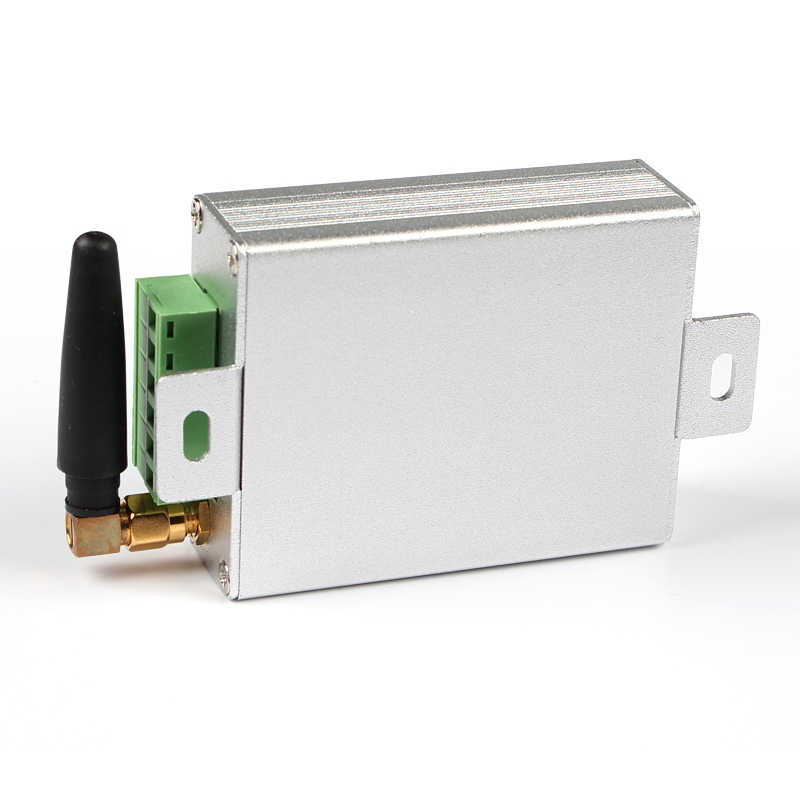

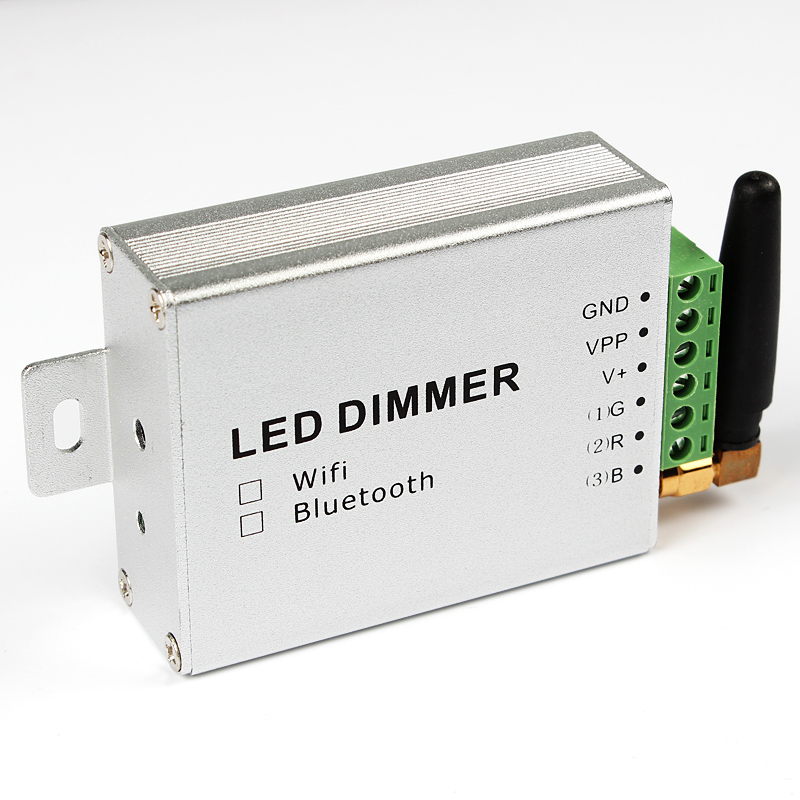

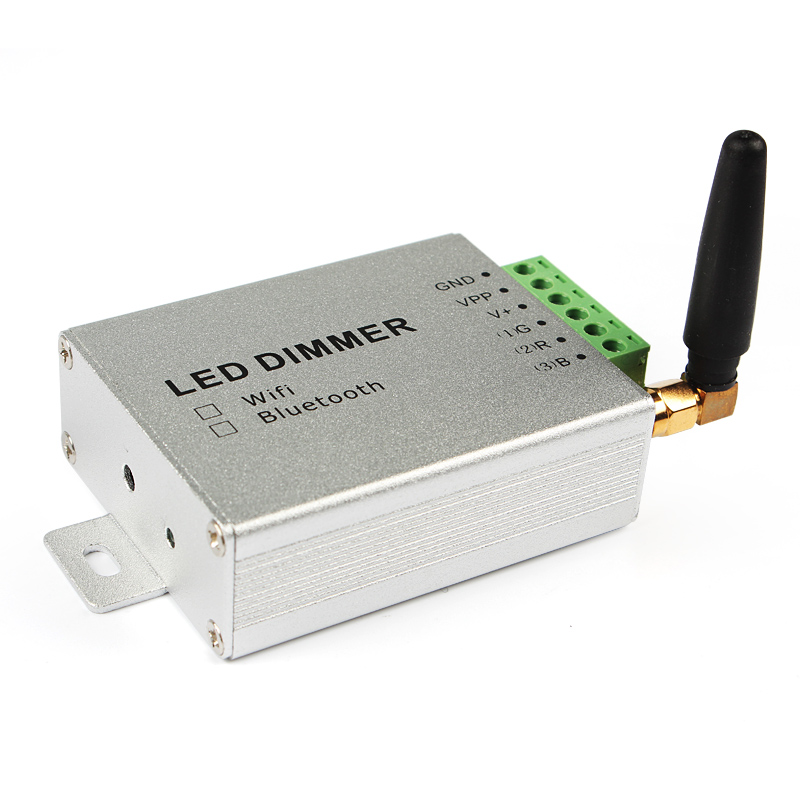

    Name of product:   Wireless Bluetooth LED Light Strips Controller

    Input Voltage:   DC 12-24V

    Output:   3CH

    Loadable current:   9Ax3CH 27A MAX

    Rated Current:   3A

    Connection mode:   common anode

    Communication mode:   Bluetooth

    Modulation Mode:   PWM control technology

    Mode of connection:   4 Wire 3CH (common anode)

    Receiving Distance:   10-30M(Depends on environment and different phone models)

    Color:  White

    Dimensions:   3.78 in x 2.24 in x 0.98 in (9.6 cm x 5.7 cm x 2.5 cm)

    Weight:  N.W:30g   G.W:60g

    Certification:  CE,FCC,RoHS

    Waterproof:  IP22

    Material:  Aluminum

    Work Temperature:  -20℃-60℃

    Connection Methods:  Bluetooth Version 4.0

    Applied to:   single color, color temperature, RGB, RGBW led lighting. Perfect for Home lighting, Stage, Decoration and so on.



    Note

    Compatibel with al our power supplies and RGB LED strips

    Not compatible with other superlightingled wireless remote bulbs or controllers, only with this Bluetooth RGB LED strip controller

    Suitable for iOS and Android smartphones and tablets

    For the APP Bluetooth version 4.0 is required. This Bluetooth version is present on almost all current phones. For Apple an iPhone 4S is at least required, and for Android at least version 4.2

    Pls don’t operate it when energized.

    Pls don’t use it in areas which are full of metal and strong electromagnetic waves. Otherwise,effective remoted distance will be shortened significantly.



    Package Included

    1 x Wireless Bluetooth LED Strip Controller

    1  x  Antenna

    1 x  Piece of User's Manual
