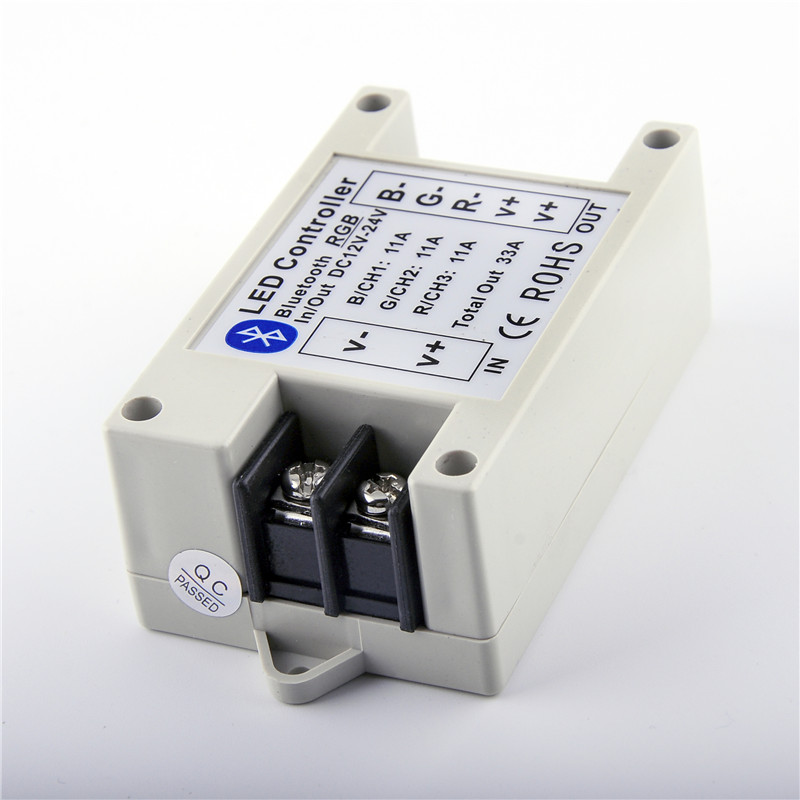

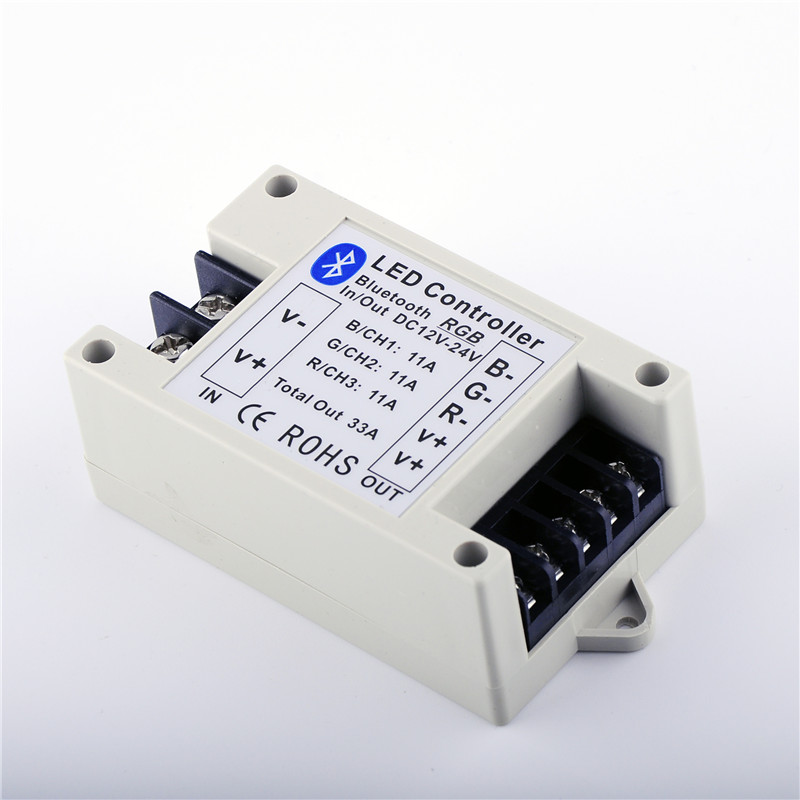

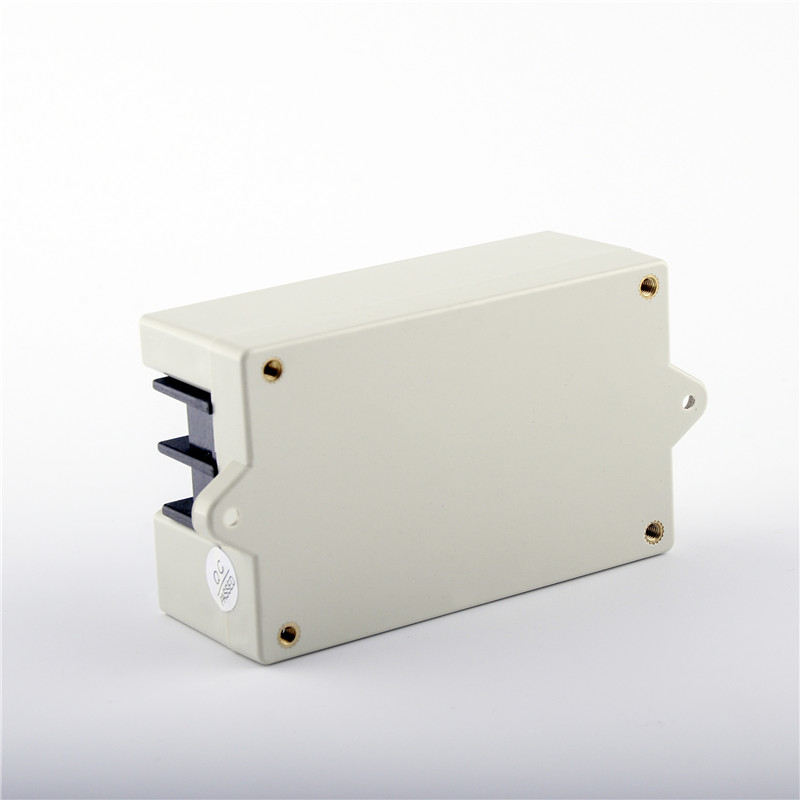

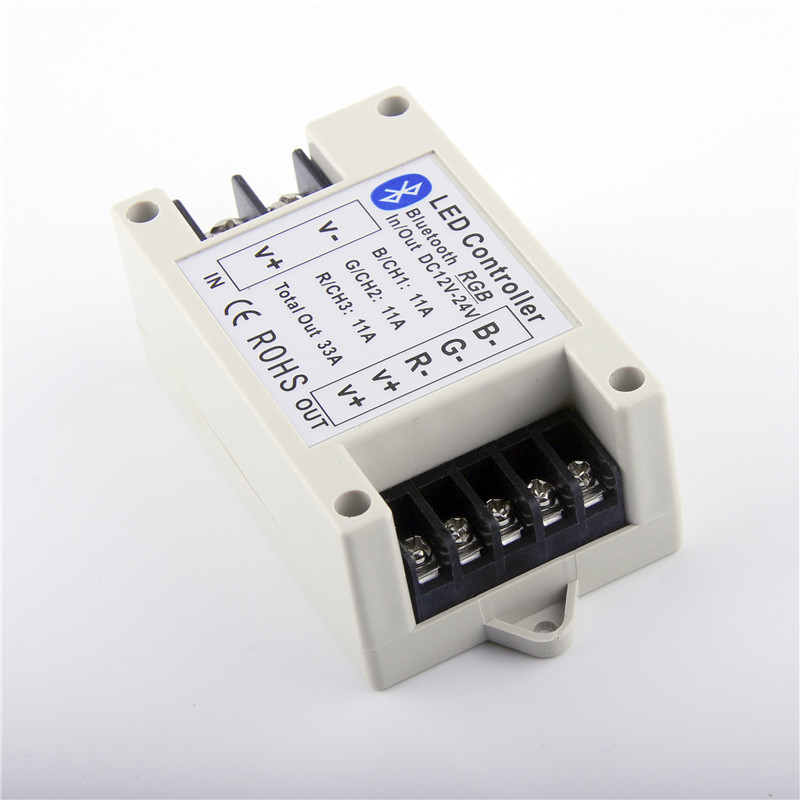

DC12V-24V 400/800W 3 Channels LED RGB Wireless Bluetooth Controller by Android/IOS System Smartphone for Flexible LED Light Strip
LED the controller needs to support bluetooth version 4.0 or above to use the phone.Bluetooth controller via mobile phone remote control, realizes the switch function, change the brightness, color temperature and change color patterns, etc. And there are a variety of lighting patterns to choose from. Easy installation,The operation is simple. By mobile phone control (IOS or Android).
Transfer Method: Bluetooth 4.0 (Support phone with Bluetooth 4.0 or above)
Support phone system: IOS6.0 or Android 4.3 above
Working voltage: DC12V/DC24V
Output power: 400W/800W
Working temperature: 20℃-85℃
Channels: 3-Channel common anode
Remote distance: 20m
1. Before using the phong App install bluetooth first control software.

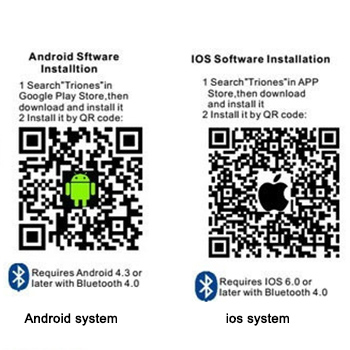

2. Scan the pr code on the right side, download and install the software after the installation is complete, open the bluetooth function. Make sure before power on no short circuit between the cables.

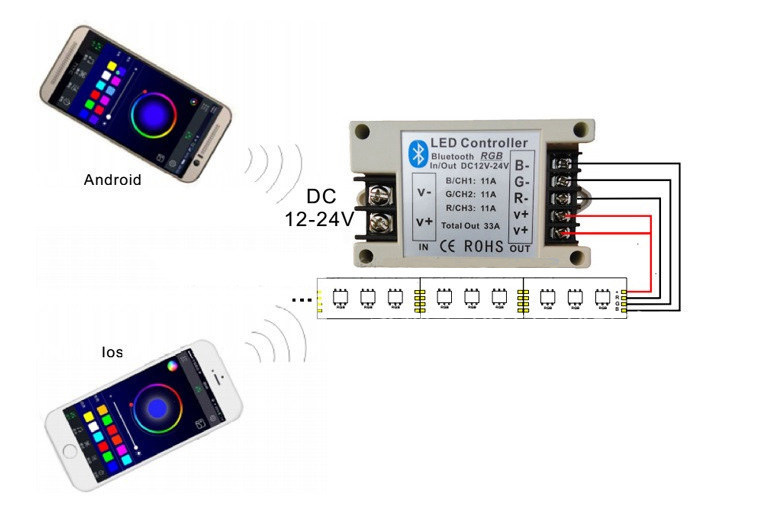

3. Controller connected load line first, then connect the power cord;Make sure before power on No short circuit between the cables;

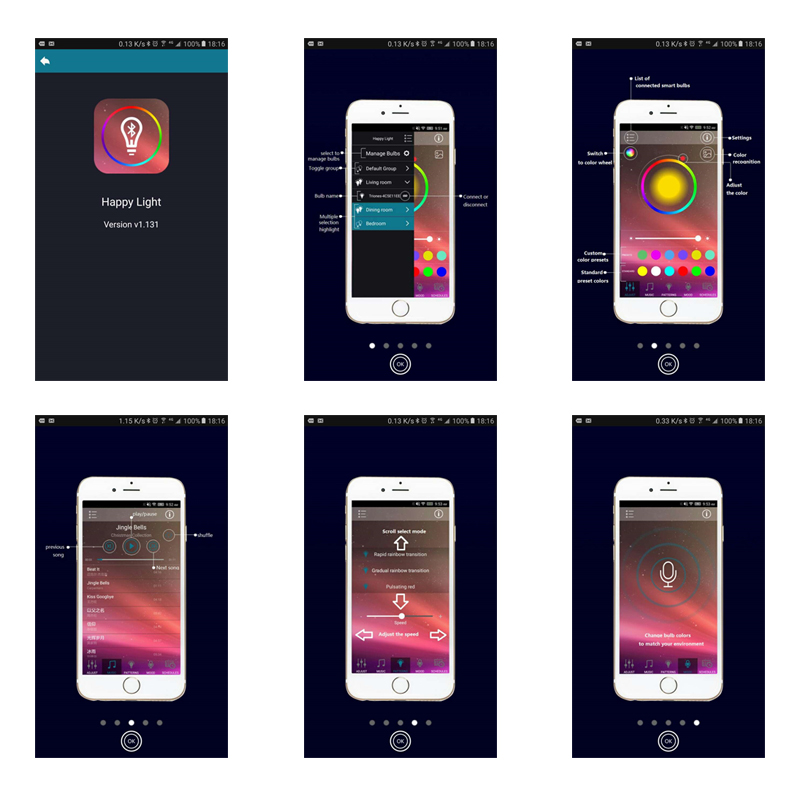

4. Open the software, can be realized conveniently to control light equipment. Mobile phone App interface function introduction is as follows: Include: Static color adjustment, music model, dynamic model, Voice control mode and timing section 5 functional features.
Controller can't close to the strong electromagnetic interference,So as not to affect the reception.
Not in metal container to avoid blocking the signal.
First after finish line checked again electrify test, Positive and negative level can't short circuit.
