SuperLightingLED 2.4G WIFI RF Wireless Control Via IOS or Android Smart Phone Tablet PC, 4AX3CH For Single Color, Color Temperature, RGB LED Strips
This LED controller is following the tradition of the LED controller with a wireless basis, with the latest WIFI technology on the market integration of intelligent wireless controllers. Combined with WIFI technology makes LED control more advanced, intelligent and convenient, with Android system or through the Apple smart phones or tablet computers, install the appropriate control software can control the LED lighting change effect. WIFI controller set RGB, color temperature adjustment, dimming three functions, users simply switch the interface on the operating software can achieve the corresponding control; suitable for controlling a variety of Constant voltage LED lamps,such as: RGB LED Strip, LED modules, LED string lights, etc.; conditions if no cell phone, you can use the same product which is equipped with a touch of the remote control; and with the company's signal amplifier power expansion, LED lights synchronized to achieve more changes theoretically unlimited number of amplifiers can be connected. For controlling more led products, amplifier is available.
Support both wifi control of Apple products (iPod, iPad, iPhone), Android mobile devices like Samsung, HTC, and RF wireless remote control. With the 3-in-1(Dimming, CT, RGB) apple/android software. One device suit to different lighting application scene. Memory function to save scenes anytime anywhere for next play.
This is designed for constant voltage led products, working voltage auto fit to DC12-24V. Wifi control based on 2.4GHZ frequency, RF remote control based on 433.92MH.
Working temperature: -20-60
Supply voltage: DC12 ~ 24V
Static power consumption: <3W
Output: 3 channels
Output current: 4A (each channel)
Output power: 12V 144W 24V 288W
WIFI brightness profile: 100
WIFI speed file: 100
Remote brightness profile: 32
Dimensions: 108mm * 63mm * 28mm
WIFI Receiving frequency: 2.4G
Remote Receiver Frequency: 433.92Mhz
Output gray scale: 256
Power and memory function: Yes
Receive Sensitivity: 802.11b: DSSS (-5dBm) 802.11b: CCK (-10dBm) 802.11g: OFDM (-15dBm)
Applied to: single color, color temperature, RGB, RGBW led lighting. Perfect for Home lighting, Stage, Decoration and so on.
Standby current: 7uA
Supply voltage: 1.5V * 3
Emission current: 10mA
Remote control distance: <= 30m
Transmitting frequency: 433.92Mhz
Standby Power: 0.04mW

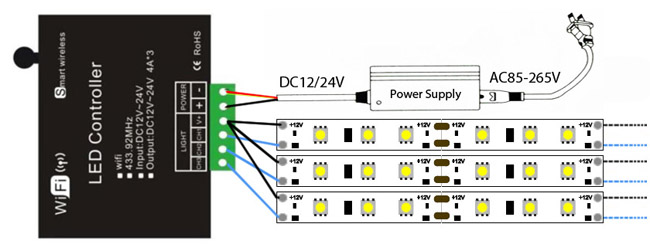

For single color LED Light Strips

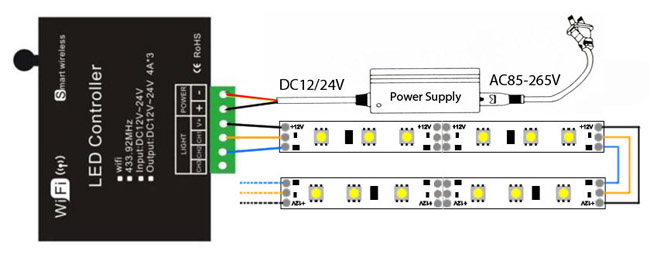

For Color Temperature LED Light Strips

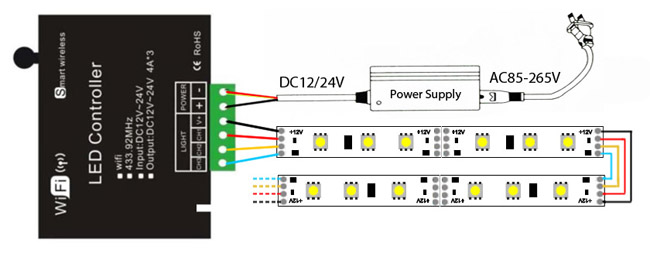

Color Change RGB LED Light Strips
1 x WiFi LED controller
1 x RGB remote
1 X SOFTWARE
1 x Piece of User's Manual
