DC12/24V Max 18A 6A3CH, UFO Circular Touch Panel LED RGB Wireless RF Remote Controller For Color Change Led Strips
This is DC12/24V 7-key 18A UFO touch infrared controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp. It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. R / G / B increase and decrease control, 7 keys infrared controller, Unique appearance, circle remote have a good feeling, The touch panel is stable. Adope pwm technology, change of lights is smooth, Unique remote cooperate controller, have a perfect visual effect, RGB Max output power is 432W, wide application field, 22 classic modes, According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared touch remote control. Color ring up to 256 colors can be controlled. whose source of light is LED. Apply on constant voltage RGB LED strip light. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on.
Operating temperature: -20-60 ° C
Supply voltage: DC 12V-24V
Output current: ≤6A(each channel)
Output power: 12V / 216W, 24V / 432W
Material: ABS Plastic
Color: White and Black
Static power: 1W

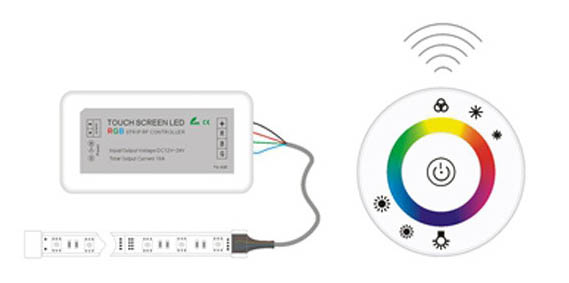

Connection method: common anode
Control distance: 20 meters
IR Remote Control:
Power: AAA battery*2pcs
Fabrication processing: Multicolor printing & UV varnish
Functions: color changing and brightness dimming
Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications

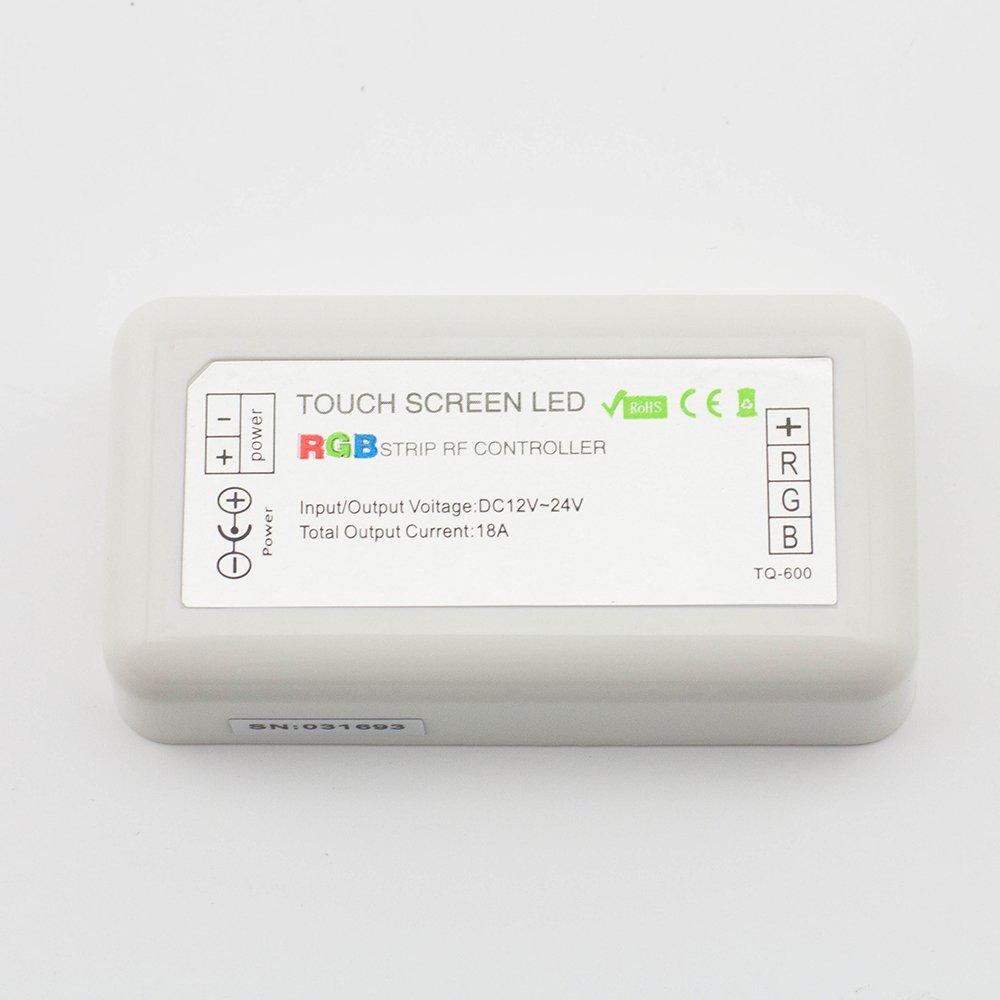

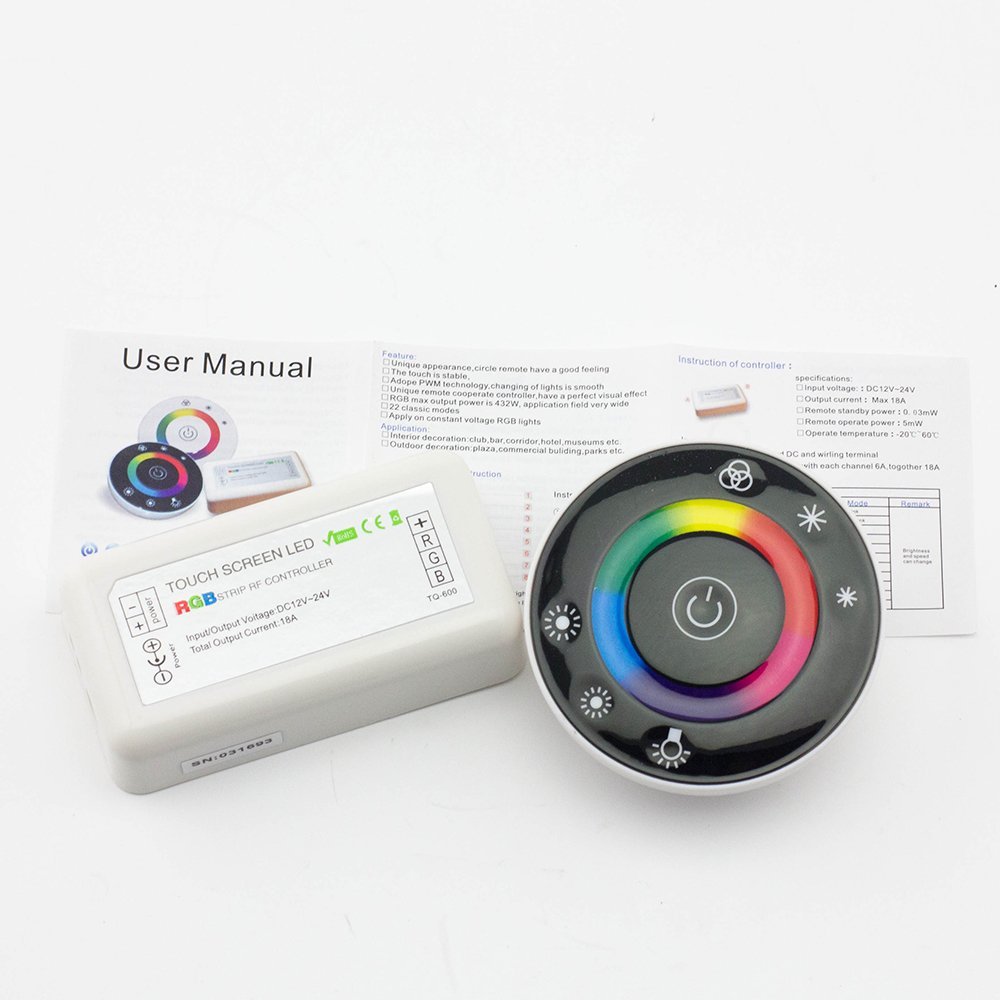

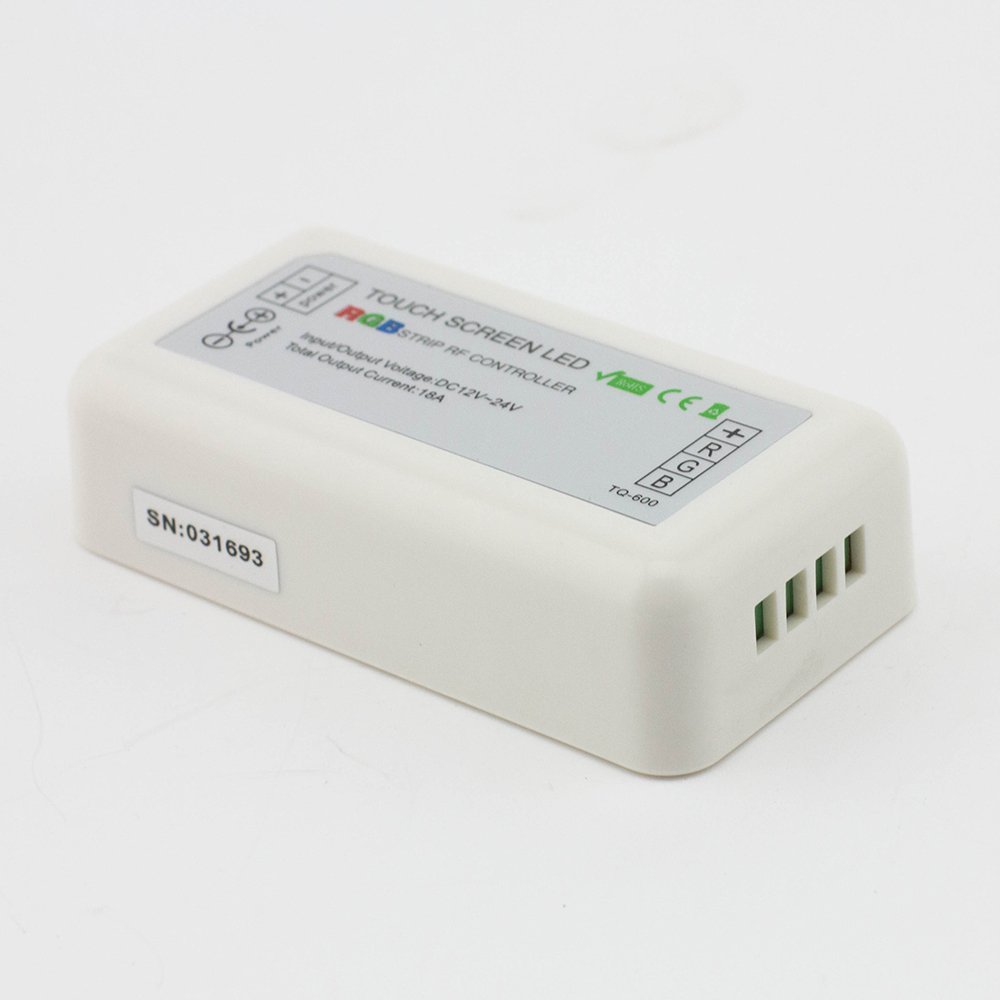

1 x 18A RGB LED Remote Controller

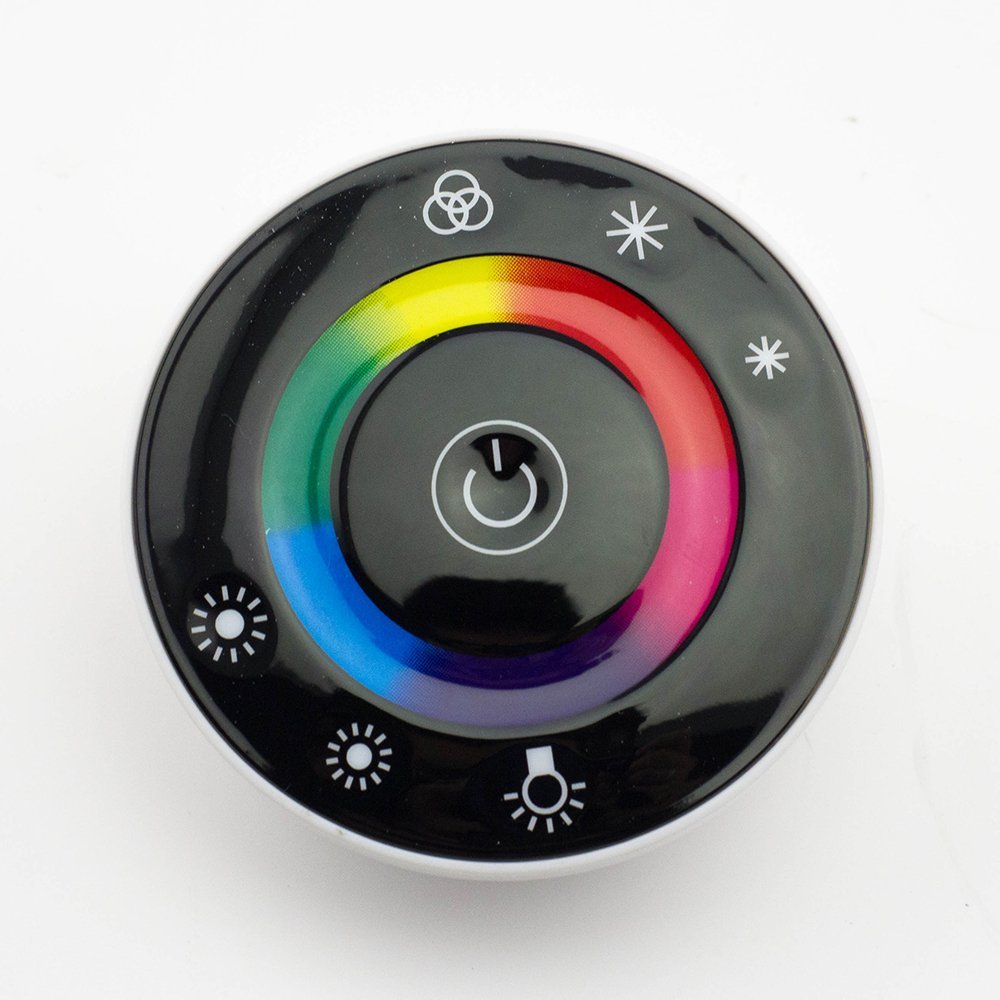

1 x UFO RF Touch Remote Control
