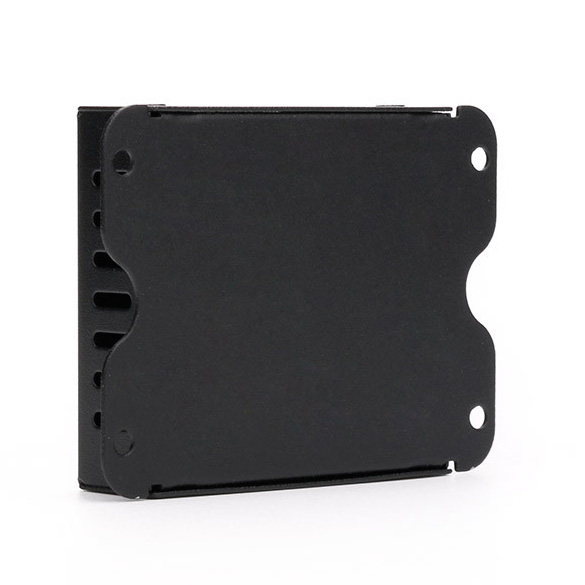

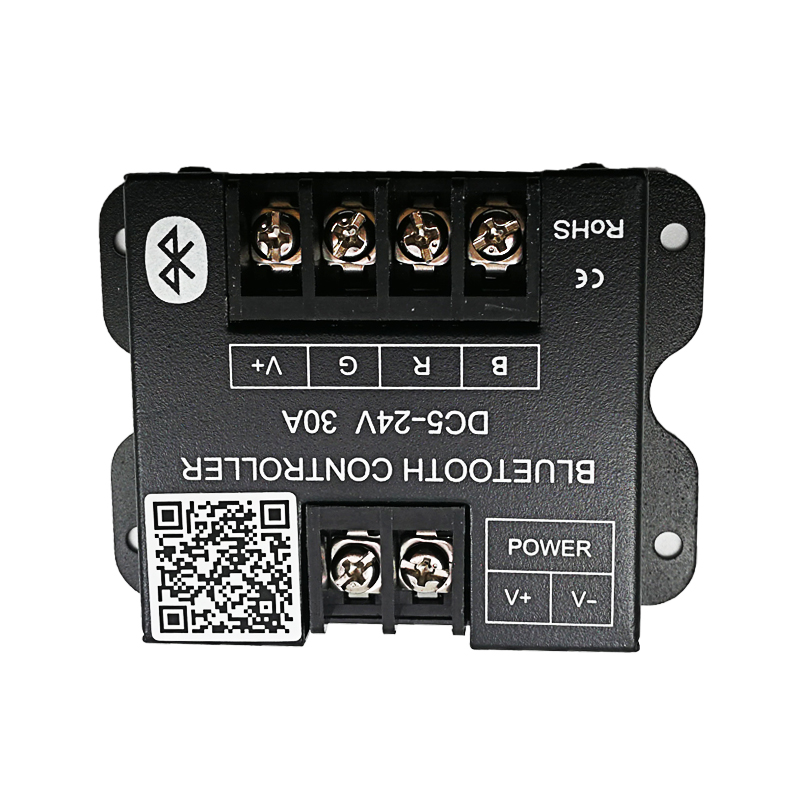

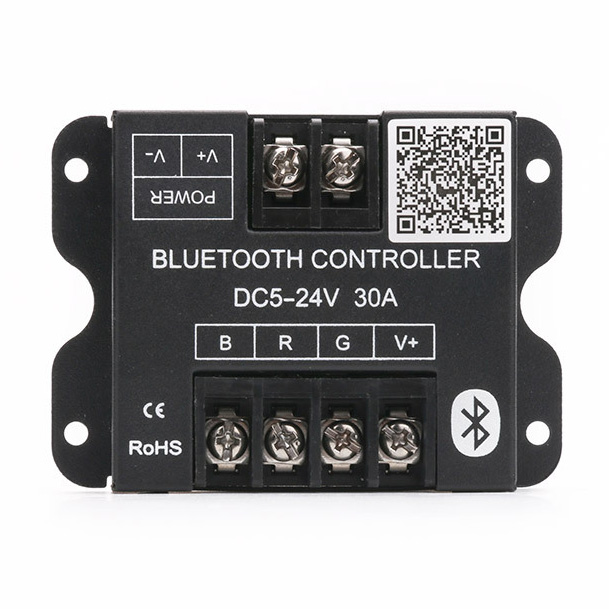

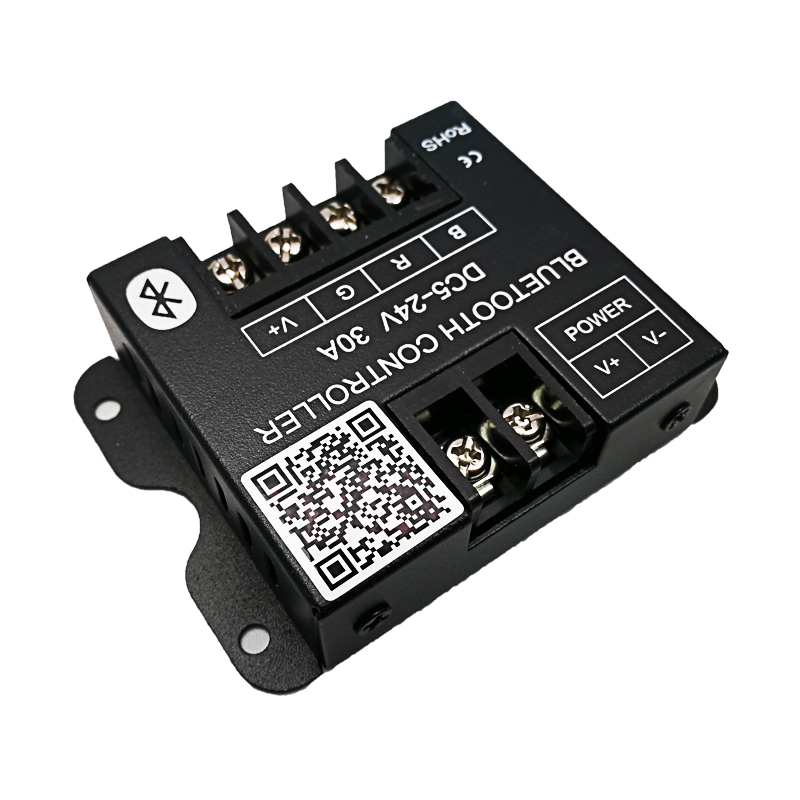

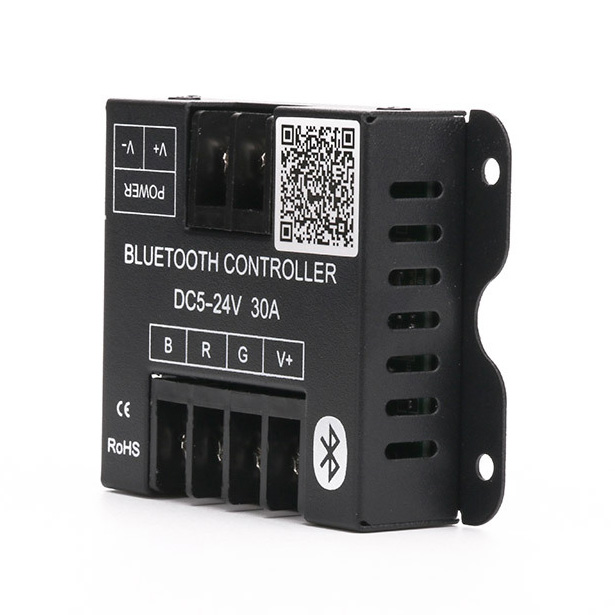

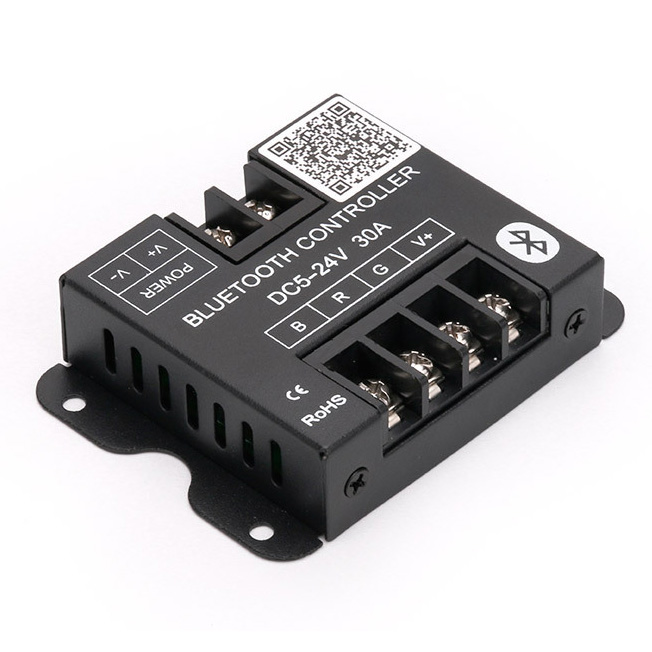

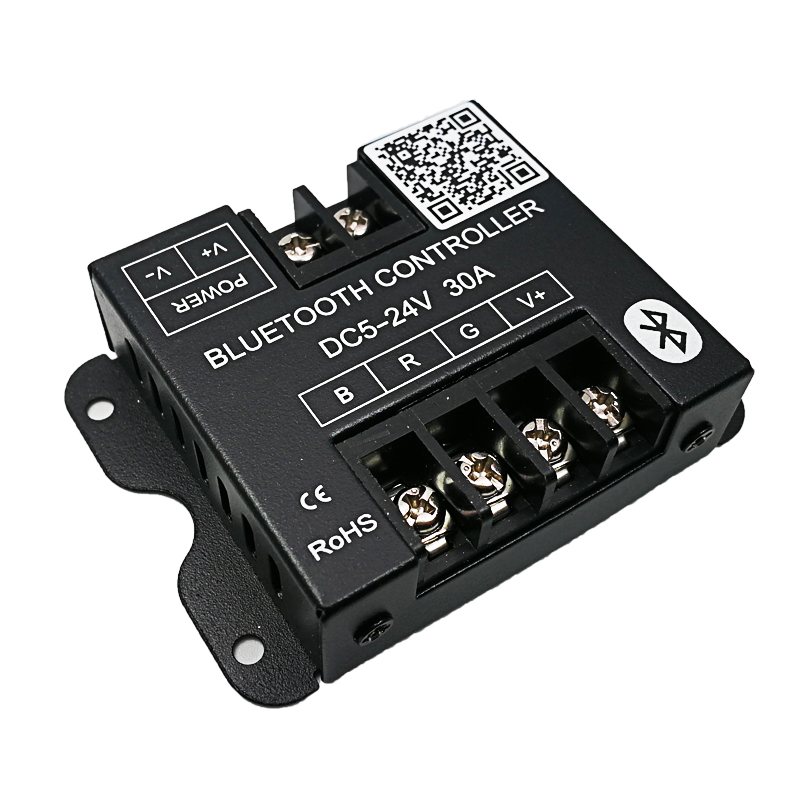

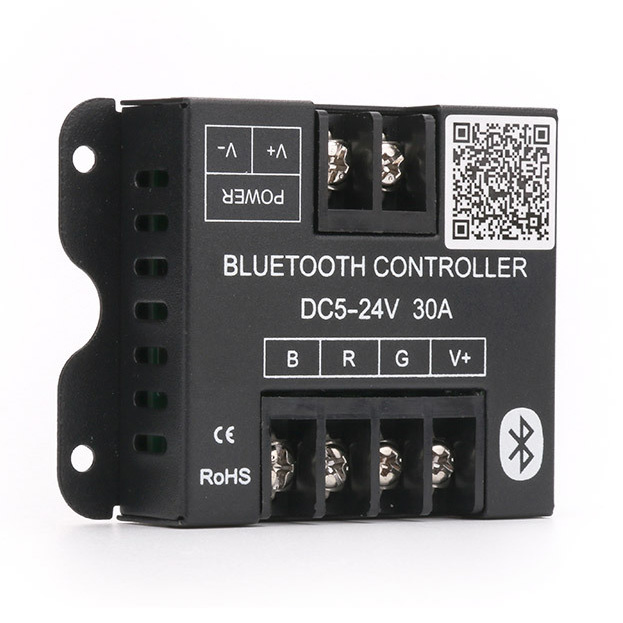

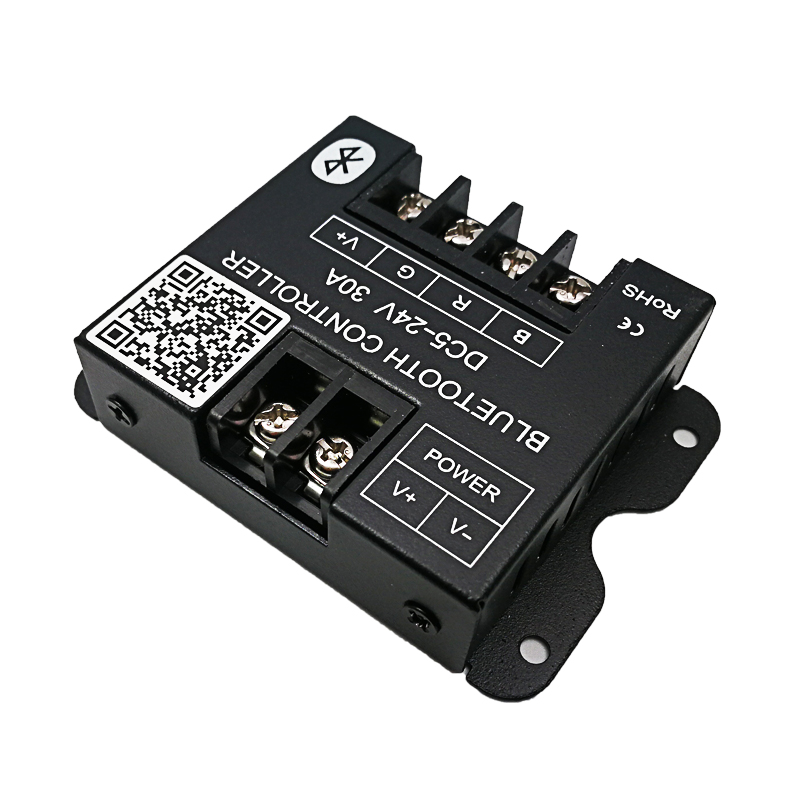

DC5-24V Max 30A 10Ax3CH Bluetooth 4.0 Control Via iOS Android Smart Phone Tablet PC For RGB LED Light Strips or Modules
This controller is a Bluetooth-enabled, multicolored,energy-efficient smart led light controller that you can control with your smartphone or tablet with Android and IOS APP. It supports a color palette of over 16 million colors and also different tones of white light-from warm yellow light to vibrant blue light.
Multi-functional controller for mobile phones; Can control the power switches of the lights and adjust the color, brightness, and flash effects; With 15 kinds of preset light modes; Can communicate with devices by connecting Bluetooth; Humanized design and more formidable function; Timing control; Interface type: shared anode interfaces; Output control: 3 routes; Rated Voltage: DC5~24V; Maximum current output: 10A
Requires Bluetooth 4.0 compatible device, Android device must be at least android 4.3 and IOS system must be at least IOS 6.0
0~100% brightness adjustable
Easy to install and simple to use
Adjust the light soft and stable, no flickering.
PWM digital dimming, avoid rush current, protect your LED lights
Mainly used to adjust single color LED light lamps and Led Strip.
Constant voltage and constant current output can be connected with amplifiers to extend its load.
Name of product: Wireless Bluetooth LED Light Strips Controller
Input Voltage: DC 5-24V
Loadable current: 10Ax3CH 30A MAX
Connection mode: Common anode
Communication mode: Bluetooth
Modulation Mode: PWM control technology
Mode of connection: 4 Wire 3CH (common anode)
Receiving Distance: 20M(Depends on environment and different phone models)
Dimensions: 3.64 in x 2.60 in x 0.87 in (8.8 cm x 6.6 cm x 2.2 cm)
Work Temperature: -20℃-60℃
Connection Methods: Bluetooth Version 4.0 or above
Applied to: RGB led lighting. Perfect for Home lighting, Stage, Decoration and so on.
Compatibel with al our power supplies and RGB LED strips
Not compatible with other superlightingled wireless remote bulbs or controllers, only with this Bluetooth RGB LED strip controller
Suitable for iOS and Android smartphones and tablets
For the APP Bluetooth version 4.0 is required. This Bluetooth version is present on almost all current phones. For Apple an iPhone 4S is at least required, and for Android at least version 4.2
Pls don’t operate it when energized.
Pls don’t use it in areas which are full of metal and strong electromagnetic waves. Otherwise,effective remoted distance will be shortened significantly.
1 x Wireless Bluetooth LED Strip Controller
1 x Piece of User's Manual
