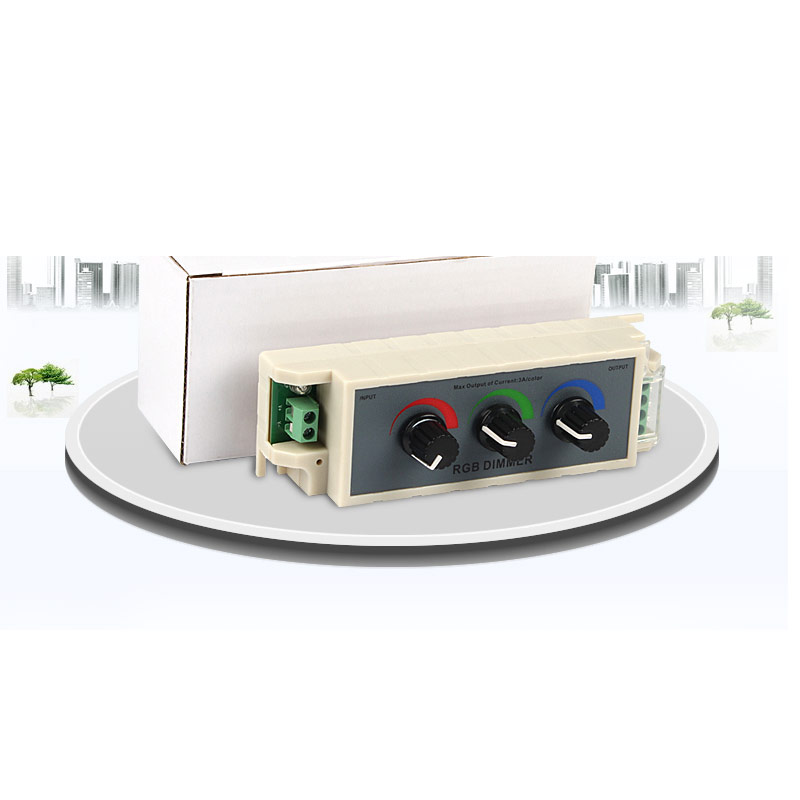

DC12/24V 3A3CH Max 108W Manual knob Setting Three Color Dimmer Controller For Color Change LED Light Strips or Modules

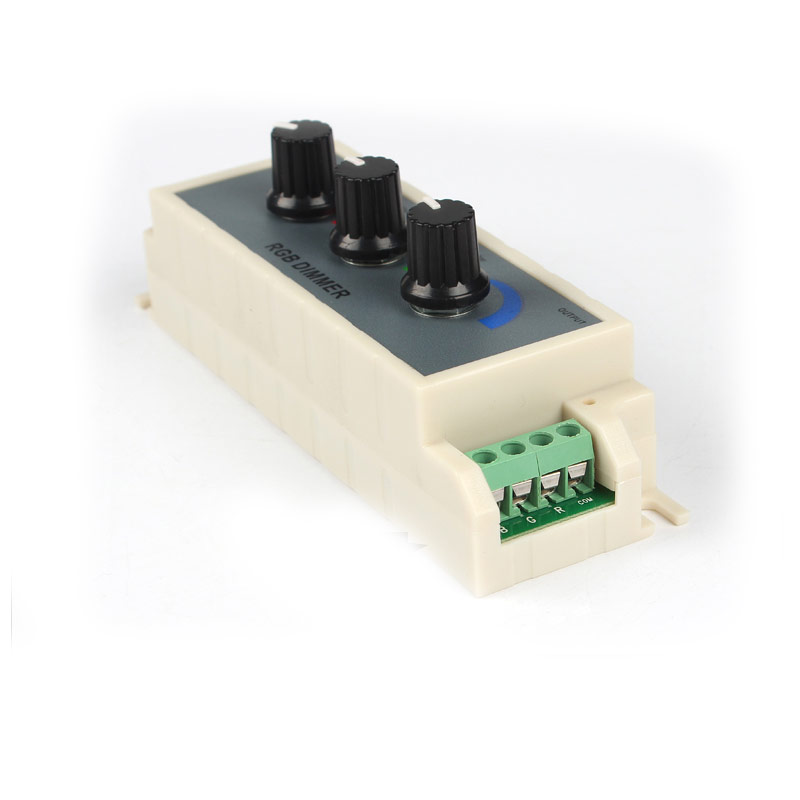

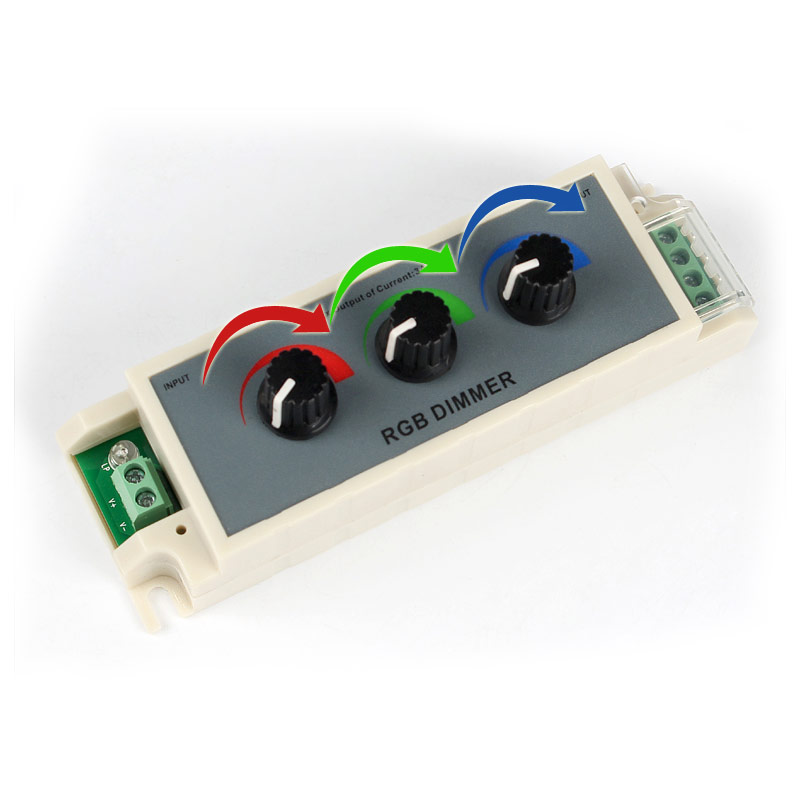

Universal Red/Green/Blue (RGB) LED dimmer can dim any 12/24VDC RGB LED products from 0 to 100 percent using Pulse Width Modulation (PWM) circuits. it can adjust brightness infinitely, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need. Maximum Load is 3 Amps per channel (9 Amps total) , has screw terminals for power in and out connections.
Standards and Certifications
Working temperature: -20〜60°C

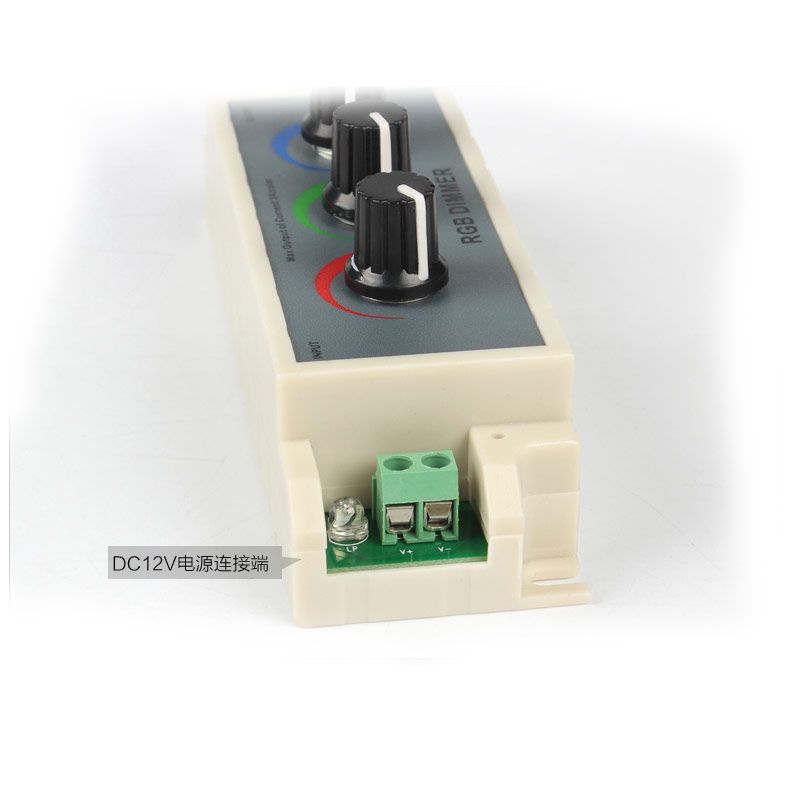

Supply voltage: DC12/24V
Output: 3 channel
Funtion : can achieve stepless dimming
Max load current : 3A each color 9A Max
Static power consumption: < 1 Watt
Output Power: 12V/108 Watts 24V/216 Watts
Product size: (L)130 Χ (W)40 Χ (H)52 mm
Net weight: 95 g
Gross weight: 175 g
Function: Dim 3 channels RGB LED product from 0~100% using PWM
Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc
Supply voltage of this product is 12 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.

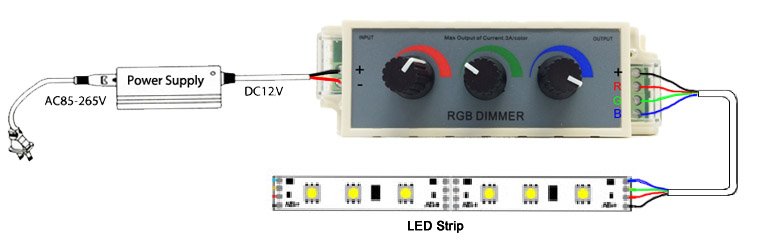

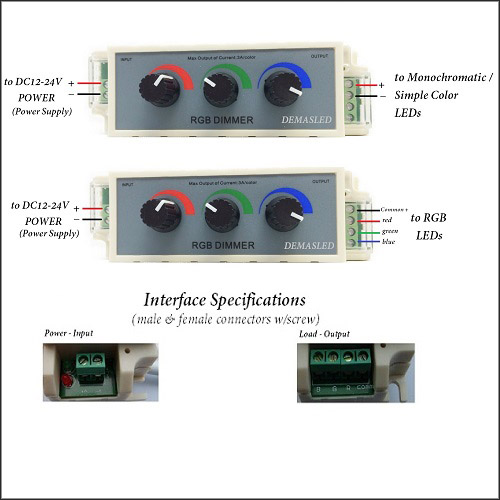

Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
1 X RGB Controller
1 X User Manual
