RGB IP68 Outdoor Waterproof LED Strip Lights - 12mm 12V/24V 5050 3in1 LED - 60LEDs/m

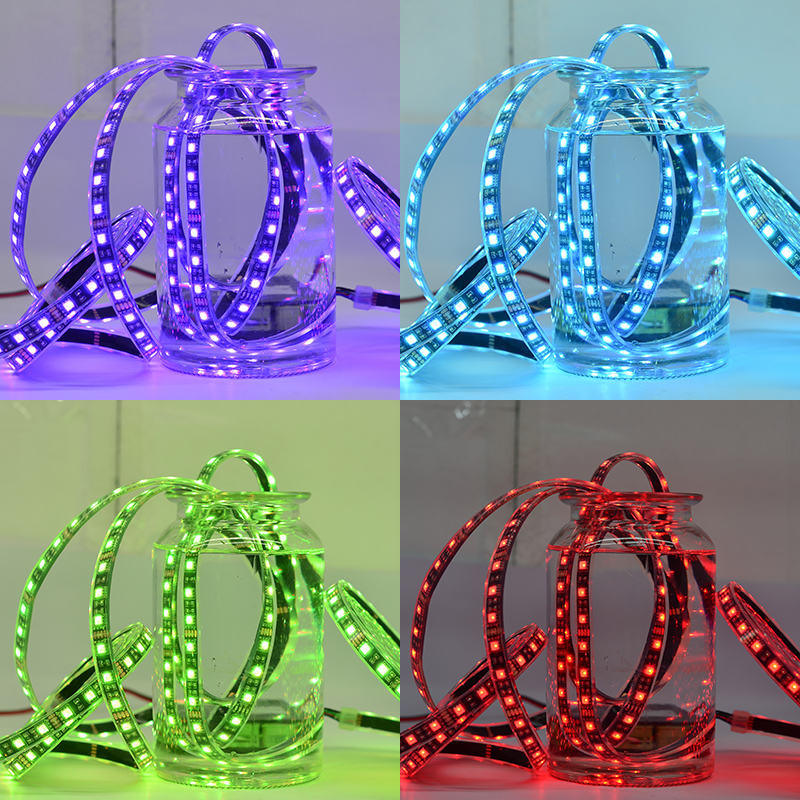

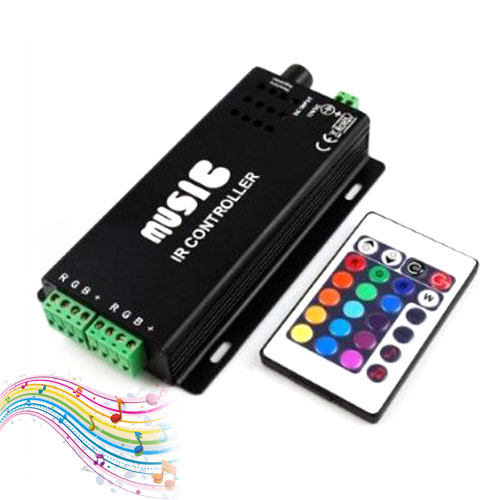

Highest waterproof rating IP68 outdoor color changing RGB led strip lights use 3-in-1 5050 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. You can use mobile APP, remote control, or voice control to change the light colors, brightness, and color modes. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This IP67 RGB outdoor color changing lights use 12V/24V safe low voltage and needs to be driven by an 12V/24V LED power supply.
RGB LED Chip 3in1 packaged in the SMD5050 component, multiple RGB colors change
Input voltage is DC12/24V optional, safety and stability
White PCB or copper PCB or black PCB
IP68 waterproof rating for indoor and outdoor lighting (Highest Waterproof Level, fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic gel)
High-quality 3M tape on the back, easy to install
Waterproof 12V RGB LED Strip vs waterproof 24V RGB LED Strip:

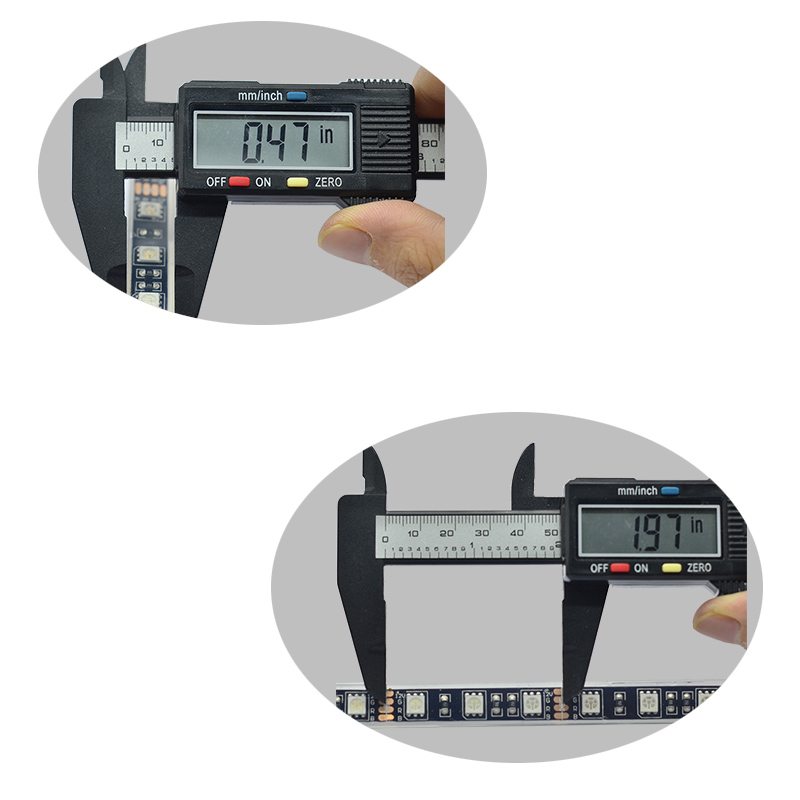

DC12V: 3LEDs cuttable, the min-cut size is 50mm, 5m no voltage drop, more than 5m requires a power supply at both ends
DC24V: 6LEDs cuttable, the min-cut size is 100mm, 10m no voltage drop, more than 10m requires a power supply at both ends
Standards and Certifications
|LED Strip Type:||SMD 5050 RGB 300LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB Color|
|Dimension:||16.4ft/roll, every 3/6 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||12/24 VDC|
|Working Power:||72W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||22~24Lumen 7,200lm Max /16.4ft, 439lm per foot, 100lm/watt|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Waterproof IP68 (Highest Waterproof Level)|
1. RGB led strip wiring diagram:
2. LED light strip accessories: RGB light led strip matching LED diffuser can achieve a soft, spotless linear light effect.
3. Installing RGB led strip lights: - How To Install LED Strip Lights?

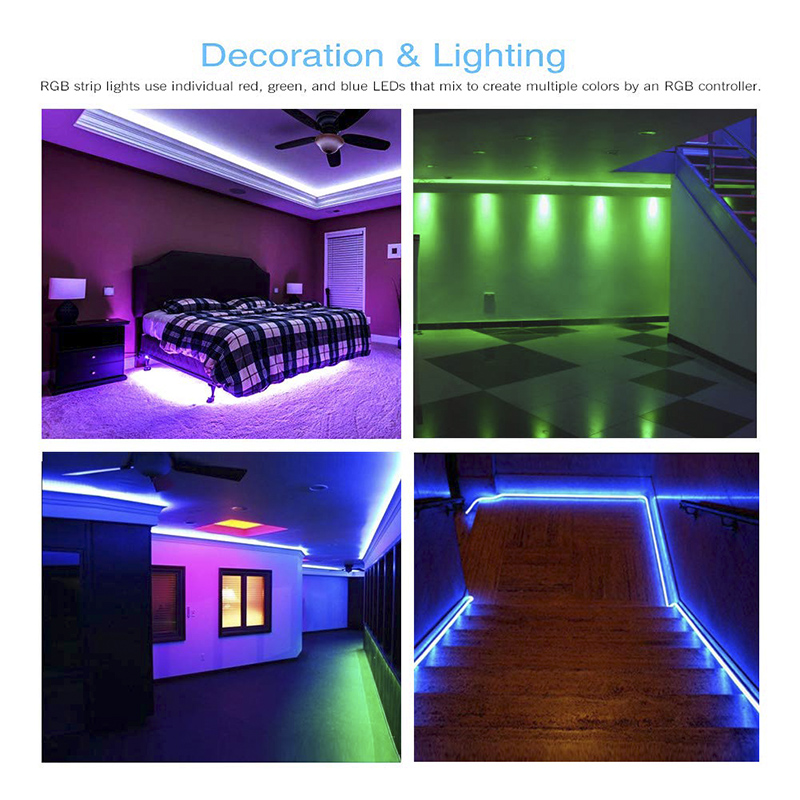

LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
