DC5-12/24V Max 24A 8A3CH, 2.4Ghz 30M Control Touch Panel LED RGB Wireless RF Remote Controller For Color Change Led Strips
This 24A 12/24V DC 2.4G controller is newly introduced wireless high-power LED controller of our company. It equips with IR touch remote control, touch remote control adopts high precision capacitance touch control technology, you can select the color you need by one button. It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion caused by controlling repeated address code. Each controller can be equipped with four remote controls, can achieve multiple controllers synchronization control. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strips, led string lights, wall washer lamp, glass wall light etc. It has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Working temperature: -20-60℃
Supply voltage: DC5V-24V
Output: 3 channels
Connection mode: common anode
External dimension: L120ΧW62ΧH24mm
Packing size: L185ΧW145ΧH52 mm
Net weight: 226g
Gross weight: 320g
Static power consumption: <1W
Output current: <8A (each channel)
Output power: 12V:<288W, 24V:<576W
Touch Remote Control
Working temperature: -20-60℃
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Transmission frequency: 2.4Ghz
Standby power consumption: 0.015mW
Standby current: 60uA
Working current: 200uA
Emission current: 10mA
Remote distance: about 30m
Standby time: 6 months
Remote control weight: 94g
Features of Touch RGB controller
1. Capacitance and wireless touch technology no mechanical wear overcoming the lifespan problems caused by Physical buttons.
2. Visible color wheel touched by finger then What you see is What you get.
3. Auto adaptation of 9-24V DC working voltage and with input polarity protection function.
4. Adopt advanced PWM ,control technology ,gradual change gralscale up to 1024 levels ,change effect smooth,no flick.
5. High power dimmer control MOS tube with stable and reliable performance, strong.power-drive ability with max. 15A of 3 channels.
6. Wireless RF control, free direction and long distance, more than 20 m.
7. Adopt 2.4G wireless remote control technology, support use configuration one-for-one, one-for many,
8. Support independent control, uniform control and simultaneously control, buzzer remind when remote
9. with brightness memory function.
10. Novelty and elegant appreance, especially fit for home and commecial occation.
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

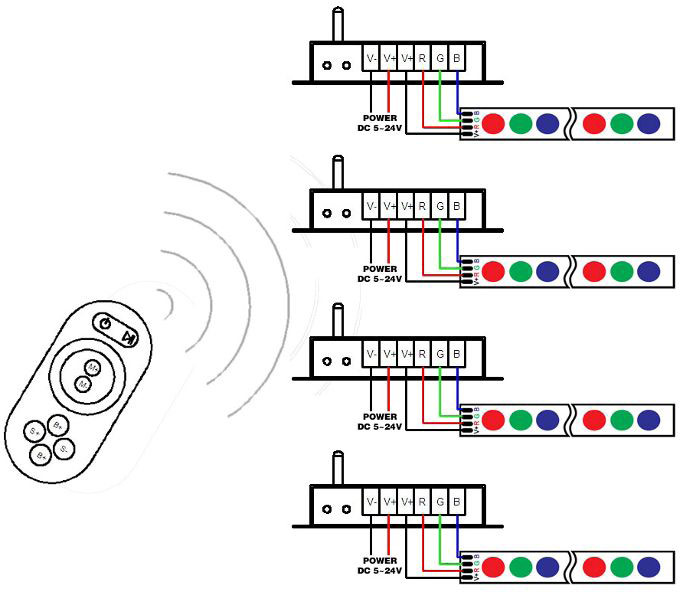

Connect according to the Wiring Schematic drawing.
Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications.
1 x 24A RGB LED Remote Controller
1 x RF Touch Remote Control
