DC12/24V 16A RGB/RGBW UFO Bluetooth Controller Control Via iOS or Android Smart Phone Tablet For RGB RGBW LED Light Strips
This UFO RGB Controller Designed for low voltage(12V-24V) light, such as 12V RGB or RGBW LED strip, 12V panel light etc. 16 million colors, built-in 20 dynamic model, DIY model, music mode. Divide into groups function. Timing function, automatic turn on/off as your setting time. Set any dynamic models. After installation and settings,your phone (IOS or Android system) can control light directly. The remote control distance reach 50 meters indoor and more than 100 meters outdoor. Controlled by smartphone without any cables, easy operate ,durable using, Bluetooth Wireless Controller for Color change or RGBW LED strip light, LED panel lights and other DC12V/DC24V led modules string lights etc
Support both Bluetooth control of iOS products such as iPod, iPad, iPhone, iMac(ios4.3 or above). Wireless controller for led strips,usually for KTV hotel etc. Memory function,keep same status as last time after power off . Single control by phone or integrated control by router. Operating platform:requires Android 2.3.3 or later,IOS 6.0 or later
Input voltage: DC12V-DC24V
Working Power: DC12V:192W; DC24V:384W
Application: Common anode,constant voltage light,such as 12/24V LED strip lights, led modules,12/24V LED panel light etc
Output currrent: 4A*4

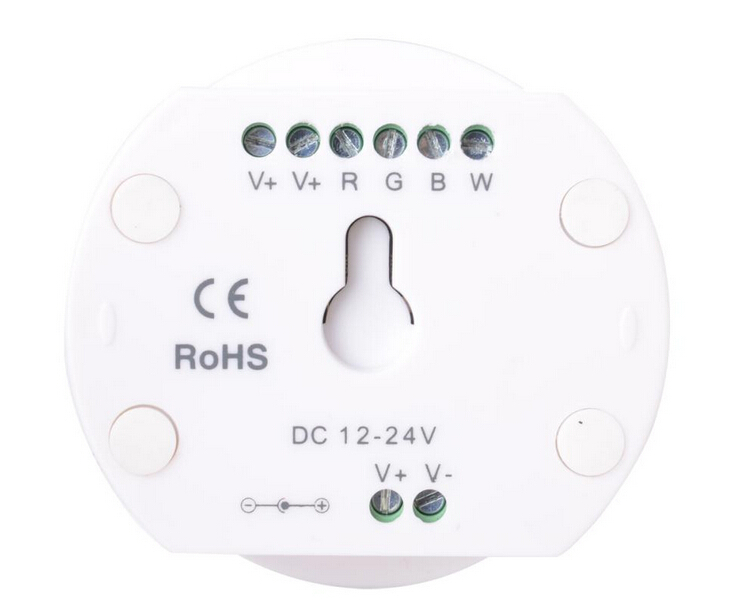

Input: (wire terminal or DC head )
V+: connect anode of power supply
V-: connect cathode of power supply
V+: connect anode of lamp
R: connect anode of red color
G: connect anode of green color
B: connect anode of blue color
W: connect anode of RGBW led light strips white color if your light have this port
1 X Bluetooth controller
1 X User manual
