High voltage Dimmer US or EU Plug touch infrared controller adopts the advanced micro-control unit,it is used for controlling a High voltage RGB color change flexible led strip lights. It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use.
RGB increase and decrease control, 7 keys infrared controller, Unique appearance, circle remote have a good feeling, The touch panel is stable. Adope pwm technology, change of lights is smooth, Unique remote cooperate controller, have a perfect visual effect, RGB Max output power is 110V/750W 220V/1500W, wide application field, 22 classic modes, According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared touch remote control. Color ring up to 256 colors can be controlled. whose source of light is LED. Wireless RF control, free direction and long distance, more than 15 m. Apply on High voltage RGB LED tape light.
110/220V Input, output 110V/750W 220V/1500W. Applicable to 50~100 (164~328ft) RGB color changing high voltage flexible led light strips. Free sent high voltage led strip accessories.
Controller Type: High Voltage Led Controller
Input Voltage: 110/220V
Output Watts: 110V/750W 220V/1500W
Connection mode: common anode G+RB output (If you need other line output, please contact us)
Control mode: infrared remote control
Application: Hight Voltage RGB color change led strip lights.
Output:: 3 circuits (R / G / B)
Dimension: L90 * W70 * H28
Gross Weight/Package: 350g
Receiving range: 20meters
Shell: Aluminum case
IR Remote Control
Power supply: AAA battery * 3pcs (Not included)
Cover material: ABS
Fabrication processing: multicolour printing & UV varnish
IR Remote parameter

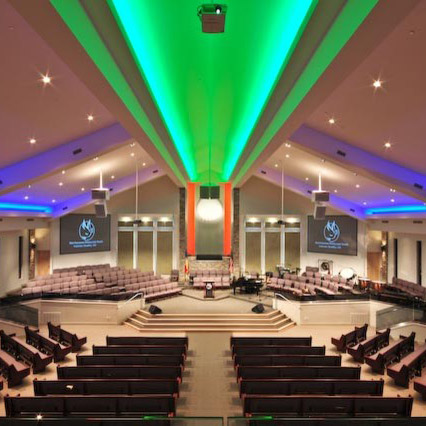

Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
led stage lighting
A. is 110V/220V power input, the output high voltage 110/220 v article lamp directly. Article 110/220 v meet in the same line, at the same time electricity.
B. should be in strict accordance with the wiring. Red, green, black and blue four lines, the black line is the line. Otherwise the color with the remote control signal may not to be relatively color or out of sync.
C. the quality assurance for one year. Artificial damage or misuse damage is not within the warranty.
D. can theoretically with the highest 5050-60 RGB light 50 meters.(according to the measured, to achieve ideal control effect, suggested that connect input 220V with 100 m or input 110V with 50 meters)
Supply input voltage of this product is AC110/220V.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting high voltage led strip lights and load.
For indoor use only - this product is not waterproof or weatherproof.
1 x High Voltage led dimmer controller
1 × RF wireless remote control
1 x Piece of User's Manual
some led strips accessories
