Single Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By Sale

Model: FSLSR-IP20-5050X300 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $39.98 $13.9865% off
Qty Discounts Off Price
1-49
$13.98
50-99
$13.70
100-199
$13.28
200+
$12.72
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Select Waterproof Rating:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

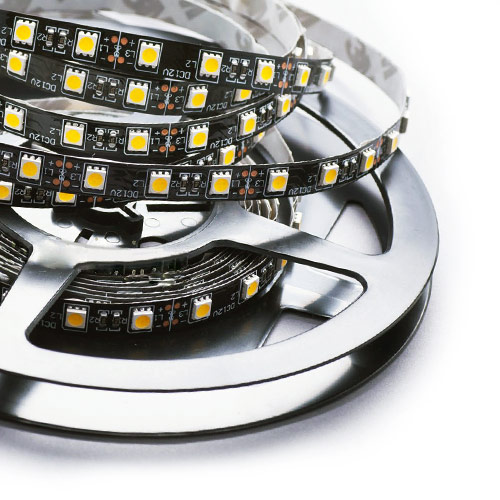

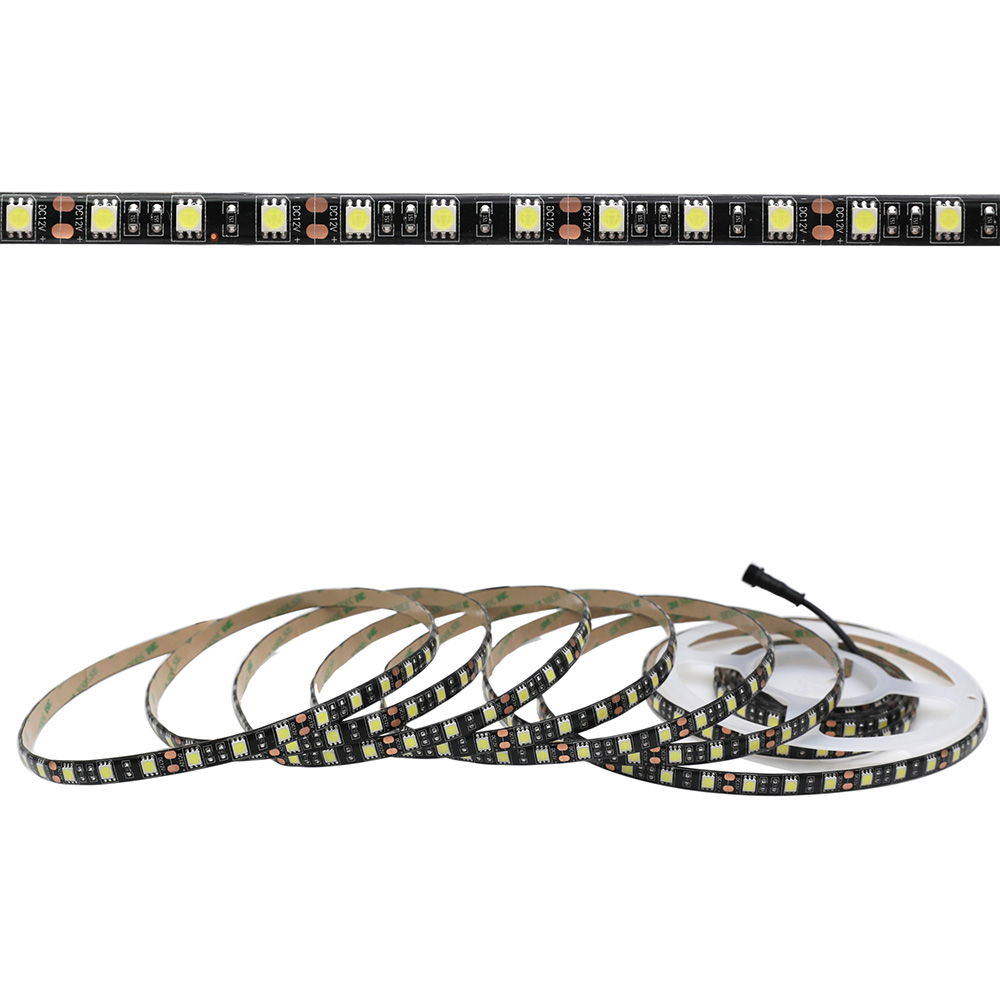

Universal single color 5050 SMD Non-Waterproof Flexible LED Tape strips, 300LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale. Can be cut into 3/6-LED segments, so you could cut a different length for your project and request. 12/24VDC operation. Dimmable - Connect LED Smart Dimmers



Our current inventory features CRI80+ or CRI90+ models. If you require the ultra-high CRI options listed in our report, the minimum order quantity is 500 meters.

5050 60D Full Spectrum LED Strip Test Report Download PDF specification sheet

5050 LED Strip CRI Color Rendering Index Chart Download PDF



Product Specification

DC12/24VCEFCCRoHSISASGSISOLIFETIMEwarranty

LED Strip Type:   SMD 5050 300PCS/16.4ft LED Strip

Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

Light Color:   Warm White, Daylight White,Cool White, RedGreen, BlueAmber (optional)

Dimension:   16.4ft/roll, every 3/6 PCS LED can be cut

LED Quantity:   60 LEDs per meter

Dimensions:     L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

Input Voltage(V):   12 or 24V DC

Working Power:   12V  6A 72/ 24V 3A 72W Max

Beam Pattern:   120 degree

Water Proof:   Non-Waterproof

CRI (Ra>):  >90



Single Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per - photo 6



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLSR-IP20-5050X300
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Single Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By SaleSingle Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By SaleSingle Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By SaleSingle Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By SaleSingle Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By SaleSingle Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By SaleSingle Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By SaleSingle Row Series DC12/24V 5050SMD 300LEDs Flexible LED Strip Lights Super Home Lighting 16.4ft Per Reel By Sale

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?
This model is offered in 24VDC · 12VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply
Which waterproof rating should I choose?
Available on this model: Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

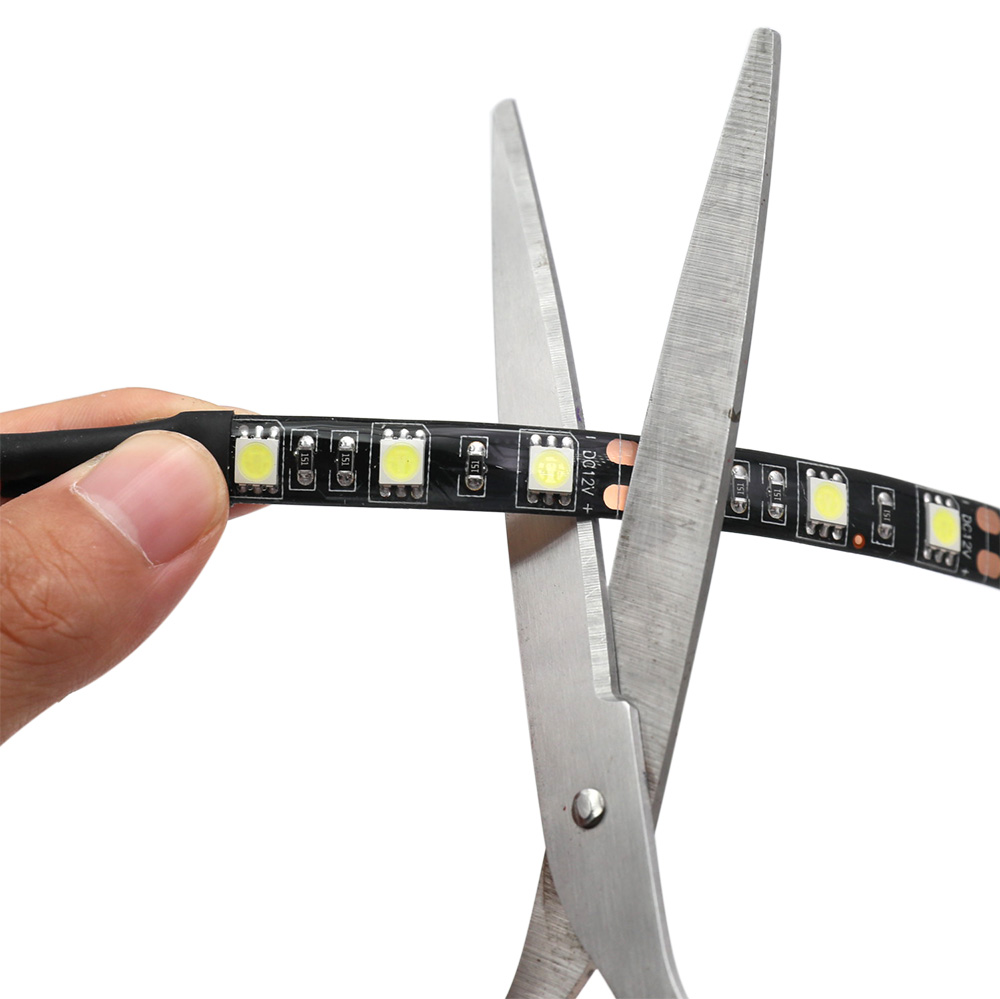

Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Which colour is right?
This model comes in UV-BlackLight (395-405nm) · Yellow(585-595nm) · Blue(465-475nm) · Ice Blue · Orange · Green(515-525nm). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
Will it fit an aluminium profile, and how dense are the LEDs?

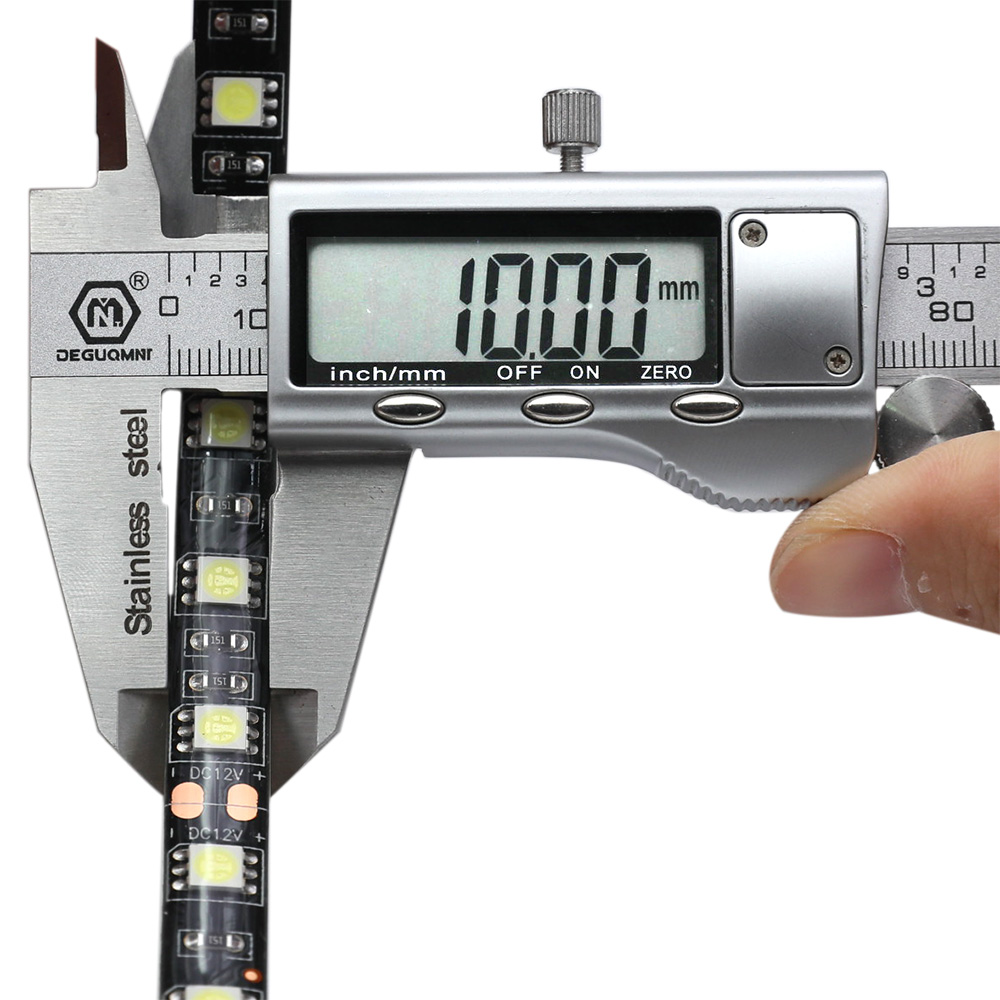

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
