This High voltage Dimmer US or EU Plug LED controller with Wireless 6 key high-pressure RF remote control, More than 35 meters RF remote control distance. Color mode changes and more flexible control. Multi-type memory functions for color, modes, speed, and brightness. Smart appearance, standard input and output port, easy installation and high cost performance. you could adjust light to the appropriate lighting brightness in accordance with your actual need. 110/220V Input, output 550W. Applicable to 50 (164ft) RGB color changing high voltage flexible led light strips. Free sent high voltage led strip accessories.

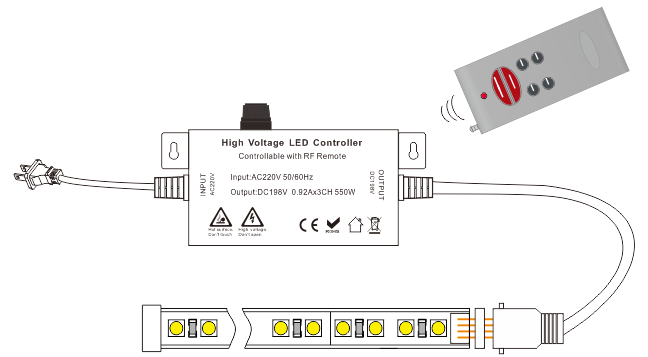

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt film button for controlling,there are 8 buttons in all, the funtion of each key as follows:
(1): you could turn on/off controller at any time;
(2): Play/pause button,it is convenient for you to see the static effection of led; S
(3)+: The step of the speed change add 1 by each pressing; S-
(4): The step of the speed change subtract 1 by each pressing; B+
(5): A brightness control button,the step of the brightness add 1 by each pressing; B-
(6): The step of the brightness subtract 1 by each pressing; M+
(7): The NO. of patterns add 1 by each pressing;(refer to the following form) M-
(8): The NO. of patterns subtract 1 by each pressing;
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
led stage lighting
A. is 110V/220V power input, the output high voltage 110/220 v article lamp directly. Article 110/220 v meet in the same line, at the same time electricity.
B. should be in strict accordance with the wiring. Red, green, black and blue four lines, the black line is the line. Otherwise the color with the remote control signal may not to be relatively color or out of sync.
C. the quality assurance for one year. Artificial damage or misuse damage is not within the warranty.
D. can theoretically with the highest 5050-60 light RGB light 50 meters.(according to the measured, to achieve ideal control effect, suggested that connect 3528 RGB colorful lights with 50 m or 5050 RGB lights with 30 meters)
Supply input voltage of this product is AC110/220V.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting high voltage led strip lights and load.
For indoor use only - this product is not waterproof or weatherproof.
1 x High Voltage led dimmer controller
1 × RF wireless remote control
1 x Piece of User's Manual
