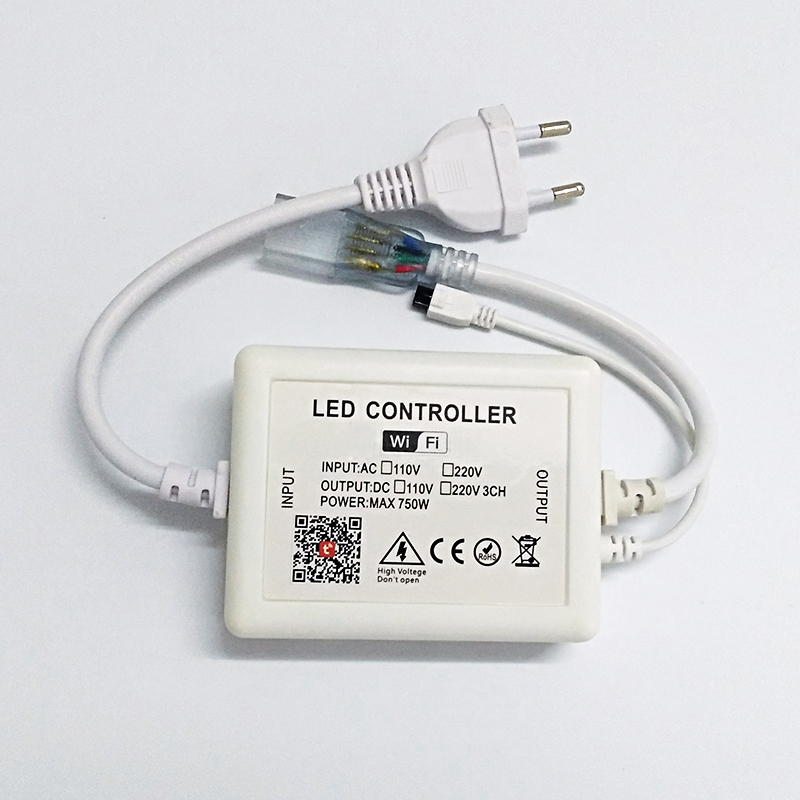

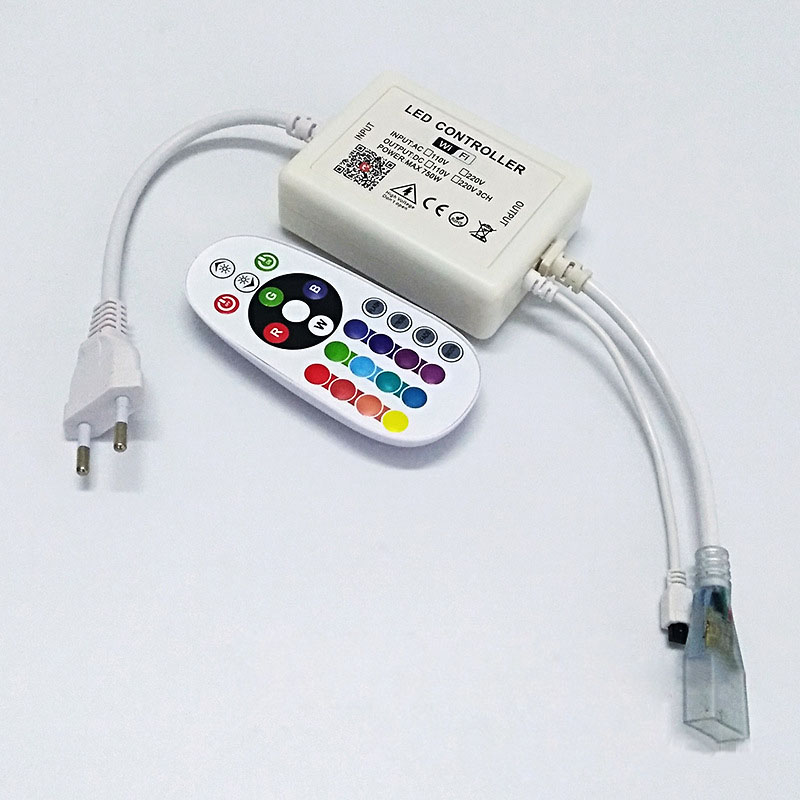

High Voltage WiFi RGB AC Controller Tuya Smart Life
Smart WIFI RGB controller is a new WIFI wireless smart LED controller. The smartphone APP can be used to control the led light mode, or the infrared 24-key remote control can be used to change the static colour and dynamic model of the led light strip and adjust the brightness of the led strip light. WIFI RGB controllers are widely used in hotels, bars, KTC, homes, etc. This led controller can be intelligently linked with multiple devices and can use Amazon Alexa and Google Assistant voice controller .
Standards and Certifications
Working Temperature: -20℃-60℃
Working voltage: AC110V/ 220V
Output channel: 3CH/RGB
Product power: 110V/500W 220V/750W
Remote control distance: 10 meters
Product size: 90*70*28mm
Instructions for use:

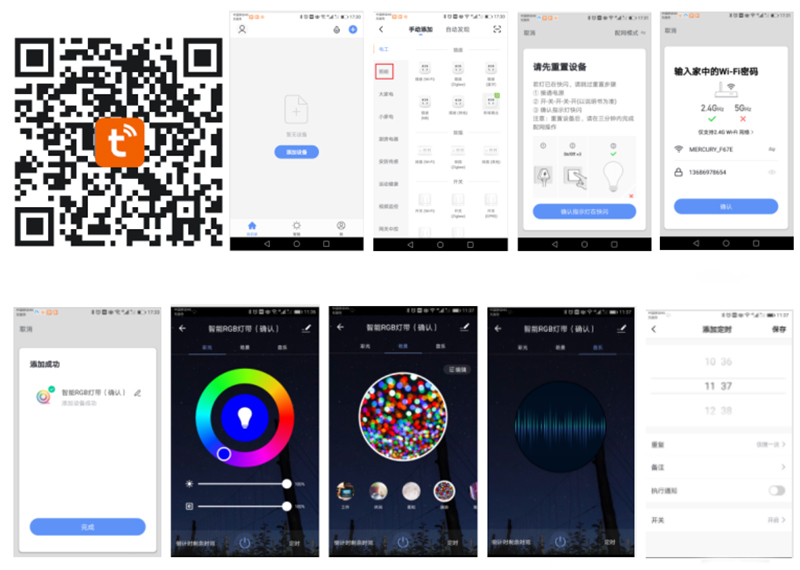

1. Scan the product QR code to download the APP and register an account.

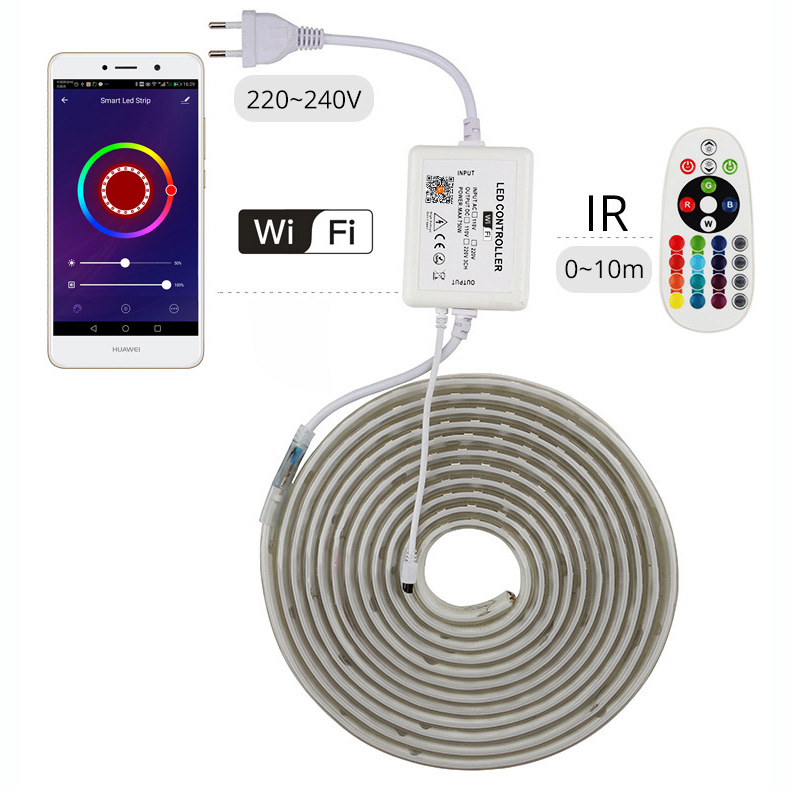

2. Connect the controller and the led light bar and turn on the power.
3. Open the mobile smart life APP, click Add device, (after resetting the device, please complete the network configuration operation within three minutes.) Select lighting → light strip → confirms that the indicator light is flashing (switch the power 3 times to enter the fast flash Status configuration network. In the fast flashing state, switch the power supply 5 times and enter the slow flashing state to configure the network)→input WIFI password→confirm→connection added successfully→click finish to complete product matching
4. Enter the APP main interface (colour light, scene, music, timing).
①Enter the colour light interfaces and click the colour ring to set any colour of the light strip (16 million colours), and the brightness can be adjusted.
②When entering the scene interface, you can freely select different scenes, and the scenes can be edited and set. For example, the light mode can be set to static, jump, breathing, etc. Colour and colour change speed is adjustable. Scenes can be named freely.
③Enter the music mode, the lighting can change with the changes in the music syllables.
④Enter the timing interface to add timing time.

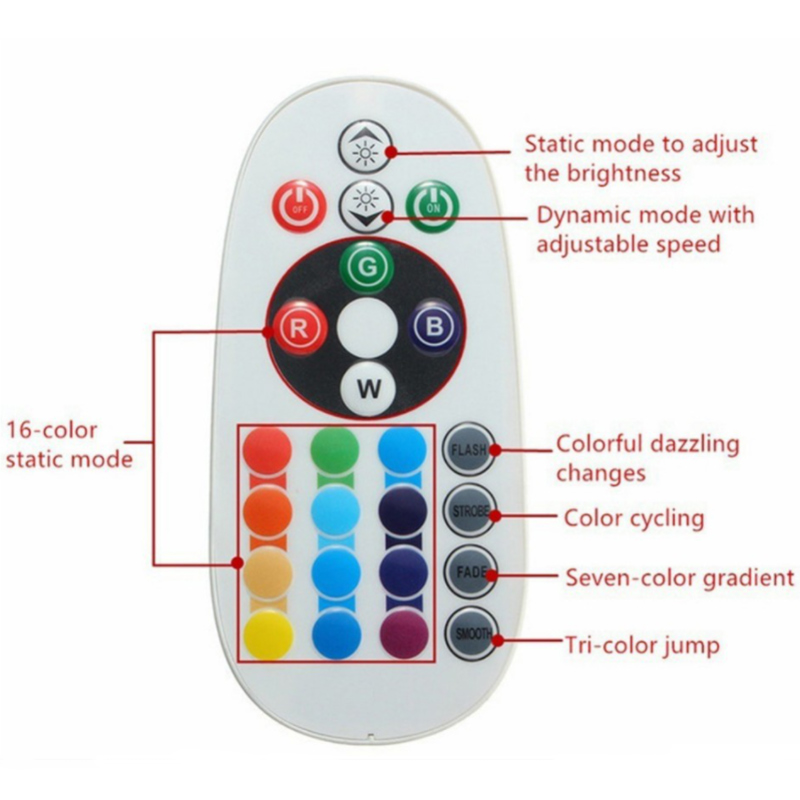

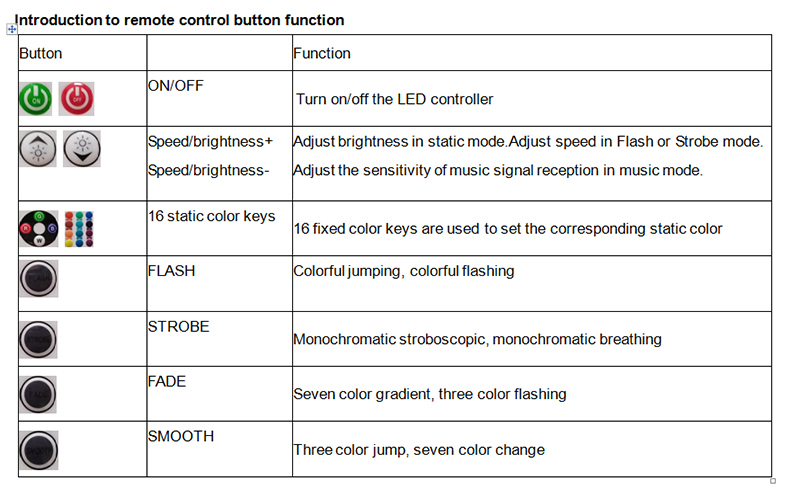

5. It can be controlled by smartphone APP and smart audio, and can also be controlled by infrared 24-key remote control. The infrared 24-key remote control has 16 colour options and 4 dynamic modes (three-colour jump, three-colour gradient, seven-colour gradient, seven-colour jump). The single-button control is simple and clear, with power-off memory, which is convenient and practical. Avoid repeated settings.
