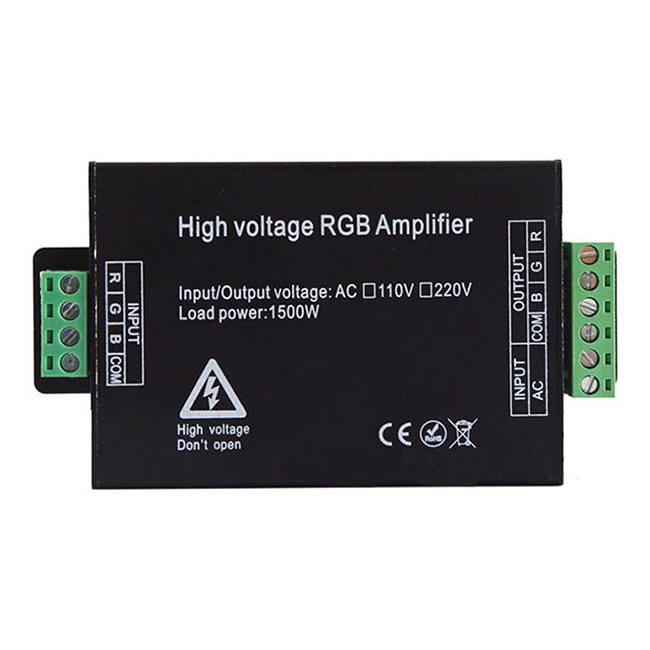

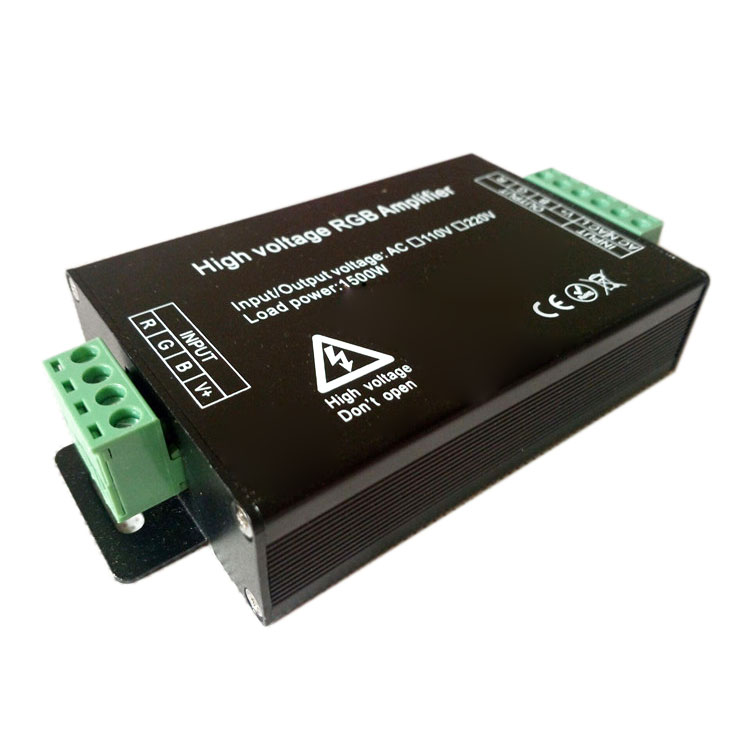

AC110/220V Power Amplifier For High Voltage RGB LED Strip Lights
AC110/220V, 1500Watt RGB High Voltage LED Power Singal Repeater Amplifier For AC120V High-voltage RGB LED Strip Lights, Amplify the red, green, blue three group signal of 3 channel controller, improve the system with load capacity, and has minimal delay, but can keep synchronism in cascade.

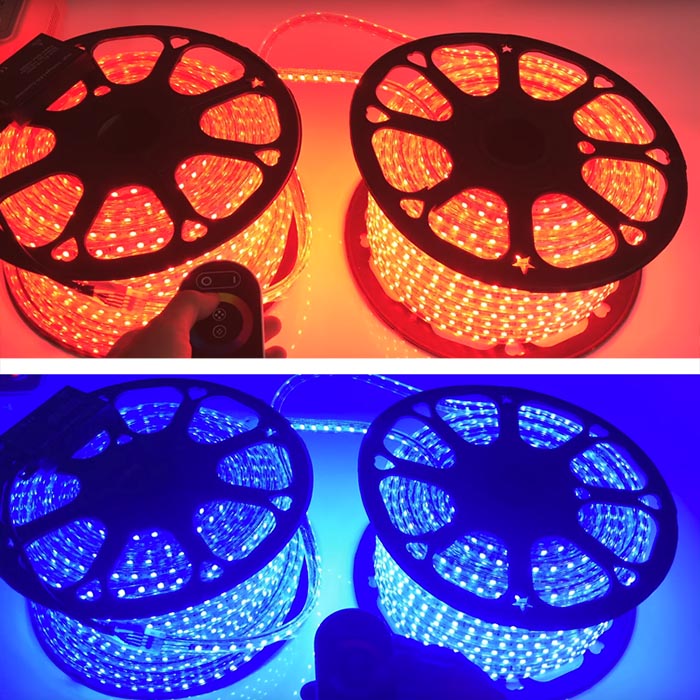

It can run 5050 60leds/m 100meter and 3528 60leds/m strip 300meter .

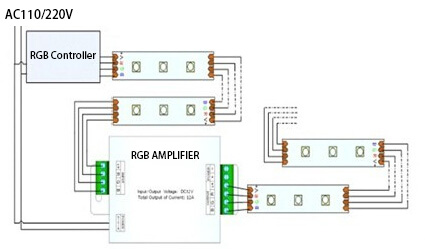

The outlet should be connected correctly according to the color shown in the wiring diagram.
Can't be wrong attached, in order to avoid short-circuit.
1500W RGB LED Amplifier AC 110V 220V High Voltage Power Repeateris a widely used excellent LED product for Lighting project, A lot of USA, UK, Europe users are using this product.
For customized LED Products or further assistance, Please feel free to contact our service team firstname.lastname@example.org
Working temperature： -20-60℃
Input voltage： AC110V/220V
Signal voltage: AC110V/220V
Input signal: RGB common anode PWM dimming signal
Connection mode: Common anode
Output current: max 2.5A (3 channel) Output power: max 500W/CH
Dimming range: 0.1%-100%
Net weight: 250g
Gross weight: 2000g
Output current: <2.5A
Output power: 110<1500watt
Mode of connection

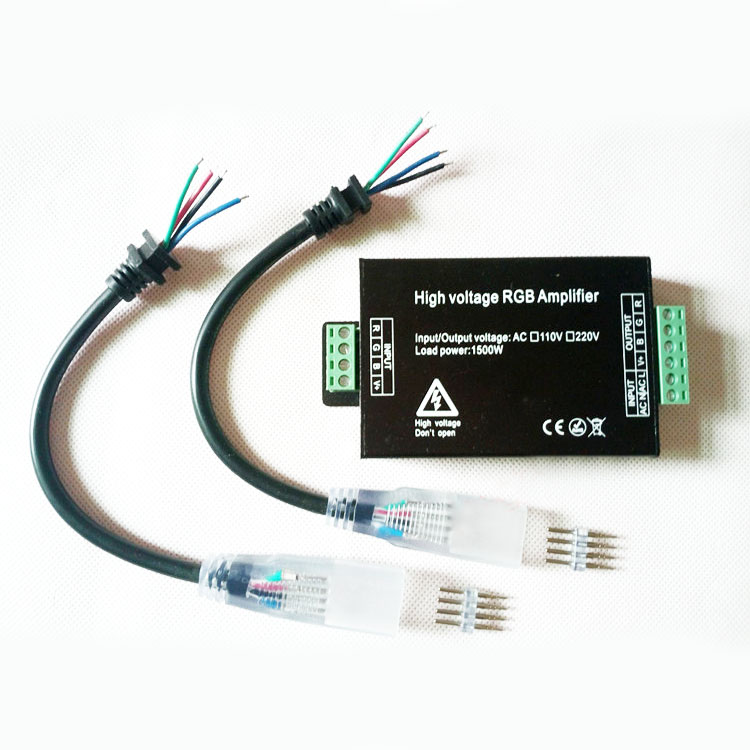

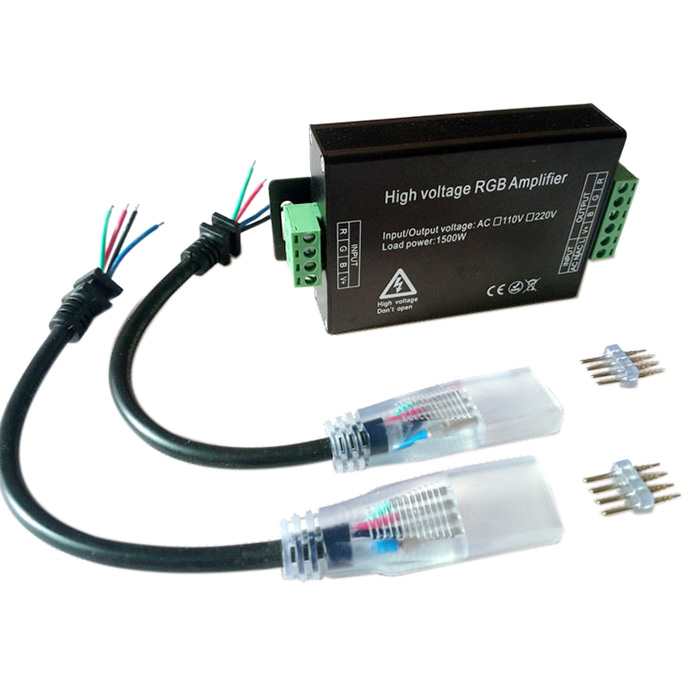

1pc * RGB high speed power Amplifier
2pc * RGB connector
2pc * 4-Pins
