AC110V/220V High-Grade Single Color RGB Color Changing LED Neon Flexible Tube Strip For Edge lighting Track lighting
What is the difference between LED neon lights and ordinary LED strips?
LED neon light differs from ordinary LED strip light (silicone sleeve tube) with PVC flexible tube on the outside, which has good waterproof and heat dissipation.
Flexible neon light emits soft and delicate light, not blinding, with a strong sense of three-dimensionality and perspective in working and non-working states, and no light spot at high density.
Flexible LED neon tube light line has the characteristics of energy saving, environmental protection and health. No heat radiation is generated when working, no extra energy is lost, and LED neon lights do not produce any environmental pollution when used or discarded.

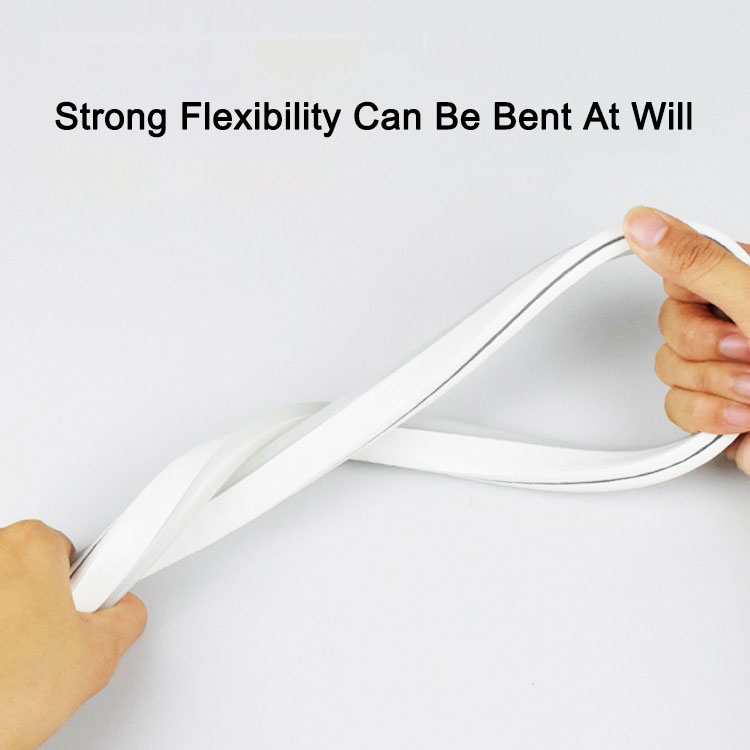

Flexible LED neon light is soft, bendable, knotted at will, and can be bent at will to make LED signs for exterior decoration and billboards, etc.
Long working life, low environmental dependence, can work normally below 60 degrees Celsius, can be lit in daylight without yellowing, and works normally in rain and other environments.
High-voltage LED neon rope light adopts high quality SMD5050 LED, with high brightness and pure color; LED neon tube is made of PVC material integrated molding, which is longer and softer than traditional LED neon light, and can be bent at will to make advertising signs lighting, etc.; waterproof grade is IP67 and above, suitable for indoor & outdoor environment use.
LED neon rope lights are energy efficient, with AC110V/220V direct plug, easy to plug and play, easy installation, 80% efficiency of electrical energy into light energy, no radiation, harmless to human body and environment, ultra-long lighting 50m/164FT no voltage drop; LED neon tube has good light transmission, large LED luminous angle, matching each other can realize the whole without light spot lighting.

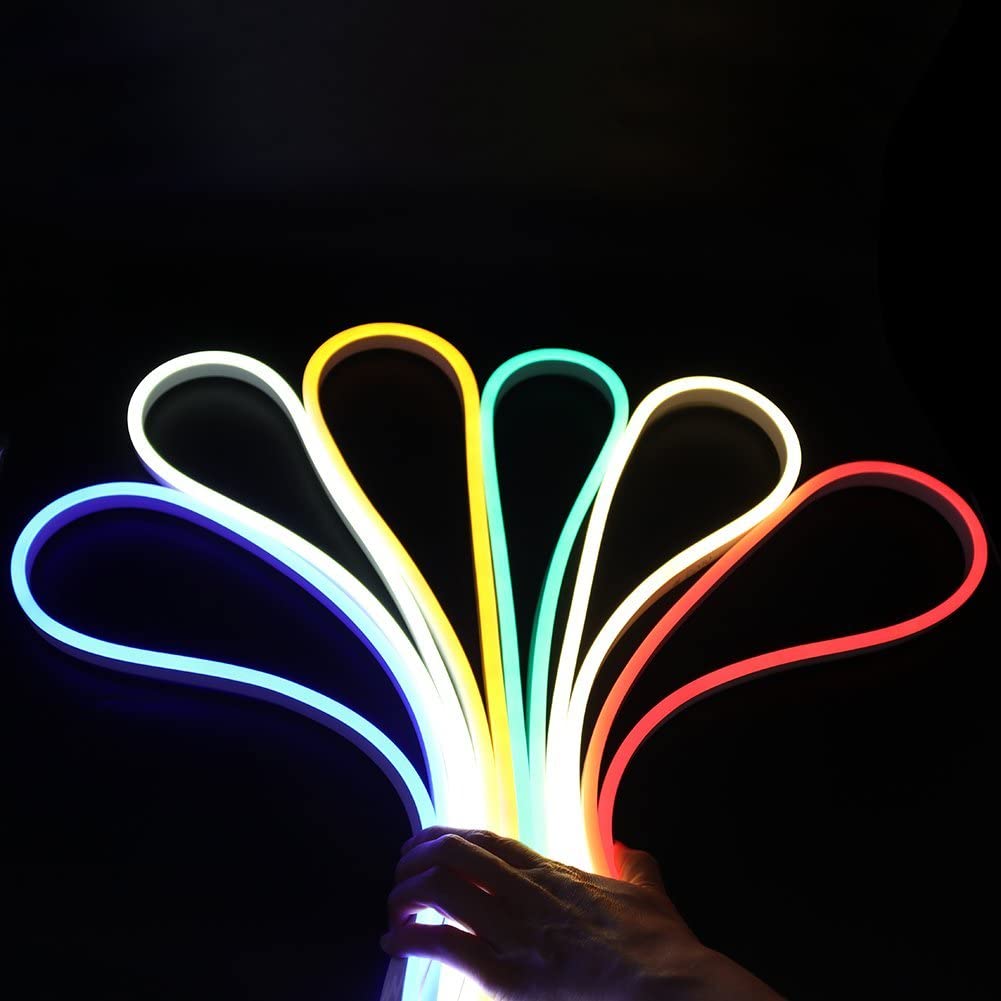

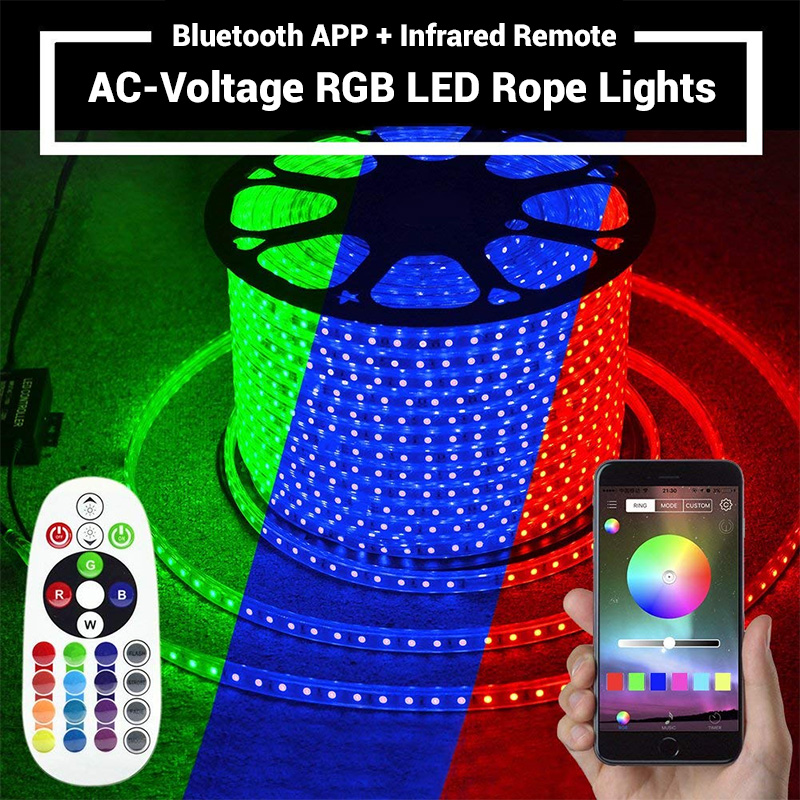

RGB SMD LED neon rope light provides 6 preset colors, you can create your own color combinations to adapt your light to any situation, high voltage RGB LED controller to achieve R/G/B multiple precise colors, modes adjustable, including dimming, flickering, fading, speed control and a variety of pre-programmed effects, over 8,000 different options.
LED neon rope lights can be cut along the cuttable markings to customize the length of the LED strip, while we offer a variety of length options. For complex installation environments, you can purchase extra LED mounting brackets (two pcs per meter).

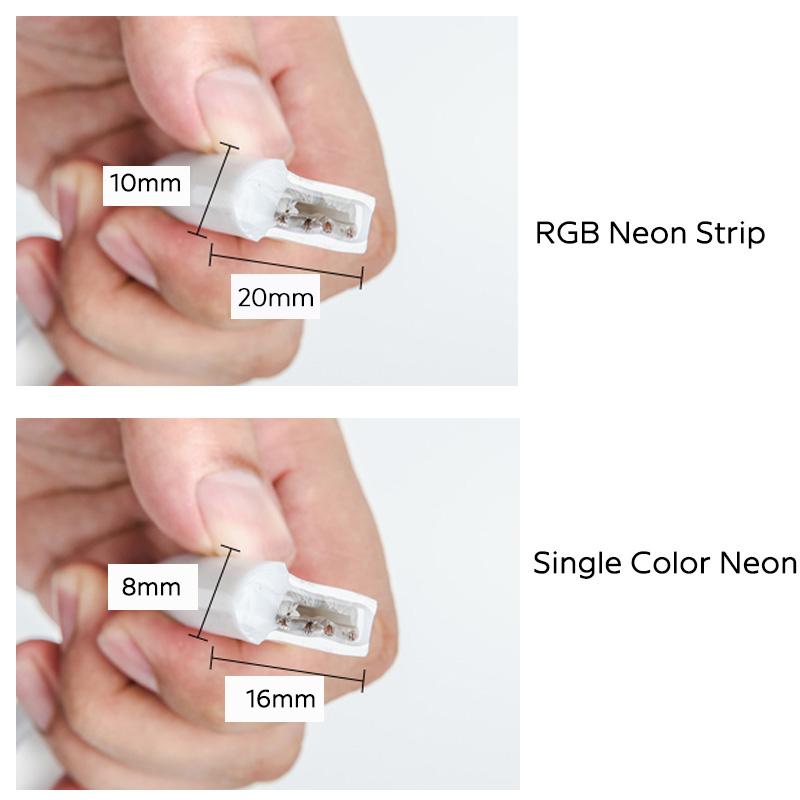

Note: The size of all the single color neon strip lights is 8*16mm, only RGB neon light strip is 10*20mm. If you need 10*20mm tube size for the single color neon strip, it need to customize and add money, large quantity please contact us.

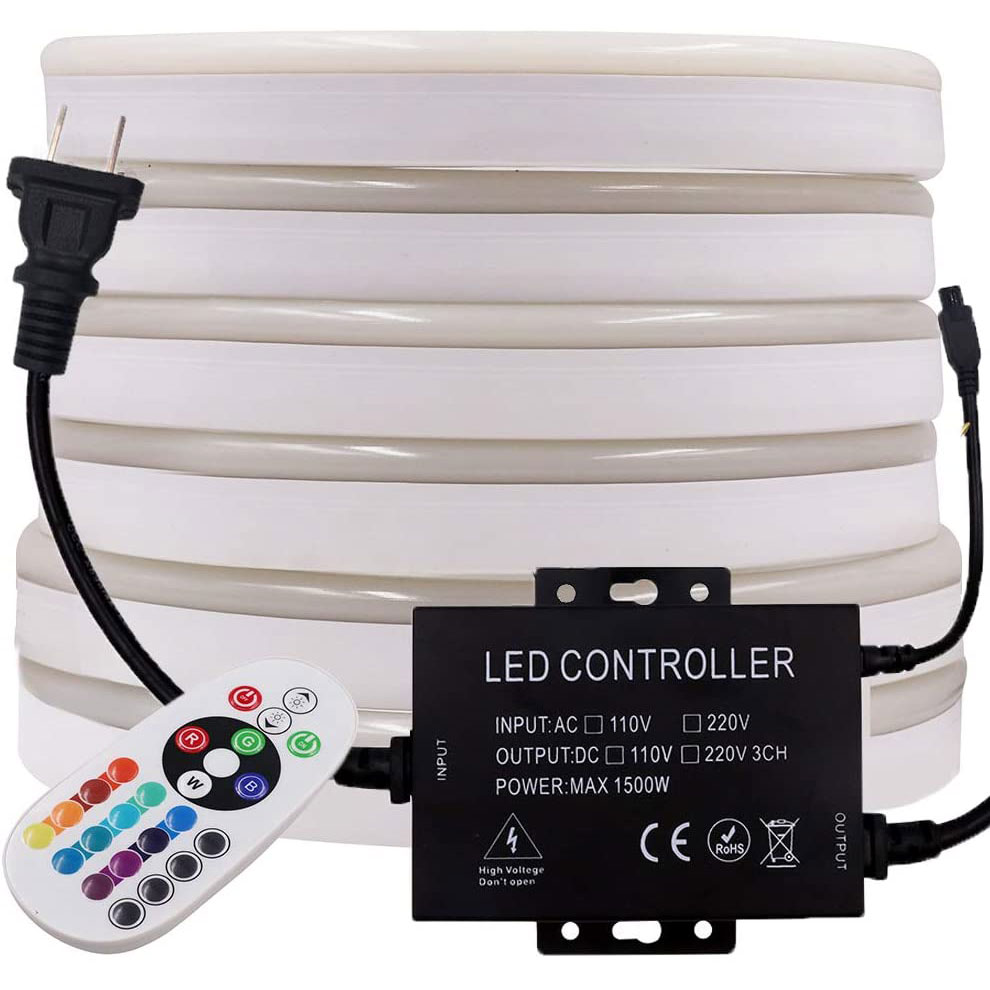

Which LED controller we will send to you?
|LED Strip Type||Length||LED Controller Type|
|HV LED strip light||30meters/49.2Ft and below||CONHV-BT-2 (by default) or CONHV-IR24AC LED controller|
|100meters/328Ft||2rolls 50m: CONHV-BT-1 LED controller + HVAMP-RGB-1 signal amplifier.|
|1roll 100m: CONHV-2500W-1 LED controller|
Please note: We provide two types of the LED controller, but we only send the LED controller by default, if you need another one, please mark in the special instruction before paying.
For 100m ultra long LED neon light, please confirm whether you need 2rolls 50m or 1roll 100m, if you don't write in the special instruction area, we will send you the 100m LED neon light + CONHV-2500W-1 LED controller by default.
• PVC material integrated molding
• Bend at will to make advertising signs lighting
• Waterproof rating up to IP67 and above
• AC110V/220V direct plug
• Ultra long lighting 50m/164FT without voltage drop
• No spot lighting per whole roll
• High brightness SMD5050 LED
• Match the high voltage controller to adjust the color and mode
• Length can be customized

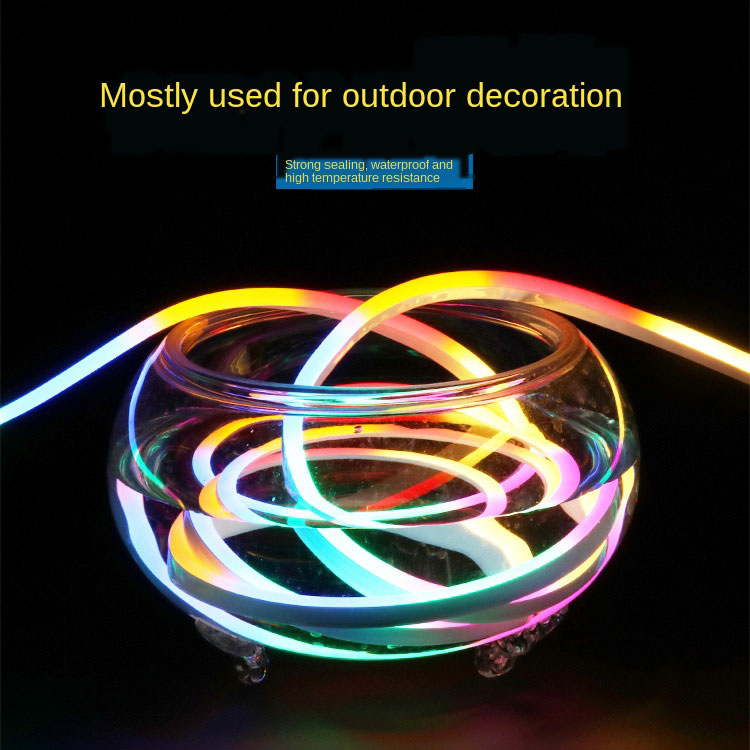

• Indoor & outdoor environment use
LED Strip Type: SMD 5050
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 164 or 328ft/reel, every 3.28ft can be cut
LED Quantity: 120 LEDs per meter (single color) 72LEDs per meter (RGB)
Warantty: 3 years
LED neon tube material: PVC
Dimensions: RGB - W1.0cm(0.39 in ) x H2.0cm(0.787 in ), Single Colors - W0.8cm x H1.6cm
Input Voltage(V): AC110/AC220V
Working Power: 18W /meter (RGB); 10W/1meter(single color) Max
Lamp Luminous Flux(lm): 22~24lm/LEDs 439lm/1feet
Wavelength NM: Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Waterproof IP67
How to connect the LED strip light?
How to connect the whole roll of led strips
How to use WiFi Amazon Alexa smart switch to connect led strips, you need a wifi switch, click to buy
How to use Amplifier to connect super long led strips
How to Use DMX decoder to control large led strip lighting project
