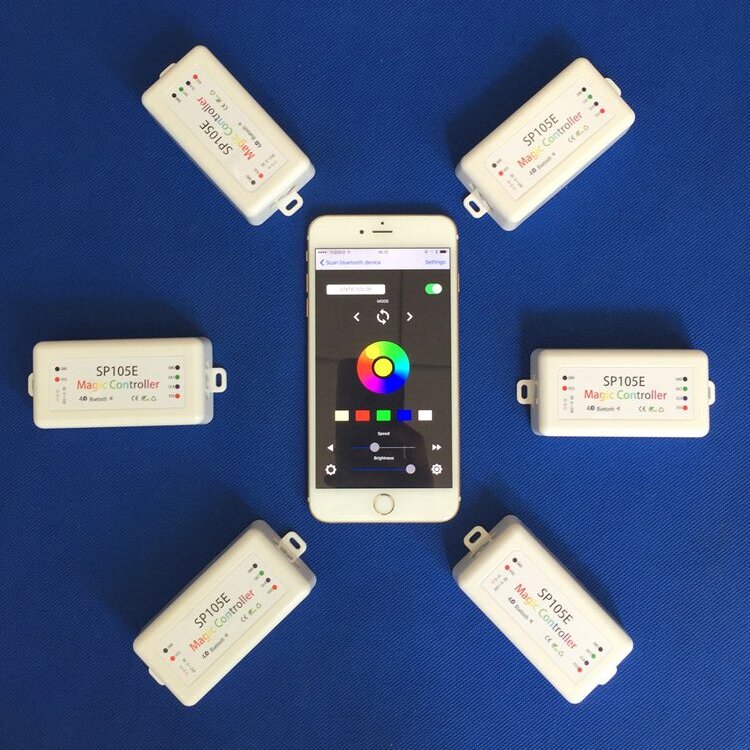

DC5/12/24V, New Style Dream Color LED Bluetooth Controller Control by IOS Android Smart iPhone Device For 2801,2811,2812 LED Tape Lights, led pixel module
This LED-WiFi dream color bluetooth controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest bluetooth technical in the market. It makes the LED control more convenience, more Substantial. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
App control via bluetooth 4.0, long control distance, convenient to use. support almost every kind of one-wire or two-wire LED driver IC. Brightness adjustable , with 200 kinds of patterns, which are vivid and beautiful. Support setting total pixel number, able to control up to 2048 pixels. DC5V-24V wide working voltage, preventing reverse connection of power supply. User setting saving.
Use bluetooth technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 20m, in outdoor can control more than 30m.
This connector structure belong to drawer structure, the device interface of power supply and LED is together, four interface one the left side GND,CLK,DATA, LAT is connect led equipment, the fifth interface is connect the anode V+ of power supply, the sixth interface is connect the cathode V- of power supply. This controller now can support more than 10 kinds of SPI strip in market, for SM-16703, TM1804, UCS1903, WS2811, WS2801, SK6812, SK6812-R, LPD6803, LPD8806, APA102, APA105, TM1814, TM1914, TM1913, P9813, INK1002, DMX512, CUSTOM-IC dream color led strip lights or led dream color string module lights.
Item Type: Dream color bluetooth Controller
Size: L85mm X W45mm X H22mm
Input Voltage: DC5/12/24V
Number of pixels: 16~2048 pixel
Remote distance: 20 meters
Memory: Automatic memory function
LED sequence: Arbitrarily set
Synchronous mode: wire cascade synchronization
Control mode: APP or RF315/433M
Music Control: The environment or the mobile phone music
The chip supported as below:
The specialized APP is available on both IOS and Android OS. (hardware should support bluetooth 4.0)
Apple device: iPhone5/5s/5c / iPhone6s / 6s plus / iPhone6/iPhone6s / plus , supported IOS 8.0 version or later.
Android OS version should be android 4.4 or later.
Search "Magic-LED" and download
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
How to connect the WS2813 WS2815 WS2818 led strip lights
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

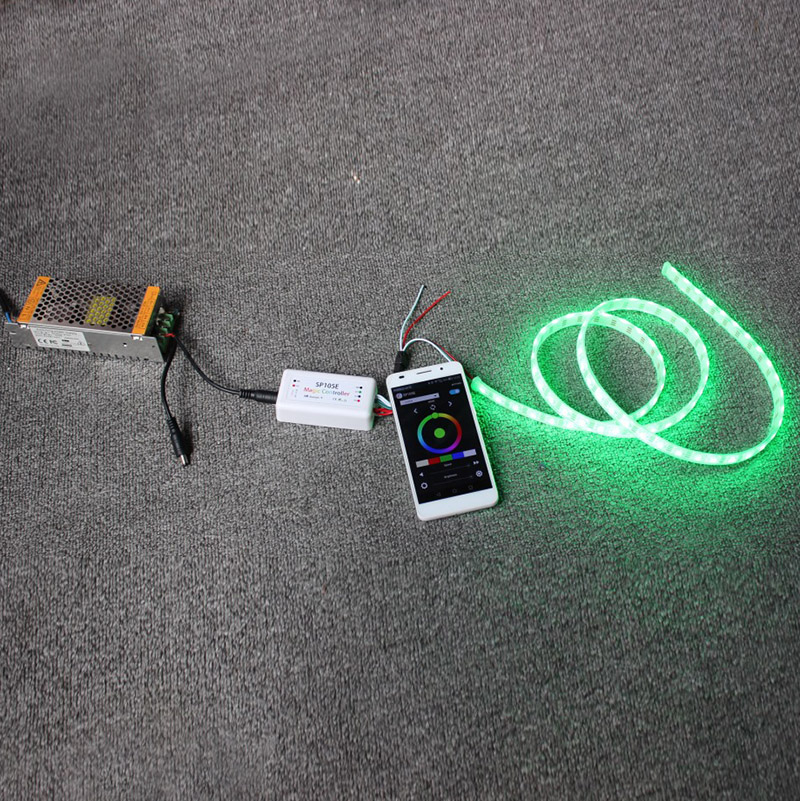

Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
1 x LED SP105E bluetooth Controller
