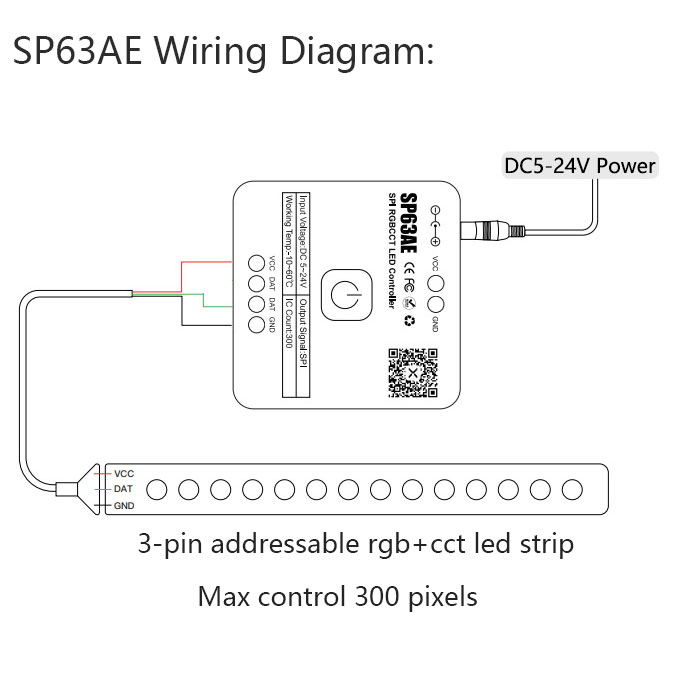

Newest LED Controller for 3-Pin Addressable 5-In-1 RGBCCT LED Strip Lights like FW1906, you can use this controller to control our FW1906-RGBCCT-84X12 and TM1906-RGBCCT-60X10 84LEDs/m or 60LEDs/m LED strips. It supports mobile APP control and RF 2.4G wireless control (RB4 touch remote control and RC4 touch panel control). And max control 300 pixels.

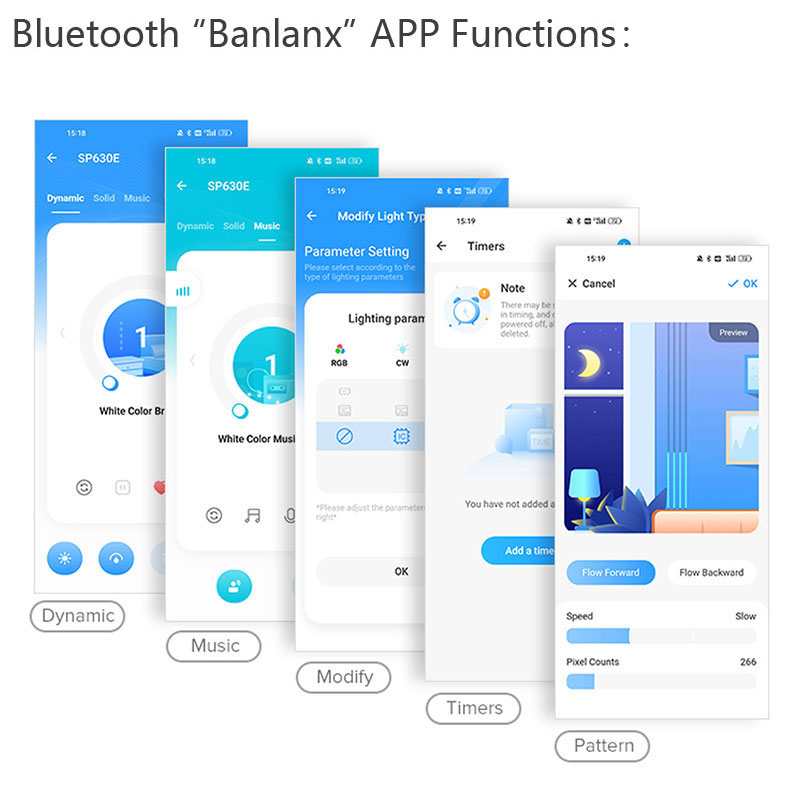

1) Mobile APP Control:
● Support iOS (iOS10.0 or higher) and Android (Android4.4 or higher).
● Search "BanlanX" in App Store or Google Play to find the APP, or scan the QR code to download and install.

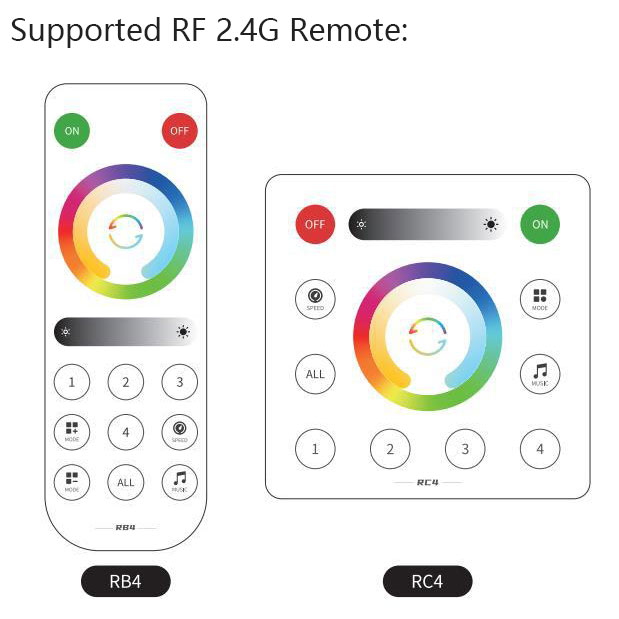

2) RF2.4G Remote Control:
● Support one-to-many control, one RF remote can control multiple controllers.
● Support many-to-one control, each controller can bind up to 5 remotes.
● Support unified control and 4 partition control.
● Built-in multiple music effects and dynamic effects, support brightness, speed, direction, and effect length adjustment.
● Support cell phone microphone, player streaming, and on-board microphone for music capture.
● Support dynamic effect collection and collection list loop.
● Support custom effects.
● Support multiple on/off animation effects.
● Support calibration channel sequence and timing switch.
● Support OTA firmware upgrade.
Standards and Certifications
|Product Name:||Addressable RGBCCT LED Controller|
|Max Control Pixels:||300pcs|
|Control Method:||Mobile APP "BanlanX" + RF Remote (only support RB4 and RC4)|
|Mobile System:||Andriod 4.4/ IOS 10.0 or higher|
|Working Temperature:||-20℃ ~ 60℃|
