DC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip Lights

Model: FSLDR-CCT-2835X2400W20 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: Can.$110.14
Qty Discounts Off Price
1-19
Can.$110.14
20-49
Can.$106.83
50-99
Can.$99.12
100+
Can.$88.11
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Double Row high-quality Epistar 2835SMD LED strip for sale, CCT color temperature adjustable. One row of 2700K warm white LED lights and one row of 6500K daylight white LEDs. High brightness, long life, energy-saving, and environmental protection.

A double-layer pure copper and 20mm/0.8" wide PCB of this CCT tunable white led strip lighting has good heat dissipation, which can effectively extend the sustainable time of the LED. The resistors control the current input and protect the light-emitting components.

This low voltage CCT bright white led strip supports DC24V input, powered by a 24V 14.6A 350W switching power supply. 12LEDs cuttable, cut along the cuttable lines, and can customize the strip light length.

Matching the 3CH CCT LED controller, it can display multiple white light colors, from 2700K soft white to 4500K natural white to 6500K pure white.

LED density is 480LEDs/m, 85+CRI, with super brightness and good color rendering. IP67 waterproof led strip lights optional, suitable for indoor & outdoor environments with large spaces and insufficient LED lighting brightness display.

Aluminum LED channels (sold separately) can be selected for better heat dissipation.

Product Feature

  • 2835SMD high brightness LED

  • Double-layer pure copper PCB

  • DC24V low voltage input

  • 12 LEDs cuttable (6 WW LED+6 DW LED)

  • Warm White + Daylight White available

  • 2700K-6500K adjustment

  • 480LEDs/m super density

  • 85+ color rendering index

  • IP67 Waterproof available

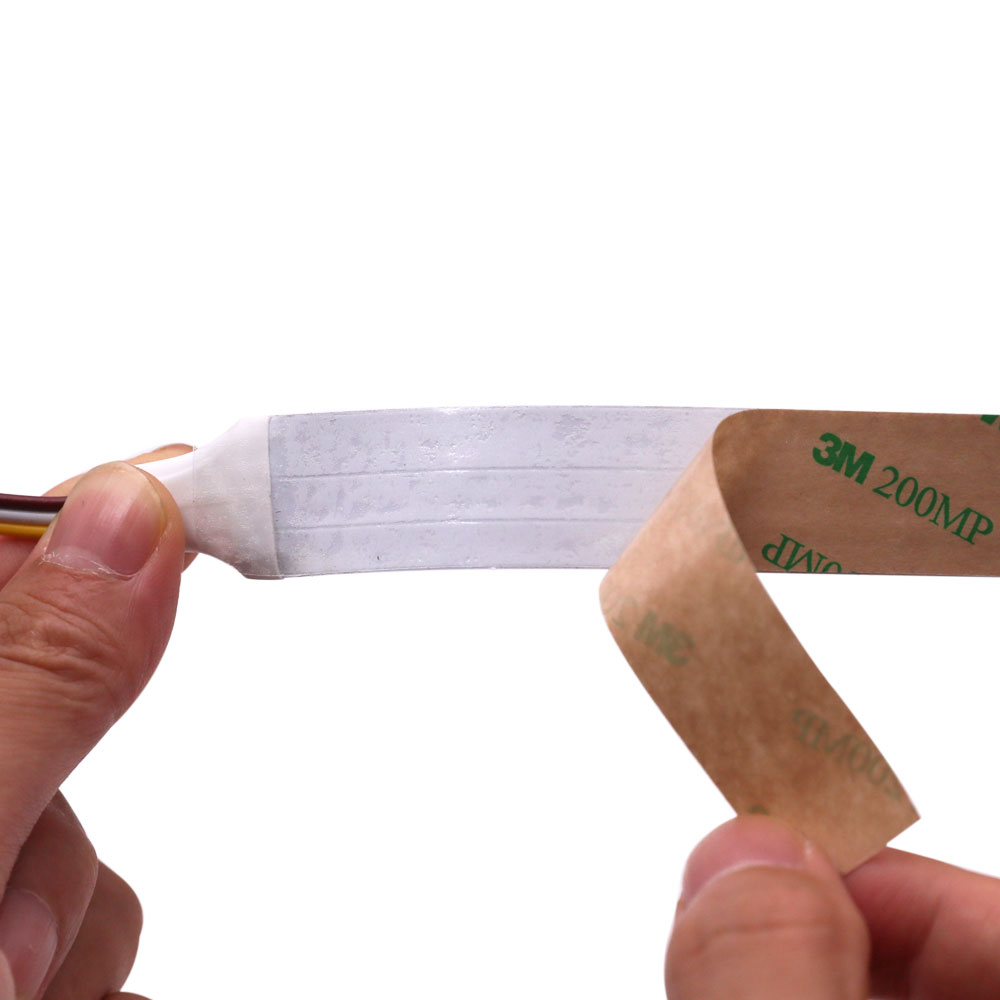

  • 3M tape, easy to install

  • For indoor & outdoor environments



The MOQ of CRI 95 version is 100 meters.



Product List

1* 5m/16.4Ft CCT LED strip light

If you choose the LED controller in the kit, we will send you V2-L + R7-1

If you choose the LED power supply in the kit, we will send you LRS-350-24, including an AC plug (the power of LED power supply is 1.2 times of LED strip light)

IP20 non-waterproof LED strip light is suitable for indoor lighting environment, IP67 waterproof LED strip light is suitable for outdoor lighting environment.

For outdoor environment, you can choose V4-WP LED controller and PSWP-24V-350W waterproof LED power supply



Standards and Certifications

DC24V CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof

Product Specification

LED Strip Type: SMD 2835 CCT Double Row LED Strip
LED Chip: Super Bright Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White + Daylight White (2700K + 6000K)
Dimension: 16.4ft/roll, every 12 PCS LED can be cut
LED Quantity: 480LEDs/m (240 Warm White LEDs+240 Daylight White LEDs)
Lifespan: 50,000+hours

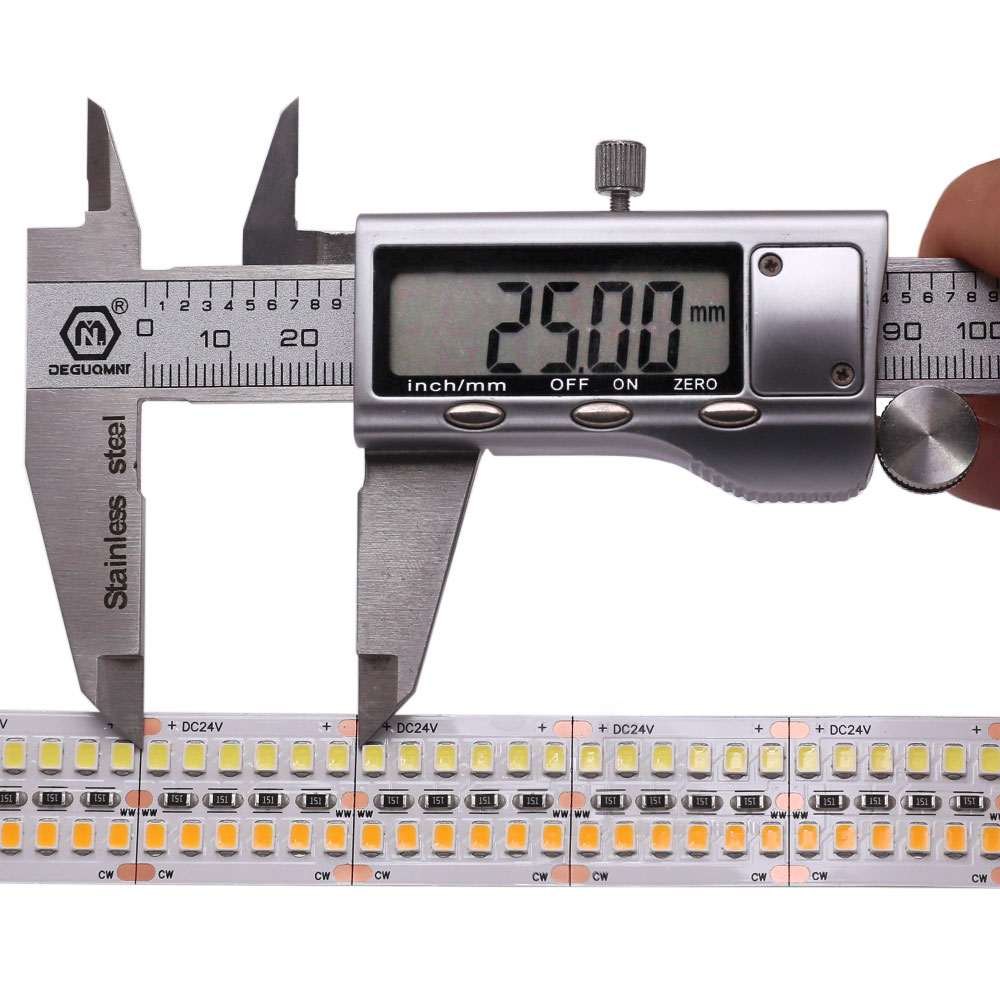

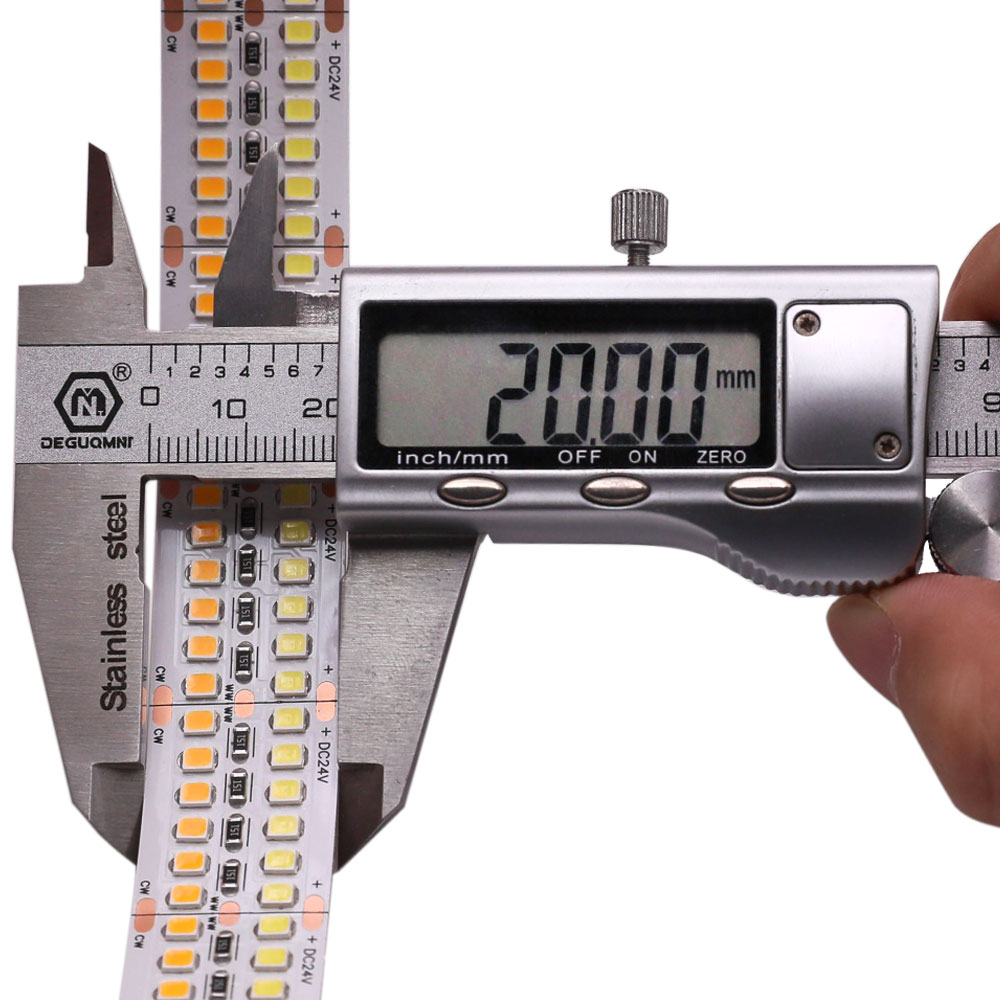

Dimensions: 20mm/0.79in Wide
Input Voltage(V): 24 VDC
Working Power: 60W/m, 300W/Roll
CRI 85
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Waterproof: Non-waterproof  IP20, waterproof IP67



CCT led strip and V2 led controller wiring diagram

DC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip Lights - photo 7

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLDR-CCT-2835X2400W20
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

DC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip LightsDC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip LightsDC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip LightsDC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip LightsDC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip LightsDC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip LightsDC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip LightsDC24V Double Row 2835SMD 16.4Ft 2400LEDs Super Bright Tunable White LED Strip Lights

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which waterproof rating should I choose?
Available on this model: Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?

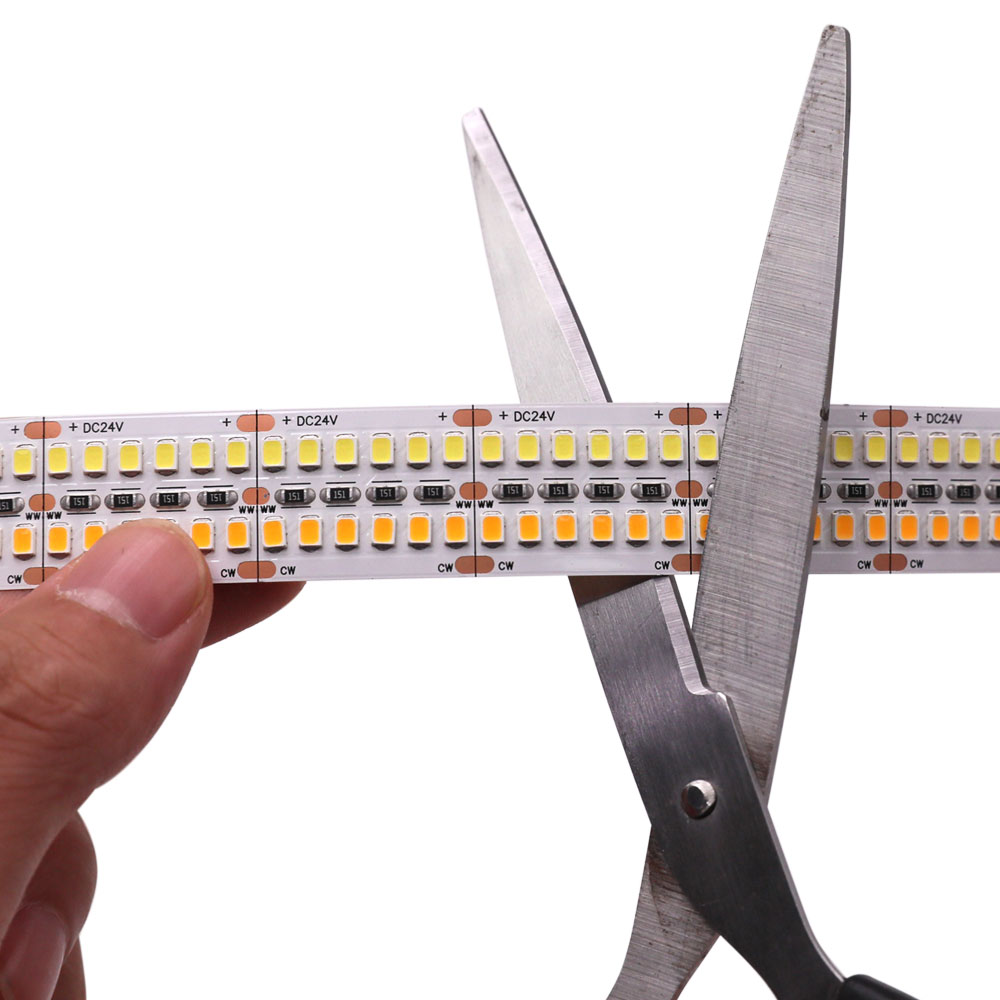

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Will it fit an aluminium profile, and how dense are the LEDs?
PCB width 20mm (0.79in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
