5-24VDC WiFi Tuya App & RF Remote 2CH/4CH RGB/RGBW SPI LED Controller WT-SPI
This is a Smart SPI Controller to control DC5V/DC12V/DC24V Addressable LED Strip Lights, available with Tuya smartphone APP control and R9 RF remote control. It is compatible with single-signal or dual-signal addressable RGB and RGBW IC chips.
Output 2 channels dream color lighting, max control 1000 pixels. If you use it to control a 3-pin single-wire digital LED strip, the "DATA" and "CLK" all output data signal, so you can use this SPI controller to connect 4pcs 3-pin addressable LED strips.

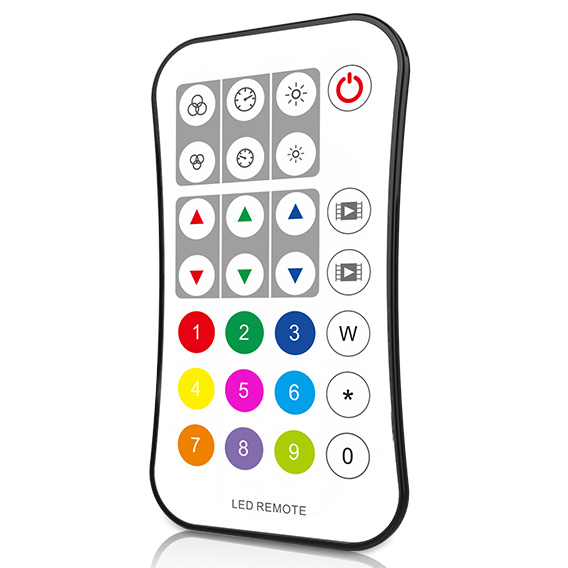

● Multi-pixel RGB/RGBW LED strip controller with SPI signal output, Tuya APP control and RF 2.4G remote control (R9).
● Compatible with 45 kinds of Addressable RGB or RGBW LED strips, the chip type and R/G/B order can be set via RF 2.4G remote control.
● Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603.
● Rich dynamic effects: 44 default and 10+ custom dynamic scenarios, 16 variations.
● Multiple music rhythms: 6 local music rhythms, 3 APP music rhythms.
● Painted segment color mixing: full-color filling, color pencil segment painting, eraser segment light off.
Standards and Certifications
|Input signal:||Tuya APP + RF 2.4GHz|
|Output Signal:||SPI(TTL) x 2|
|Scenario Mode:||44 default and 10+ customizations|
|Operation temperature:||Ta: -30℃ ~ +55℃|
|Case temperature (Max.):||Tc:+65℃|
