WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll

Model: DCFLS-12V-WS2811X288
WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll
  • WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll
  • WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll
  • WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll
  • WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll
  • WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll
  • WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll

Select Specifications:

Starting at: $17.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-14
$17.98
15-29
$17.08
30-49
$16.18
50+
$15.28
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Please check this item DCFLS-12V-WS2811X180W17 for replacement, more denser 180LEDs/m.



    Feature

    1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Addressable LEDs allow for sequencing modes. Silicone Encased waterproof flexible LED light strip with 288 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 2meter(6.56ft) Per Reel By Sale.

    2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

    3. This strips soft and easy bent for installation. Available in 2 meters (78.7 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request.

     4. The led strip has low light decline and long lifespan,LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.

    5. The 12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.

    6. The WS2811 chip has a built-in 1.2mhz high-speed 7-bit PWM for each channel - meaning it can provide each LED with 21-bit color (in a way that is easier to recognize than the eyes). Once the LED brightness level is set, your microcontroller can turn off and perform other operations without constant updates.

    7. It comes with a 3-pin connector and a separate power/ground wire at each end. Each 3LED can be cut without damaging the rest of the strip. If desired, you are free to shorten, lengthen, or bend it.



    Please note: If you want to order DC12V WS2811 Addressable Daylight white LED strips, the MOQ is 50m/164ft. Since they are rare, so the production will be longer than Addressable RGB LED version. Hope you can understand.



    WS2811 Chips Specifications Download   PDF



    Standards and Certifications

    12VDC CE FCC UL RoHS ISA SGS ISO LIFETIME warranty waterproof



    Product Specification

    LED Strip Type:   SMD 5050   DreamColor

    LED Chip:   WS2811 IC super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

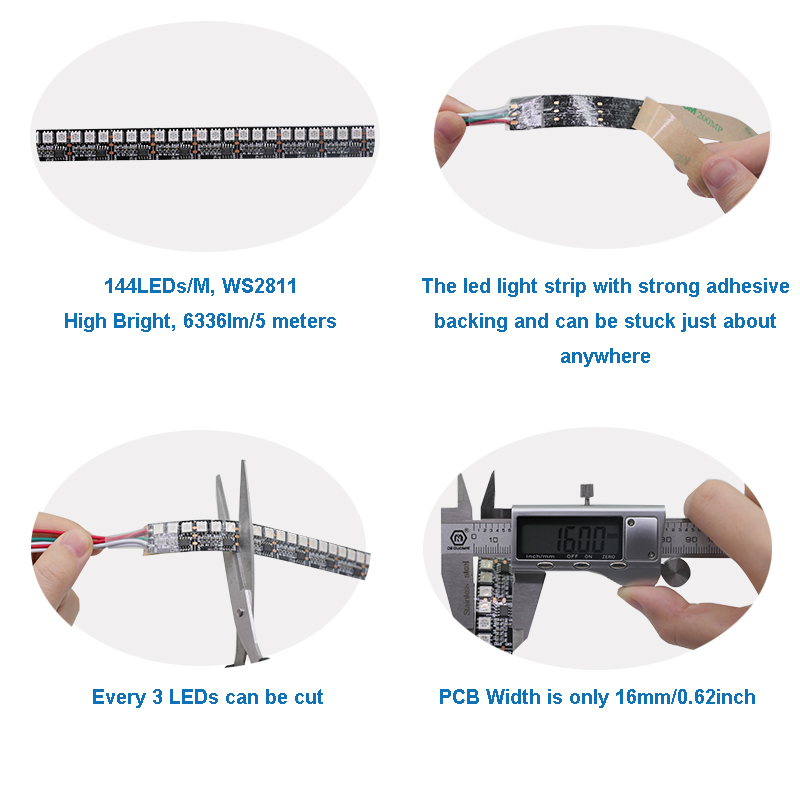

    Dimension:   6.56ft/roll, every 3 PCS LED can be cut

    LED Quantity:   144 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L200cm(78.8 in ) x W1.5cm(0.59 in ) x H0.40cm(0.15 in )

    Input Voltage(V):   12VDC

    Working Power:   70W/6.56ft  Max

    Lumen Per LED:   20~22Lumen   6336lm Max /6.56ft

    Wavelength NM(RGBY):   2000-2500mcd

    Beam Pattern:   120 degree

    Water Proof:   Indoor IP20, Waterproof IP67

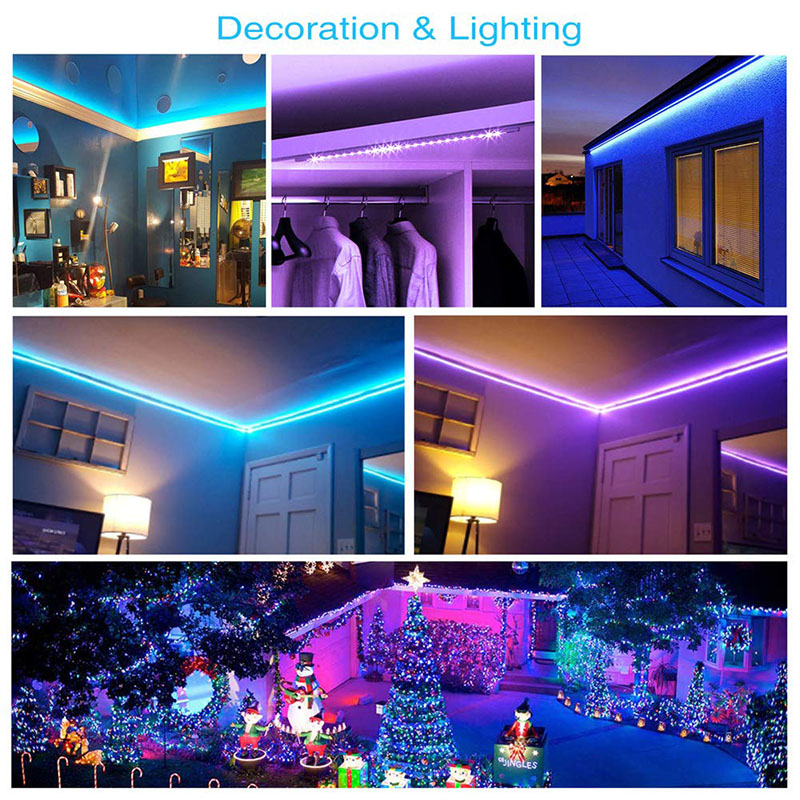

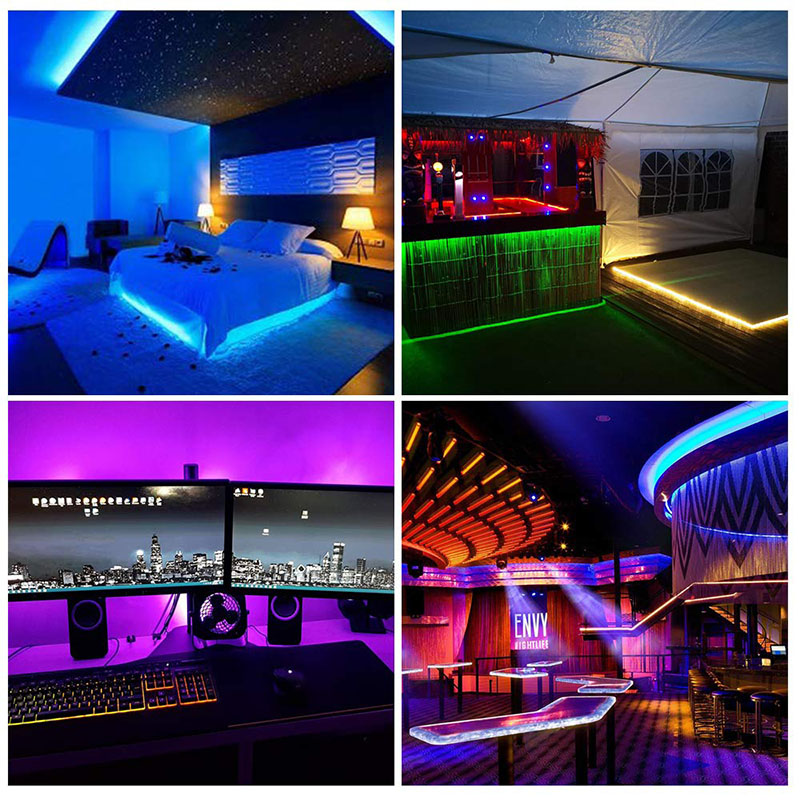

    Applications

    1. LED programmable digital screen

    2. Hotels decoration lighting

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. led wall, advertising board

    6. Outdoor advertising signs,

    7. Hotel, KTV, bars,

    8. Wedding party lighting,

    digital rgb addressable led strip applications





    WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    WS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per RollWS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per RollWS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per RollWS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per RollWS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per RollWS2811 DC12V 144LEDs/m Programmable LED Strip Lights, Addressable Flexible LED Light Strips, LED Christmas Holiday Lights, 1m/3.28ft Per Roll
