DC5-24V SP617E Bluetooth Music LED Controller Support WS2814, SK6812 RGBW LED Strips
► Supports both APP control and IR remote control;
► Support automatic device connection;
► Support group control;
► Multiple sound collection methods: phone mic, player streaming, on-board mic;
► Support modifying the device name, calibrate the RGBW channel sequence, and timer function;
► Compatible with the RGBW 4 channel single-line RZ code driver IC like SK6812, SM16704, UCS2904, WS2814, TM1824, etc...can drive up to 450 pixels;

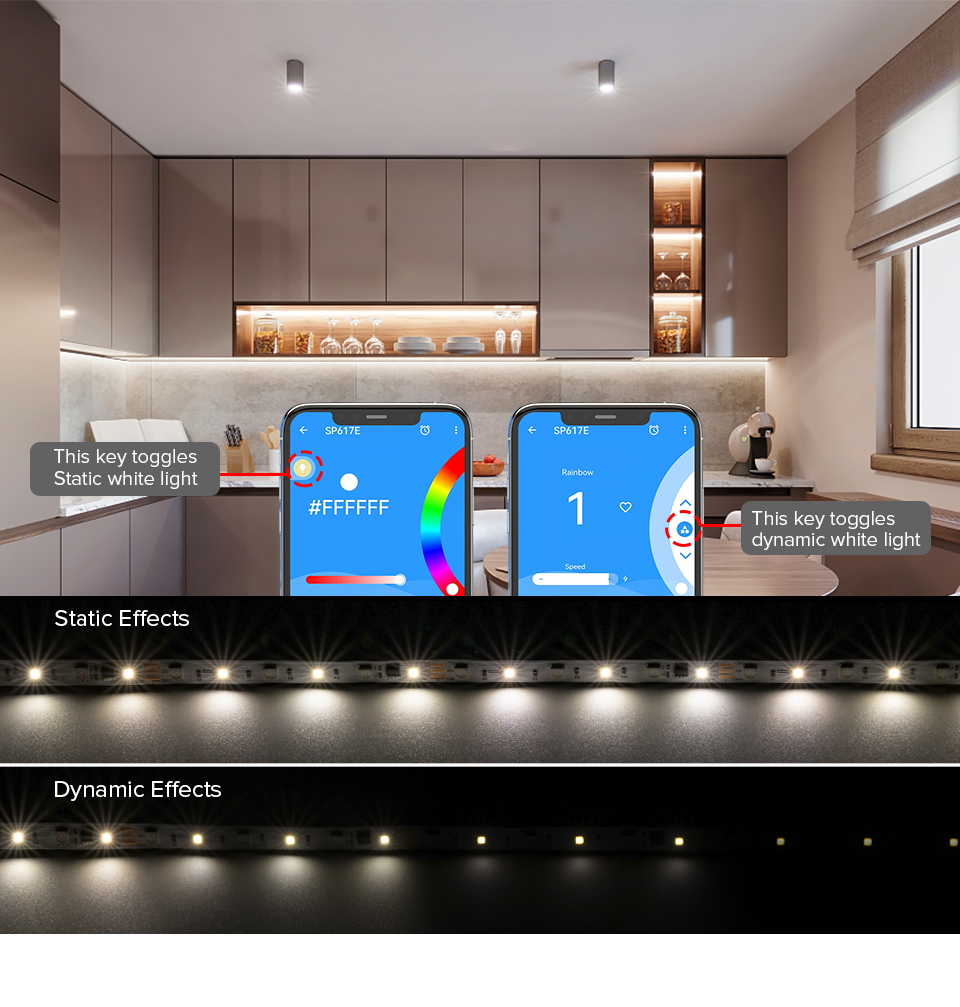

► Individually controllable static pure white light (W channel).
► Built-in 152 dynamic effects(10 kinds of W channel effect), effect length adjustable, with favour effects collecting function;
► Built-in 18 music effects, effect length adjustable, sensitivity adjustable;
► DC5~24V wide voltage input, the power supply has anti-reverse connection function;
► Automatic saving function
SK6812, SM16704, UCS2904, WS2814, TM1824 RGBW etc

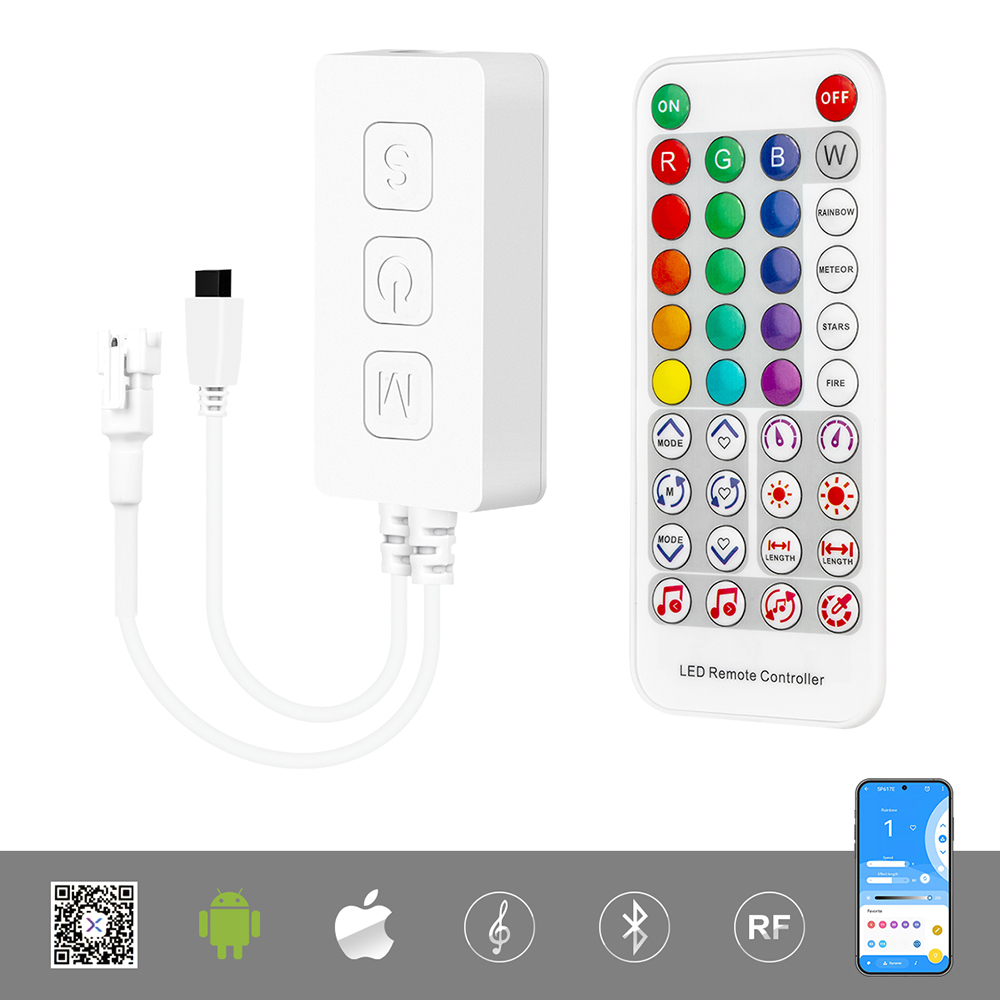

APP (iOS or Android)/3-Button control/LED remote controller control/Voice control
Automatic memory function

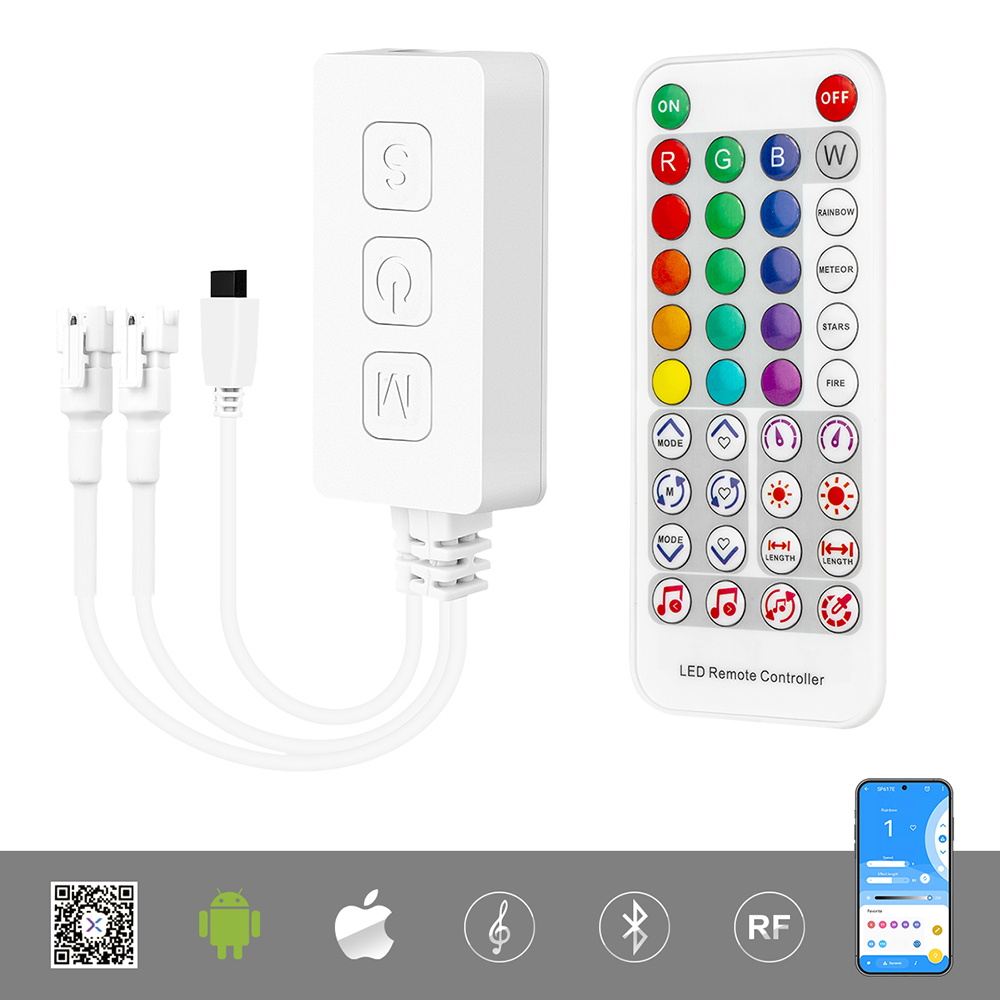

Package includes: 1pcs SP617E controller with box

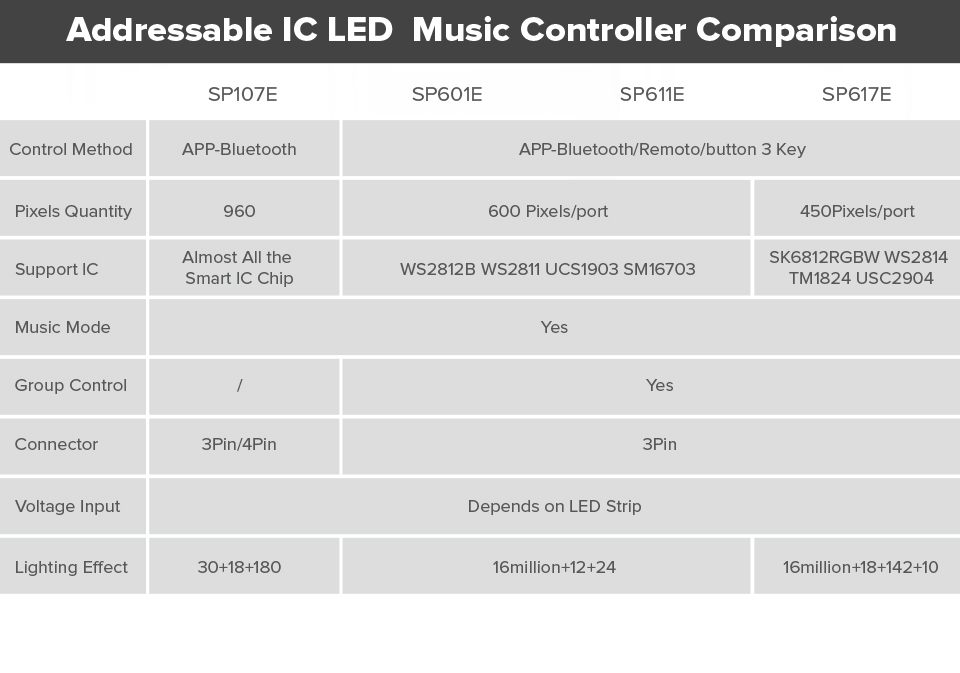

The difference between single channel and dual channel SP617E LED controller: 450pixels per channel, so single channel max support 450pixels, dual channel max support 900pixels(in parallel)
For DC5V individually addressable LED strip light, max support 450LEDs per channel; for DC12V 3LEDs cuttable LED strip, max support 1350LEDs; for DC24V 6LEDs cuttable LED strip, max support 2700LEDs per channel.
SP617E supports being controlled by APP, botth IOS and Android version are available
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later
Search “BanlanX” on the App Store or Google Play or scan the QR code to download and install the App:
♦ Open the App and click the "+" on the upper right corner of the homepage, add devices by scanning for devices, or creating a group of multiple added devices;
Click on an individual device in the device list to access the control page to control the device individually;
Click on a group in the group list to enter the control page to control all devices in the group at the same time;

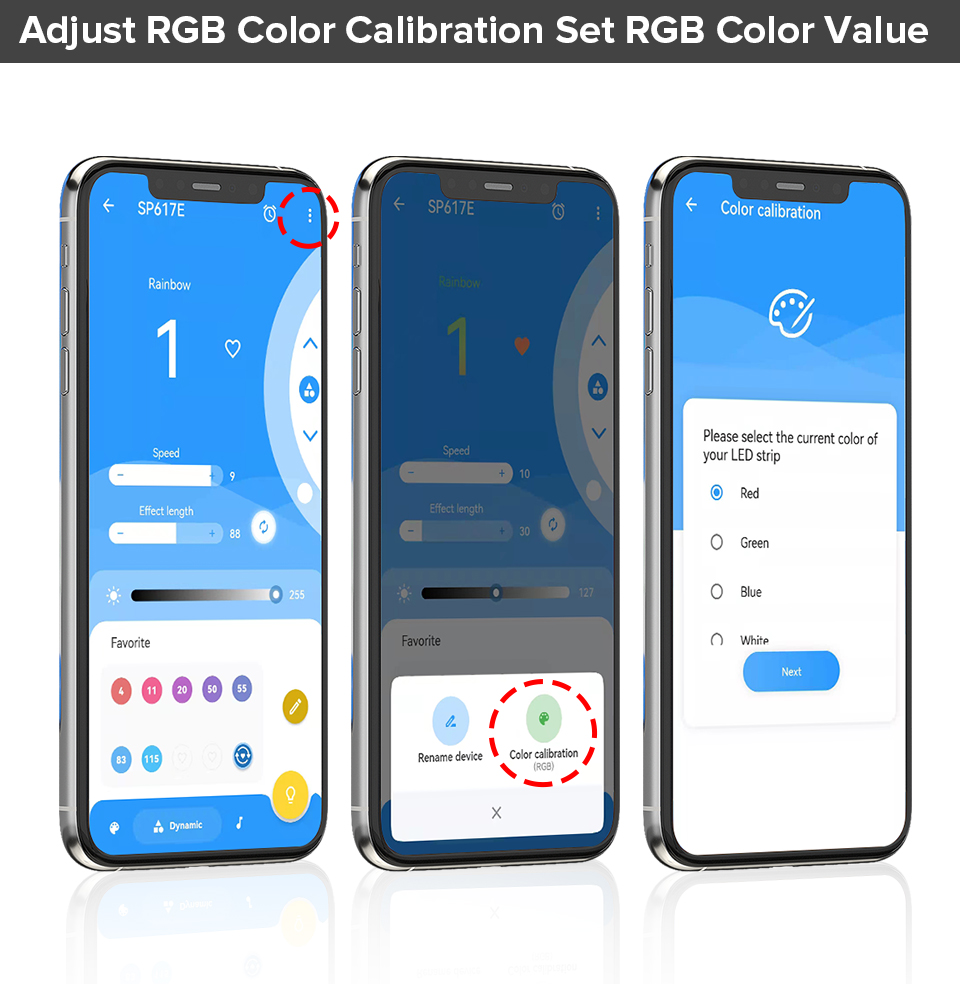

♦ User can modify the device name and calibrate the RGBW channel sequence by clicking ":" on the upper right corner of the operation page.

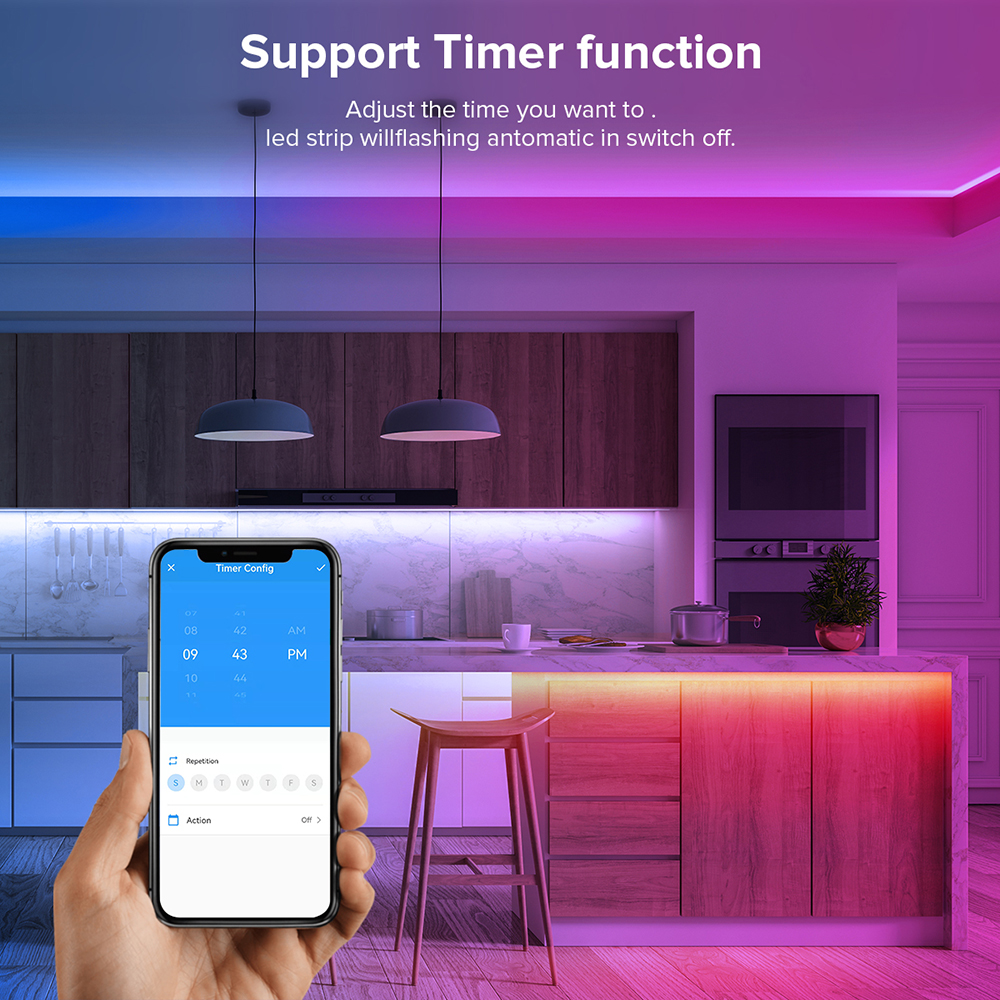

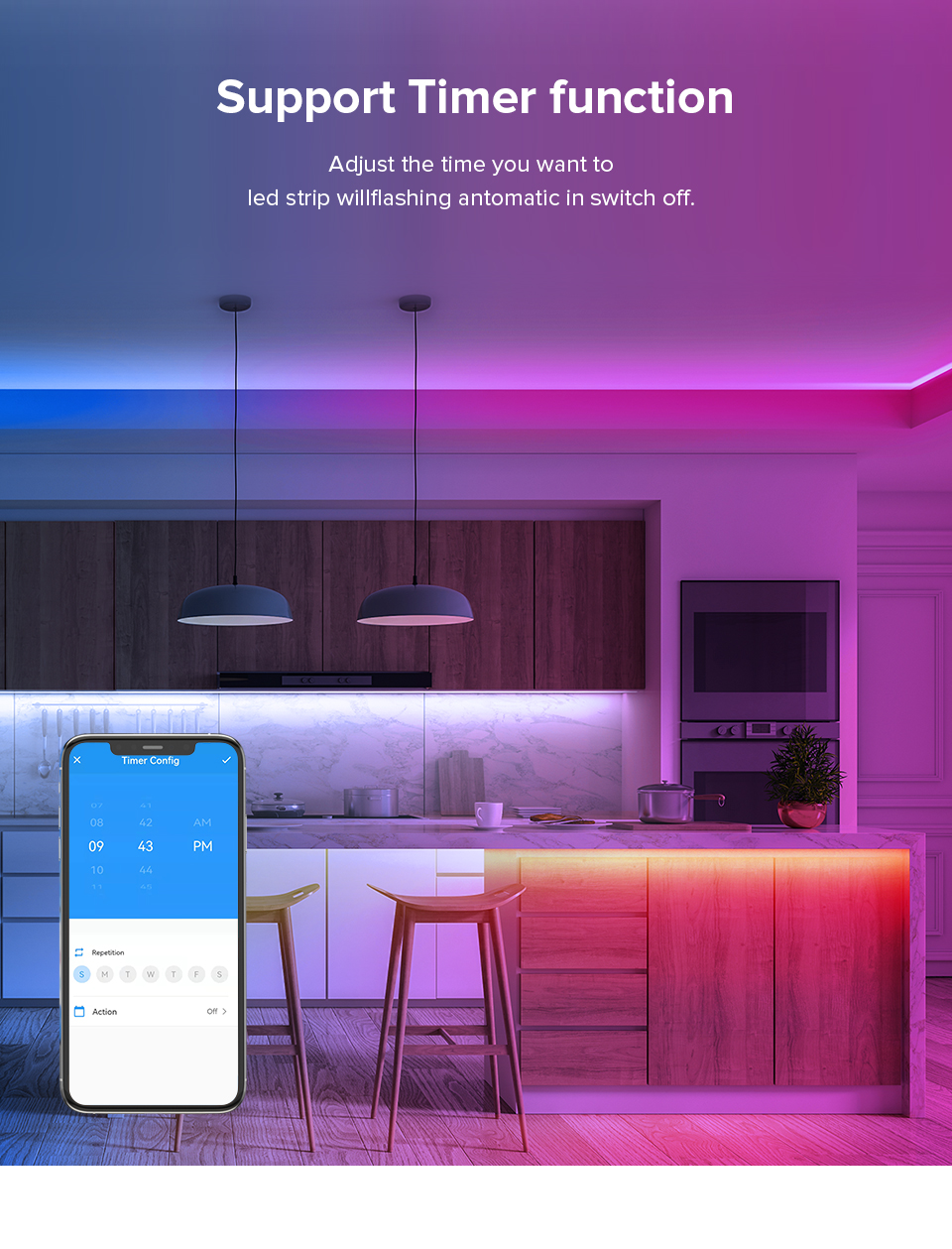

♦ User can set up to five timing events by clicking on "clock" in the upper right corner, please note that all set timing events will be deleted when the controller is powered off.

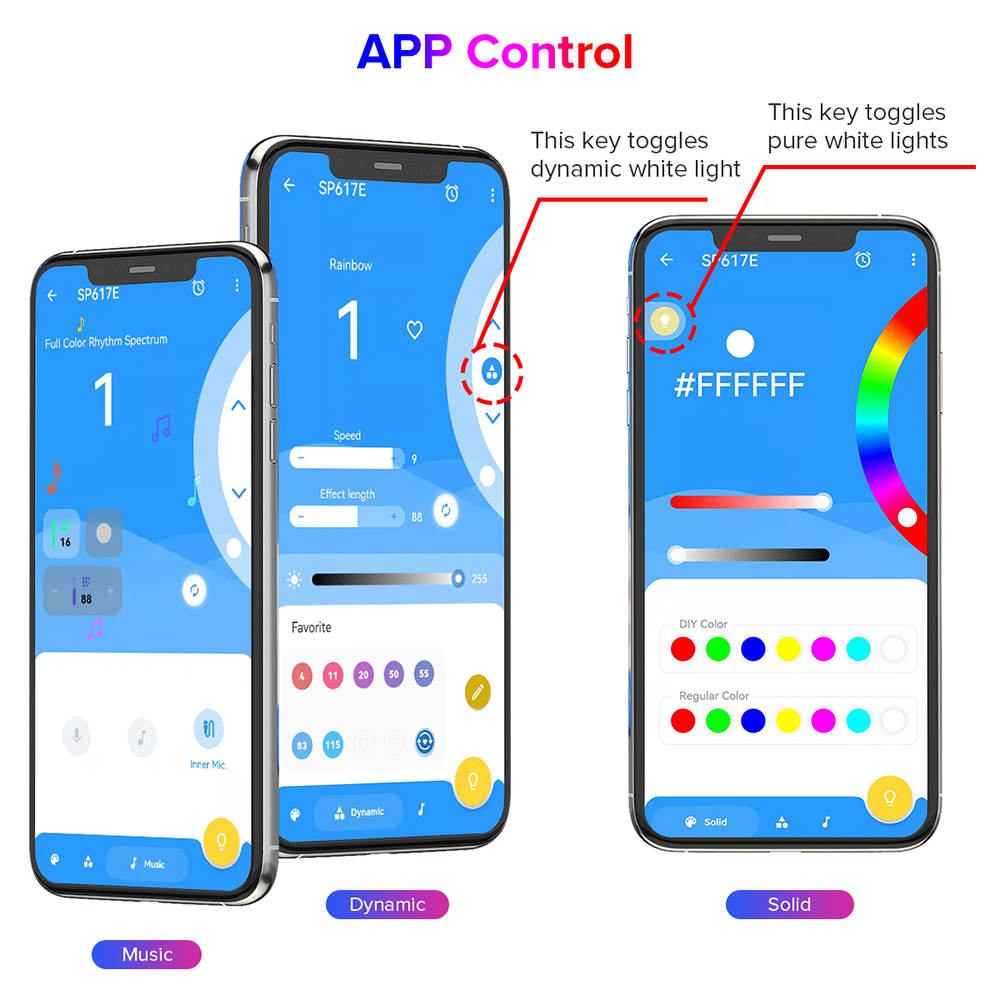

♦ In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness color and effect length for a specific effect.
Note: User can find more detailed information and help by clicking the "=" button in the top right corner.

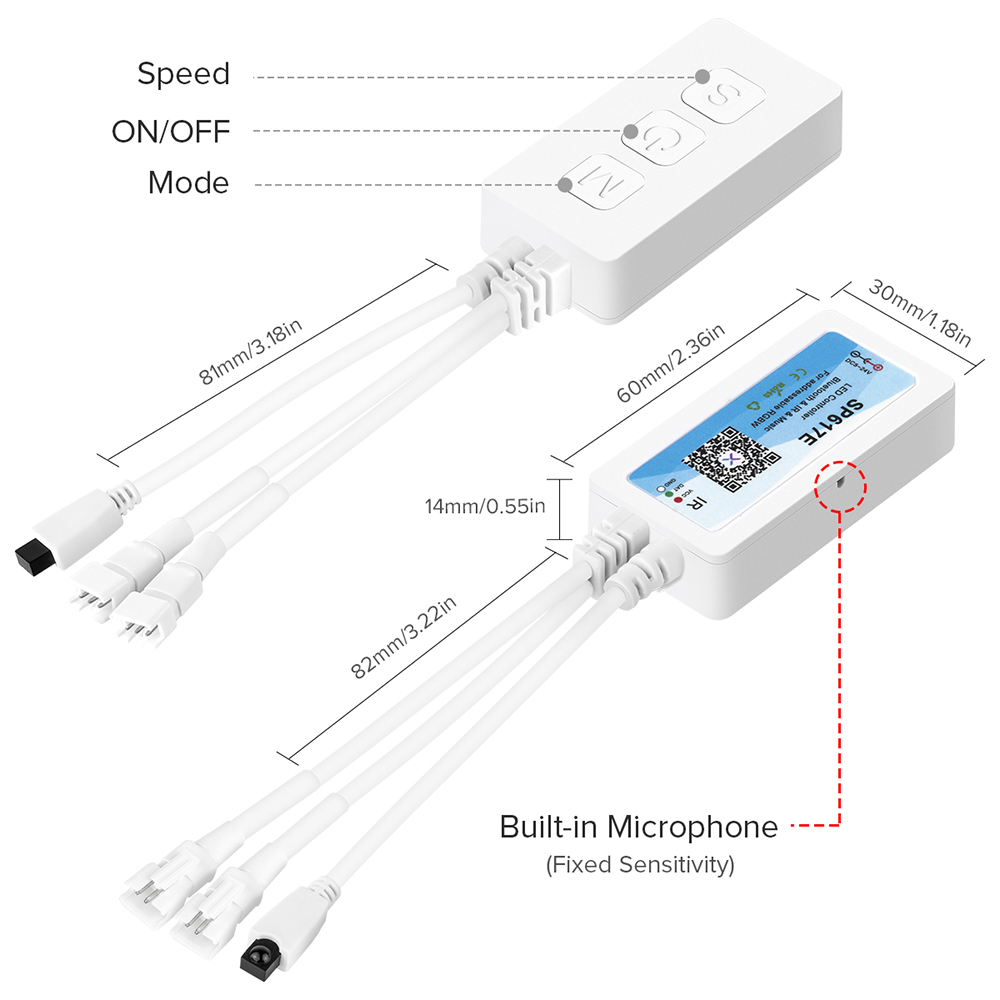

On/Off button: Turning on or off the LED light;
Mode button M : Switching the effects;
Speed button S : Adjusting the speed of the non-music effects.
► Power supply/phone/controller/led strip not include.
► This phone only support 2.4G WiFi network.Can't support 5.0G WiFi network.
► This app support Android 4.4 or above, IOS 10.0 or above.
► Supply voltage of this product is 5~24 Volts DC, do not exceed.
► Shorting output wires my cause damage to dimmer.
► Always observe proper polarity when connecting power and load.
► For indoor use only - this product is not waterproof or weatherproof.

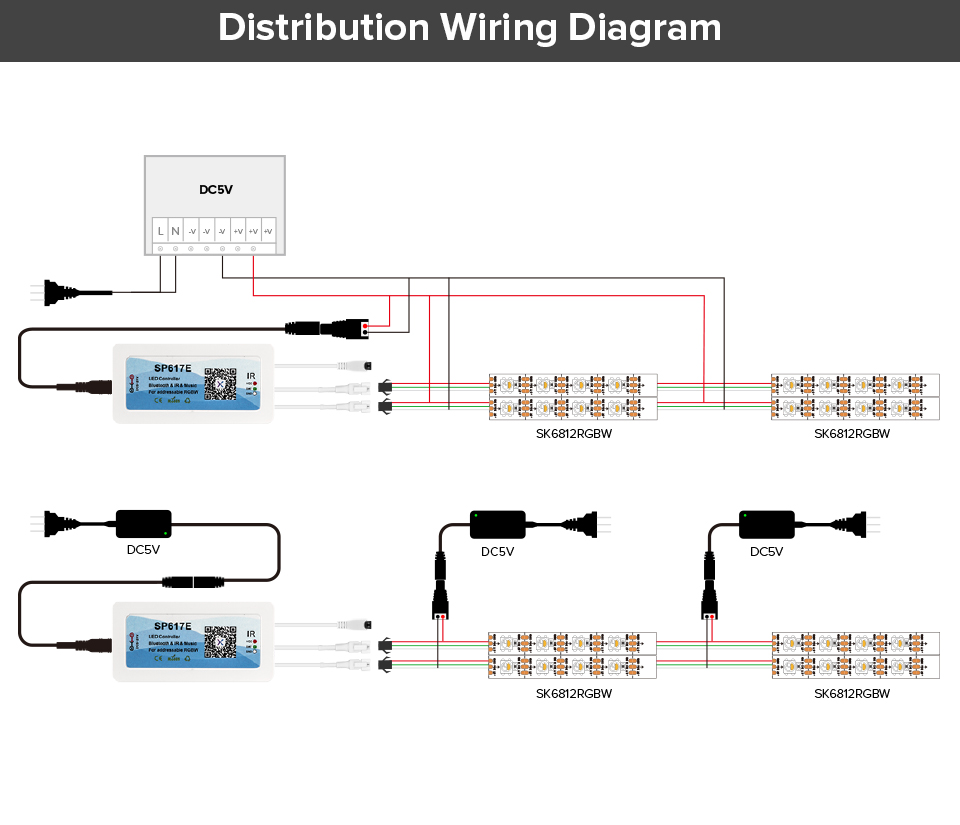

Wiring Diagram: How to wire addressable LED strip light?
1. Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
2. Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
