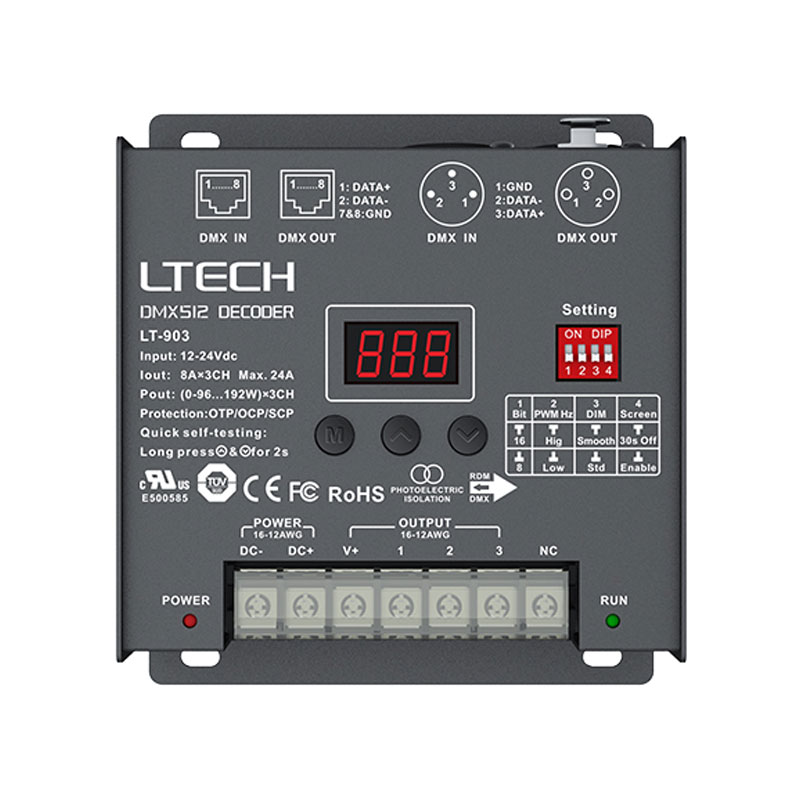

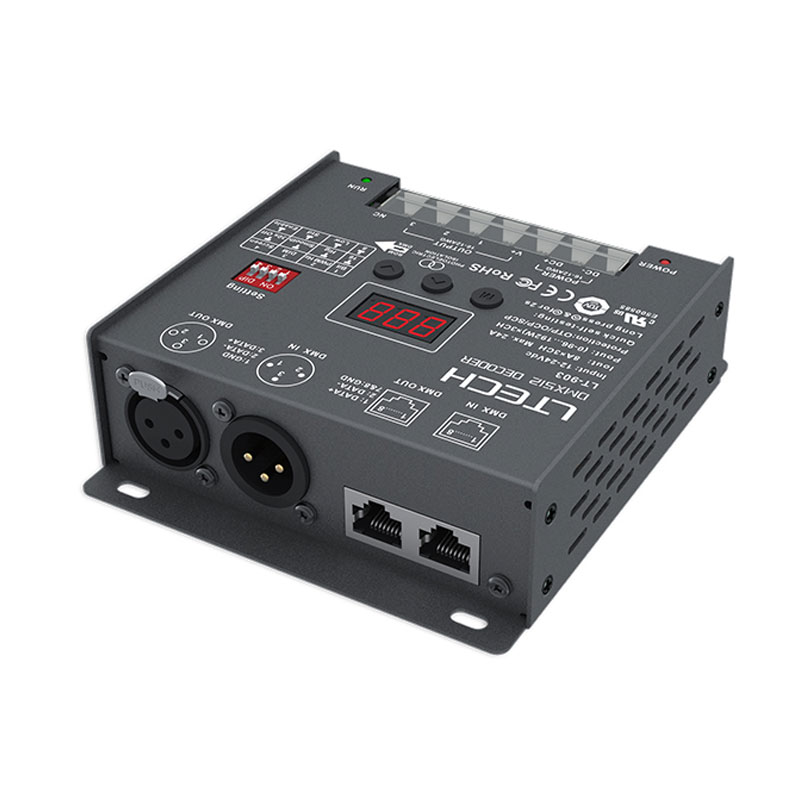

DC12-24V,Max. 24A,3CH CV DMX Decoder LT-903

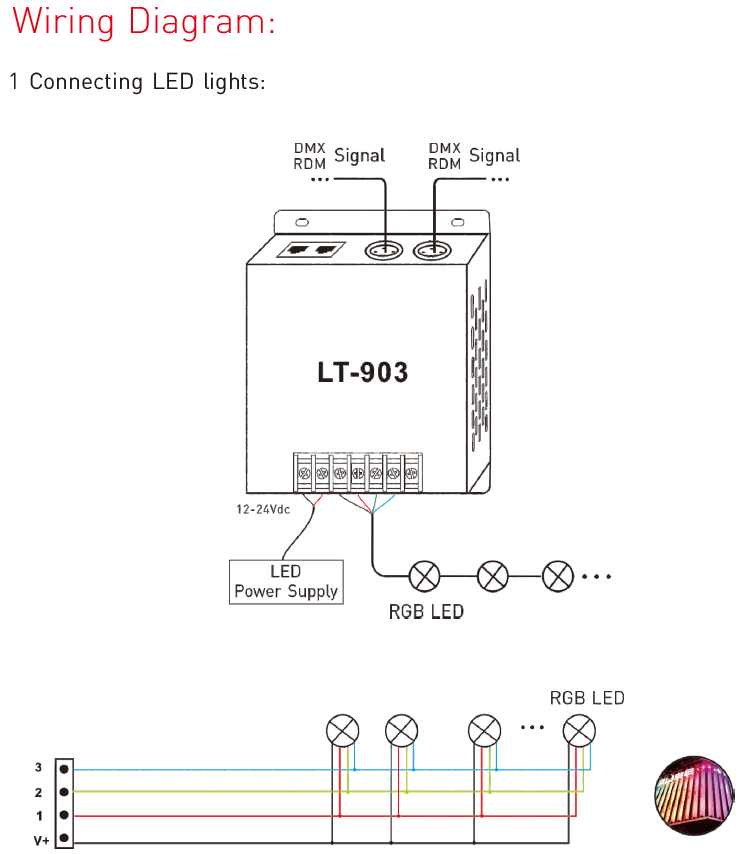

1. Designed with 3 channels output, and Max. 8A current per channel, up to 576W output power.
2. Easy operation with OLED screen and the touch buttons.
3. Support 2 kinds of DMX ports with signal isolation function: 3-pin XLR, RJ45.
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With shortcut protection and overload protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Input signal :DMX512/RDM
Input voltage: DC12V～DC24V
Max load current :8A x 3CH Max. 24A
Max output power: (0~96W...192W) x3CH Max.576W

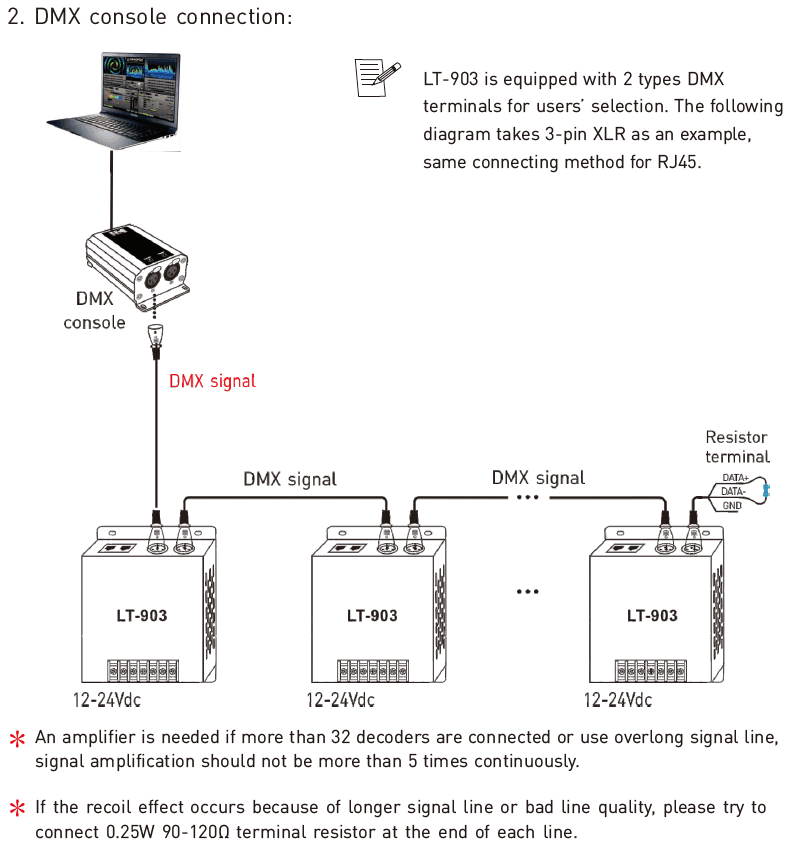

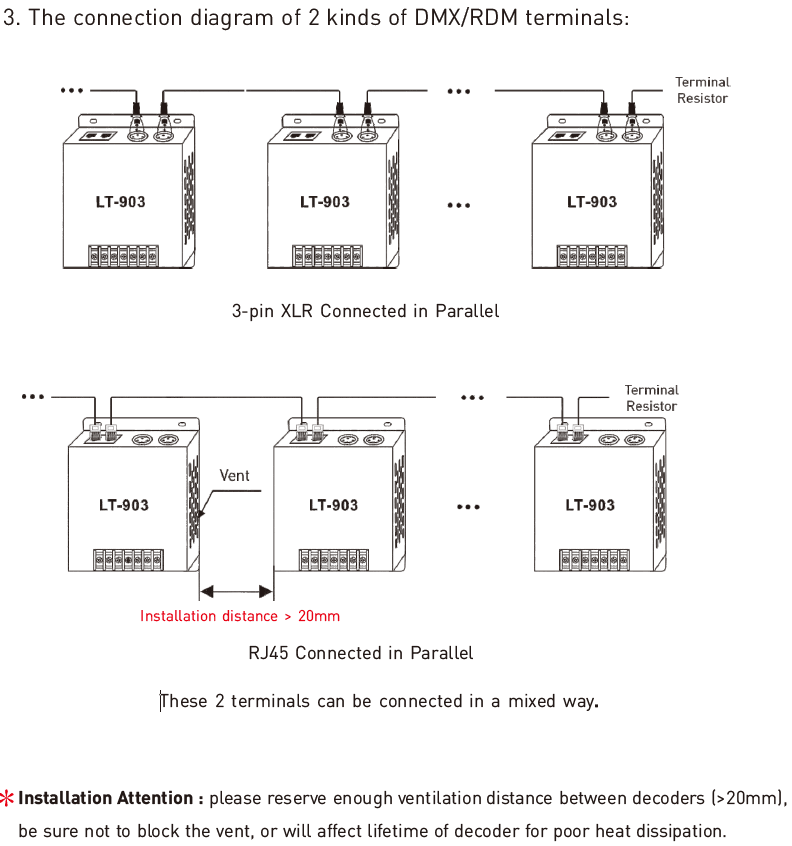

DMX512 socket :3-pin XLR, RJ45
Gray scale level :8bit(256 levels)/16bit(65536 levels)
Working temperature :-30℃～65℃
Package Size: L127×W123×H41mm
Weight (G.W) :550g
