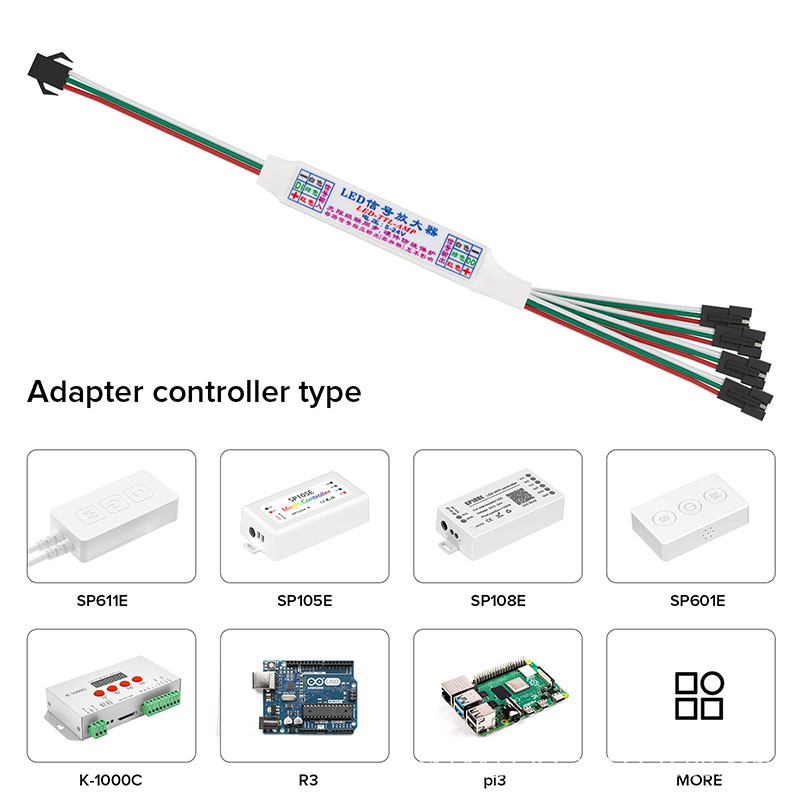

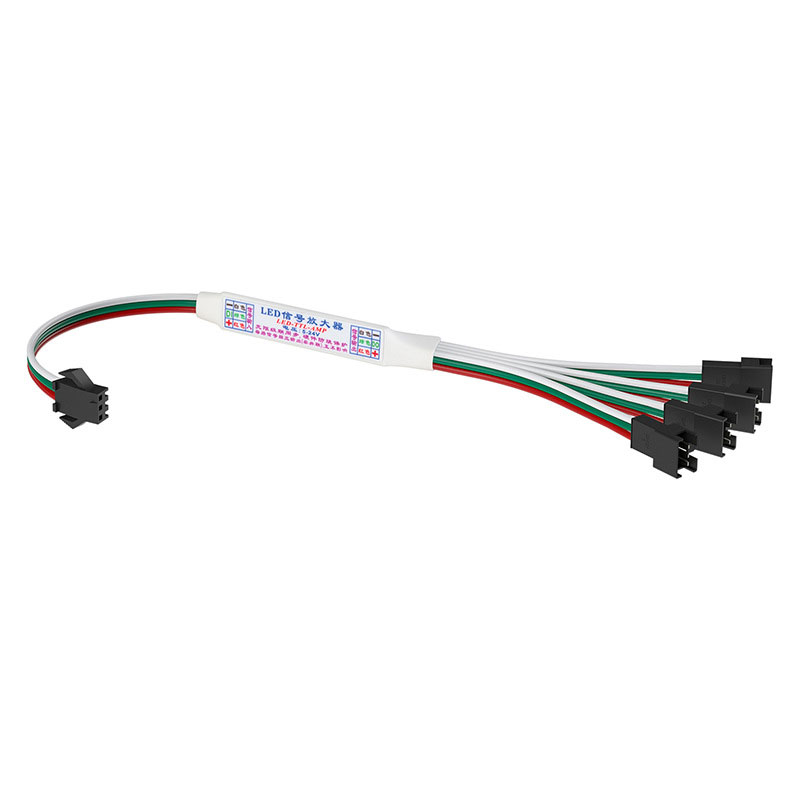

Mini Signal Sync 4 Channel Amplifier For 3 Pin Addressable LED Strip
This product is a mini SPI digital signal amplifier to properly solve the wiring problems of WS2812B/WS2811 3-pin addressable led strip lights.

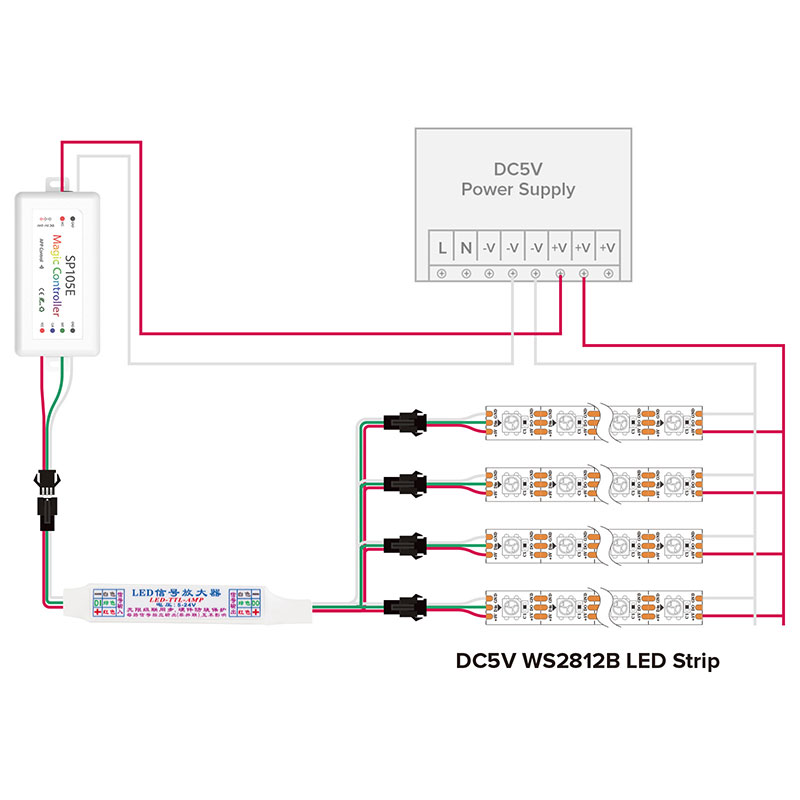

It works with 5-24 volt DC voltage, one channel input, output 4 channels signals, all light strips work synchronously.

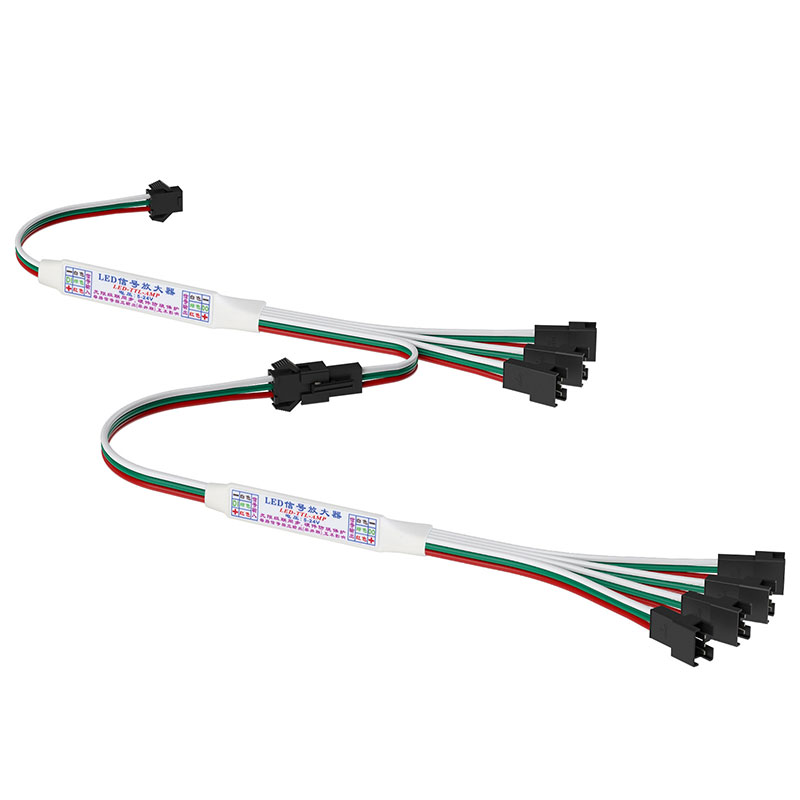

Each signal is output independently and does not affect each other. It can be 10-20 meters long (33ft~65.6ft) between every two mini amplifiers.
With hardware burn-proof protection.
Standards and Certifications
Working temperature: -20-60℃
Input voltage: DC5-24V
Output voltage: DC5-24V
Output: SPI signal
