Special Price: $38.98 $26.9831% off
DC12V WS2815 Dual Signal Wires Individually Addressable RGB Strip Lights and 6000K/3000K Addressable White LED Strip for sale.
Feature
1. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.
2. With 4-pins male connector and separated power/ground wire at both ends for easy interconnection and power connection.
3. Waterproof IP67: the ribbon light is covered with silicone protective sleeve, which can protect it well and makes it easy to clean.
4. Individually addressable: Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors.
5. The digital LED WS2815 fully color integrates all electronic components into a single 5050 luminaire, without the need for any other peripheral electronic components to assist in forming a complete internal control pixel.in the meanwhile，the WS2815 LED strip reduces resistance caused by inverting the product during installation.
6. Wide compatibility. Works great with LED screnn, LED wall, advertising board, and widely apply for KTV, hotel, bars, clubs, wedding party lighting, etc.
WS2815 Chips Specifications Download
Standards and Certifications
Specifications:
| LED Strip Type: | Individually Addressable RGB LED Strip Lights |
| LED Chip: | WS2815 Breakpoint Resume + SMD5050 |
| Input Voltage: | DC12V |
| Power: | 14.4W/m max, 72W/roll |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | Full color RGB, addressable 6000K Daylight White / 3000K Warm White |
| PCB Width: | 10mm/0.4" |
| LED Quantity: | 60 LEDs/m, 300LEDs per roll |
| IC Quantity: | 60 IC/meter (1 IC drives 1 led chip) |
| Dimensions: | L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in ) |
| Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 |
| Lumen: | 20-22 lm/LED, 6600lm Max /16.4ft |

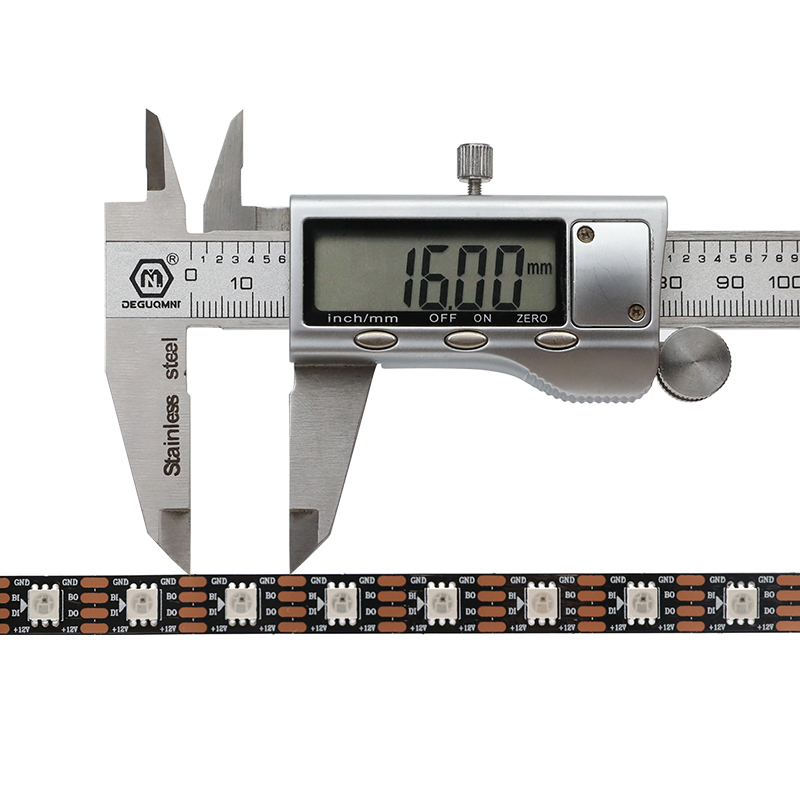

| Cuttable: | 1-LED, 16.66mm/0.65" |
| PCB Color: | White / Black |
| Beam Angle: | 120° |
| Lifespan: | ≥50000hrs |
WS2815 Technical Features
The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.
Pin Function
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
How to wire breakpoint resume series addressable led strip lights?
Breakpoint resume series addressable pixel led lights wiring diagram:
*Click the above picture to know more addressable led strip wiring diagram.
About how to install non-waterproof pixel led strip lights and outdoor waterproof led pixel light strips, how to cut and connect addressable led strip lights, can addressable led strip lights use led aluminum channel, how to use led aluminum profiles, etc., please read: How to install addressable led strips?
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
| By : Patrick Boersma Date Added: 10/21/2021 | |
| Only way to by led strips superlightingled is the best this is there best line over all there others | |
Rating:
|
|
| By : Chuong Dao Date Added: 09/25/2021 | |
| Product is as advertised. Installation is easy. thank you SLL | |
| Rating:
|
|

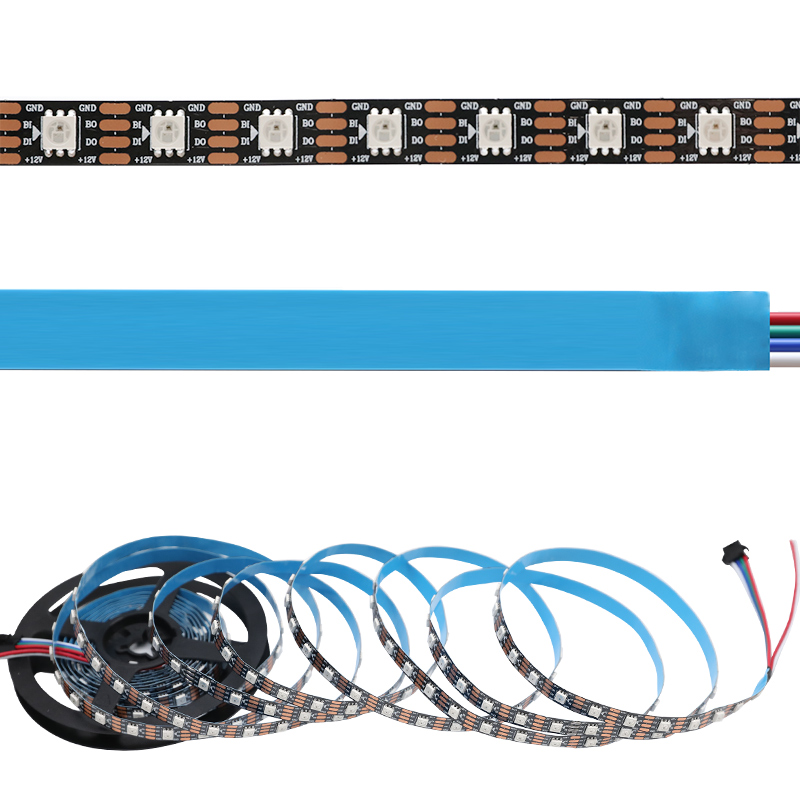

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
