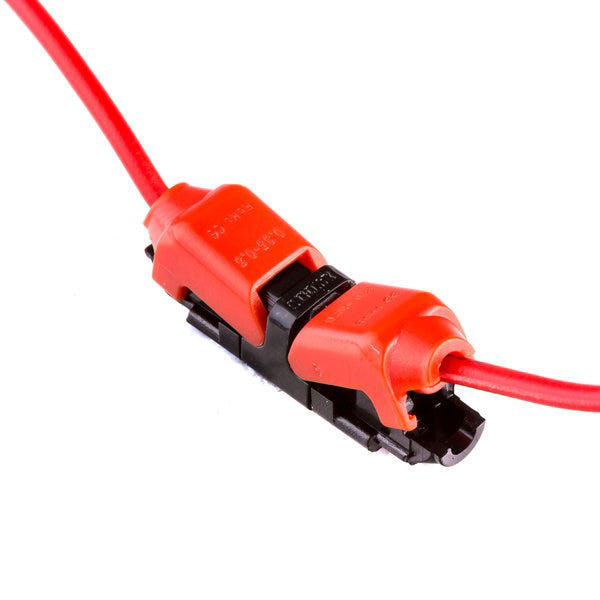

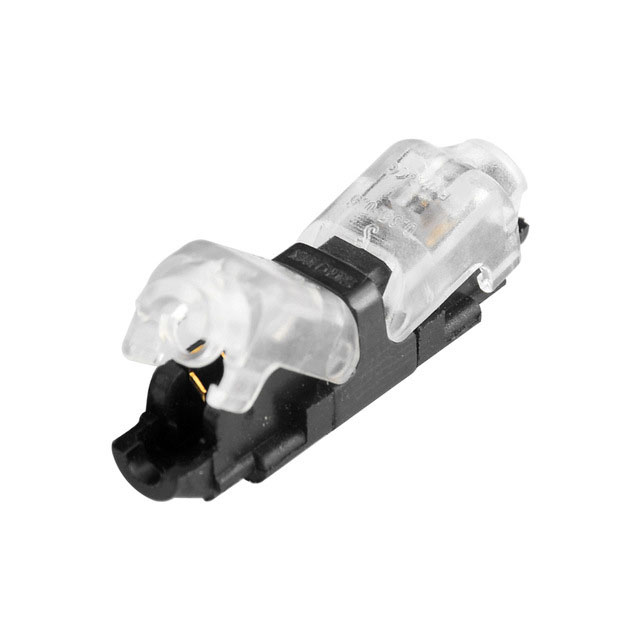

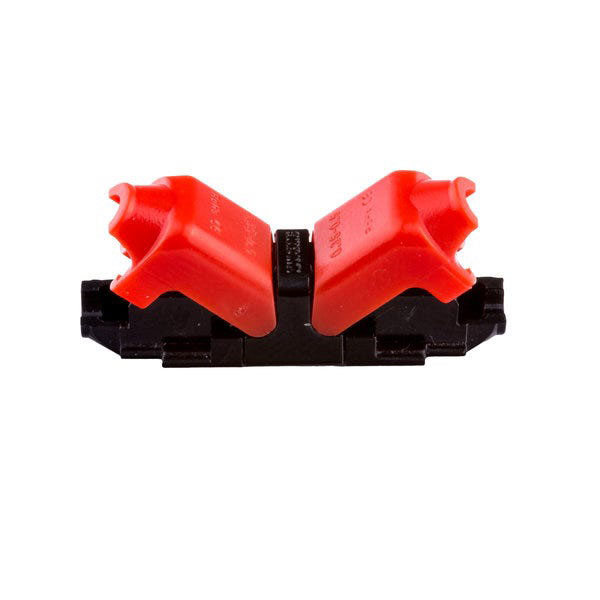

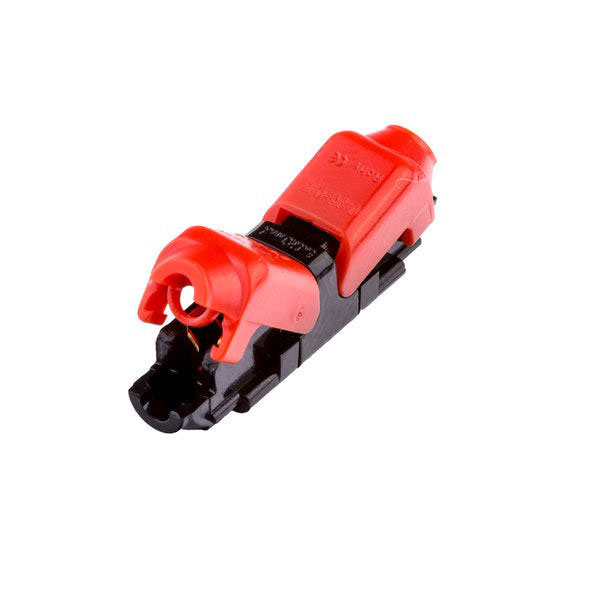

I-Type 1 Wire Clip-On Connector For 18~22AWG

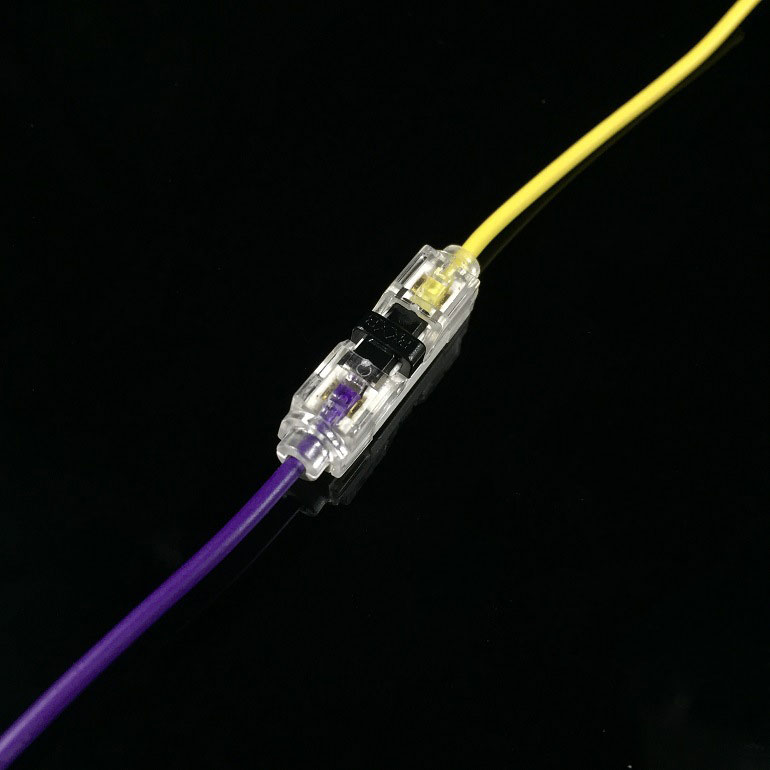

The 1 Wire Clip-On Connector is an essential component for any wiring project. This connector is designed to easily connect wires together and provide a reliable electrical connection. You don't stripe the insulation of the wire, put the wire directly into the wire holes and clamped it with a plier.
This wire connector is compatible with wires that have a diameter of 18~22AWG (0.5㎡-0.35㎡), making it suitable for a wide range of applications. It is rated for 0-10A and works under 0-36V. The maximum insulation outer diameter is 2.1mm.
Wire Gauge: 18-22AWG
Rated Current Load: 0-10A
Working Voltage: 0-36V
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
