Black Diffuser Flat Top Glare Free Light Flex LED Silicone Tube 120° Top Emitting 05*13mm

Model: FLNLT-T0513B
Black Diffuser Flat Top Glare Free Light Flex LED Silicone Tube 120° Top Emitting 05*13mm
  • Black Diffuser Flat Top Glare Free Light Flex LED Silicone Tube 120° Top Emitting 05*13mm
  • Black Diffuser Flat Top Glare Free Light Flex LED Silicone Tube 120° Top Emitting 05*13mm
  • Black Diffuser Flat Top Glare Free Light Flex LED Silicone Tube 120° Top Emitting 05*13mm

Select Specifications:

Starting at: $4.00 $2.9826% off

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    All black silicone led diffuser for 10mm led strip lights, 05*13mm size, flat top, anti-glare, no dizzying light. Made of soft silicone material, this black silicone led tube has great flexibility, can be bent to design your own lighting shapes and patterns.

    The 10mm led strip lighting is installed in the black silicone led channel, through sealing the end caps, it is IP67 waterproof protection for the inside IP20 led strip.

    Black led light diffusers are suitable for diy decor, Christmas decorations, home decor, wall decor, room decor, etc.

    Diffuser Surface:  Black
    Tube Material:  Food-grade Silicone
    Lighting Direction:  120° Top-emitting

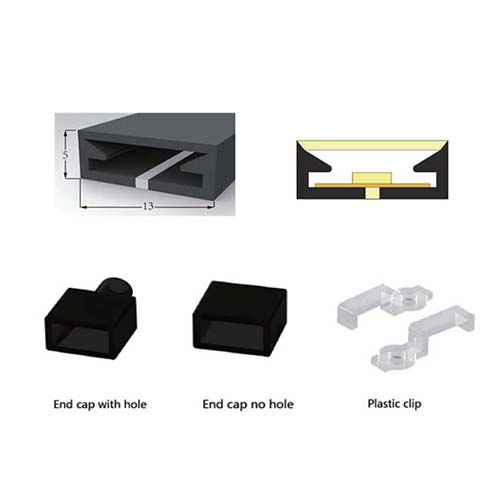

    External Width:  13mm/0.52in
    External Height:  5mm/0.20in
    Available LED Strip Width 10mm/0.4"
    Length:  1m/3.28ft, 2m/6.56ft, 5m/16.4ft
    Available LED Strip Type:  Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip
    Accessories:  End Caps (come with), Mounting clips (Please choose in the "Kit" option)
    Waterproof Rating:  IP67
    UV Resistant:  Yes
    Working Temperature:

    -50°C to 200°C

    LED Neon Light Knowledge Source:

    What Are LED Neon Lights?

    Flexible LED Neon Lights: Silicone Tube VS PVC Tube



    warm tips Note:

    The product does not include led light strips.

    If you buy our LED strips at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.

    If you insist on completing the production of neon lights by yourself, you can read: How To Put  A Flexible LED Strip Light Into A Silicoen Tube?

    We are not responsible for any damage caused by your own operation!

    how to make led neon lights by yourself





    Flex LED Neon Tube Installation:

    There are three installation methods for neon silicone tubes, one is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.

    The second is to put the flex led neon tube into the aluminum channel, this installation method is suitable for linear lighting projects.

    And the third is to use flexible profiles for curved path lighting, which has great bending freedom.

    Three Ways to Fix LED Neon Tube Lights



    Using Application:

    LED neon tube with Single color/CCT/RGB/RGBW/RGBCCT/Addressable LED strip has wide applicability. It can be applied to the following scenes.

    1.Building outline lighting

    2.Hotel lighting project

    3.Bridge lighting project

    4.Cultural tourism town lighting project

    5.City park lighting project

    6.Festival atmosphere decoration project

    7.Airport lighting project, etc.
